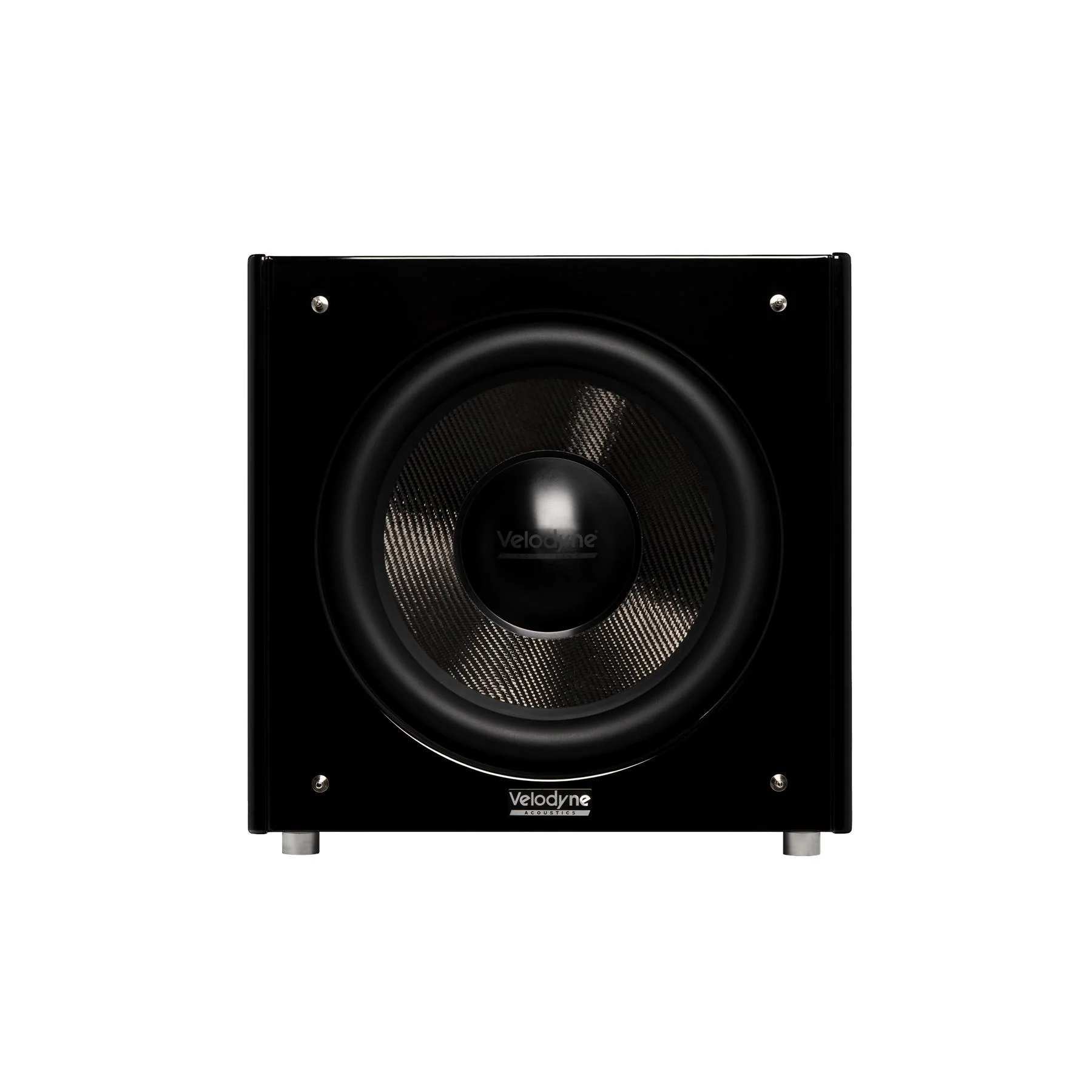

Velodyne Acoustics SPL-X 15 Subwoofer
Velodyne Acoustics SPL-X 15 15-inch Sealed High-End Subwoofer
The Velodyne SPL-X 15 is a reference-level 15-inch sealed subwoofer designed for listeners who demand extremely powerful, room-shaking bass with the finesse of a studio tool. A substantial carbon fiber driver with a four-layer 4″ voice coil and triple ferrite magnet is powered by a 1500 W RMS / 2000 W peak Class D amplifier, providing massive headroom for the most demanding movie soundtracks and high-energy music.
Combining this hardware with advanced DSP, AutoEQ and comprehensive app-based control, the SPL-X 15 can be precisely tailored to large rooms and complex multichannel systems. Its sealed, reinforced HDF cabinet and top-tier driver technology help maintain articulation and control, even at very high output levels.
Velodyne Acoustics SPL-X 15 Full Specifications:
- Subwoofer type: High-end active sealed subwoofer, SPL-X series
- Woofer: 15″ high-performance driver with basket featuring three ventilation channels, carbon fiber cone, dual-spider suspension
- Voice coil: Four-layer 4″ (102 mm) voice coil
- Magnet system: Triple ferrite magnet system
- Cabinet: Closed, reinforced HDF construction
- Amplifier: Class D, 1500 W RMS / 2000 W peak
- Frequency response (±10 dB): 15–250 Hz
- Frequency response (±3 dB): 22–180 Hz
- Low-pass filter: 30–200 Hz adjustable, 12/24/36/48 dB per octave
- Delay: Adjustable 0–500 ms
- Inputs (RCA): RCA stereo / LFE
- Inputs (XLR): XLR stereo / LFE
- Inputs (high-level): High-level stereo input
- Outputs (RCA): RCA stereo / LFE
- Outputs (XLR): XLR stereo / LFE
- DSP & control: DSP-controlled AutoEQ with microphone, 6-band parametric EQ, subsonic filter, high-pass filter, presets, app control
- Auto power-on: Yes, sensitivity adjustable
- Power switch modes: On / Auto / Trigger
- Mains voltage: 115 V – 230 V
- Front grille: Black fabric grille, MDF frame
- Dimensions (W × H × D): 470 × 470 × 580 mm
- Net weight: 45 kg
- Shipping weight: 50 kg
Velodyne Acoustics SPL-X 15 Q&A:
- How does the SPL-X 15 differ from the smaller SPL-X models?
- It uses a larger 15″ driver and a 1500 W RMS amplifier, providing greater output and deeper bass for larger rooms.
- What is the frequency response of the SPL-X 15?
- Its frequency response is 15–250 Hz (±10 dB) and 22–180 Hz (±3 dB), ideal for full-range LFE duties.
- Is the SPL-X 15 suitable for very large rooms?
- Yes, the combination of a 15″ driver, powerful amplification and sealed cabinet makes it well suited for large spaces when properly placed and tuned.
- What connectivity options does the SPL-X 15 provide?
- It includes RCA and XLR stereo/LFE inputs and outputs plus high-level stereo inputs for flexible integration.
- Does the SPL-X 15 have automatic room correction?
- Yes, its DSP includes an AutoEQ function with microphone, as well as a parametric EQ for detailed tuning.
- What crossover options are available on the SPL-X 15?
- The low-pass filter is adjustable from 30–200 Hz with 12/24/36/48 dB per octave slopes.
- How heavy is the SPL-X 15?
- The SPL-X 15 weighs 45 kg and ships at 50 kg.
- What power modes does the SPL-X 15 support?
- It provides On, Auto and Trigger modes, plus an adjustable auto power-on function.
Velodyne Acoustics SPL-X 15 Downloads:
Velodyne Acoustics SPL-X 15 User Manual
