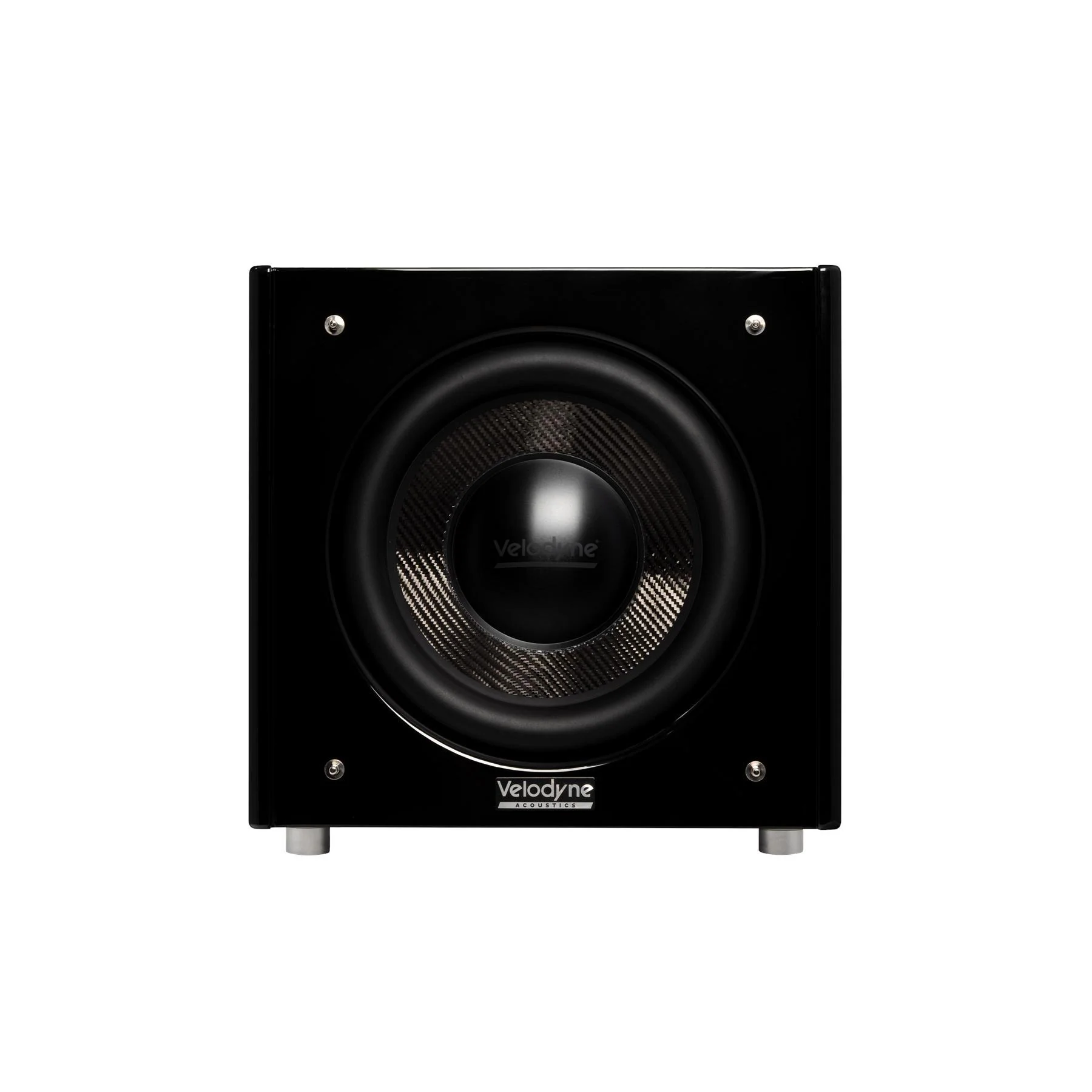

Velodyne Acoustics SPL-X 12 Subwoofer
Velodyne Acoustics SPL-X 12 12-inch Sealed Subwoofer
The Velodyne SPL-X 12 is a powerful 12-inch sealed subwoofer that pushes the SPL-X platform further with greater output and deeper extension for larger rooms and more demanding systems. Its heavy-duty carbon driver with a four-layer 4″ voice coil and triple ferrite magnet system is driven by a 1200 W RMS / 1700 W peak Class D amplifier, delivering impactful yet controlled bass that remains composed at reference levels.
As part of the SPL-X flagship series, it incorporates advanced DSP with AutoEQ, a 6-band parametric EQ and app control, making it easy to tune for any listening environment. With RCA and XLR stereo/LFE inputs, high-level inputs and matching outputs, the SPL-X 12 integrates seamlessly into sophisticated HiFi and home theater systems where precision and authority in the low end are essential.
Velodyne Acoustics SPL-X 12 Full Specifications:
- Subwoofer type: High-end active sealed subwoofer, SPL-X series
- Woofer: 12″ high-performance driver with basket featuring three ventilation channels, carbon fiber cone, dual-spider suspension
- Voice coil: Four-layer 4″ (102 mm) voice coil
- Magnet system: Triple ferrite magnet system
- Cabinet: Closed, reinforced HDF construction
- Amplifier: Class D, 1200 W RMS / 1700 W peak
- Frequency response (±10 dB): 15–280 Hz
- Frequency response (±3 dB): 25–200 Hz
- Low-pass filter: 30–200 Hz adjustable, 12/24/36/48 dB per octave
- Delay: Adjustable 0–500 ms
- Inputs (RCA): RCA stereo / LFE
- Inputs (XLR): XLR stereo / LFE
- Inputs (high-level): High-level stereo input
- Outputs (RCA): RCA stereo / LFE
- Outputs (XLR): XLR stereo / LFE
- DSP & control: DSP-controlled AutoEQ with microphone, fully parametric 6-band EQ, subsonic filter, high-pass filter, presets, app control
- Auto power-on: Yes, sensitivity adjustable
- Power switch modes: On / Auto / Trigger
- Mains voltage: 115 V – 230 V
- Front grille: Black fabric grille, MDF frame
- Dimensions (W × H × D): 380 × 400 × 480 mm
- Net weight: 35 kg
- Shipping weight: 40 kg
Velodyne Acoustics SPL-X 12 Q&A:
- Who is the SPL-X 12 best suited for?
- It is ideal for medium to larger rooms where a high-end sealed subwoofer is needed for both music and home cinema.
- What is the power rating of the SPL-X 12 amplifier?
- The SPL-X 12 uses a Class D amplifier rated at 1200 W RMS and 1700 W peak for strong, controlled output.
- How low does the SPL-X 12 play?
- Its frequency response is 15–280 Hz (±10 dB) and 25–200 Hz (±3 dB), providing deep, cinematic bass.
- Does the SPL-X 12 include balanced inputs?
- Yes, it includes XLR stereo/LFE inputs and outputs, alongside RCA stereo/LFE and high-level inputs.
- Is the SPL-X 12 easy to tune to my room?
- AutoEQ, 6-band parametric EQ, adjustable crossover and delay settings make room tuning straightforward.
- What enclosure type does the SPL-X 12 use?
- It uses a closed, reinforced HDF cabinet for tight, well-controlled bass.
- What power modes are available on the SPL-X 12?
- The power switch offers On, Auto and Trigger modes, and the sub features an adjustable auto power-on function.
- How big and heavy is the SPL-X 12?
- The SPL-X 12 measures 380 × 400 × 480 mm (W×H×D), weighs 35 kg and ships at 40 kg.
Velodyne Acoustics SPL-X 12 Downloads:
Velodyne Acoustics SPL-X 12 User Manual
