Velodyne Acoustics MiniVee X Subwoofer

Velodyne Acoustics MiniVee X High-Performance 8-Inch Active Subwoofer

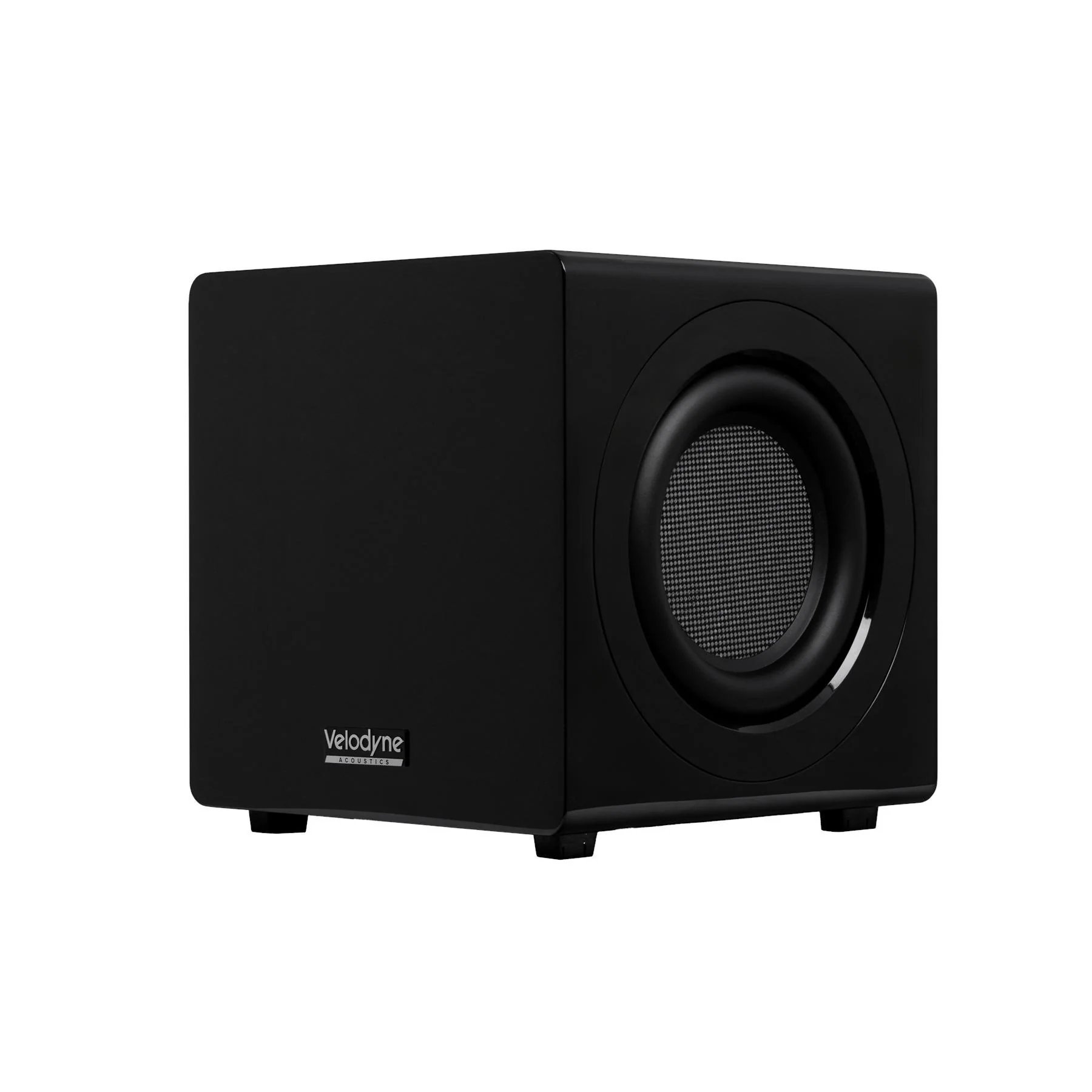

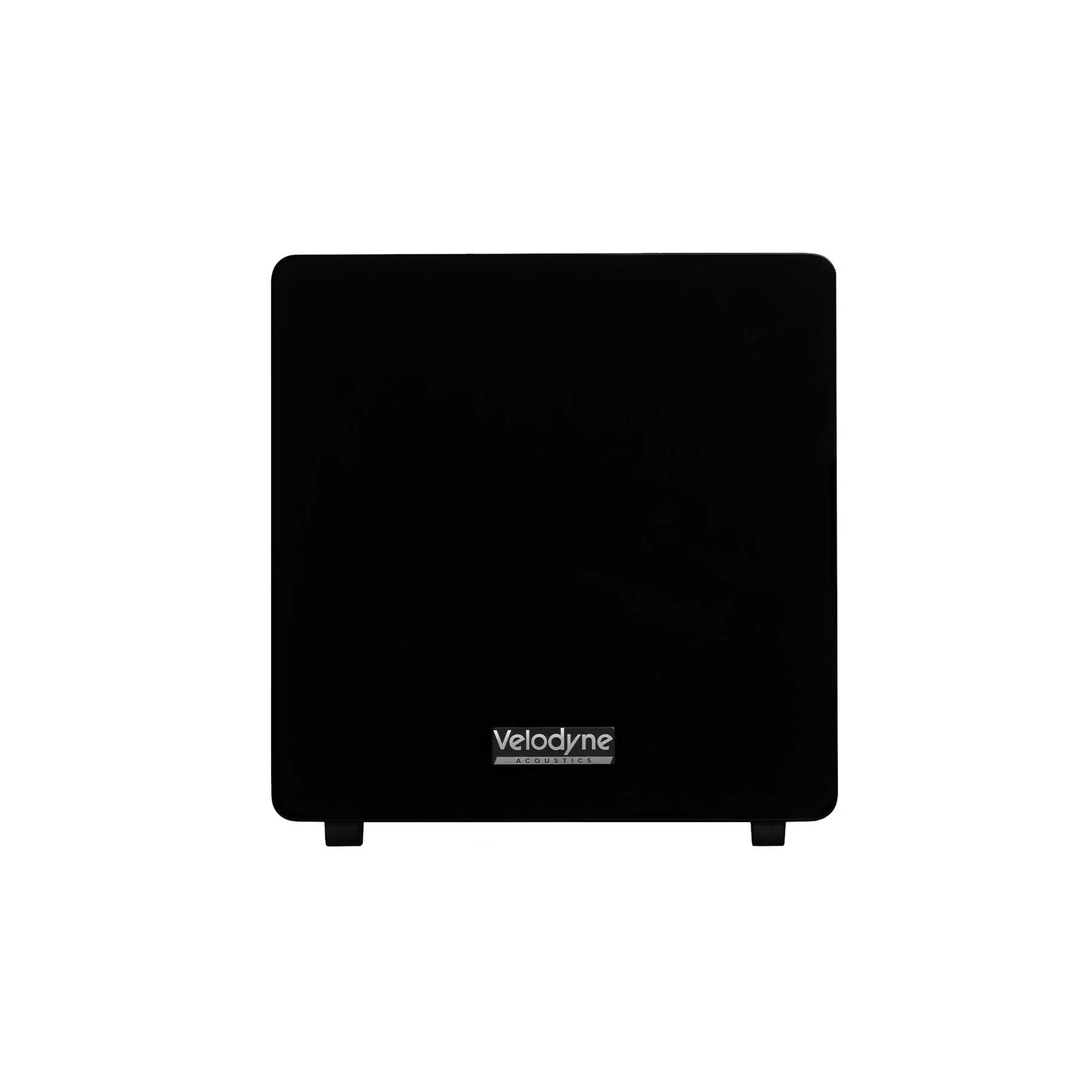

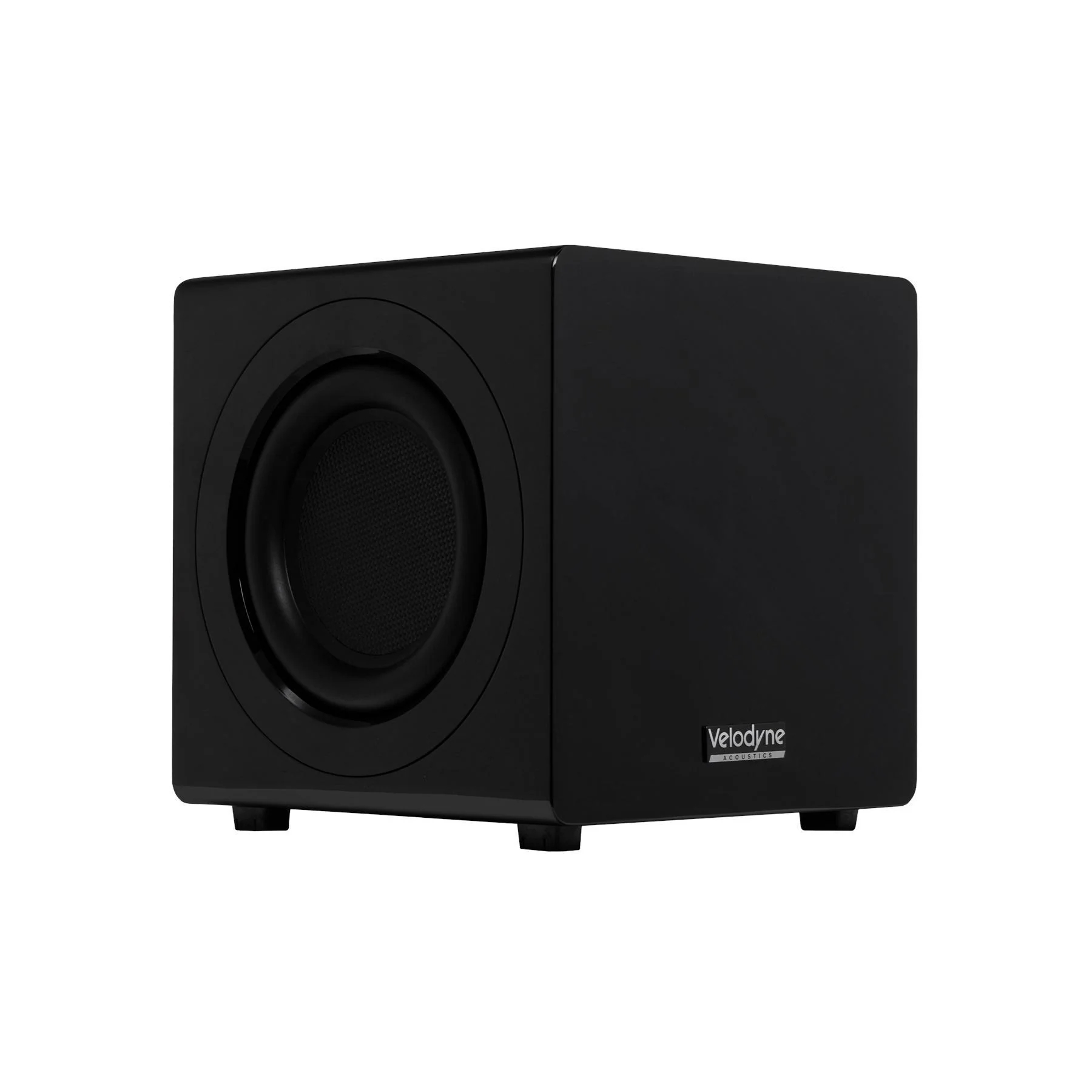

The Velodyne Acoustics MiniVee X is an ultra-compact, high-performance 8-inch active subwoofer designed for serious HiFi and home cinema systems where space is at a premium. Its sealed high-gloss MDF cabinet with extensive internal bracing minimizes unwanted resonances, giving you tight, controlled bass instead of boom.

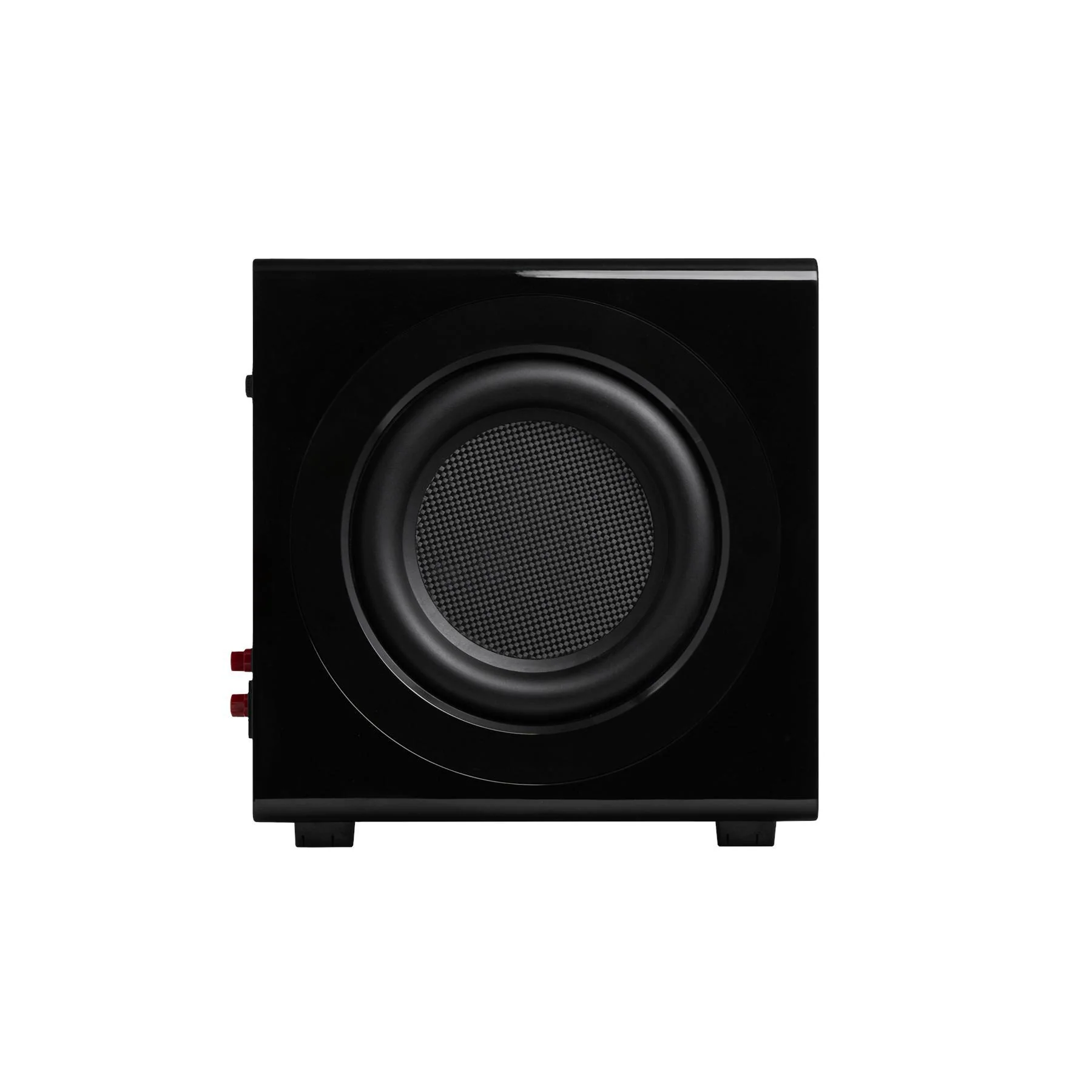

At the heart of the MiniVee X is an all-new proprietary 8-inch long-throw driver combined with an 8-inch passive radiator, driven by a dual ferrite magnet motor and a robust 2-inch, 4-layer copper voice coil. This sophisticated driver system is mated to a powerful Class D amplifier delivering 350 W RMS, up to 600 W at 2% THD and a maximum of 800 W dynamic output, with an overall frequency response extending from 18 Hz to 300 Hz for impactful low-frequency effects and music.

For effortless integration, the subwoofer offers a variable low-pass filter from 30–200 Hz, phase adjustment from 0–180°, and an overall response that allows fine-tuning from subtle musical support to room-shaking home theater bass. Connectivity is comprehensive: balanced XLR and unbalanced RCA inputs and outputs, a 12 V trigger in and trigger out with delay, plus a 5 V / 1 A USB power socket for Velodyne’s optional WiConnect II wireless transmitting system.

Control and setup are made easy via the Velodyne Acoustics Auto EQ app for iOS and Android, which uses the included calibration microphone to automatically optimize the subwoofer to your room, while providing numerous options to tailor the sound to your taste. Compact enough to disappear visually yet powerful enough to transform your system, the MiniVee X is engineered to deliver precise, musical bass in modern living rooms, dedicated theaters, and high-end stereo setups alike.

Velodyne Acoustics MiniVee X Full Specifications:

• Model: Velodyne Acoustics MiniVee X active subwoofer
• Application: High-performance subwoofer for HiFi and home cinema systems
• Enclosure Type: Ultra-compact sealed (closed) cabinet
• Cabinet Material & Finish: High-gloss MDF cabinet with internal bracing; finish: black
• Driver Configuration: One active 8" long-throw driver plus one 8" passive radiator
• Driver Technology: Proprietary long-throw driver with high-precision tuned overhung motor configuration
• Magnet Structure: Dual ferrite magnet motor
• Voice Coil: 2" diameter voice coil with high-current 4-layer high-purity copper windings
• Amplifier Type: High-efficiency Class D
• Amplifier Power: 350 W RMS @ 0.5% THD, 600 W @ 2% THD, 800 W maximum output
• Frequency Response (Overall): 18 – 300 Hz
• Frequency Response (±3 dB): 32 – 180 Hz
• Low-Pass Crossover: 30 – 200 Hz adjustable low-pass crossover, 12 dB/octave slope
• Phase Control: 0 – 180° continuously adjustable
• Room Correction & Control: Velodyne Acoustics Auto EQ app (iOS/Android) with supplied calibration microphone

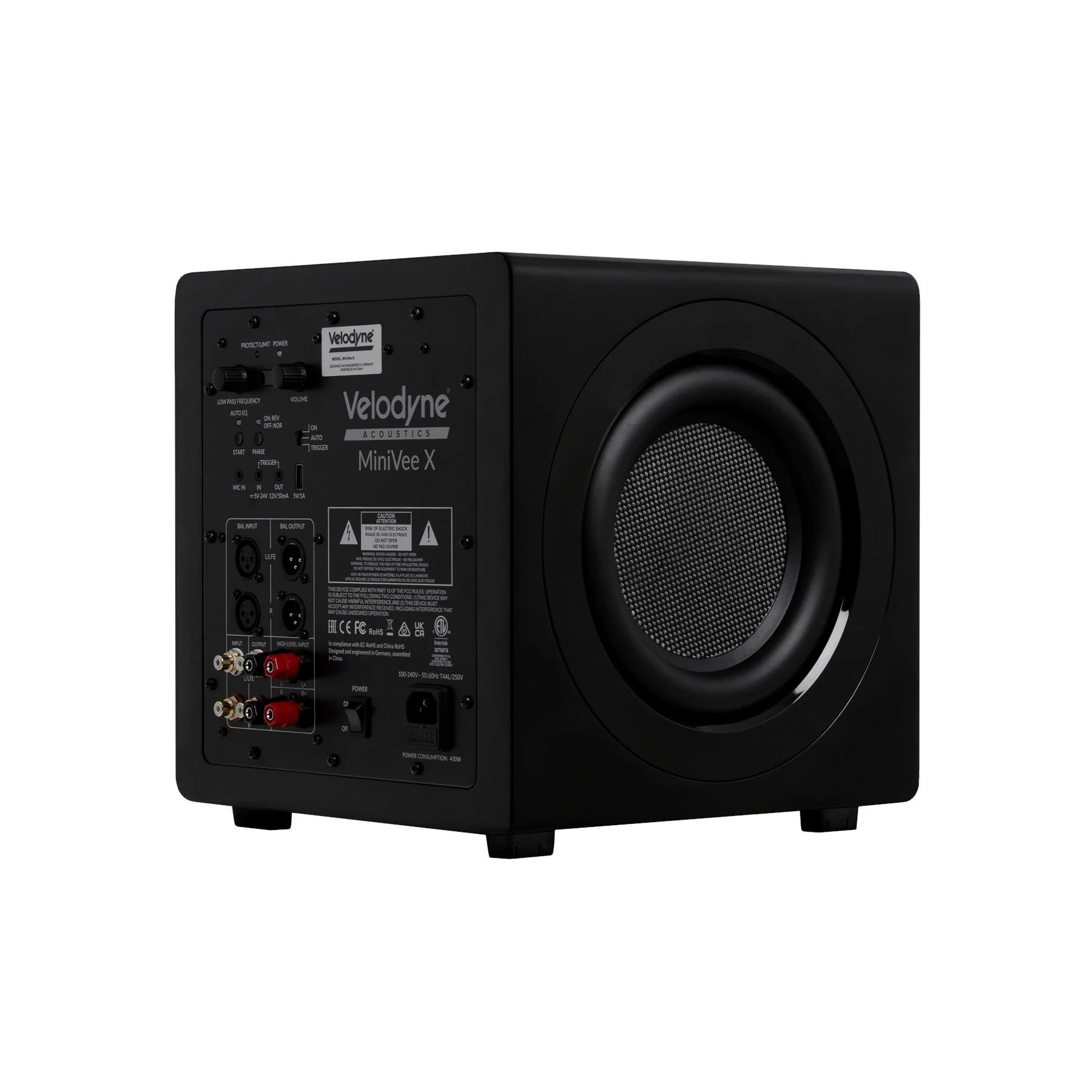

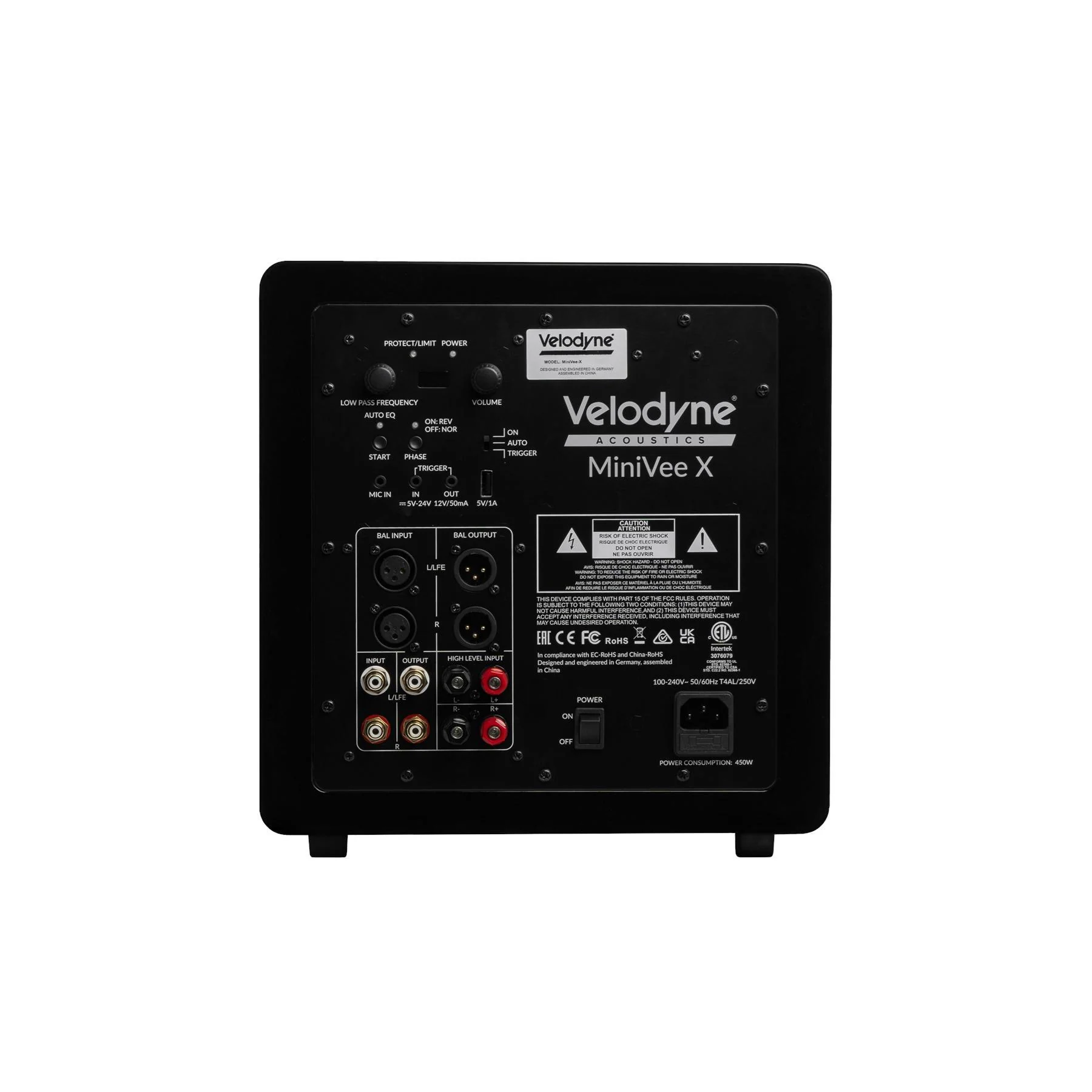

• Inputs: Unbalanced Stereo/LFE RCA input; Balanced Stereo/LFE XLR input; 3.5 mm 12 V trigger input; 5 V / 1 A USB power socket for external WiConnect II wireless transmitter
• Outputs: Unbalanced Stereo/LFE RCA output; Balanced Stereo/LFE XLR output; 3.5 mm trigger output with 5-second delay
• Status Indicator: Bi-color LED: blue (on), red (standby)
• Available Finish: Black high-gloss
• Dimensions (H × W × D): 30 cm × 29 cm × 29 cm (including feet and connectors)
• Weight (Approx.): 15 kg
• Shipping Weight (Approx.): 20 kg

Velodyne Acoustics MiniVee X Q&A:

What type of systems is the Velodyne MiniVee X best suited for?

The MiniVee X is designed for both high-quality HiFi and home cinema systems, providing deep, controlled bass that enhances music and movie soundtracks while remaining visually unobtrusive.

How large of a room can the MiniVee X handle effectively?

With its 350 W RMS / 800 W max Class D amplifier and 8-inch driver plus passive radiator, the MiniVee X is ideal for small to medium-sized rooms and many larger living spaces when correctly positioned and calibrated.

What makes the MiniVee X different from other compact subwoofers?

The MiniVee X combines a sealed, braced cabinet, a high-performance 8-inch driver with passive radiator, and app-based Auto EQ room correction, offering audiophile-grade precision and modern smartphone control in a very compact form.

How does the Velodyne Auto EQ app work with the MiniVee X?

The Auto EQ app for iOS and Android uses the supplied calibration microphone to measure your room, automatically adjusts the subwoofer’s response, and lets you fine-tune settings such as crossover, level, and more from your mobile device.

What connections are available on the MiniVee X?

The subwoofer provides unbalanced Stereo/LFE RCA and balanced Stereo/LFE XLR inputs and outputs, a 12 V trigger input, a 3.5 mm trigger output with delay, and a 5 V / 1 A USB power socket for an external WiConnect II wireless transmitter.

Can the MiniVee X be used wirelessly?

While it has no built-in wireless receiver, the MiniVee X includes a dedicated USB power socket specifically intended to power Velodyne’s optional WiConnect II wireless system, enabling a clean wireless subwoofer setup.

Is the MiniVee X easy to integrate with existing speakers?

Yes, its adjustable low-pass crossover, variable phase control, Auto EQ room correction, and multiple input/output options make it simple to blend with most main speakers and AV receivers.

What are the physical dimensions and finish of the MiniVee X?

The MiniVee X measures 30 cm high by 29 cm wide by 29 cm deep (including feet and connectors), weighs about 15 kg, and features a high-gloss black finish that complements modern interiors.
