Velodyne Acoustics MicroVee X Subwoofer
Velodyne Acoustics MicroVee X Ultra-Compact High-Output Subwoofer
Meet the Velodyne Acoustics MicroVee X-the ultra-compact subwoofer that delivers room-filling low end without taking over your space. A forward-firing 6.5" active driver teamed with dual side-mounted passive radiators unleashes tight, musical bass, while the classic Class-AB amplifier delivers 300 W RMS (800 W dynamic) with effortless control. Velodyne’s Digital Drive Control System (DDCS) and optional Subwoofer Direct (crossover bypass) keep transients clean and distortion exceptionally low, so music and movies hit with precision—not boom. Housed in a rigid aluminum enclosure and offered in black or white, MicroVee X slips neatly into any room and any system with line-level (RCA/LFE) and high-level inputs.
Velodyne Acoustics MicroVee X Full Specifications:

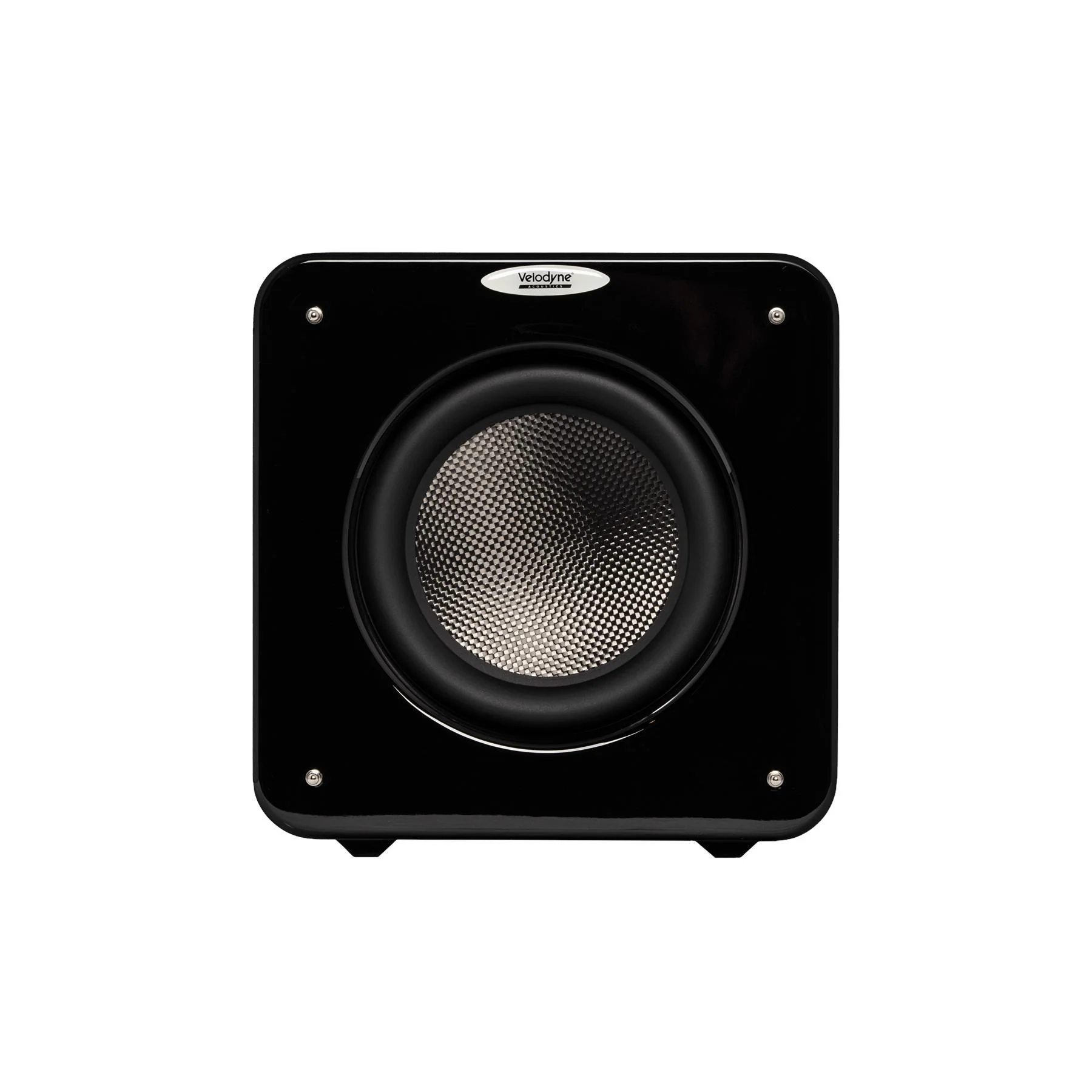

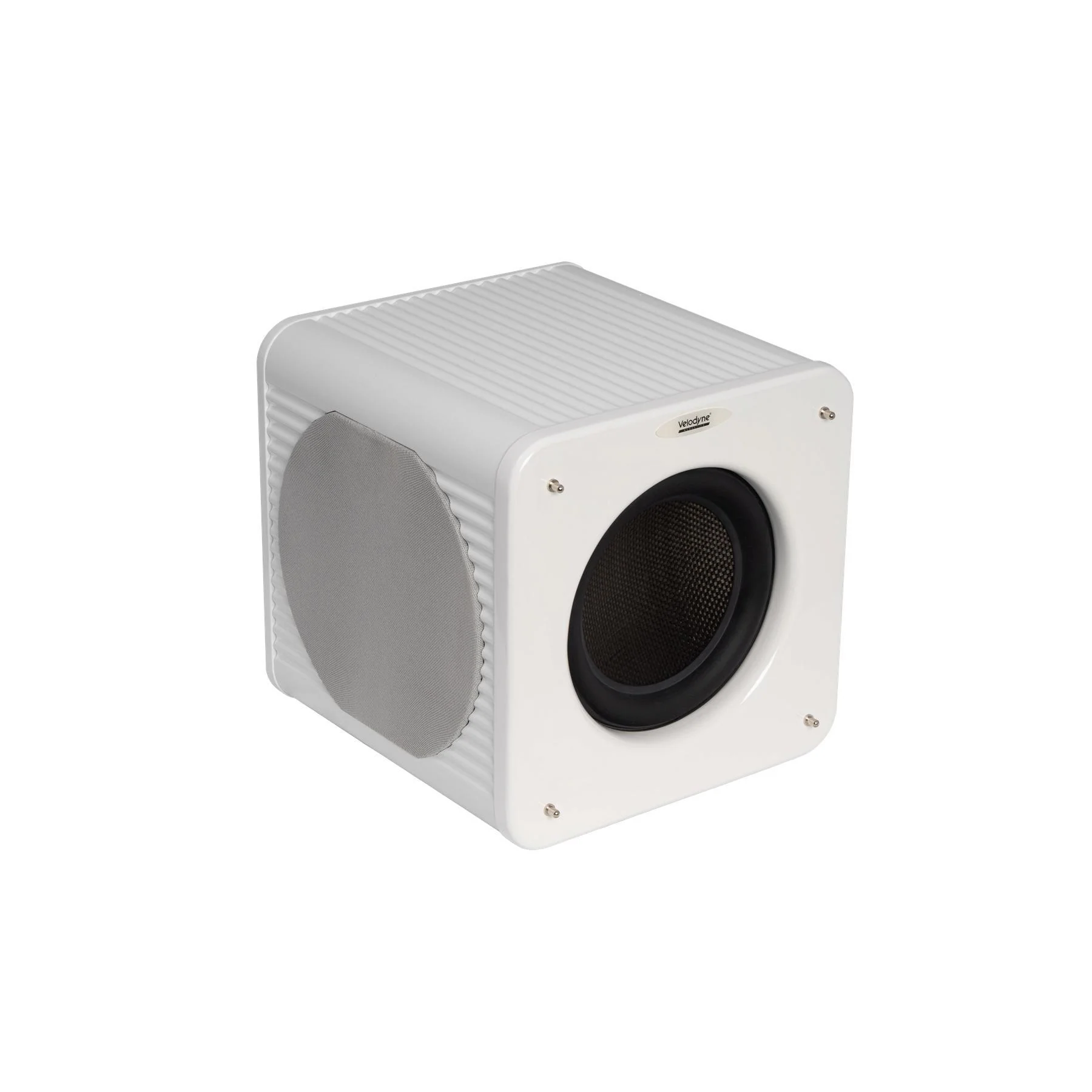

- Drivers: 1 × 6.5" forward-firing active driver + 2 × 6.5" side-mounted passive radiators
- Amplifier: Class AB, 300 W RMS / 800 W dynamic (peak)
- Frequency Response (±3 dB): 32 – 180 Hz
- Frequency Response (overall/in-room): 18 – 300 Hz
- Low-Pass Crossover: 40 Hz – 200 Hz, 12 dB/octave (bypassable via Subwoofer Direct)
- Phase Control: 0° to 180°
- Cabinet: Aluminum profile enclosure
- Magnet Structure: Dual ferrite motor
- Woofer Cone: High-excursion, double-vented basket with PP-reinforced membrane
- Voice Coil: Four-layer, 2" (52 mm)

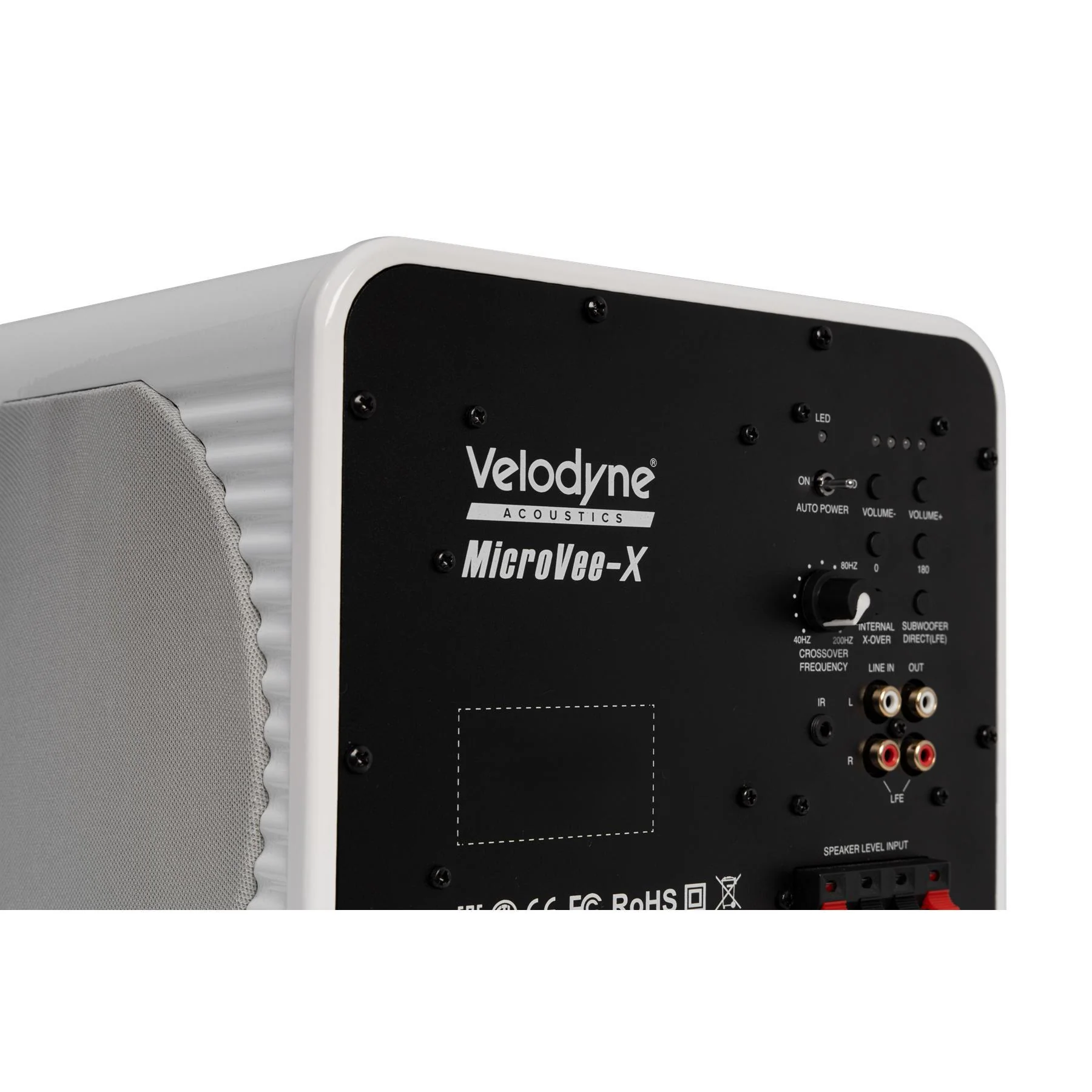

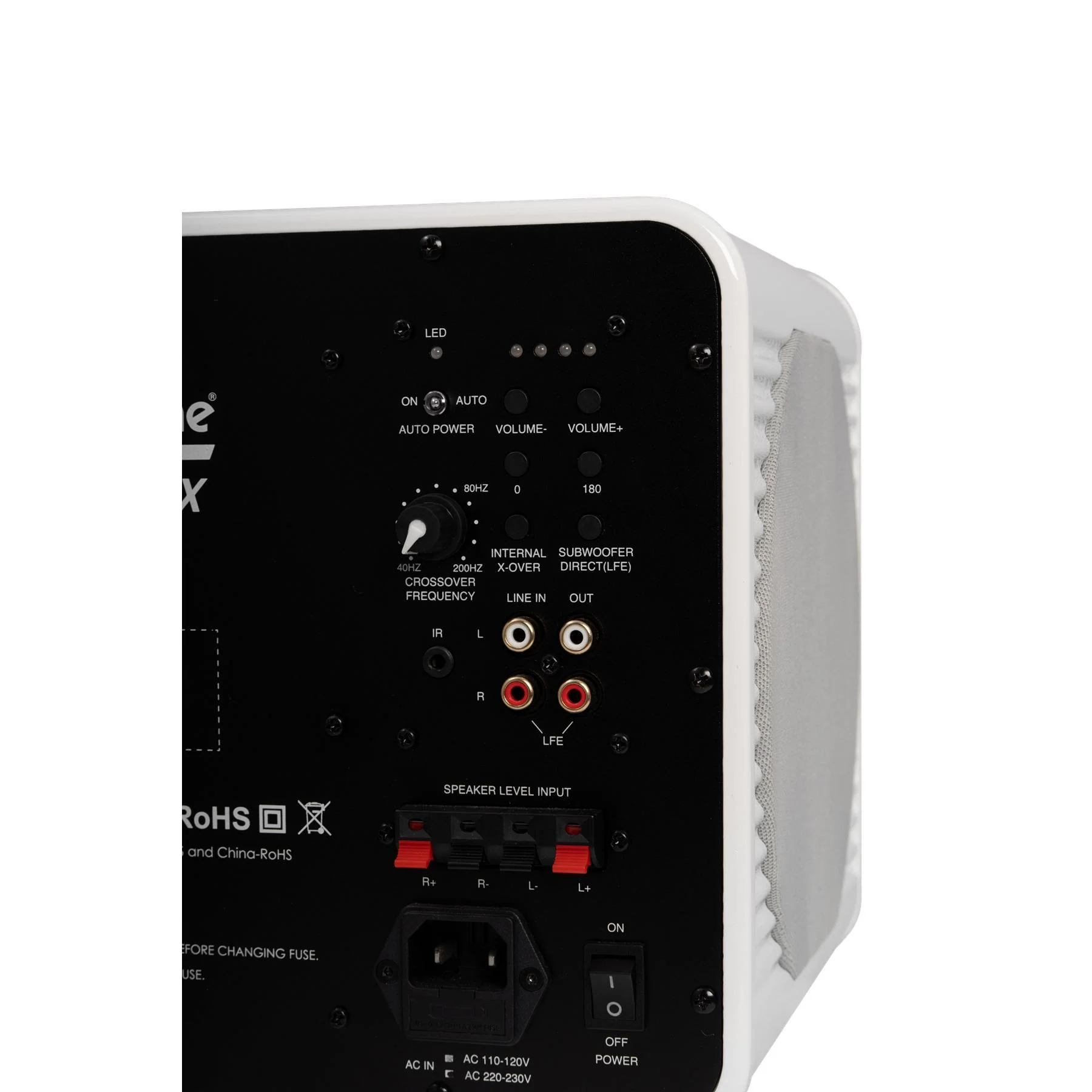

- Inputs: Gold-plated stereo RCA line-in, dedicated LFE in, nickel-plated high-level (speaker) inputs
- Outputs: Gold-plated LFE/RCA out
- Power Modes: Off / Auto / On (signal-sensing auto turn on/off)
- Finish Options: Black or White
- Dimensions (W × H × D): 23 × 23 × 25 cm (includes feet/connectors) — approx. 9.1 × 9.1 × 9.8 in
- Weight: ~9 kg
- Shipping Weight: ~11 kg
- Key Technologies: Digital Drive Control System (DDCS), Subwoofer Direct (crossover bypass)
Velodyne Acoustics MicroVee X Q&A:
- How small is the MicroVee X, and will it fit in tight spaces?
- It measures 23 × 23 × 25 cm (about 9.1 × 9.1 × 9.8 in), sized to disappear in most rooms.
- How powerful is the amplifier?
- Class-AB design rated at 300 W RMS and 800 W dynamic (peak) for clean headroom.
- What’s the real-world bass extension?
- 32–180 Hz (±3 dB), with overall in-room response of 18–300 Hz.
- Can I bypass the subwoofer’s internal crossover?
- Yes—enable Subwoofer Direct to bypass the internal low-pass and rely on your AVR/processor.
- What inputs does it support?
- Stereo RCA line-in, dedicated LFE in, and high-level (speaker) inputs, plus RCA/LFE out.
- Does it turn on automatically?
- Use the power selector’s Auto mode for signal-sensing on/off.
- What is the enclosure made of?
- A rigid aluminum profile cabinet for low resonance and compact size.
- What finishes are available?
- Black or White to match your setup.
Velodyne Acoustics MicroVee X Downloads:
Velodyne Acoustics MicroVee X User Manual
Original: $1,799.00
-65%$1,799.00
$629.65More Images
