Velodyne Acoustics Impact X 12 Subwoofer

Velodyne Acoustics Impact X 12 12-Inch Subwoofer

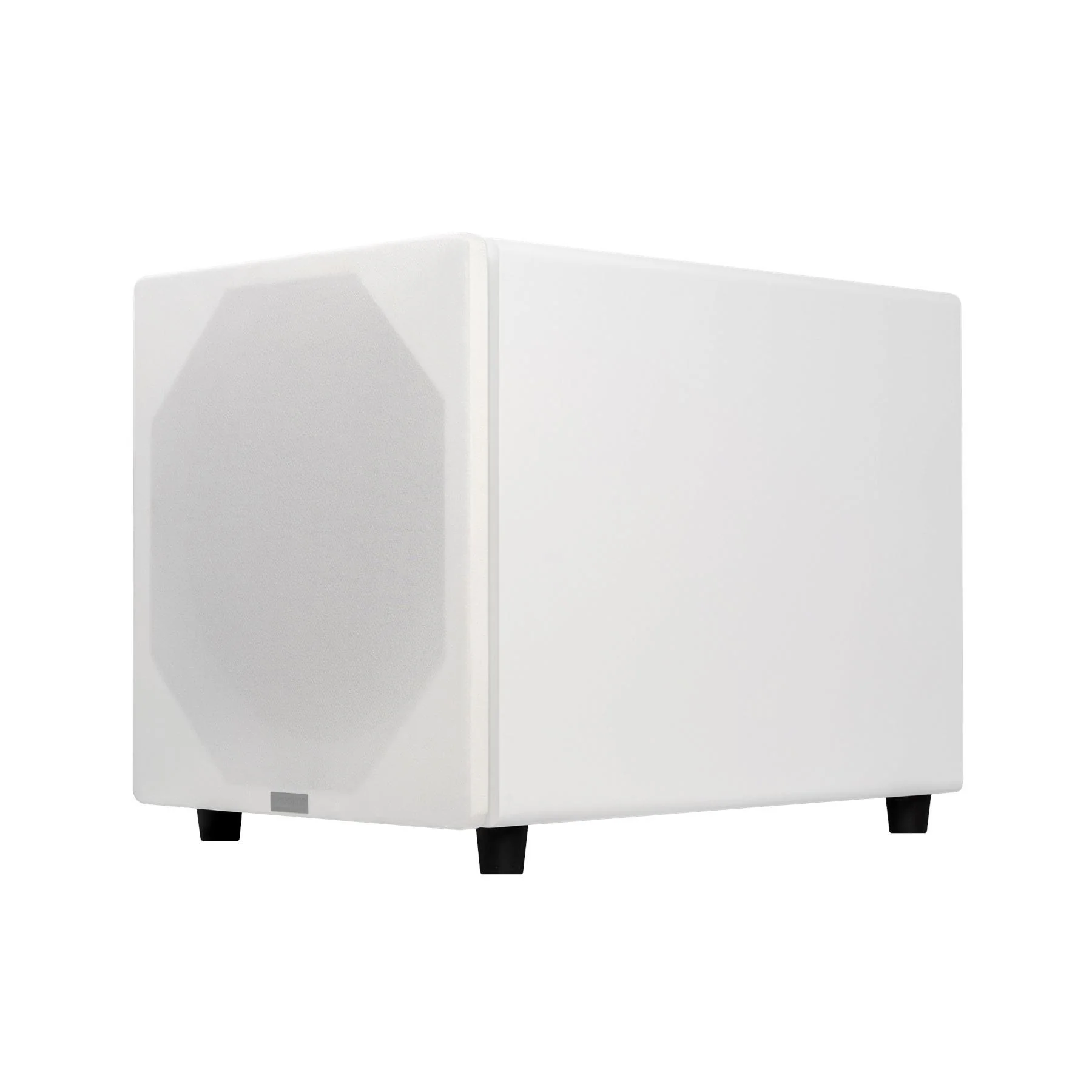

The Velodyne Acoustics Impact X 12 steps up performance with a larger 12-inch driver and more amplifier power, delivering even deeper and more authoritative bass. Its front-firing woofer and bass reflex cabinet are engineered to energize medium to large rooms with cinematic low-frequency effects and full-bodied music reproduction. A 600-watt dynamic Class D amplifier, 4 DSP presets, and anti-clipping circuitry keep the Impact X 12 controlled and responsive, even at demanding playback levels. Finished in black or white with a clean, modern design, it offers powerful performance without dominating your space visually.

Velodyne Acoustics Impact X 12 Subwoofer Full Specifications:

• Driver: 12″ front-firing driver
• Amplifier Type: Class D
• Amplifier Power (Dynamic): 600 watts
• Amplifier Power (RMS): 300 watts
• Frequency Response (±3 dB): 29 – 180 Hz
• Frequency Response (±10 dB): 23 – 250 Hz
• Low-Pass Crossover: 50 – 180 Hz (12 dB/octave)
• Phase Control: 0 / 180 degrees
• Cabinet Design: 20 mm MDF
• Magnet Structure: Dual ferrite magnet motor

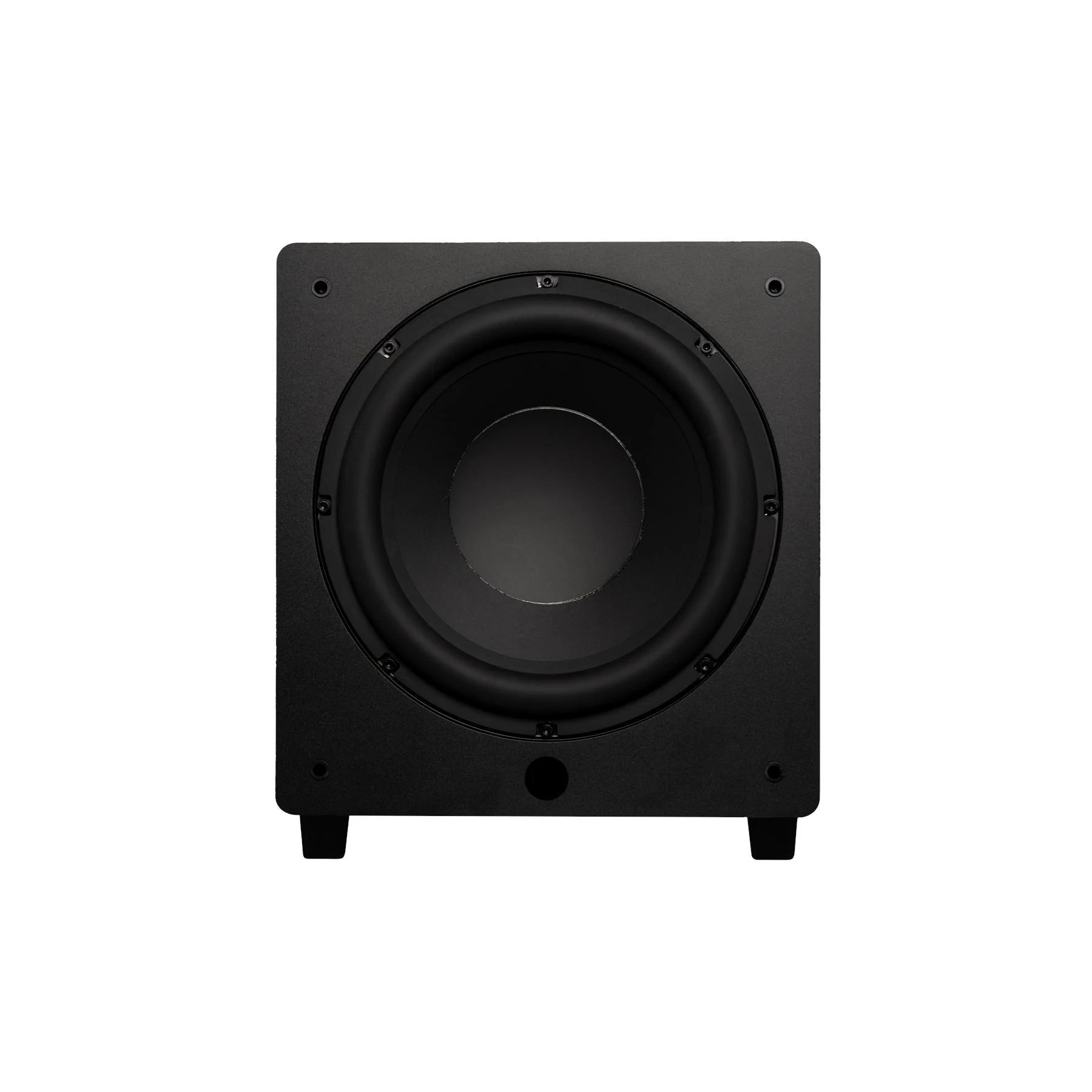

• Woofer Construction: 12″ high-excursion double vented basket driver with reinforced paper membrane
• Voice Coil: Four-layer 2″ / 52 mm voice coil
• DSP Presets: 4 DSP modes selectable via remote control
• Protection: Anti-clipping circuitry

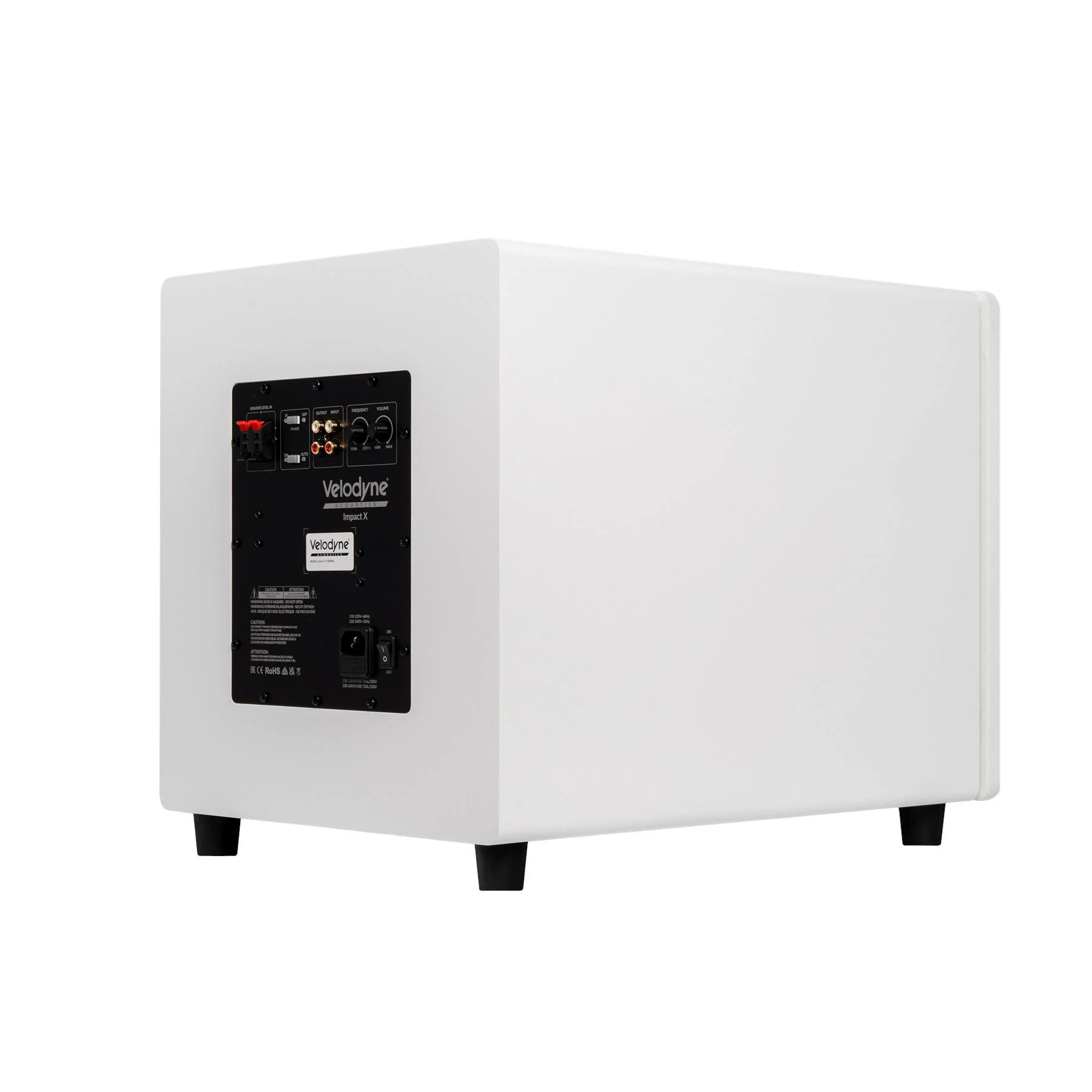

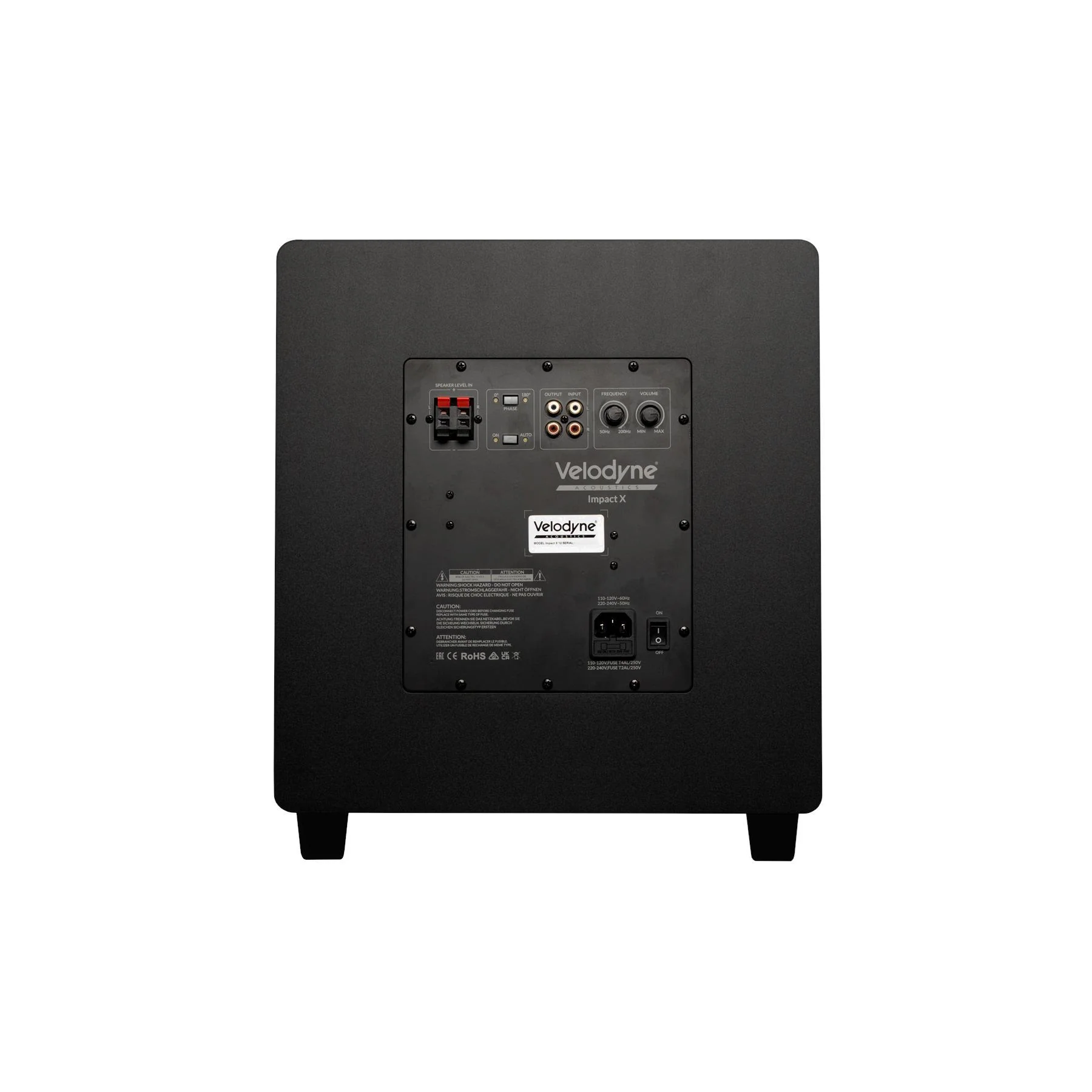

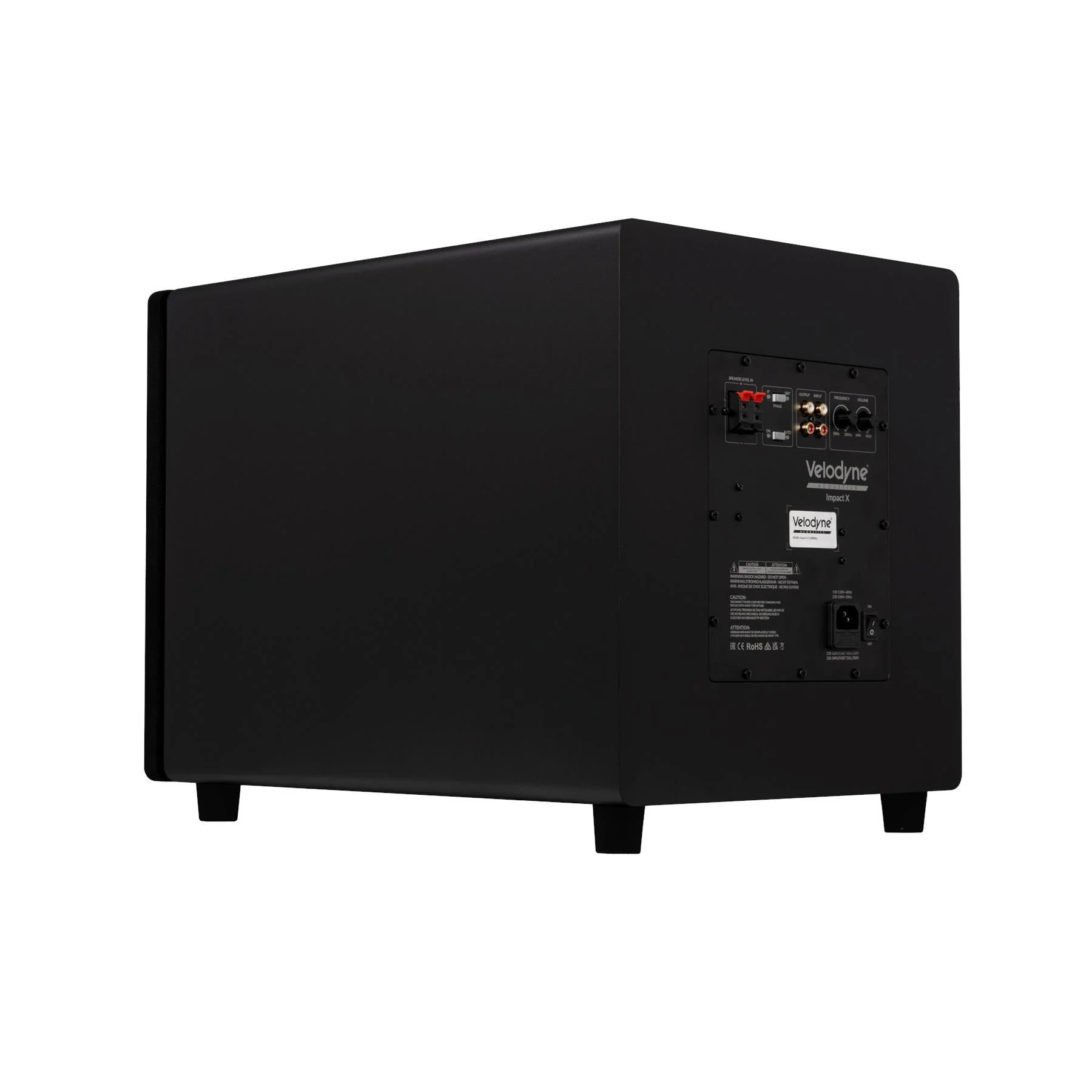

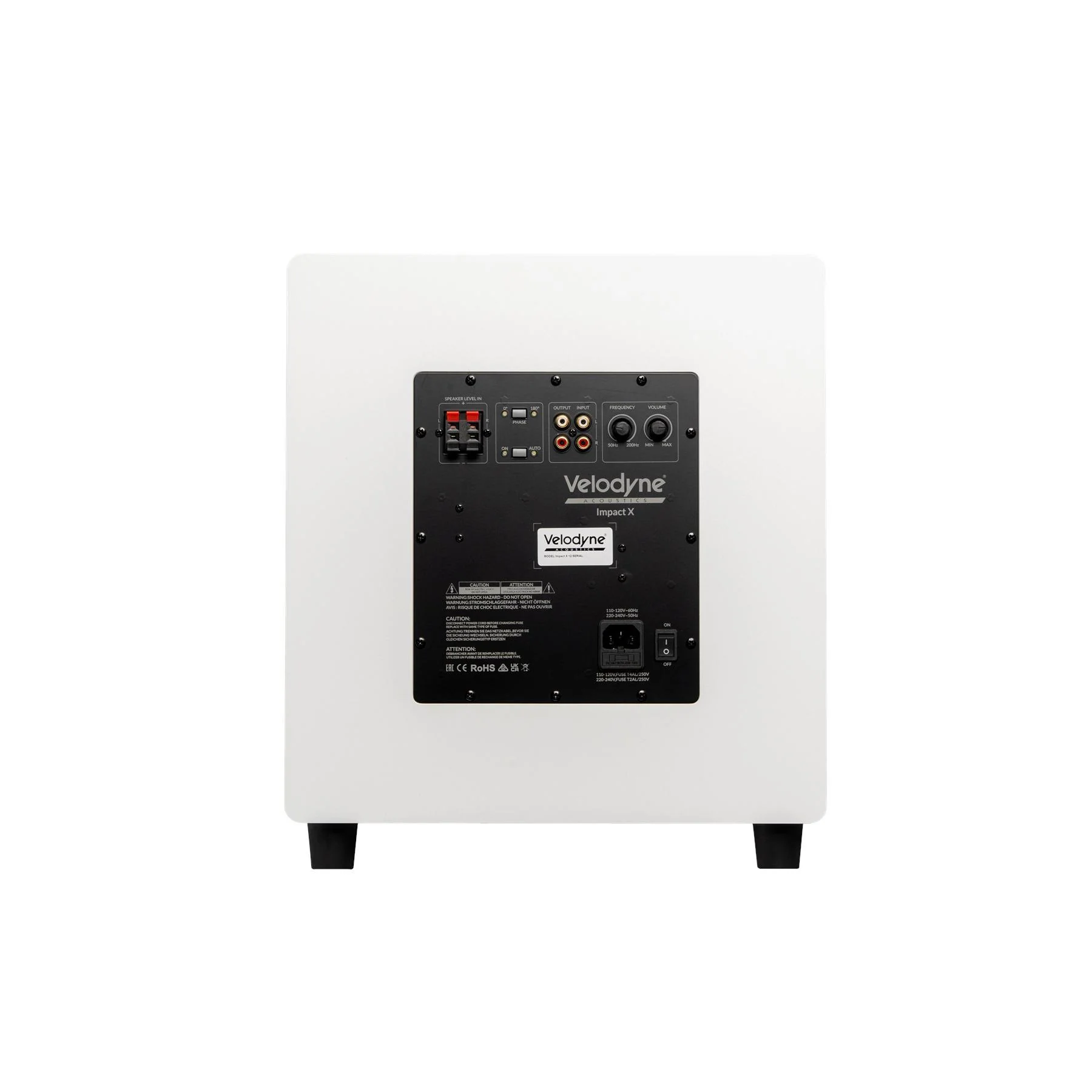

• Inputs: Gold-plated Stereo/LFE RCA, nickel-plated high-level in
• Outputs: Gold-plated Stereo/LFE RCA
• Power Selector: Off / Auto / On
• Display: Dimmable front display
• Enclosure Type: Bass reflex

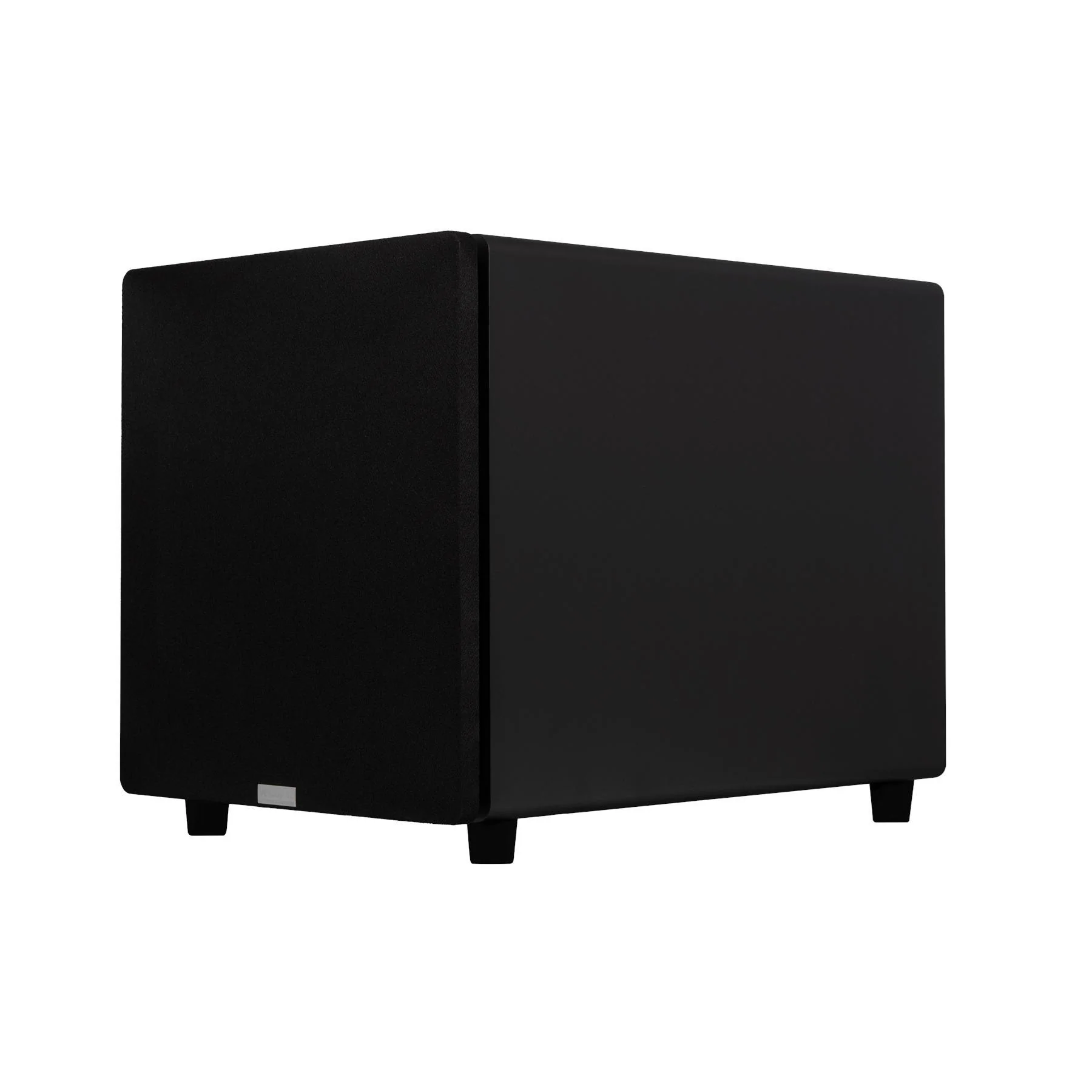

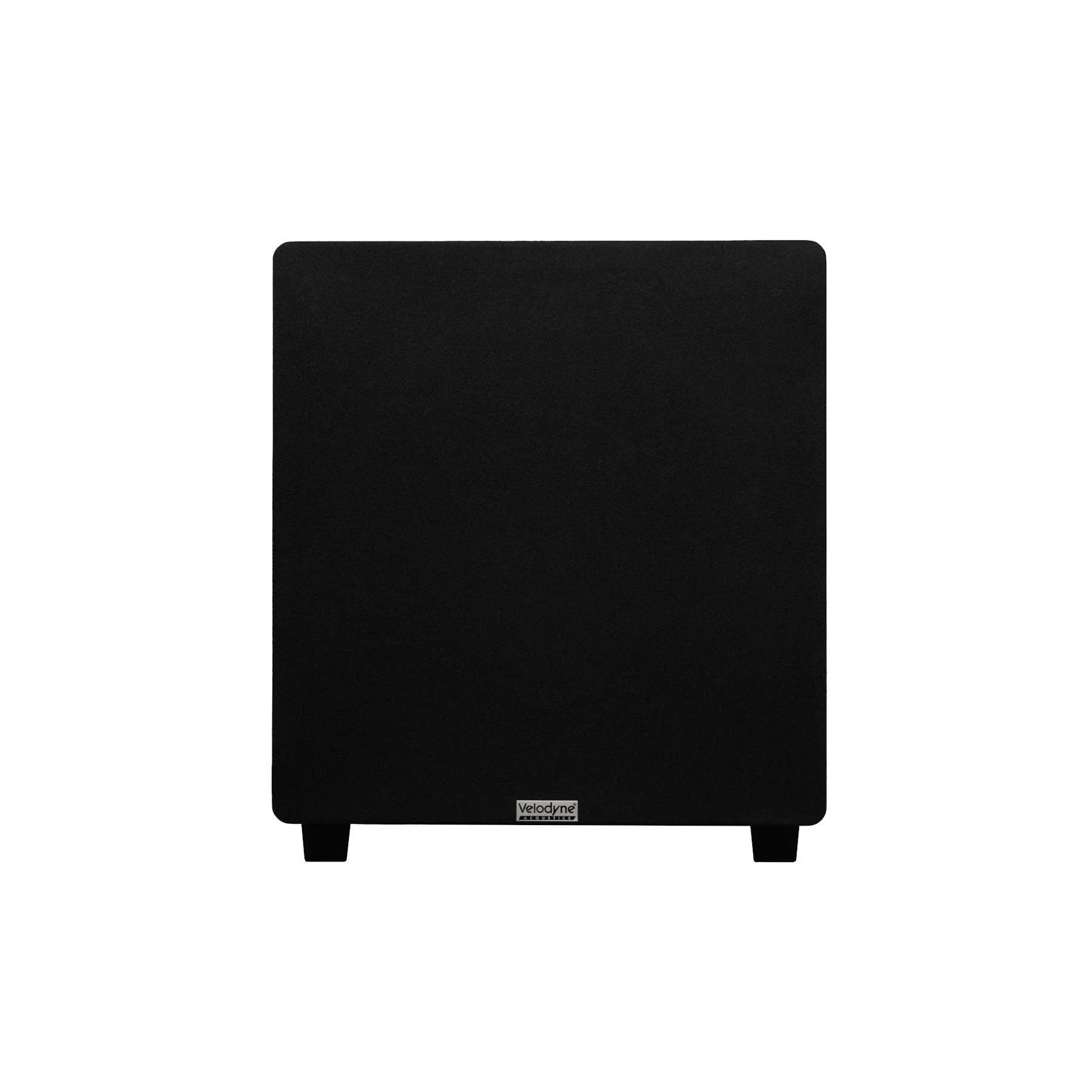

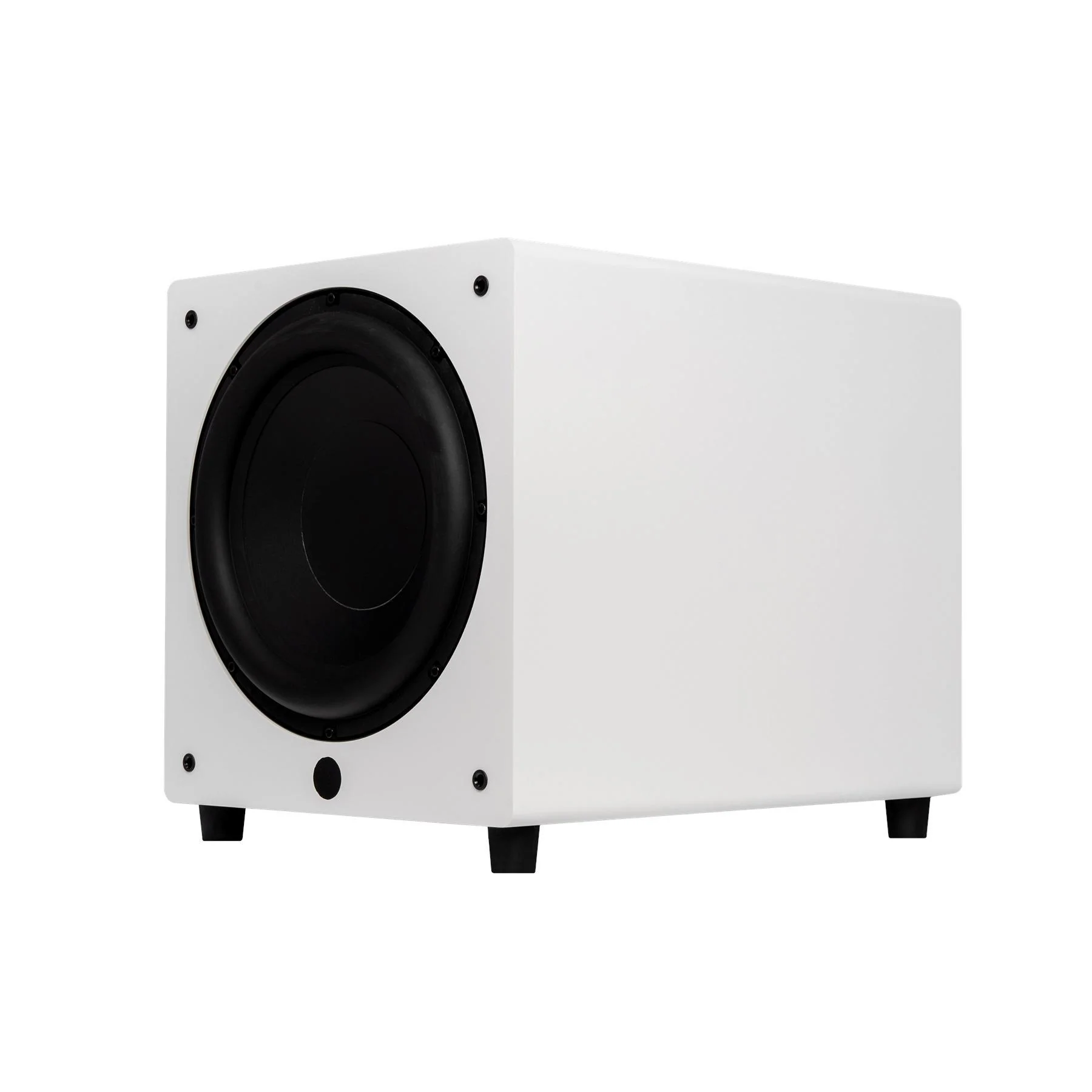

• Finishes: Black / White

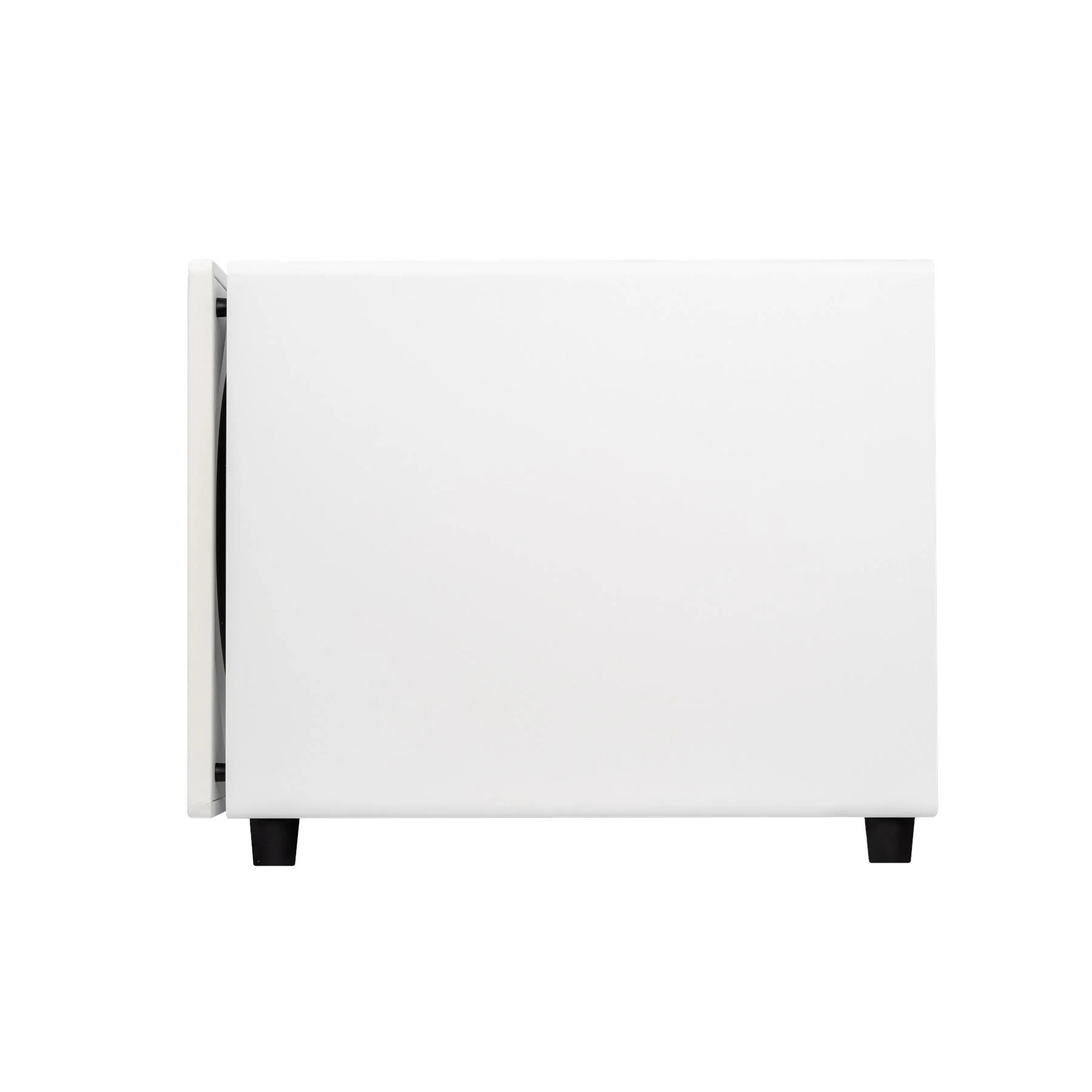

• Dimensions (W × H × D): 36 cm × 42 cm × 51 cm (incl. feet and connectors)
• Weight (Approx.): 18 kg
• Shipping Weight (Approx.): 20 kg

Velodyne Acoustics Impact X 12 Subwoofer Q&A:

Who is the Impact X 12 best suited for?

It is ideal for medium to large rooms where more output and deeper bass are desired.

How does the Impact X 12 differ from the Impact X 10?

The 12″ model offers a larger driver, more power, and deeper bass extension.

Can the Impact X 12 handle high-volume home theater use?

Yes, its powerful amplifier and anti-clipping circuitry support demanding movie playback.

What type of inputs does the Impact X 12 offer?

It includes gold-plated Stereo/LFE RCA inputs and outputs plus nickel-plated high-level inputs.

Does the Impact X 12 support automatic power on/off?

Yes, Auto mode turns the subwoofer on when a signal is detected and back to standby when idle.

Is the Impact X 12 suitable for music-focused systems?

Its precise driver and tuning controls make it an excellent match for Hi-Fi systems.

What are the dimensions of the Impact X 12?

The subwoofer measures 36 cm × 42 cm × 51 cm including feet and connectors.

How heavy is the Impact X 12?

It weighs approximately 18 kg, with a shipping weight of about 20 kg.

Velodyne Acoustics Impact X 12 Subwoofer Downloads:

Velodyne Acoustics Impact X Subwoofer Manual
