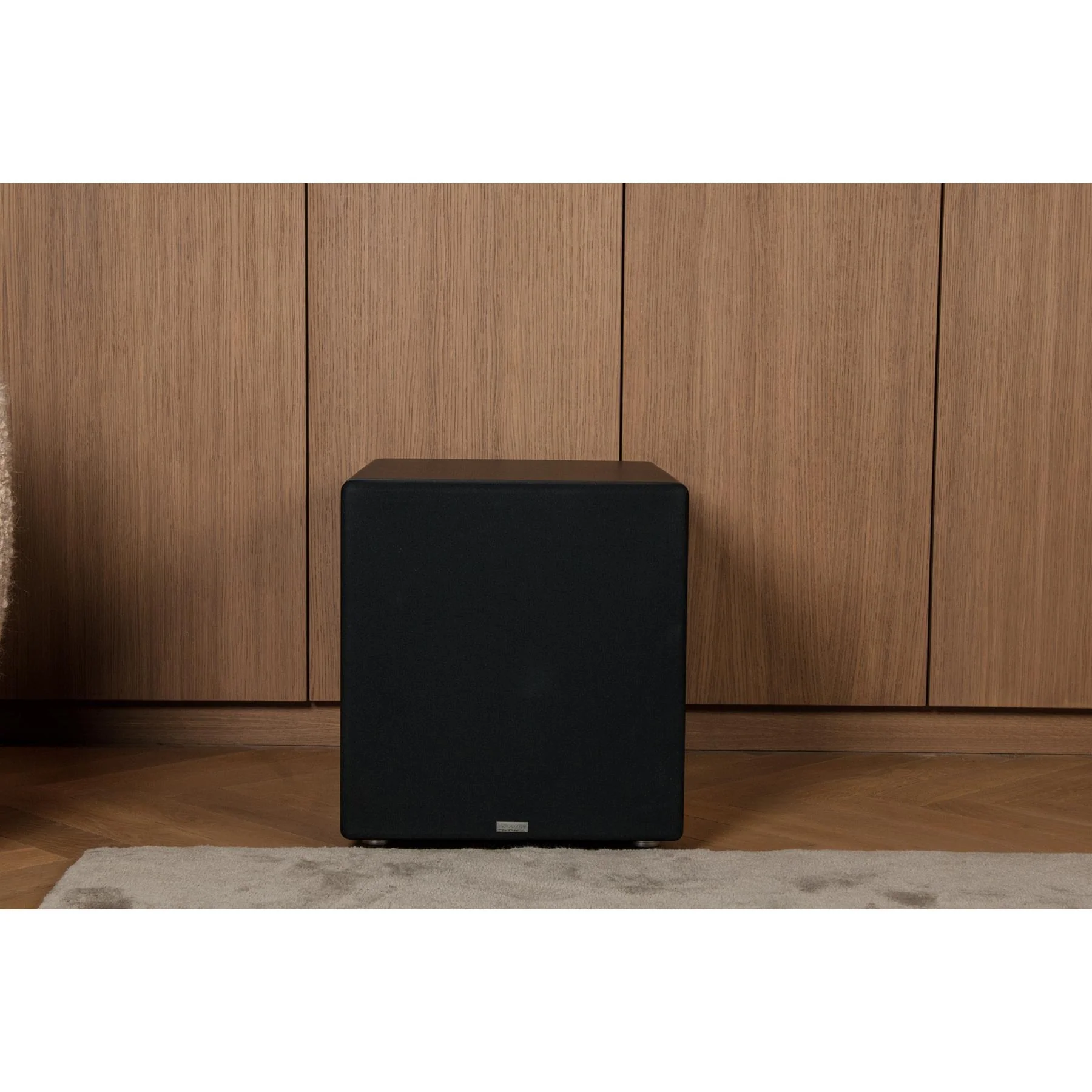

Velodyne Acoustics Impact X 10 Subwoofer
Velodyne Acoustics Impact X 10 10-Inch Subwoofer

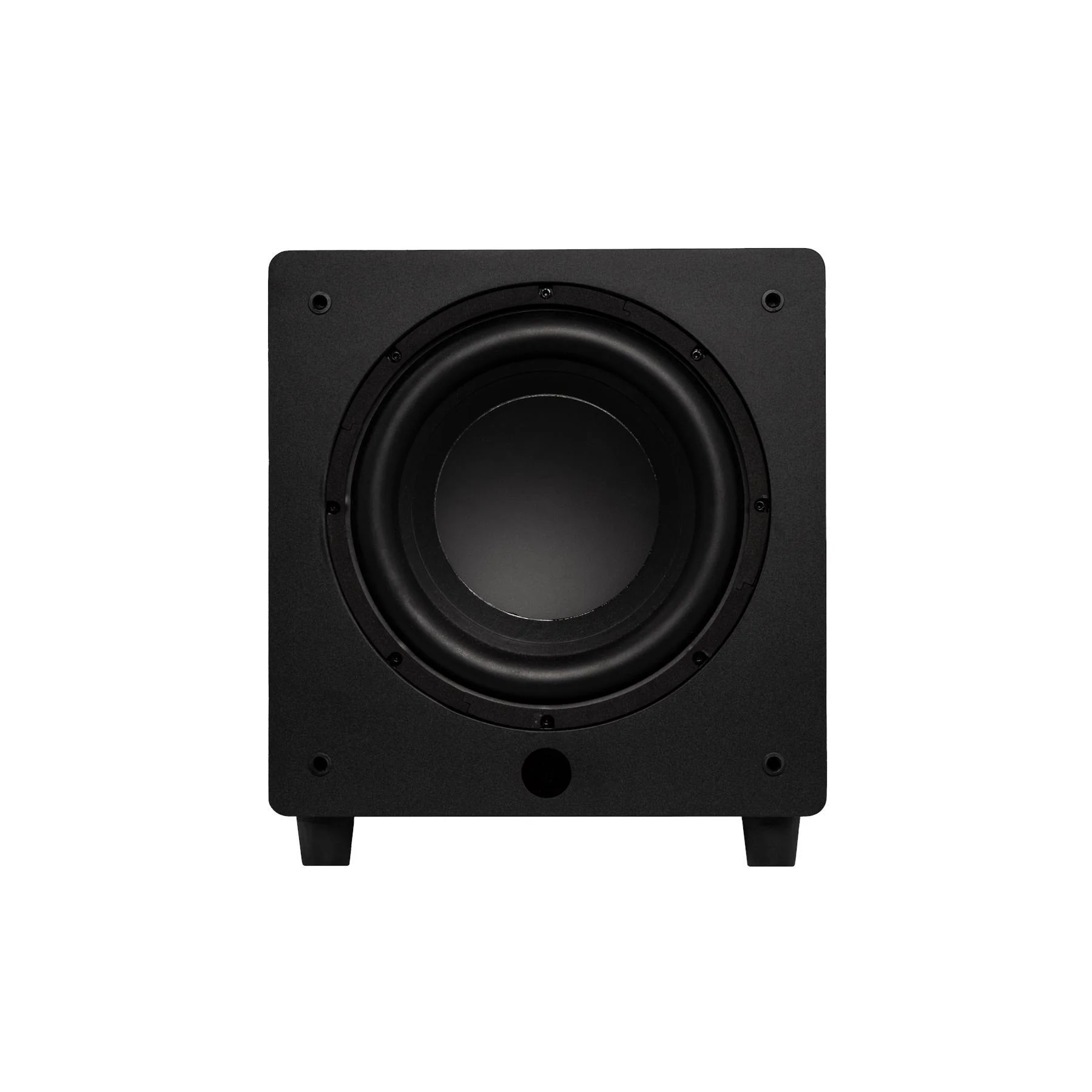

The Velodyne Acoustics Impact X 10 is a compact, high-performance 10-inch active subwoofer designed for serious home theater and music systems. Its front-firing driver and bass reflex enclosure deliver deep, punchy bass from a relatively small footprint, making it ideal for living rooms, media rooms, and dedicated theaters. A powerful Class D amplifier, anti-clipping circuitry, and selectable phase provide clean, controlled low frequencies that integrate smoothly with your main speakers. With its refined black or white finish and dimmable display, the Impact X 10 looks as good as it sounds while staying easy to tailor to your room and listening preferences.
Velodyne Acoustics Impact X 10 Subwoofer Full Specifications:
- Driver: 10″ front-firing driver
- Amplifier Type: Class D
- Amplifier Power (Dynamic): 500 watts
- Amplifier Power (RMS): 250 watts
- Frequency Response (±3 dB): 32 – 180 Hz
- Frequency Response (±10 dB): 25 – 250 Hz
- Low-Pass Crossover: 50 – 180 Hz (12 dB/octave)
- Phase Control: 0 / 180 degrees
- Cabinet Design: 20 mm MDF
- Magnet Structure: Dual ferrite magnet motor
- Woofer Construction: 10″ high-excursion double vented basket driver with reinforced paper membrane
- Voice Coil: Four-layer 2″ / 52 mm voice coil
- DSP Presets: 4 DSP modes selectable via remote control
- Protection: Anti-clipping circuitry

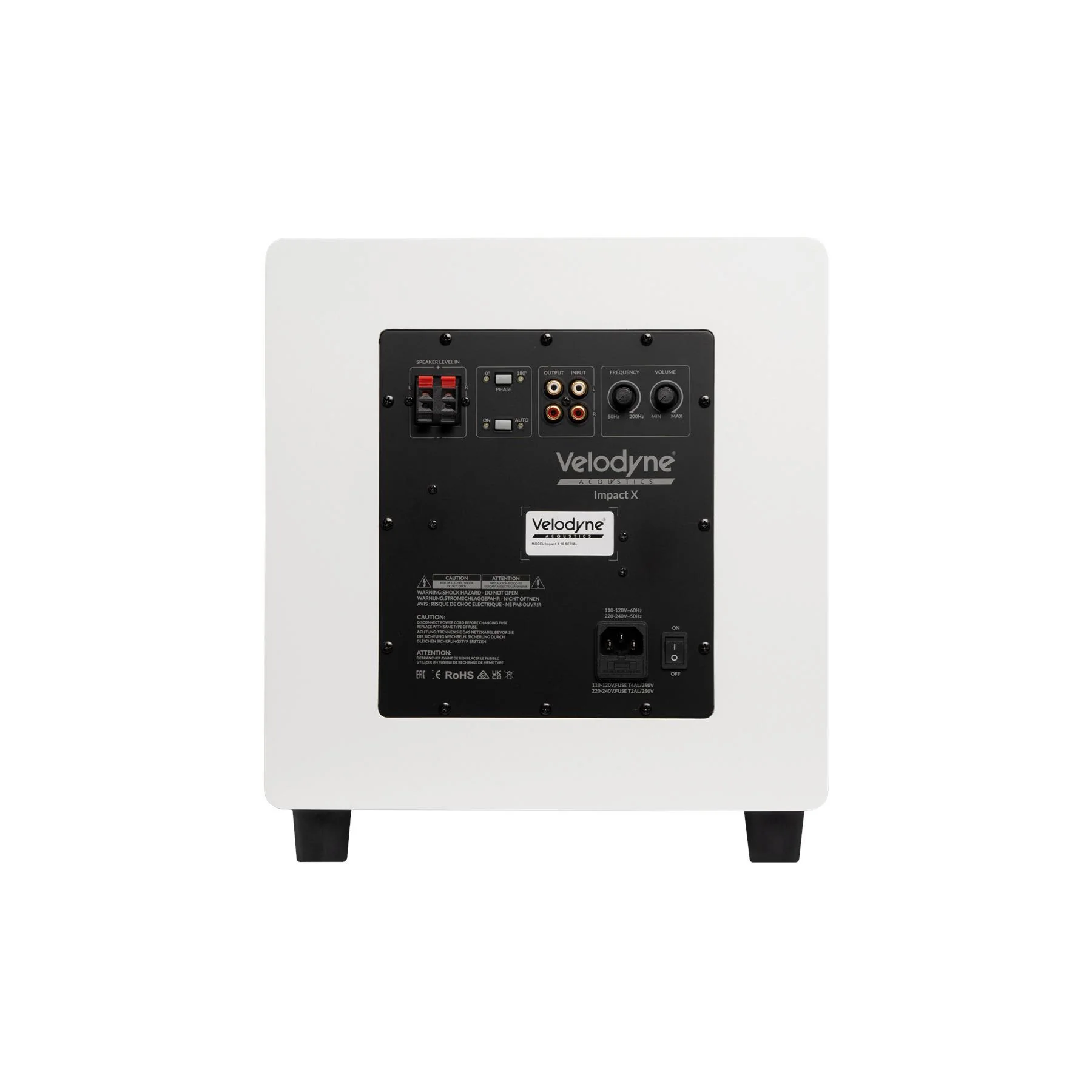

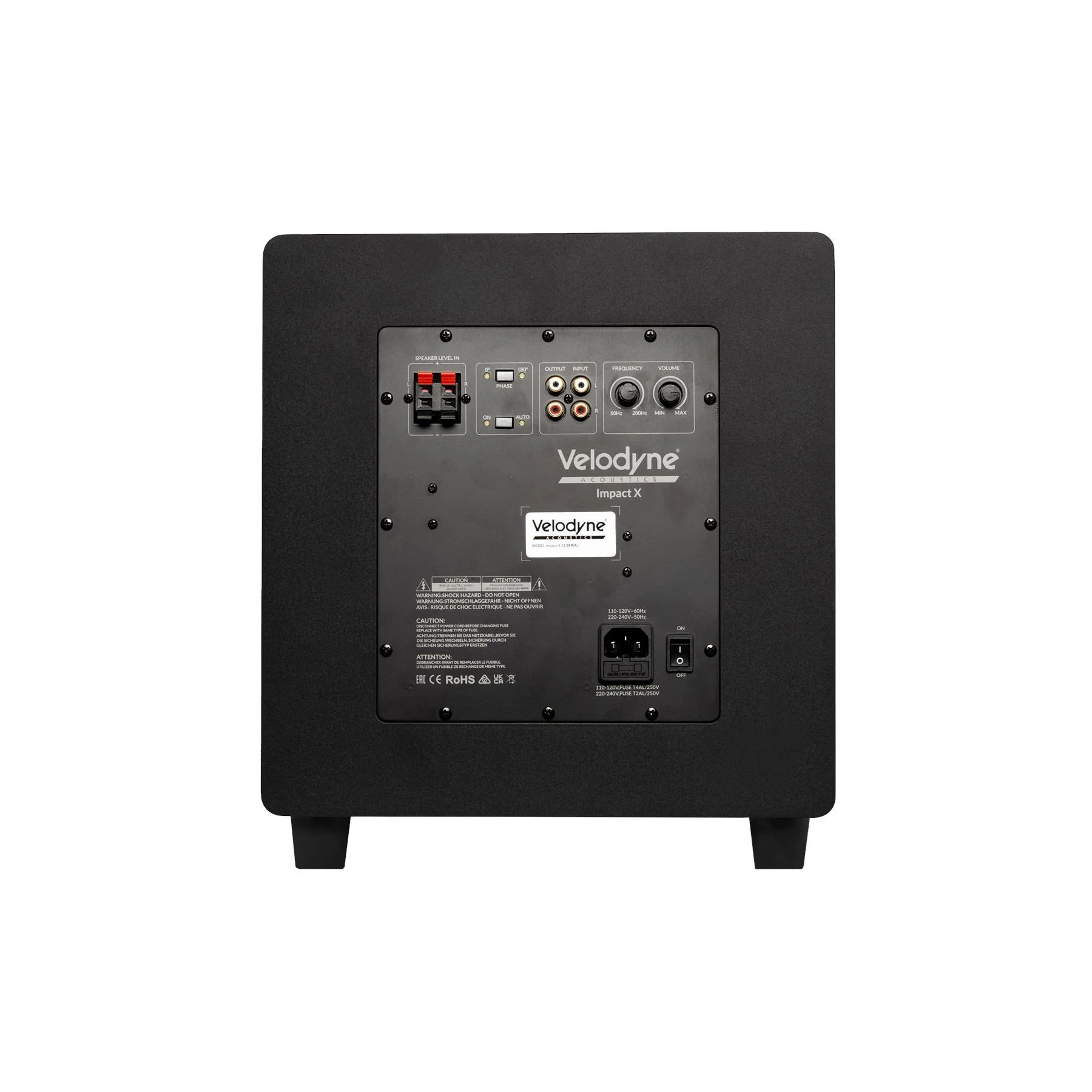

- Inputs: Gold-plated Stereo/LFE RCA, nickel-plated high-level in
- Outputs: Gold-plated Stereo/LFE RCA
- Power Selector: Off / Auto / On
- Display: Dimmable front display
- Enclosure Type: Bass reflex

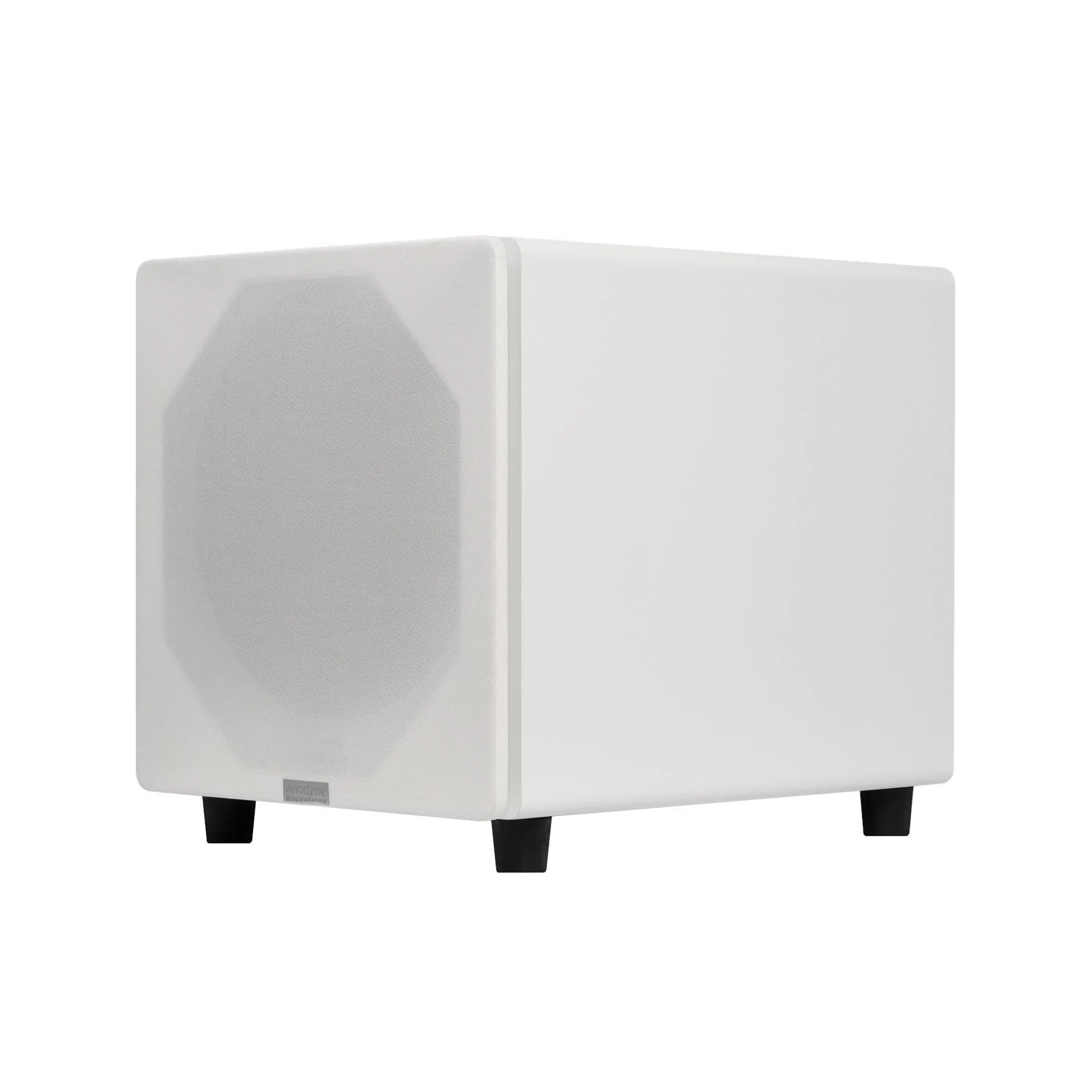

- Finishes: Black / White
- Dimensions (W × H × D): 32 cm × 36 cm × 40 cm (incl. feet and connectors)
- Weight (Approx.): 15 kg
- Shipping Weight (Approx.): 17 kg
Velodyne Acoustics Impact X 10 Subwoofer Q&A:
- What size room is ideal for the Impact X 10?
- The Impact X 10 is best suited for small to medium-sized rooms such as living rooms, media rooms, or bedrooms.
- Can the Impact X 10 be used for both music and home theater?
- Yes, it is designed to perform equally well with movie soundtracks and two-channel music playback.
- How do the DSP presets work on the Impact X 10?
- Four DSP presets, selectable via remote control, tailor the subwoofer’s response for different listening scenarios.
- What connection options are available on the Impact X 10?
- It provides gold-plated Stereo/LFE RCA inputs and outputs plus nickel-plated high-level inputs.
- Does the Impact X 10 turn on and off automatically?
- Yes, the power selector’s Auto mode allows the subwoofer to switch on when an audio signal is detected.
- Is the Impact X 10 easy to integrate with existing speakers?
- Variable crossover, phase switch, and DSP presets make integration with existing speakers straightforward.
- What finishes are available for the Impact X 10?
- The subwoofer is available in black or white finishes.
- How heavy is the Impact X 10?
- It weighs approximately 15 kg, with a shipping weight of about 17 kg.
Velodyne Acoustics Impact X 10 Subwoofer Downloads:
Velodyne Acoustics Impact X Subwoofer Manual
