Velodyne Acoustics Deep Waves 12 Subwoofer
Velodyne Acoustics Deep Waves 12 12-Inch Active Subwoofer
The Velodyne Acoustics Deep Waves 12 is a powerful 12-inch active subwoofer created for listeners who want room-filling bass and precise control in home cinema and hi-fi environments. Its larger front-firing driver and side passive radiators, driven by an 800-watt dynamic Class D amplifier, deliver explosive low-frequency energy while maintaining tight, musical articulation. A robust 22 mm MDF enclosure with internal bracing and a matte black finish ensures both acoustic stability and a refined, understated appearance. With app-based control, flexible connectivity, and extended low-frequency reach, the Deep Waves 12 is built to anchor demanding systems with authority and finesse.
Velodyne Acoustics Deep Waves 12 Full Specifications:
- Series: Velodyne Acoustics Deep Waves 12 active subwoofer

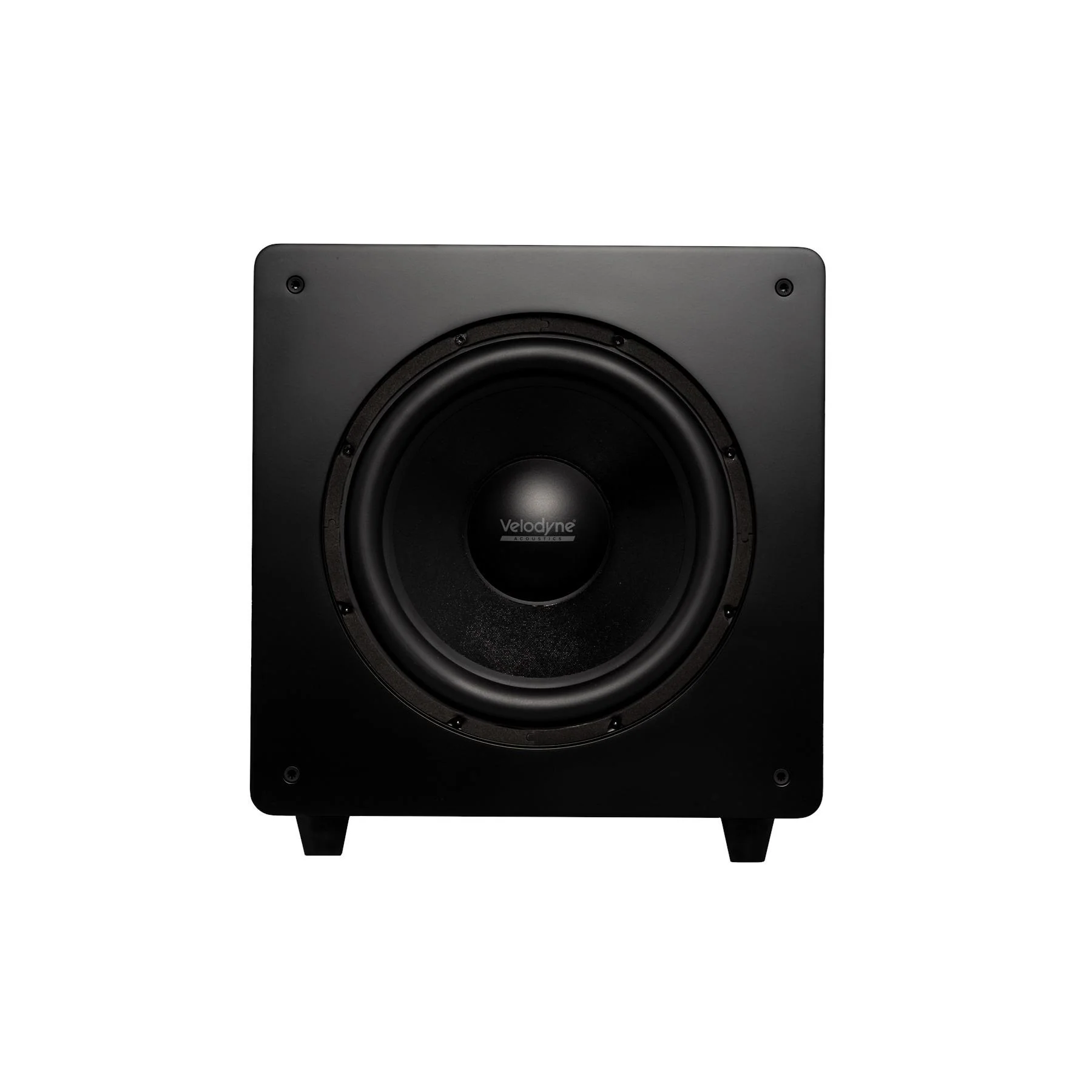

- Driver configuration: 12" front-firing active driver
- Passive radiators: Dual 12" side-radiating passive radiators
- Amplifier type: Class D
- Amplifier power (dynamic): 800 watts
- Amplifier power (RMS): 400 watts
- Overall frequency response (±3 dB): 25 Hz – 180 Hz
- Overall frequency response (±10 dB): 22 Hz – 220 Hz
- Low-pass crossover: 50 Hz – 180 Hz (12 dB/octave)
- Phase control: 0° / 180°
- Cabinet construction: 22 mm MDF with internal bracing
- Magnet structure: Dual ferrite magnet motor
- Woofer design: 12" high-excursion double-vented basket driver with polypropylene membrane and convex cone
- Voice coil: Four-layer 2.5" (63 mm) voice coil
- App control: iWoofer™ app compatibility for precise room tuning
- Enclosure style: Front-firing driver with side-firing passive radiators

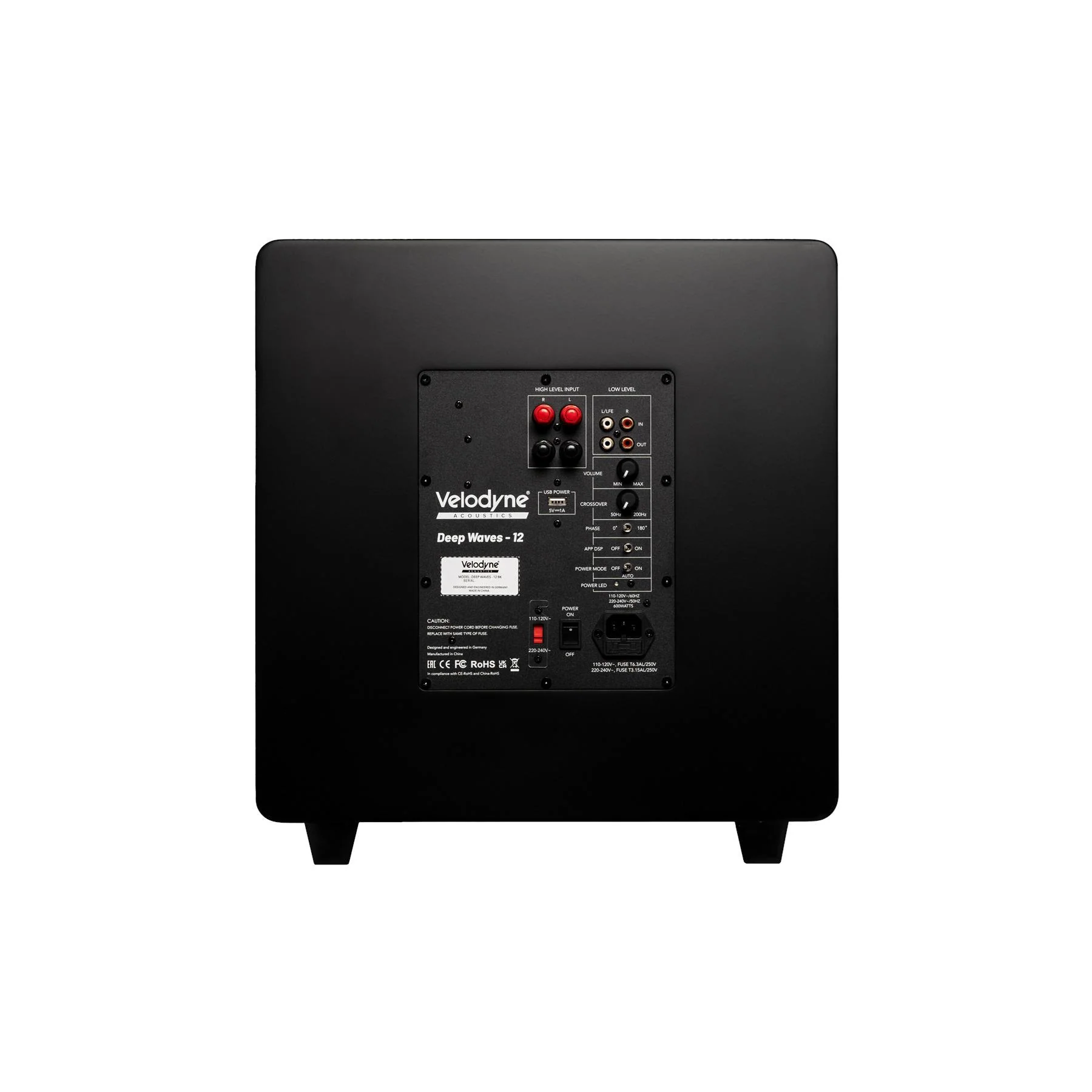

- Inputs: Gold-plated stereo/LFE RCA inputs; nickel-plated high-level inputs
- Outputs: Gold-plated stereo/LFE RCA outputs
- Power modes: Off / Auto / On selector
- Finish: Flat matte black paint
- Dimensions (W x H x D, including feet and connectors): 41 cm x 48 cm x 41 cm
- Net weight (approx.): 25 kg
- Shipping weight (approx.): 28 kg
Velodyne Acoustics Deep Waves 12 Q&A:
- Who is the Deep Waves 12 best suited for?
- The Deep Waves 12 is ideal for users who want high-output, room-filling bass in medium to large home theaters or hi-fi listening rooms, especially where deep extension and impact are priorities.
- What is the power rating of the Deep Waves 12 amplifier?
- The integrated Class D amplifier delivers up to 800 watts of dynamic power and 400 watts RMS, offering substantial headroom for demanding movie soundtracks and music.
- How low can the Deep Waves 12 play?
- The subwoofer has a frequency response of 25–180 Hz within ±3 dB and extends down to 22 Hz within ±10 dB, providing deep bass suitable for high-impact home cinema and full-range music reproduction.
- What are the dimensions and weight of the Deep Waves 12?
- The Deep Waves 12 measures approximately 41 cm wide, 48 cm high, and 41 cm deep (including feet and connectors), with a net weight of about 25 kg and a shipping weight of around 28 kg.
- Does the Deep Waves 12 support app-based configuration?
- Yes, the subwoofer works with the iWoofer™ app, allowing you to fine-tune settings such as crossover, level, and equalization from the listening position for optimized bass performance.
- What inputs and outputs are available on the Deep Waves 12?
- Connectivity includes gold-plated stereo/LFE RCA inputs and outputs as well as nickel-plated high-level inputs, ensuring compatibility with a wide range of AV receivers and stereo amplifiers.
- Is there an automatic standby mode on the Deep Waves 12?
- Yes, the Off/Auto/On selector allows the subwoofer to automatically enter standby when no signal is detected and to power back on when audio is present in Auto mode.
- What kind of cabinet and finish does the Deep Waves 12 use?
- The Deep Waves 12 uses a 22 mm MDF cabinet with internal bracing and a flat matte black finish, delivering both acoustic stability and a clean, modern look that suits most interiors.
Velodyne Acoustics Deep Waves 12 Downloads:
Velodyne Acoustics Deep Waves 12 User Manual
