Velodyne Acoustics Deep Blue 8 Subwoofer
Velodyne Acoustics Deep Blue 8 Compact High-Performance Powered Subwoofer

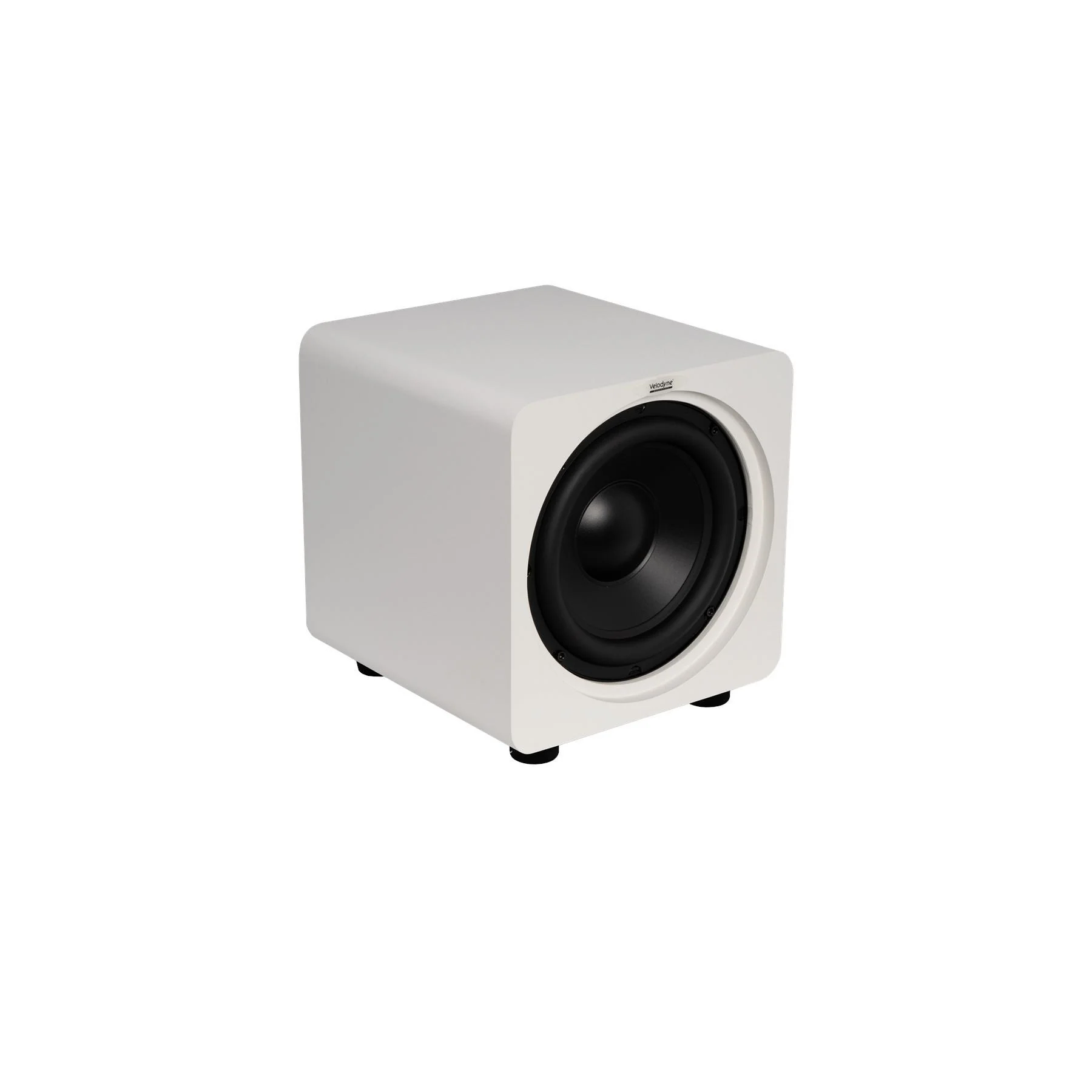

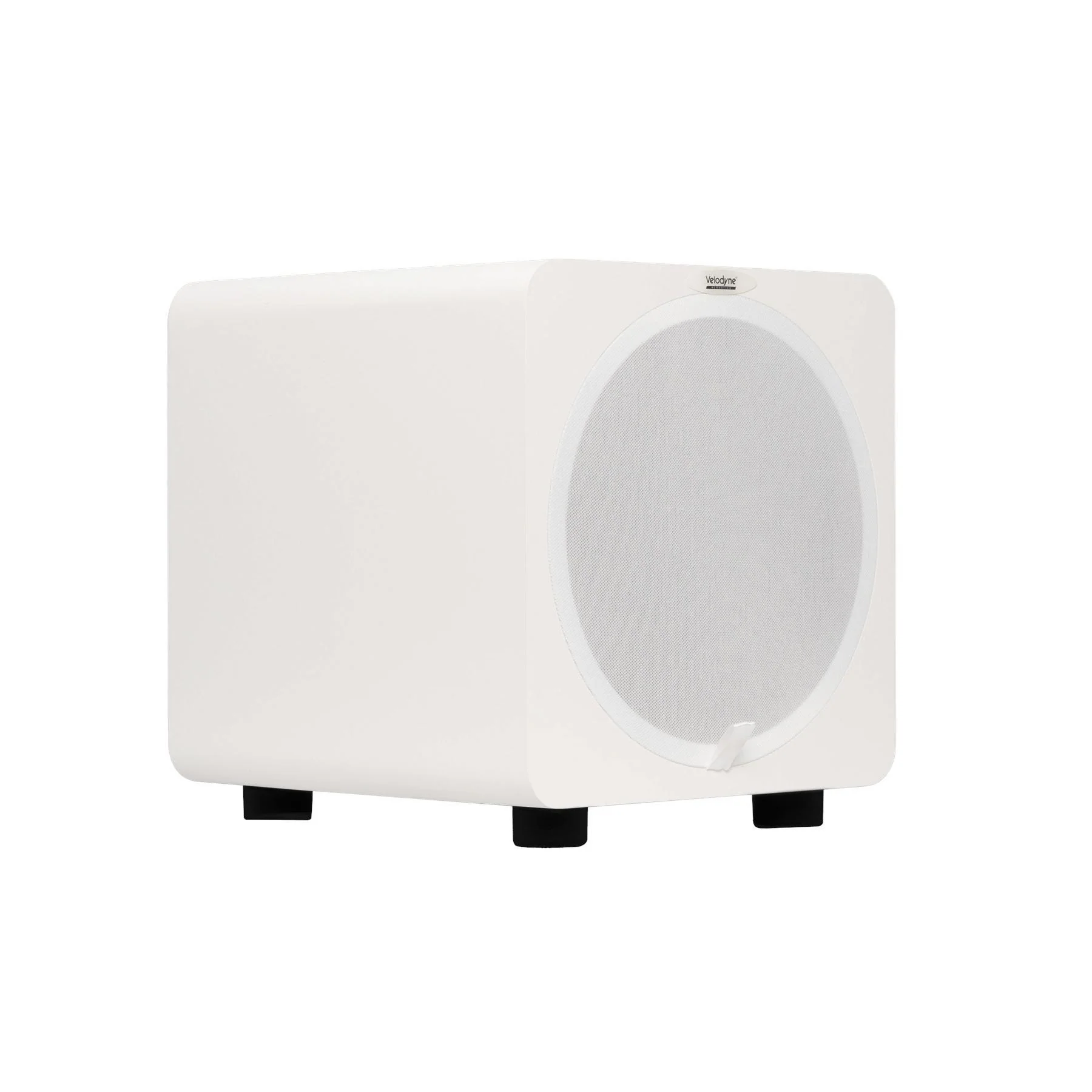

The Velodyne Acoustics Deep Blue 8 is a compact, high-performance powered subwoofer designed to deliver precise, pressurized low-frequency impact in smaller listening rooms and living spaces. Its 8" front-firing, high-excursion driver is powered by a robust Class AB amplifier, giving you fast, articulate bass that integrates seamlessly with both hi-fi and home theater systems. A rigid, sealed MDF cabinet with a thick 52 mm front baffle minimizes resonance and distortion, while flexible controls and connection options make integration straightforward with virtually any system.
Use the Deep Blue 8 to bring believable weight to movie soundtracks, gaming effects and music, without overpowering your room or dominating your décor. Fine-tune the response using the adjustable low-pass crossover, variable phase and level controls, and connect via RCA line-level or high-level inputs for maximum system compatibility.
Velodyne Acoustics Deep Blue 8 Full Specificaitons:
- Model: Velodyne Acoustics Deep Blue 8
- Driver: 8″ forward firing
- Amplifier Type: Class AB
- Amplifier Power (Dynamic): 800 watts
- Amplifier Power (RMS): 300 watts
- Frequency Response (Overall): 18 – 300 Hz
- Frequency Response (±3 dB): 32 – 180 Hz
- Low-Pass Crossover: 50 Hz to 180 Hz (12 dB/Octave)
- Phase Control: 0 to 180 degrees
- Cabinet Design: MDF closed box with 52 mm / 2″ front baffle
- Magnet Structure: Dual ferrite magnet motor

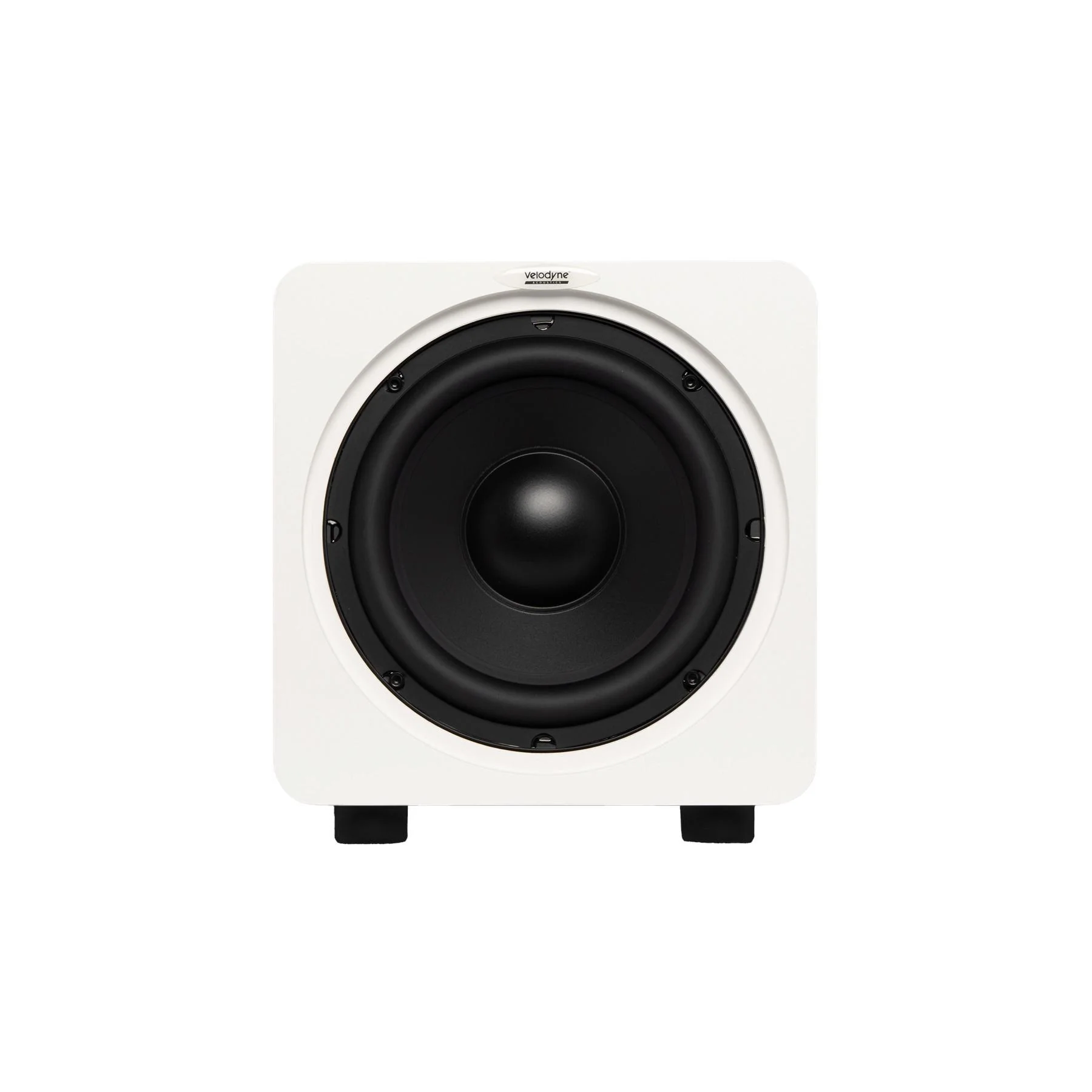

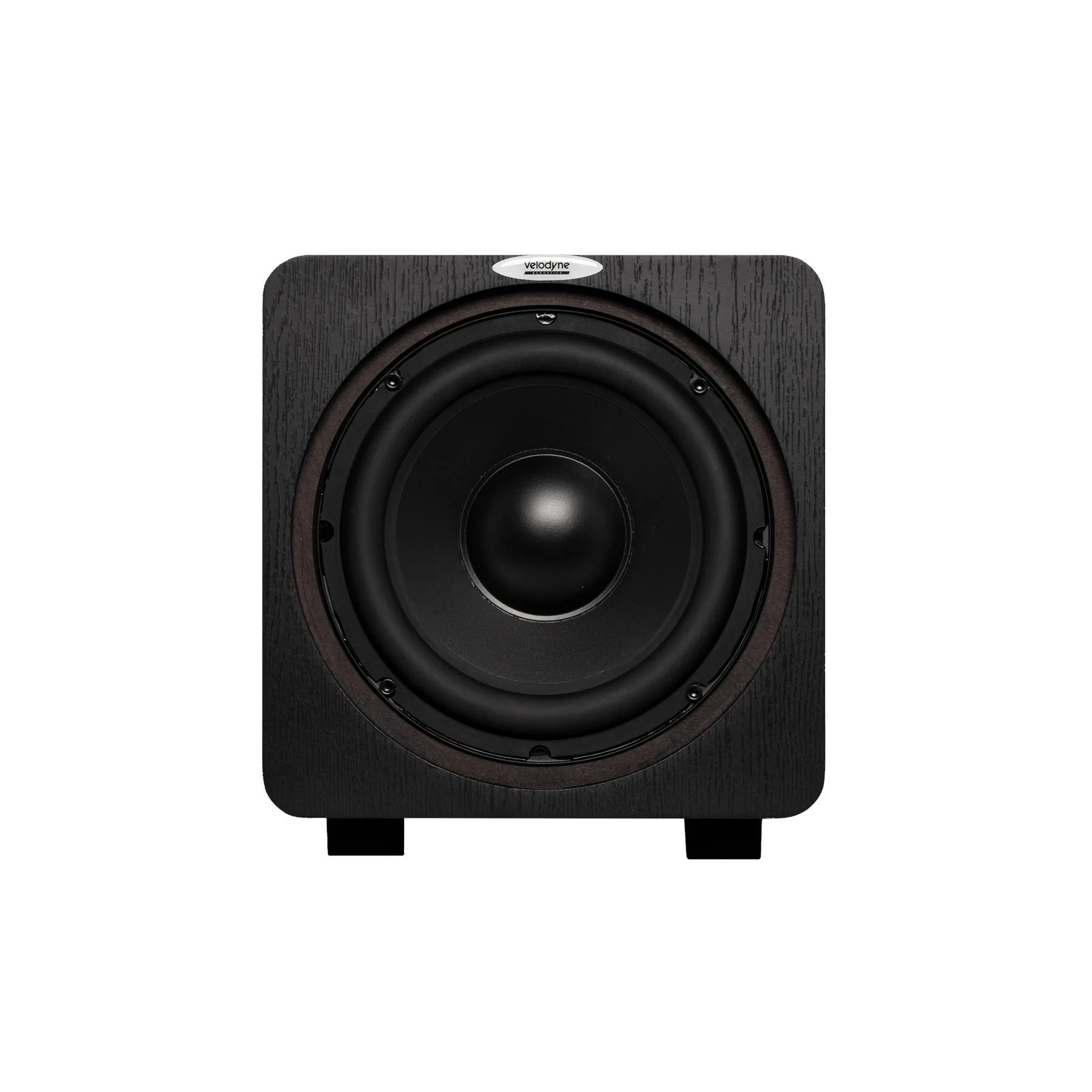

- Woofer: 8″ high excursion double-vented basket driver with PP reinforced membrane
- Voice Coil: Four-layer 2″ / 52 mm voice coil

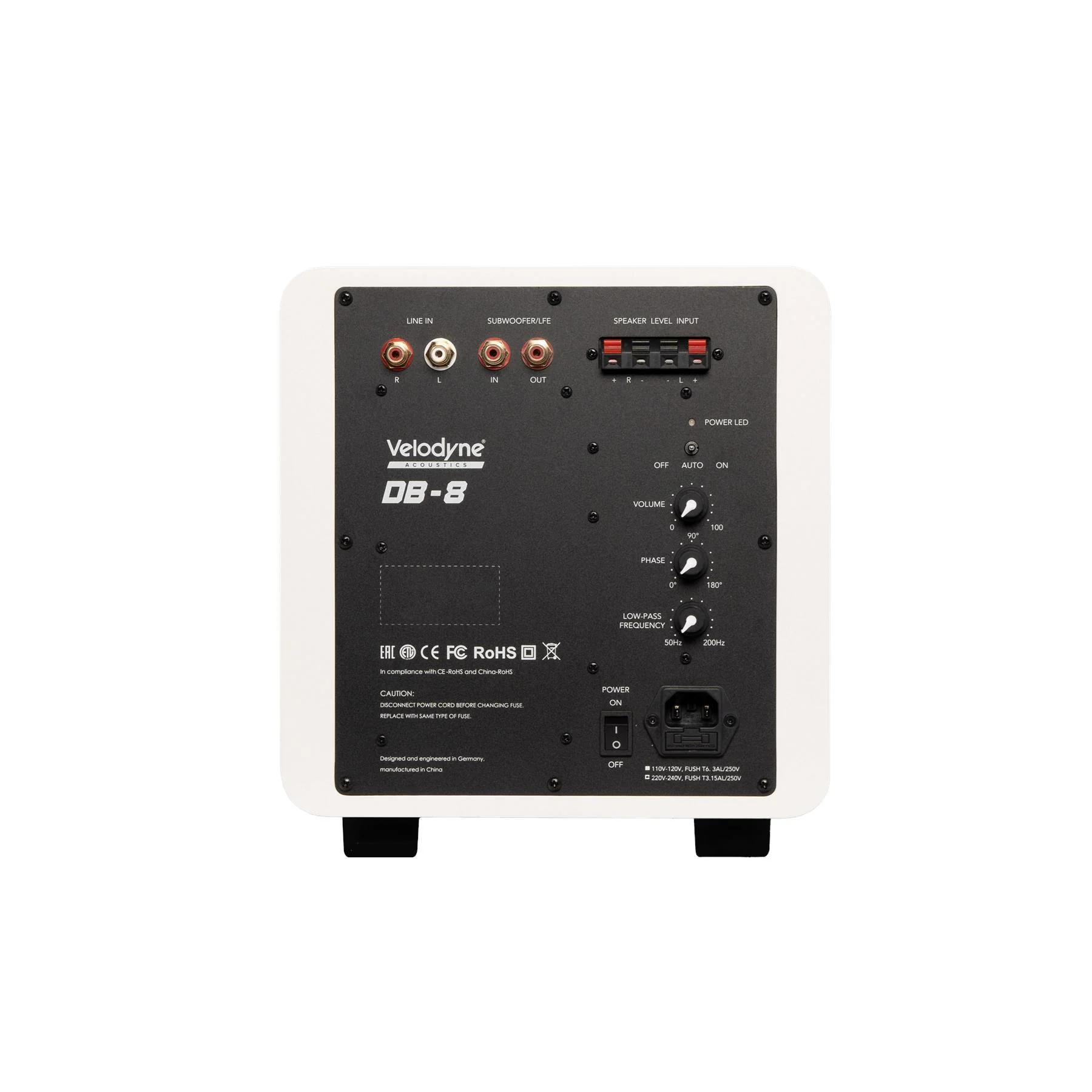

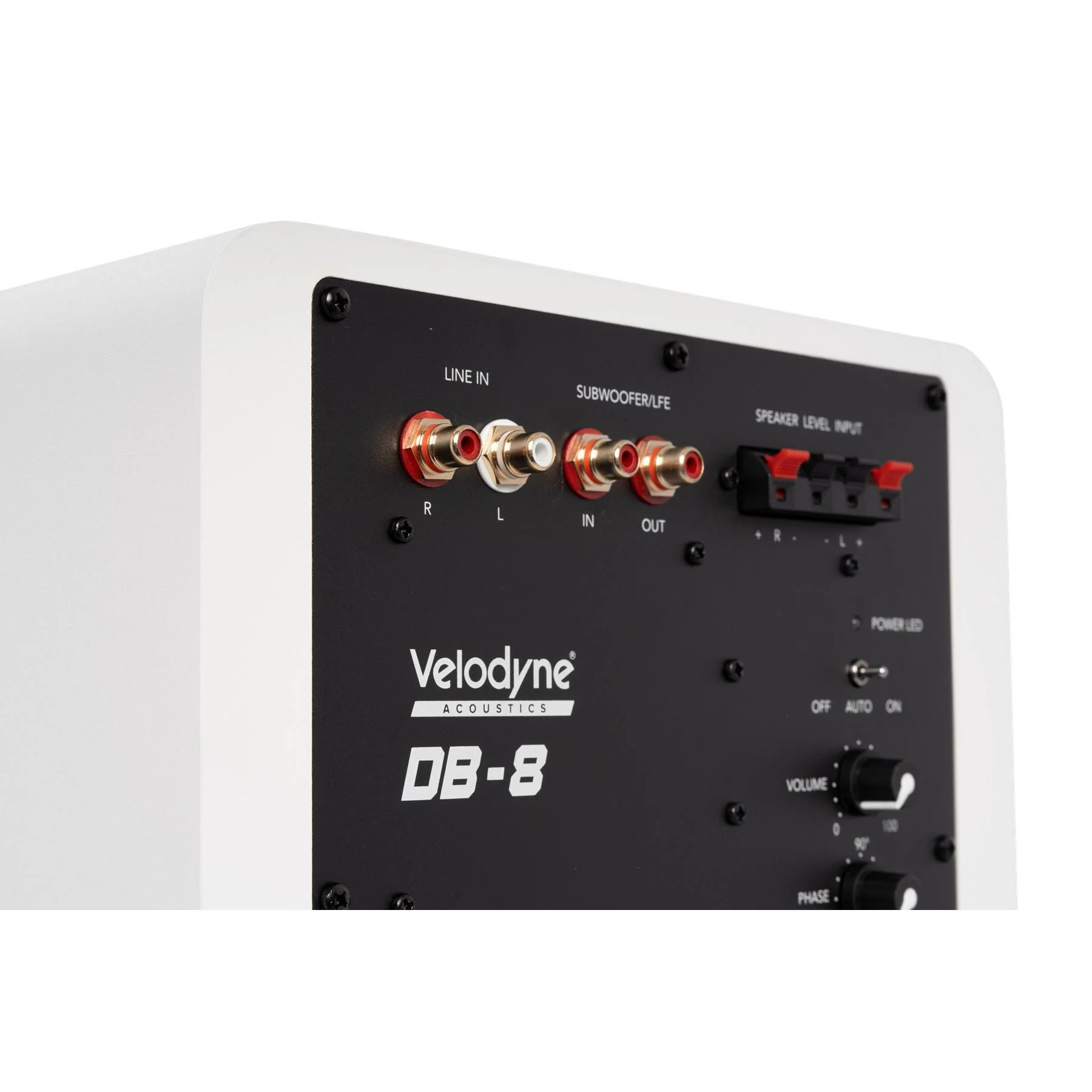

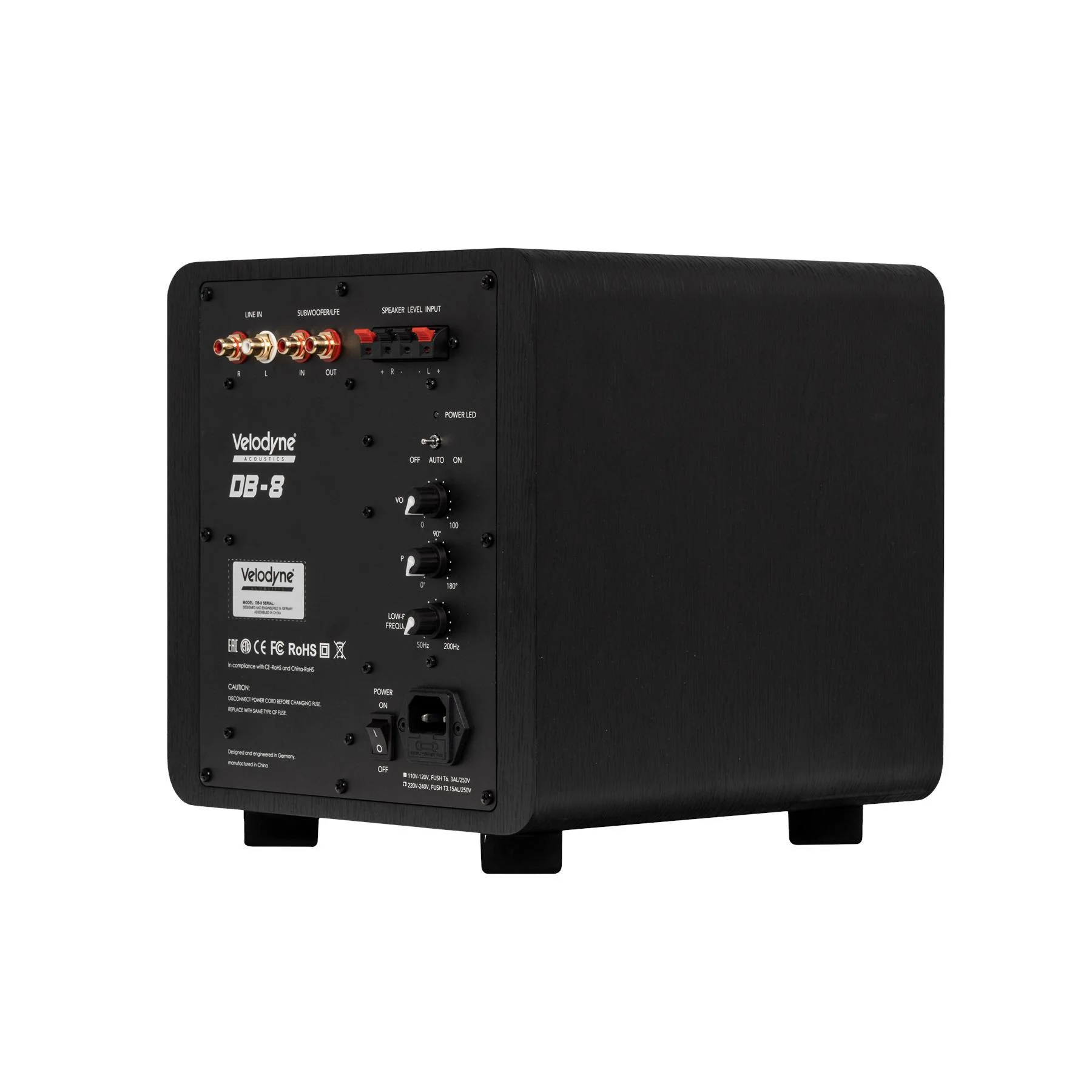

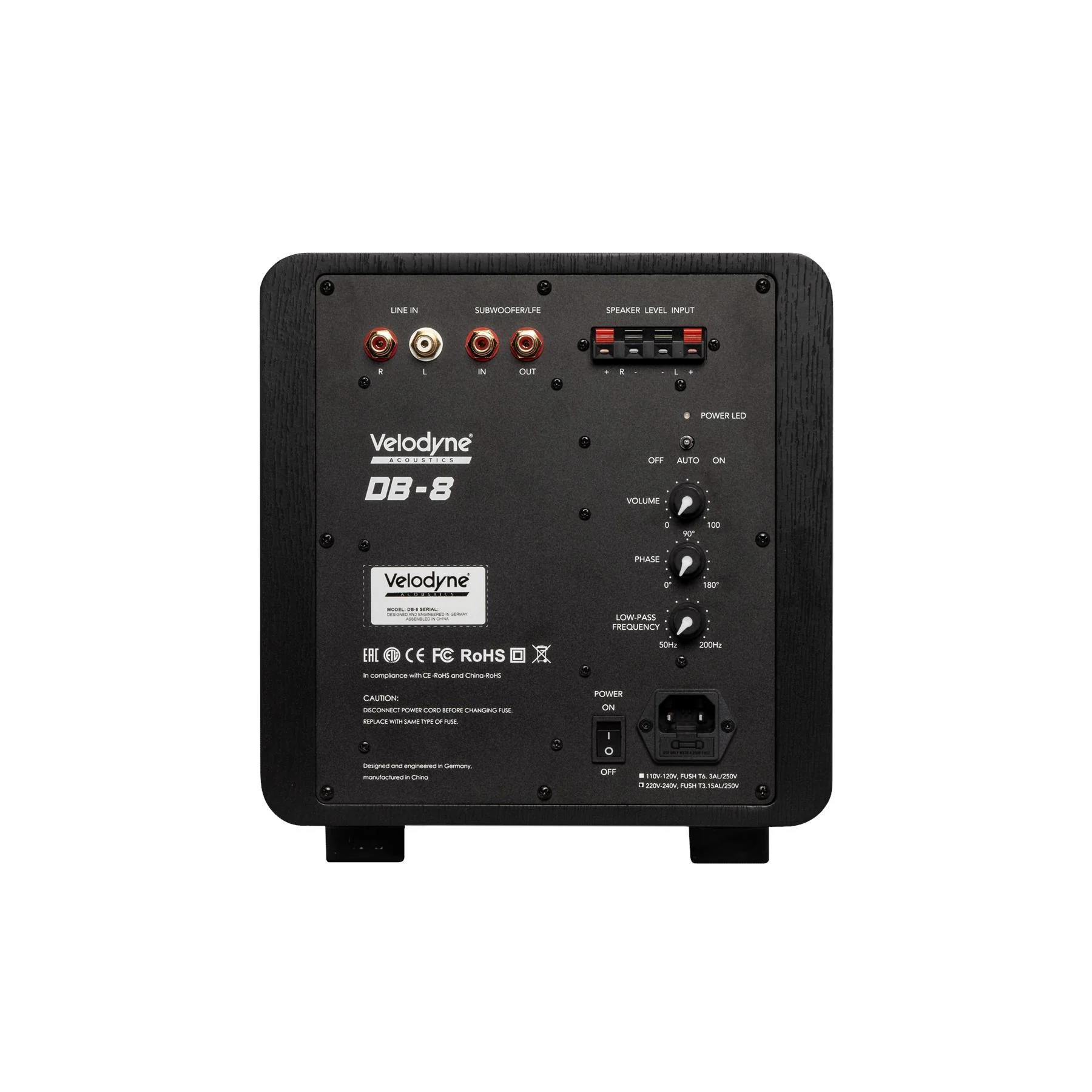

- Inputs: Gold-plated stereo RCA line in, LFE in, nickel-plated high-level input
- Outputs: Gold-plated LFE / RCA
- Power Selector: Off / Auto / On

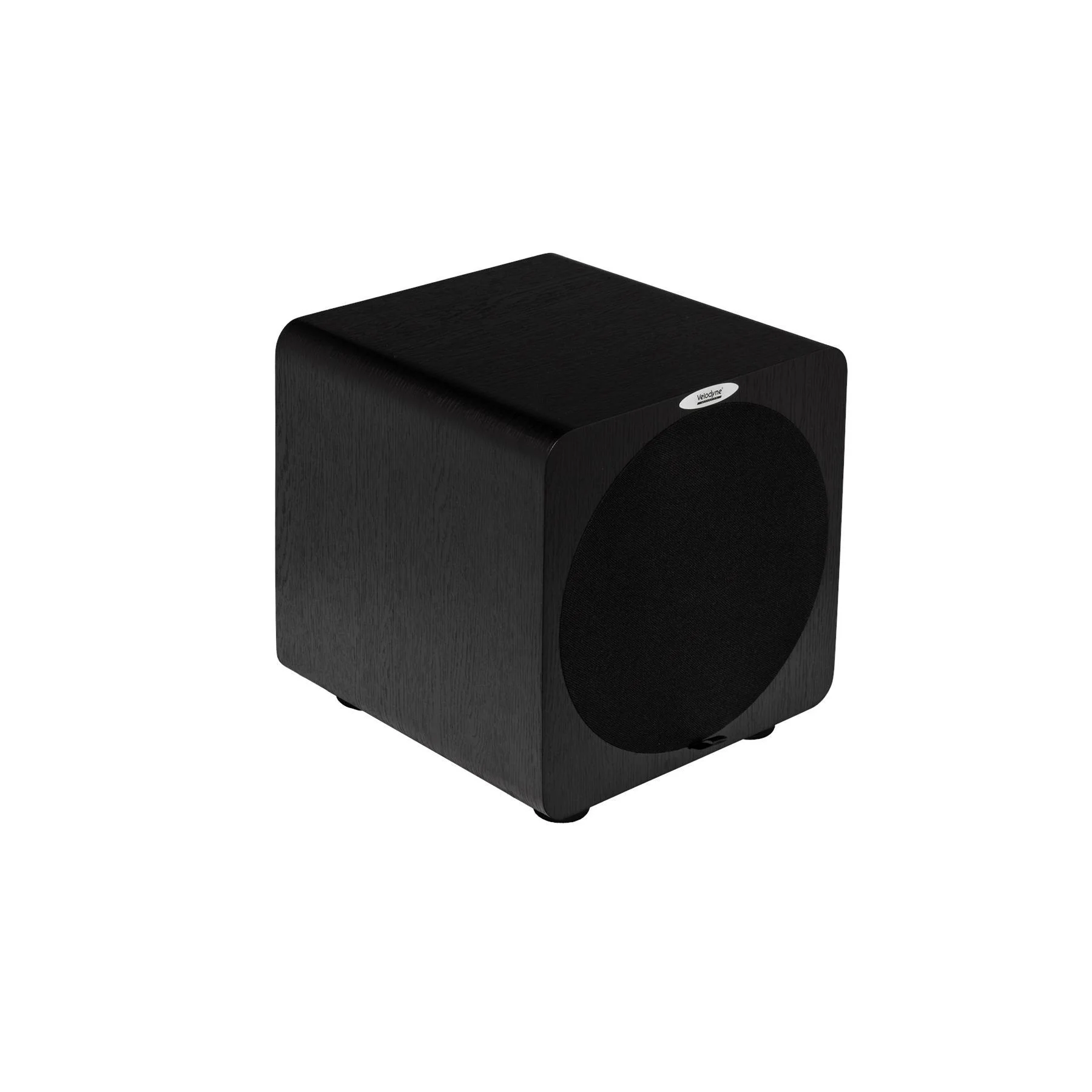

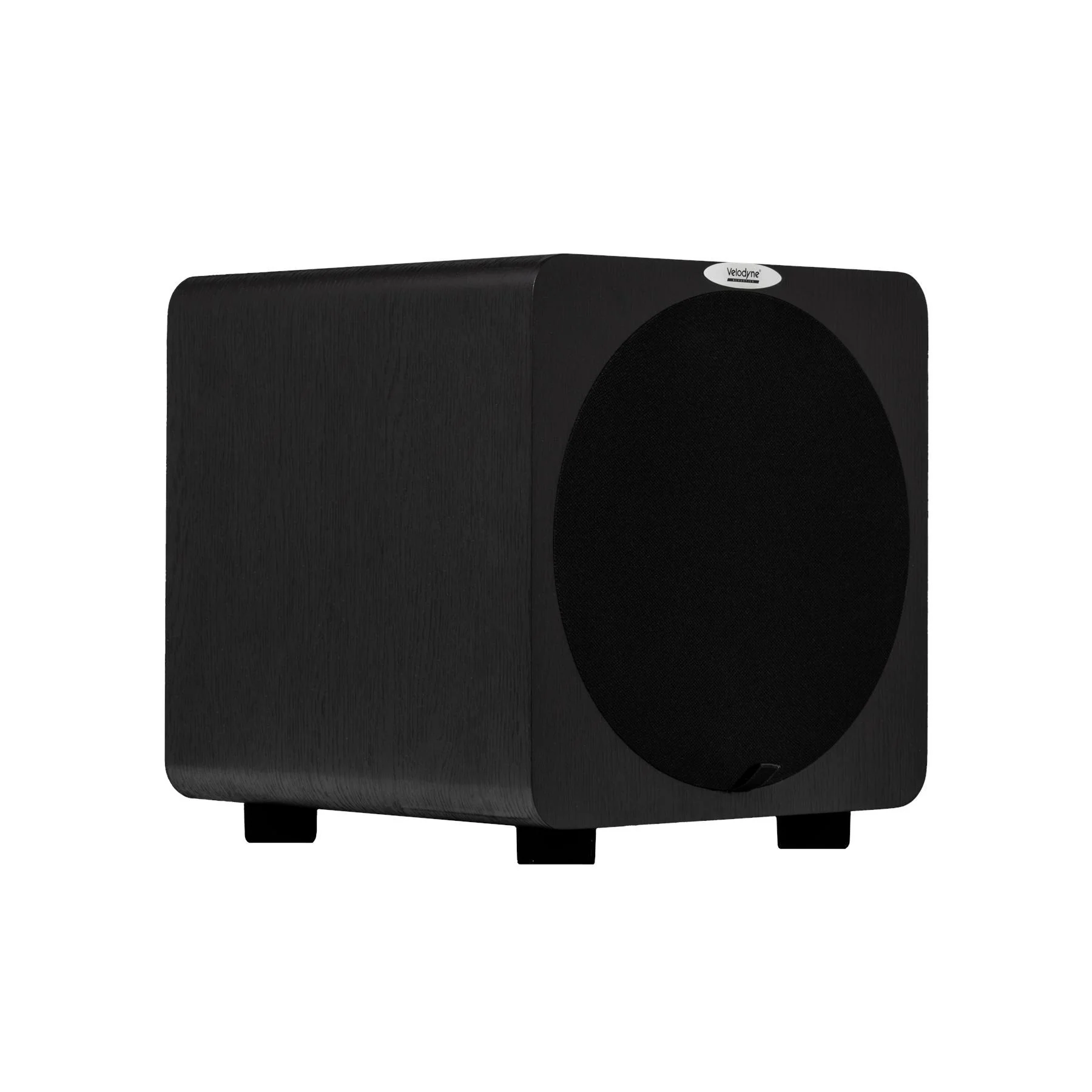

- Finish: Black
- Dimensions (W x H x D, incl. feet & connectors): 26 x 28 x 29 cm
- Weight (Approx.): 9 kg
- Shipping Weight (Approx.): 10 kg
Velodyne Acoustics Deep Blue 8 Q&A:
- Is the Deep Blue 8 suitable for both movies and music?
- Yes, the Deep Blue 8 is engineered for precise, dynamic bass that works equally well with movie soundtracks, gaming audio and music listening in smaller rooms.
- What room size is best for the Deep Blue 8?
- The Deep Blue 8 is ideal for small to medium rooms such as living rooms, bedrooms or offices where a compact subwoofer is preferred but full, controlled bass is still desired.
- How can the Deep Blue 8 be connected to an AV receiver or amplifier?
- You can connect the Deep Blue 8 via gold-plated stereo RCA line inputs or the dedicated LFE input from an AV receiver, or use the high-level (speaker-level) inputs when a subwoofer output is not available.
- Does the Deep Blue 8 have auto power on/off?
- Yes, the subwoofer includes an Off / Auto / On power selector, allowing it to switch on automatically when a signal is detected and return to standby when not in use.
- Can the Deep Blue 8 be tuned to match existing speakers?
- Yes, the adjustable low-pass crossover from 50–180 Hz, variable phase control from 0–180 degrees and level control provide the flexibility to blend the subwoofer smoothly with your main speakers.
- What type of enclosure and woofer does the Deep Blue 8 use?
- It uses a sealed MDF cabinet with a 52 mm thick front baffle and an 8″ high-excursion, double-vented basket driver featuring a PP reinforced membrane and four-layer voice coil for accurate, low-distortion bass.
- Is the Deep Blue 8 available in multiple finishes?
- No, the Deep Blue 8 is offered in a classic black finish designed to blend discreetly with most interiors.
- How heavy is the Deep Blue 8, and is it easy to position?
- The Deep Blue 8 weighs approximately 9 kg, making it sturdy enough to stay put during operation yet light enough for most users to reposition as needed.
Velodyne Acoustics Deep Blue 8 Downloads:
Velodyne Acoustics Deep Blue 8 User Manual
