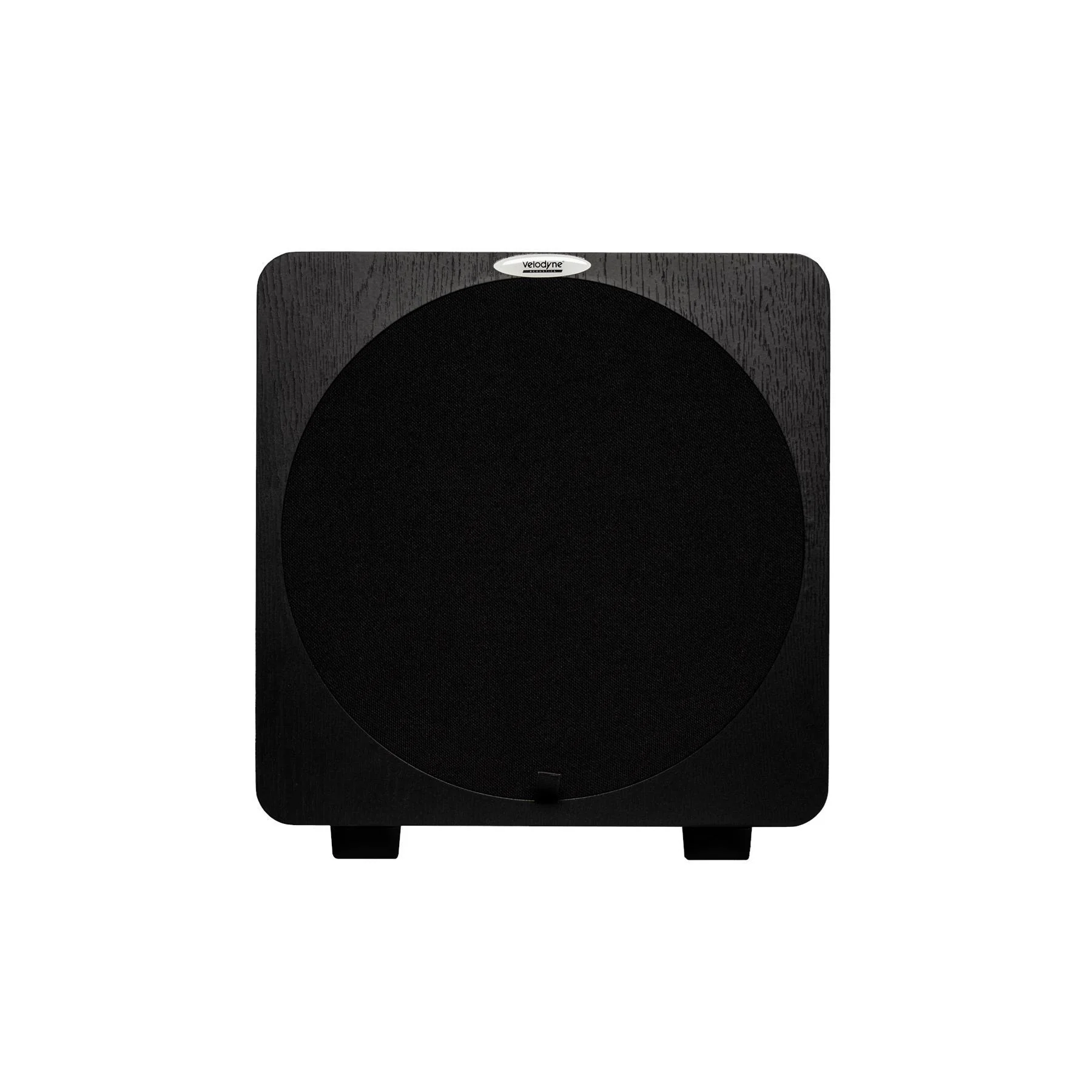

Velodyne Acoustics Deep Blue 10 Subwoofer
Velodyne Acoustics Deep Blue 10 - 10" Active Subwoofer
The Velodyne Acoustics Deep Blue 10 is a versatile 10" active subwoofer designed to deliver powerful, finely controlled bass for modern home cinema and hi-fi systems. Its larger front-firing driver and upgraded Class AB amplifier with 850 W dynamic and 350 W RMS power provide deeper extension and higher output than the 8" model, making it ideal for medium-sized rooms. A rigid sealed MDF cabinet with a 52 mm front baffle, combined with a dual ferrite magnet motor and high-excursion woofer, ensures low distortion and quick transient response.
Integration is straightforward thanks to variable crossover and phase controls, along with multiple input options, so the Deep Blue 10 can disappear sonically into your system while dramatically improving low-frequency performance. Whether used for explosive movie effects or nuanced musical bass lines, it balances authority with precision for an engaging listening experience.
Velodyne Acoustics Deep Blue 10 Full Specifications:
- Model: Velodyne Acoustics Deep Blue 10
- Driver: 10″ forward firing
- Amplifier Type: Class AB
- Amplifier Power (Dynamic): 850 watts
- Amplifier Power (RMS): 350 watts
- Frequency Response (Overall): 16 – 280 Hz
- Frequency Response (±3 dB): 28 – 180 Hz
- Low-Pass Crossover: 50 Hz to 180 Hz (12 dB/Octave)
- Phase Control: 0 to 180 degrees
- Cabinet Design: MDF closed box with 52 mm / 2″ front baffle
- Magnet Structure: Dual ferrite magnet motor
- Woofer: 10″ high excursion double-vented basket driver with PP reinforced membrane
- Voice Coil: Four-layer 2″ / 52 mm voice coil
- Inputs: Gold-plated stereo RCA line in, LFE in, nickel-plated high-level input
- Outputs: Gold-plated LFE / RCA
- Power Selector: Off / Auto / On
- Finish: Black
- Dimensions (W x H x D, incl. feet & connectors): 29,6 x 31,6 x 34,8 cm
- Weight (Approx.): 11 kg
- Shipping Weight (Approx.): 12,5 kg
Velodyne Acoustics Deep Blue 10 Q&A:
- Who is the Deep Blue 10 best suited for?
- The Deep Blue 10 is ideal for listeners who want powerful, controlled bass in medium-sized rooms for both home cinema and hi-fi without moving to a very large cabinet.
- How does the Deep Blue 10 compare to the Deep Blue 8?
- Compared to the Deep Blue 8, the Deep Blue 10 offers a larger driver, more amplifier power and deeper low-frequency extension, making it better suited to larger spaces and higher playback levels.
- Can the Deep Blue 10 be used with a stereo amplifier that lacks a subwoofer output?
- Yes, it includes high-level (speaker-level) inputs, allowing you to connect it to the speaker outputs of a stereo amplifier that has no dedicated subwoofer output.
- What controls are available to tune the Deep Blue 10?
- The subwoofer provides an adjustable low-pass crossover from 50–180 Hz, a variable phase control from 0–180 degrees and a level control so you can match the bass precisely to your system.
- Is the Deep Blue 10 easy to position in a room?
- Its relatively compact cabinet for a 10″ subwoofer and front-firing design make placement flexible, allowing positioning near a wall or in a front corner to optimize bass response.
- Does the Deep Blue 10 support an auto-standby function?
- Yes, the Off / Auto / On selector lets you choose an automatic mode where the subwoofer powers up when it receives signal and returns to standby when idle.
- What finish does the Deep Blue 10 come in?
- The Deep Blue 10 is supplied in a black finish that blends easily with most loudspeakers and home interiors.
- Is the Deep Blue 10 suitable for multi-channel home theater setups?
- Yes, its powerful amplifier, extended bass response and dedicated LFE input make it a strong choice for multi-channel AV receiver-based home cinema systems.
Velodyne Acoustics Deep Blue 10 Downloads:
Velodyne Acoustics Deep Blue 10 User Manual
