TEAC AP-505 Stereo Power Amplifier

Enhance your audio experience with the TEAC AP-505 Stereo Power Amplifier. This ultra-compact powerhouse leverages advanced Hypex Ncore technology, ensuring unparalleled musical dynamics and precision. Ideal for audiophiles and home theater enthusiasts, the AP-505 offers versatile configurations and an elegant, space-saving design.

Teac AP-505 Key Features

• Hypex Ncore Technology: High-performance, energy-efficient amplification with 130W + 130W in stereo/bi-amp modes or 250W in BTL mode.
• Versatile Modes: Supports stereo, bi-amp, and BTL modes for flexible speaker setups.
• Full-Metal Chassis: High-grade aluminum alloy construction reduces mechanical vibration.
• Fully-Balanced Design: Ensures low distortion and excellent signal-to-noise ratio.
• Premium Components: Includes high-quality MUSES8820E dual op-amps and independent power supply circuits for each channel.
• Oversized Toroidal Transformer: Provides stable current delivery and reduced noise.
• 'Pin-Point' Feet: Minimizes vibrations and enhances soundstage detail.
• Passive Cooling: Silent operation without a cooling fan.
• Dual Analog Level Meters: Adjustable meters provide visual feedback of signal levels.

Teac AP-505 Specifications

Amplifier Section

• Maximum Output Power:
  • Stereo/Bi-amp Modes: 130W + 130W (4Ω, 1kHz, JEITA), 90W + 90W (8Ω, 1kHz, JEITA)
  • BTL Mode: 250W (8Ω, 1kHz, JEITA)
• Rated Output Power:
  • Stereo/Bi-amp Modes: 115W + 115W (4Ω, 1kHz, THD 0.8%), 70W + 70W (8Ω, 1kHz, THD 0.8%)
  • BTL Mode: 220W (8Ω, 1kHz, THD 0.8%)
• Total Harmonic Distortion: 0.0015% (8Ω, 1kHz, 12.5W, JEITA)
• Signal-to-Noise Ratio: 113dB (8Ω, 1kHz, IHF-A)
• Frequency Response: 10Hz to 50,000Hz (+0dB, –5dB, 8Ω, 1W, JEITA)
• Damping Factor: 370 or higher, JEITA (20Hz to 20kHz, Output impedance: 22mΩ, 8Ω loaded)

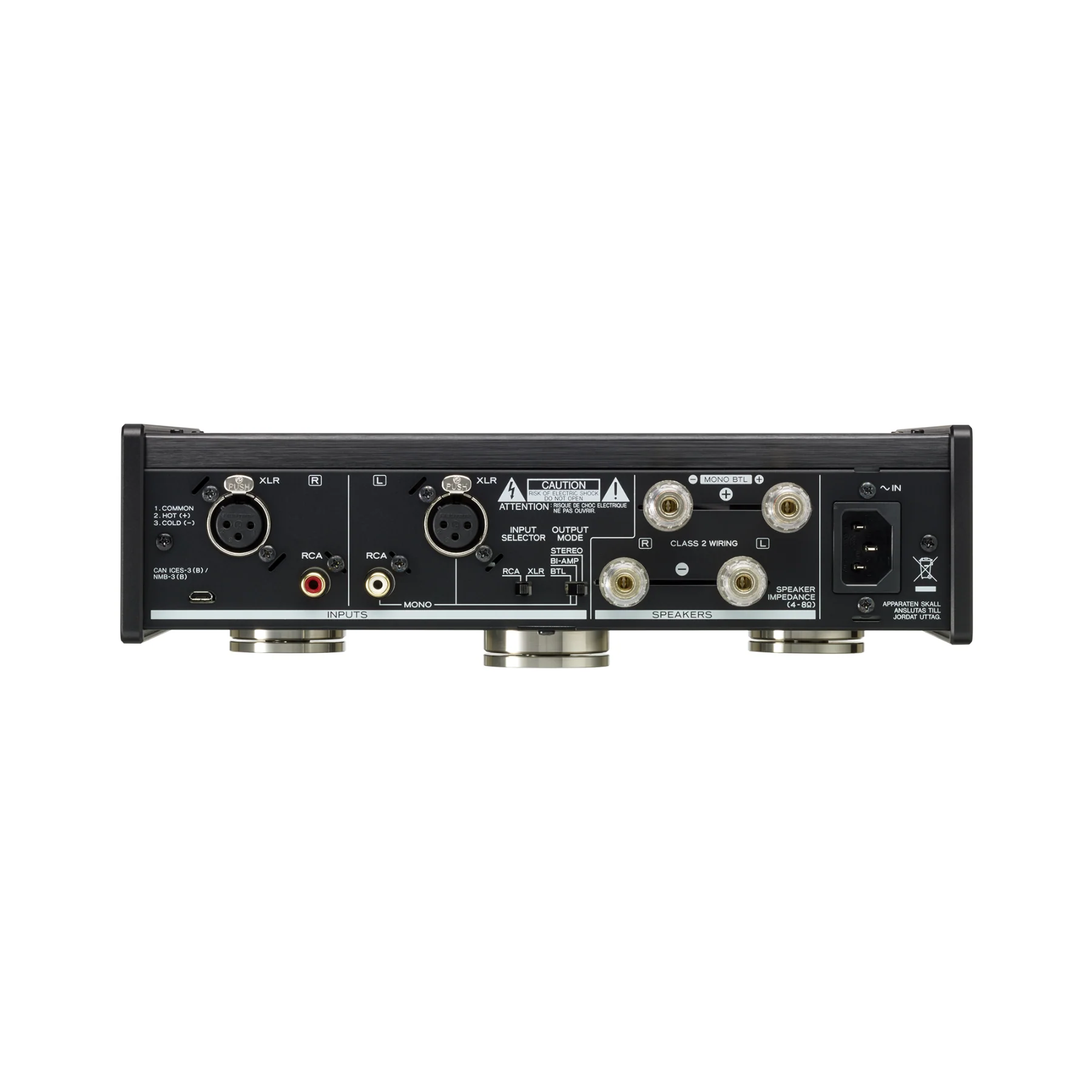

Input Section

• LINE IN (Balanced):
  • Connector: XLR (2: HOT) × 1 pair
  • Input Sensitivity: 1.3V (Output 8Ω, THD 1%)
  • Input Impedance: 10kΩ or higher
• LINE IN (Unbalanced):
  • Connector: RCA Pin (gold-plated) × 1 pair
  • Input Sensitivity: 0.66V (Output 8Ω, THD 1%)
  • Input Impedance: 10kΩ or higher

Speaker Outputs

• Connector: Screw type × 1 set (gold-plated, AWG8 and Banana-plug compatible)
• Compatible Speaker Impedance:
  • Stereo/Bi-amp Modes: 4Ω to 16Ω
  • BTL Mode: 8Ω to 16Ω

Power

• AC Supply: AC220 to 240V, 50Hz (UK/Europe)
• Power Consumption: 106W
• Standby Power: 0.1W or less (in Auto power-saving mode)

Physical

• Dimensions: 290 × 84.5 × 271 mm / 11.4" × 3.3" × 10.7" (W × H × D)
• Weight: 4.4kg / 9.7 lbs.
• Included Accessories: Power cord, Owner's manual (including warranty card)
