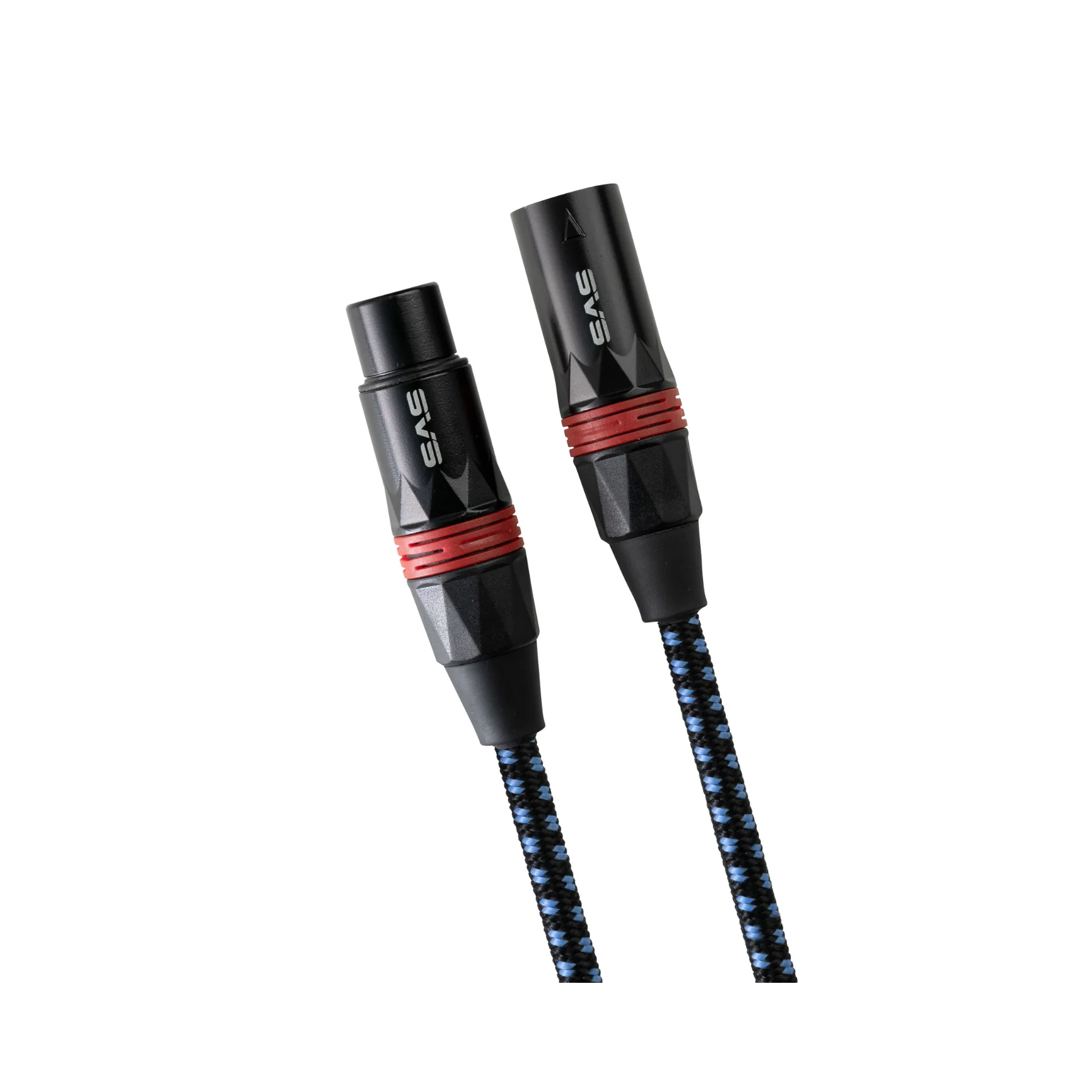

SVS SoundPath Balanced XLR Cable

SVS SoundPath Balanced XLR Audio Cable

Cables shouldn’t be the weakest link in a high-performance system—and they shouldn’t cost a fortune to deliver clean, reliable signal transfer. The SVS SoundPath Balanced XLR Audio Cable is built to preserve signal purity with a 24K gold-plated brass conductor pin and an advanced five-layer isolation/shielding system designed to reject noise, EMI, and RF interference.

Designed for both audiophile and pro-audio use, these balanced XLR interconnects work seamlessly with preamps, power amplifiers, subwoofers, AV receivers, microphones, and other components equipped with balanced XLR inputs/outputs. A protective, densely braided cotton outer jacket improves durability and makes routing and handling easier, while red/white channel markings (and polarity color coding for stereo pairs) keep installations clean and mistake-free. The SVS SoundPath Balanced XLR Cable is part of ListenUp's SVS Cables Collection.

What It's Good At:

• Delivering quiet, interference-resistant balanced audio for demanding home theater, hi-fi, and studio rigs
• Maintaining a secure, stable connection with 24K gold-plated contact surfaces for consistent conductivity
• Reducing audible noise by rejecting EMI/RFI with a true five-layer isolation system
• Preserving detail and dynamics with 99.99% oxygen-free copper conductors engineered for low signal loss
• Making setup fast and foolproof with clear L/R channel markings (red/white) and stereo pair polarity identification
• Standing up to frequent handling and tight cable runs thanks to a durable cotton-braided jacket and robust connector body

SVS SoundPath Balanced XLR Full Specifications:

• Type: Balanced XLR audio interconnect cable
• Compatibility/Use: Works with preamps, power amplifiers, subwoofers, AV receivers, microphones, and other audio components with balanced XLR inputs/outputs

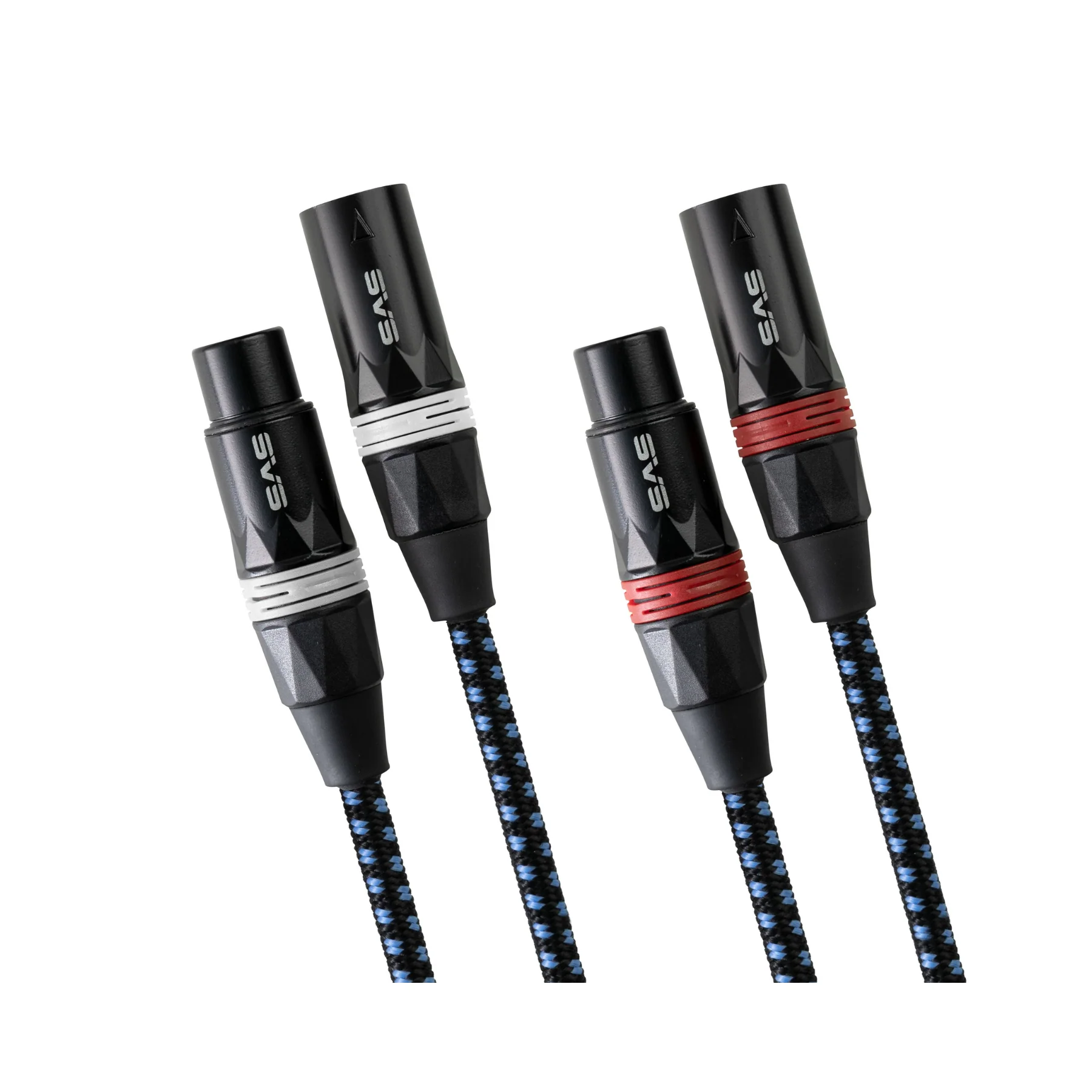

• Available Lengths: 1, 2, 3, 5, 8, 12, and 15 meter lengths (1 meter and 2 meter also available as stereo pairs)
• Channel/Polarity ID: Red and white marking for L/R channel designation; stereo pairs color coded to show polarity
• Outer Jacket: Protective cotton braided jacket for easy gripping and cable management
• Cable Construction Materials:
  • Tri-balanced high gauge 99.99% oxygen-free-copper conductors individually isolated in independent HDPE dielectric jackets for consistent flow, high purity, and minimal signal loss
  • 1.6mm HDPE inside core dielectric – first of the five-layer insulation system shields twisted trio of dedicated conductors
  • Aluminum wrap shield – second layer in the shielding and insulation system
  • 56-strand spiral braid of 99.99% OFC tinned copper soldered to chassis ground terminal forms critical third barrier to remove EMI and RF noise between electronics
  • High density PVC jacket wrapped in densely braided cotton jacket provides flexibility, easy gripping, and forms the final two layers in the five-layer insulation system
  • Five-layer isolation system rejects electromagnetic interference (EMI)
• XLR Connector Construction Materials:
  • Precision-soldered with high grade lead-free solder to ensure durable and constant electrical contacts with consistent signal flow
  • 24K gold-plated brass conductor pin for stable electrical contact and signal flow
  • Solid zinc-alloy terminal with black nickel-plating provides stylish and durable body with comfortable handling
  • Red and white marking bands for easy left and right channel designation
  • Shield layer is hand-soldered to source terminal chassis connection for best possible grounding and noise rejection
• Electrical Properties:
  • Conductor DCR: 77 mΩ/meter
  • Shield DCR: 40 mΩ/meter
  • Nominal Impedance: 110Ω (impedance-matched to minimize VSWR and Return Loss)
  • Nominal Capacitance: 39 pF/meter @ 1kHz
  • Rated Bandwidth: DC–5.0 MHz (3M cable) with ≤1.09 VSWR and ≥27dB Return Loss

SVS SoundPath Balanced XLR Q&A:

What is this cable used for?

It’s a balanced XLR interconnect designed to connect audio components with XLR inputs/outputs—such as preamps, power amps, subwoofers, AV receivers, and microphones—while helping reduce noise and interference.

What makes this cable “balanced,” and why does that matter?

Balanced XLR connections are built to reject noise picked up along the cable run, which is especially helpful in longer runs or in systems with lots of nearby electronics.

What lengths are available?

The cable is available in 1, 2, 3, 5, 8, 12, and 15 meter lengths, and 1 meter and 2 meter options are also available as stereo pairs.

Does it work for subwoofers and home theater receivers?

Yes. It’s designed to work with subwoofers, AV receivers, and other components that include balanced XLR connections.

How does it reduce interference and noise?

It uses a five-layer isolation/shielding system (including aluminum wrap and a tinned-copper spiral braid tied to chassis ground) to reject EMI and RF noise.

Are the connectors durable for frequent plugging/unplugging?

The connectors are precision-soldered with lead-free solder, use a zinc-alloy terminal with black nickel plating, and feature a 24K gold-plated brass pin for stable contact.

How do I keep left and right channels organized?

The cable includes red/white marking bands for L/R channel identification, and stereo pairs are color coded to help indicate polarity.

Is it easy to route and manage behind equipment racks?

Yes. The high density PVC jacket and densely braided cotton outer jacket are designed for flexibility, grip, and easier cable management.
