SVS Ultra Evolution Tower Floor Standing Speakers

SVS Ultra Evolution Tower Floor-Standing Speakers

are where fine audio and value come together in a tower speaker.

See the ListenUp SVS ULTRA EVOLUTION awesome video!

1” Diamond Coated Tweeter:

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Cutting-edge vapor-deposition grows a hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response
• Silver tinsel for optimal signal transfer and power handling

4.5” Glass Fiber Composite Midrange Drivers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response

Quad 5.25” Woofers in Force Balance Array:

• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels

Cabinet:

• Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
• Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
• Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers
• FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels

Ultra Evolution matching Center Speaker

Ultra Evolution matching On-Wall/On-Ceiling Speakers

Ultra Evolution matching Bookshelf Speakers

Ultra Evolution matching Compact Bookshelf Speakers

Additional Features:

• Dual gold-plated 5-way binding posts

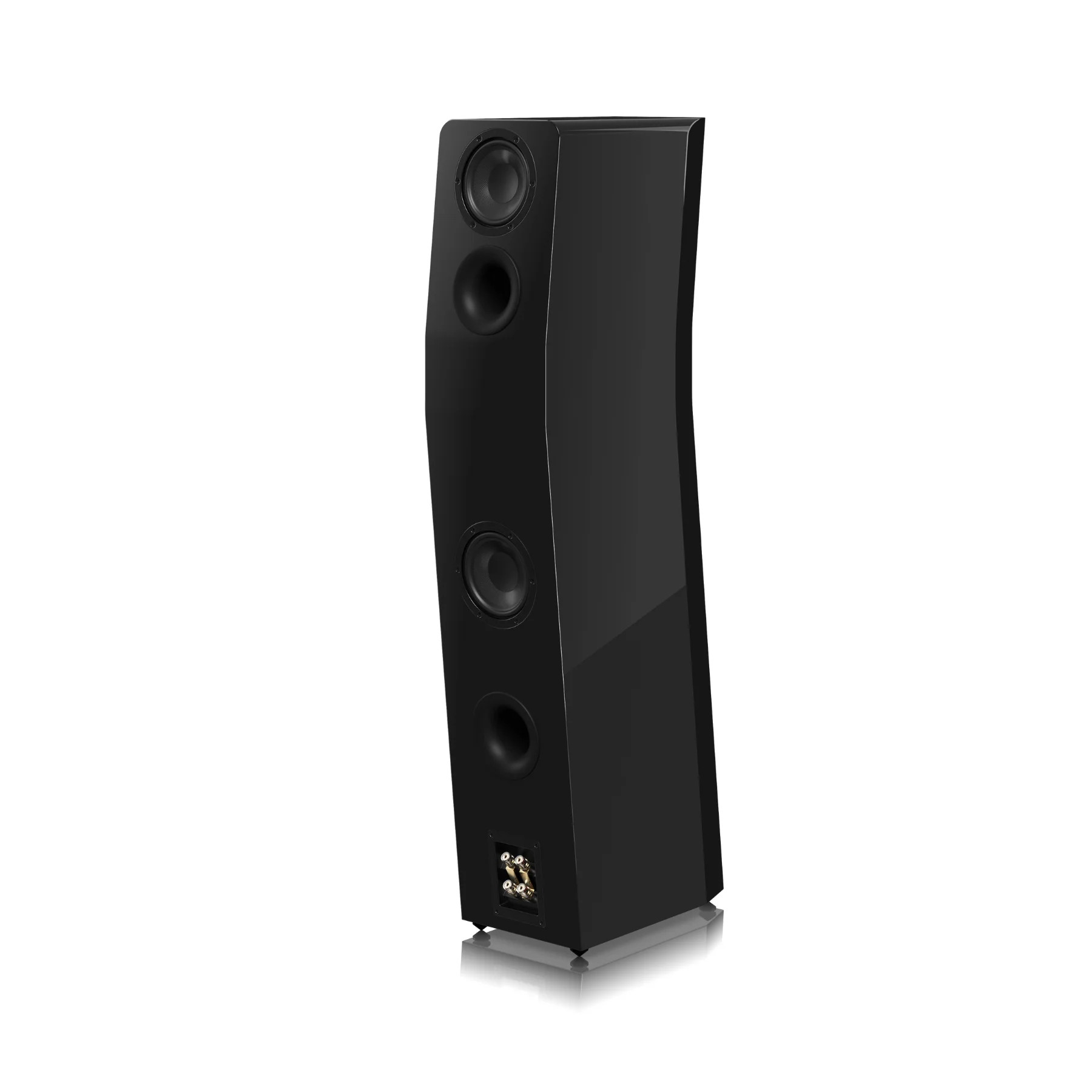

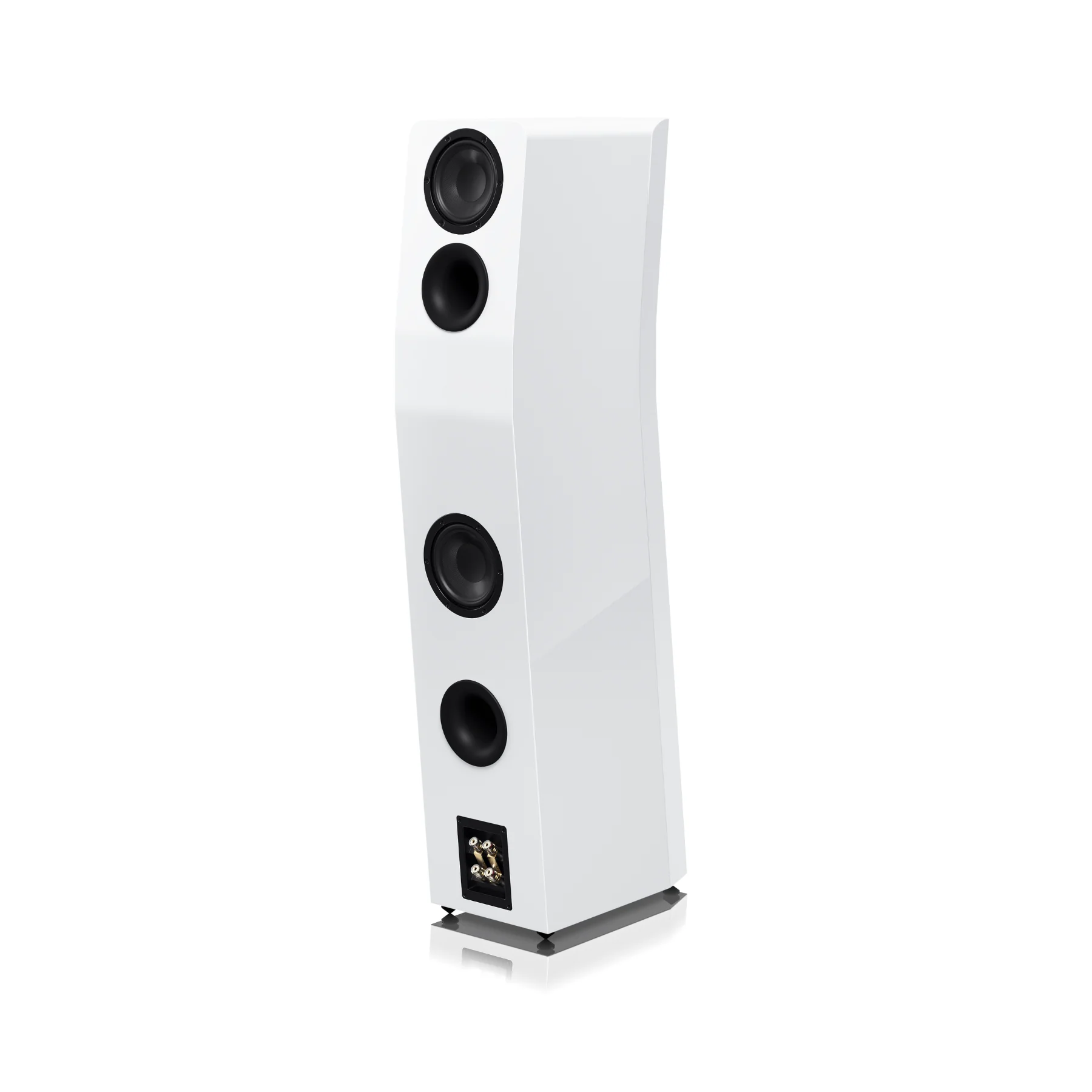

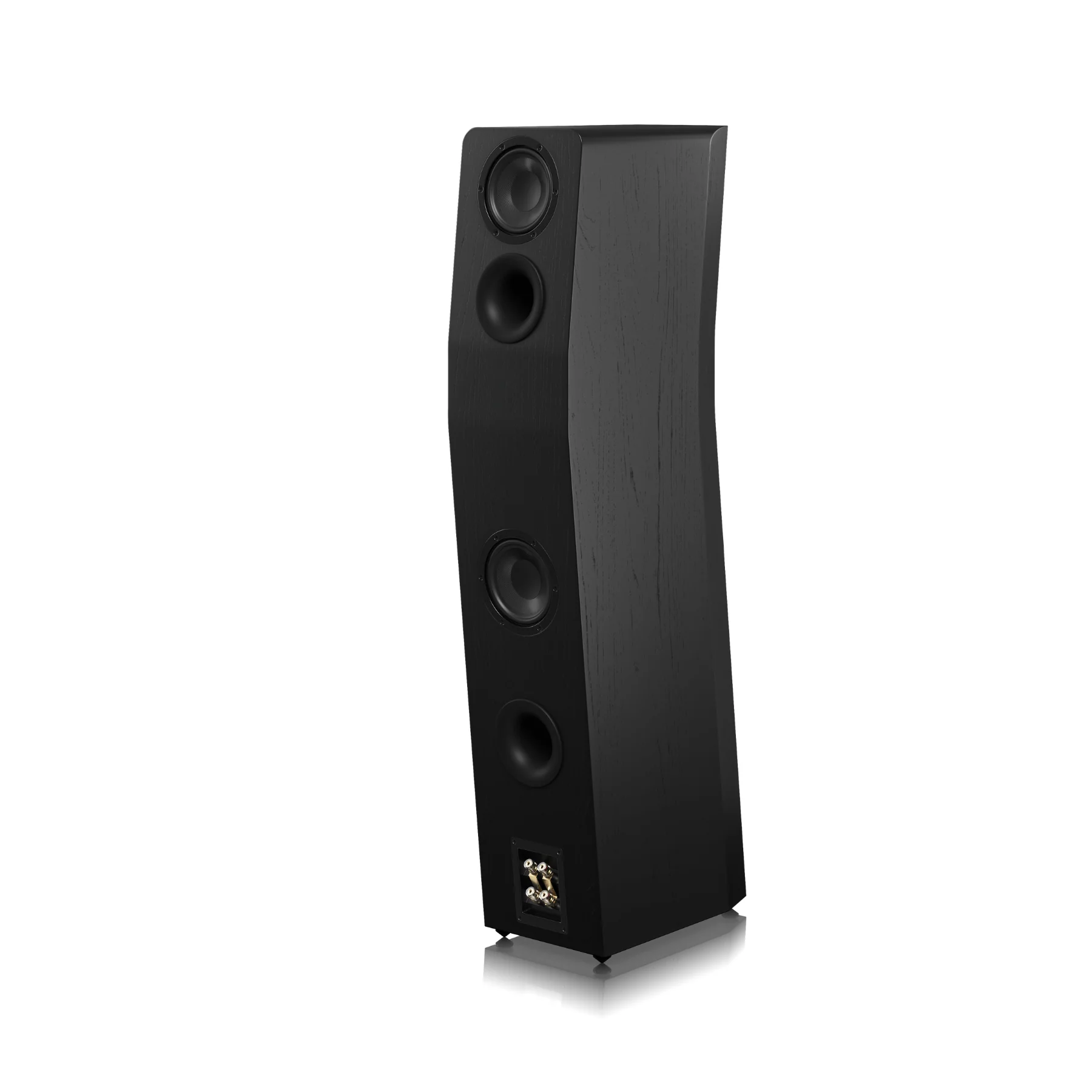

• Dual 2.5” wide-flared rear-firing ports

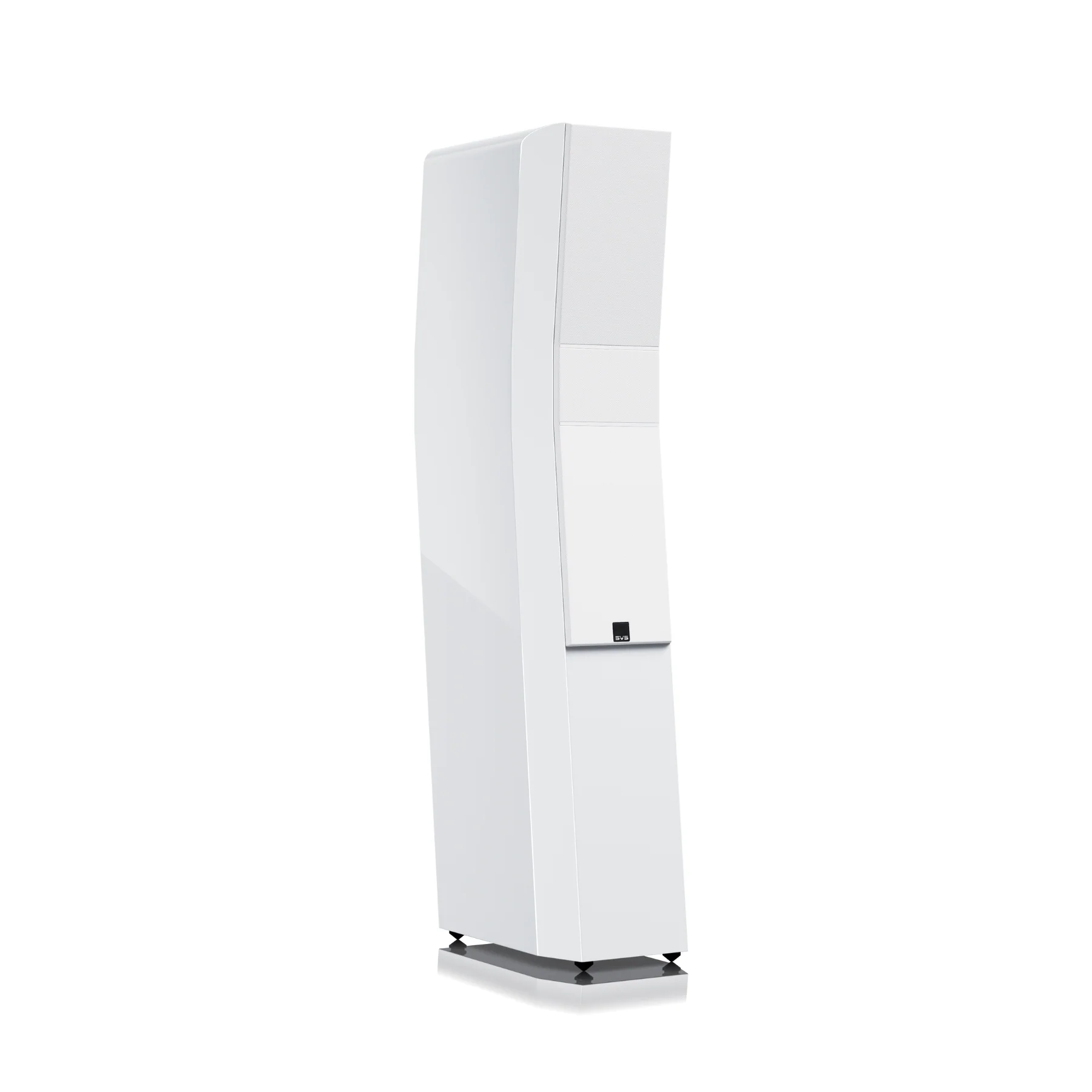

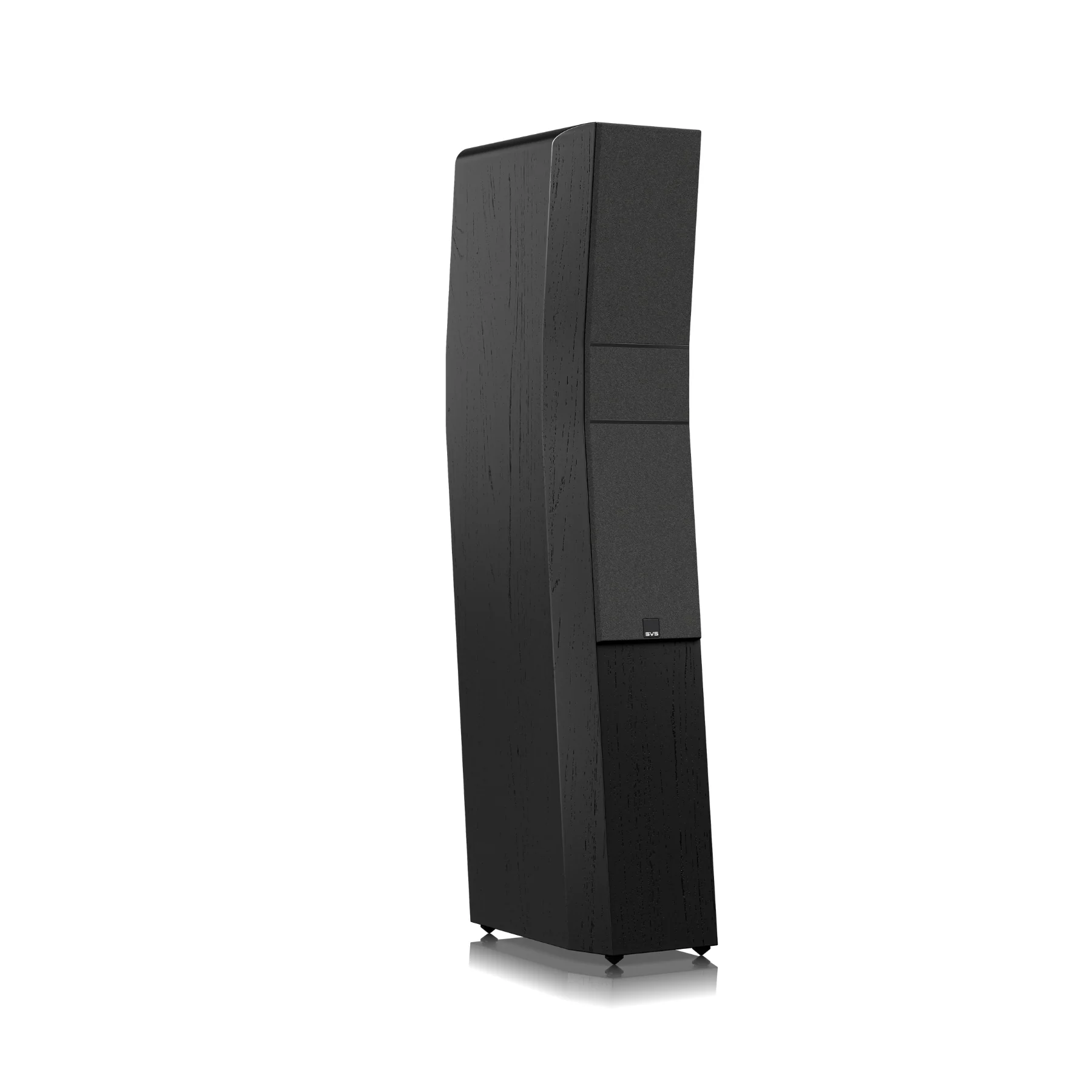

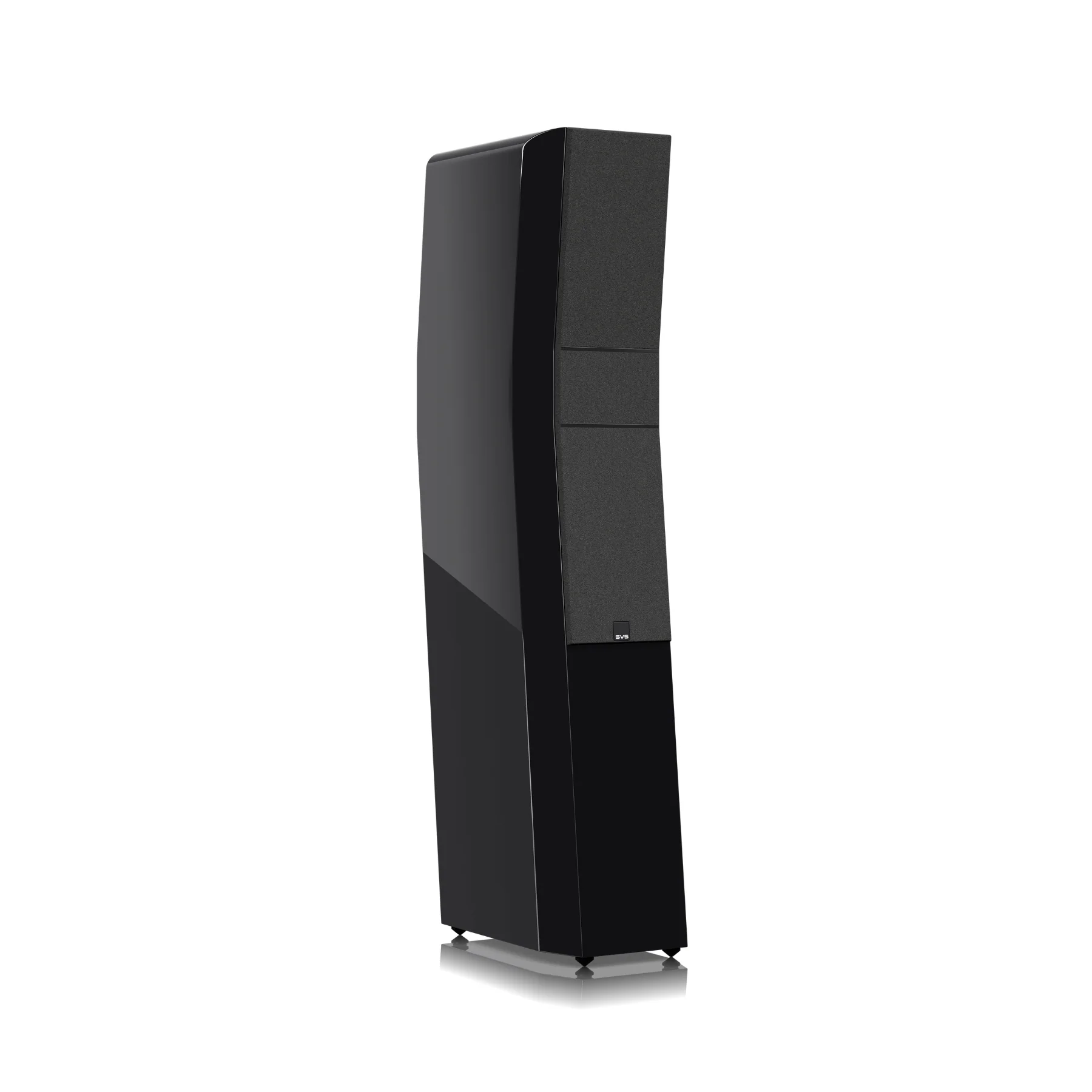

• Cloth grille with magnetic retention system
• Elastomer screw-in feet – adjustable for level
• Spiked metal screw-in feet included – adjustable for level

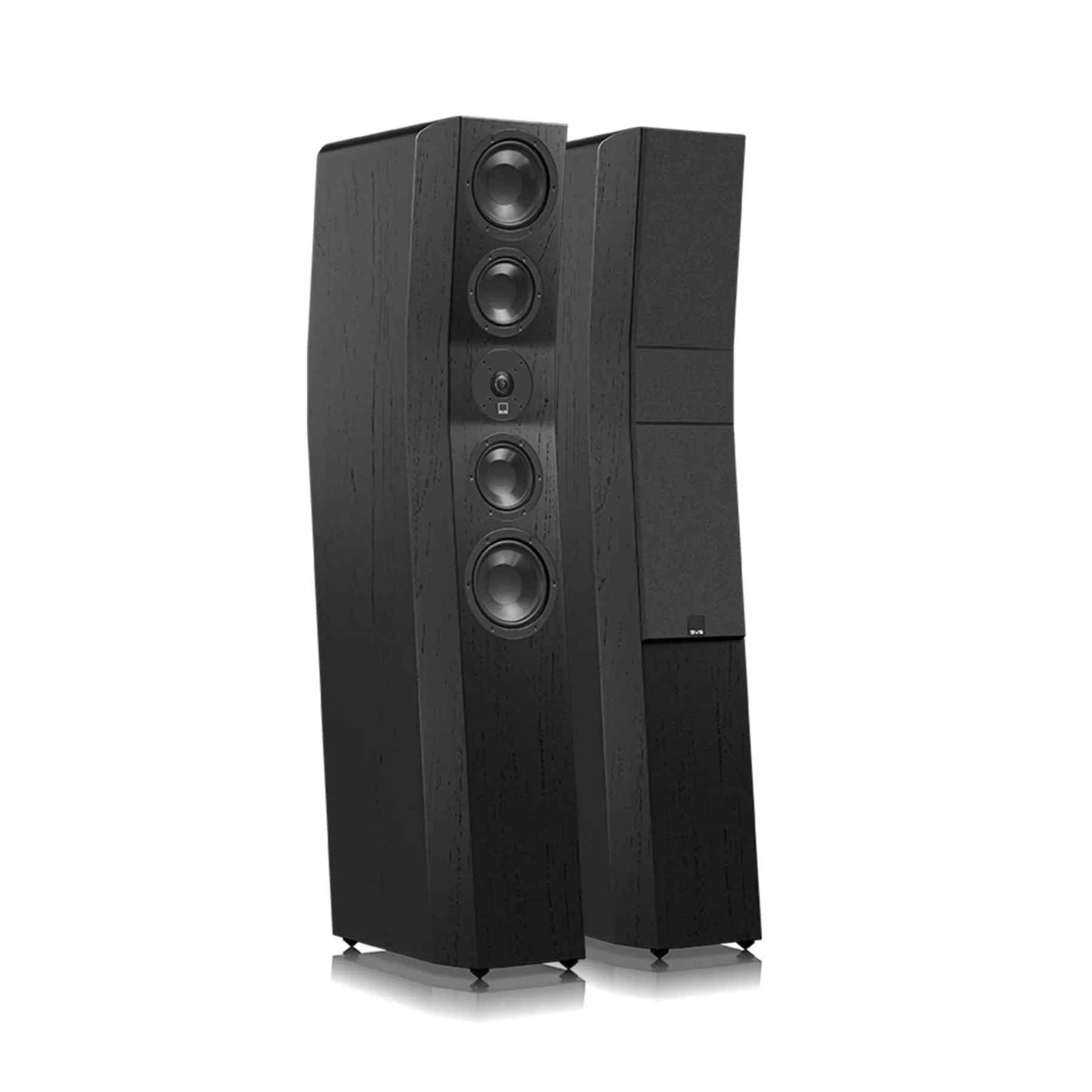

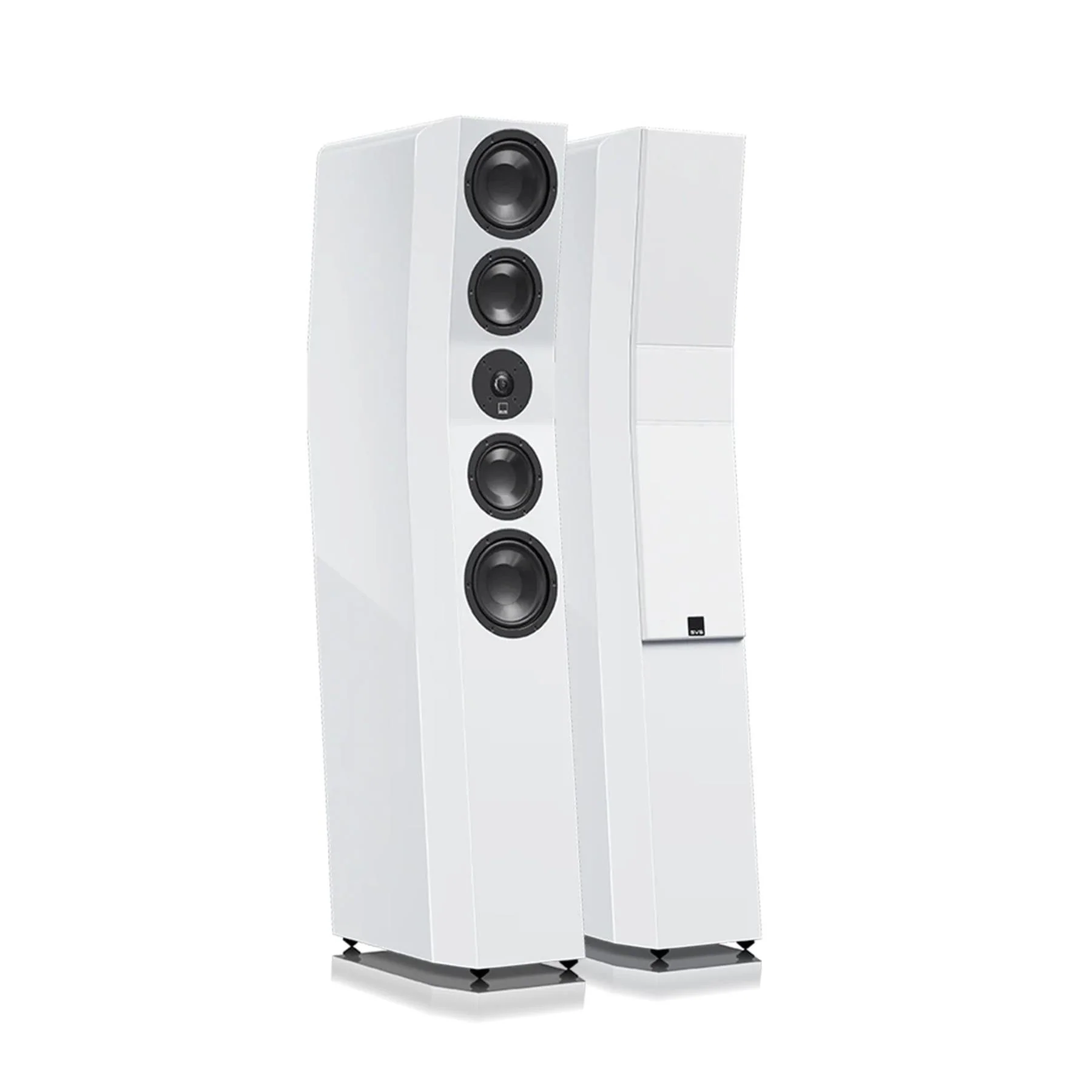

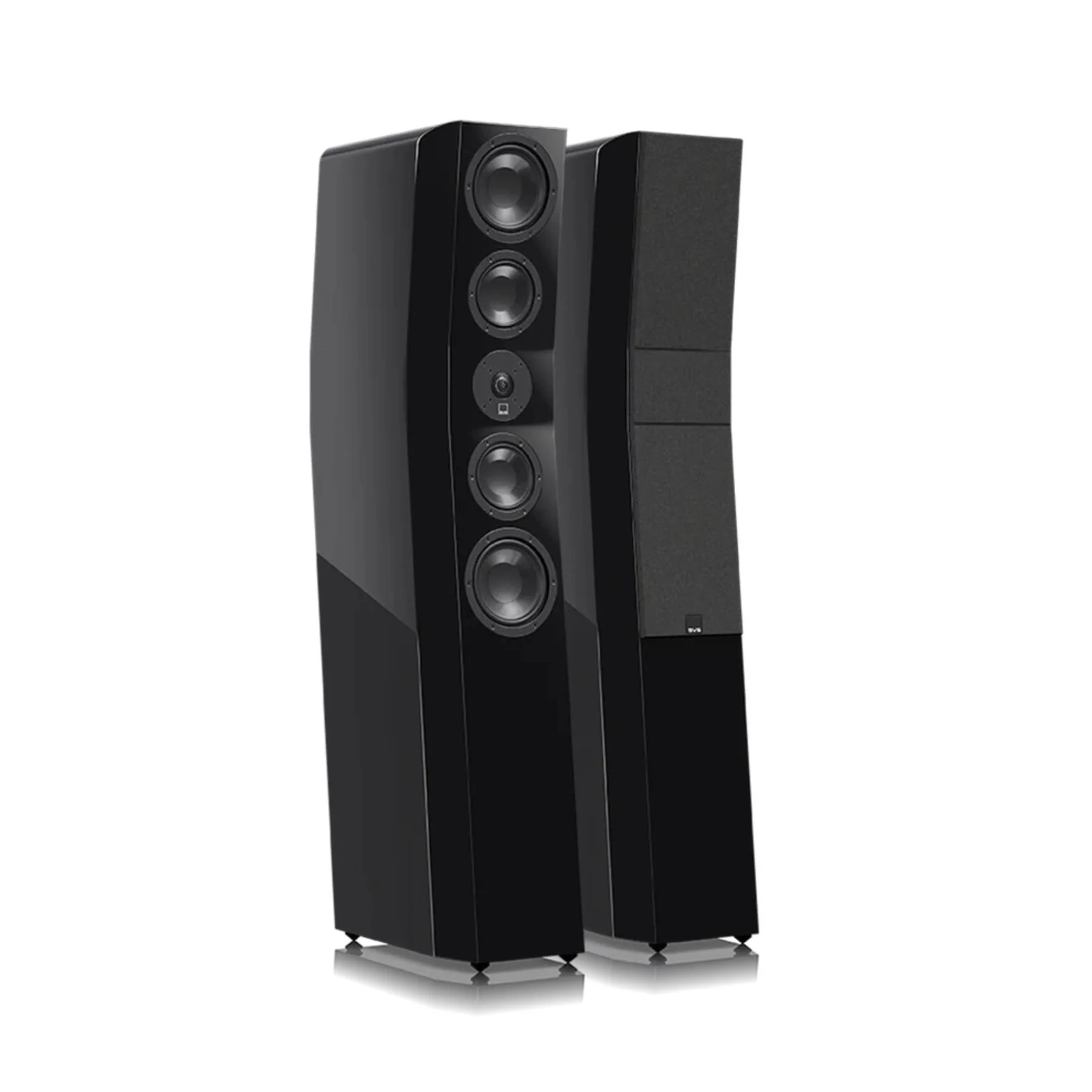

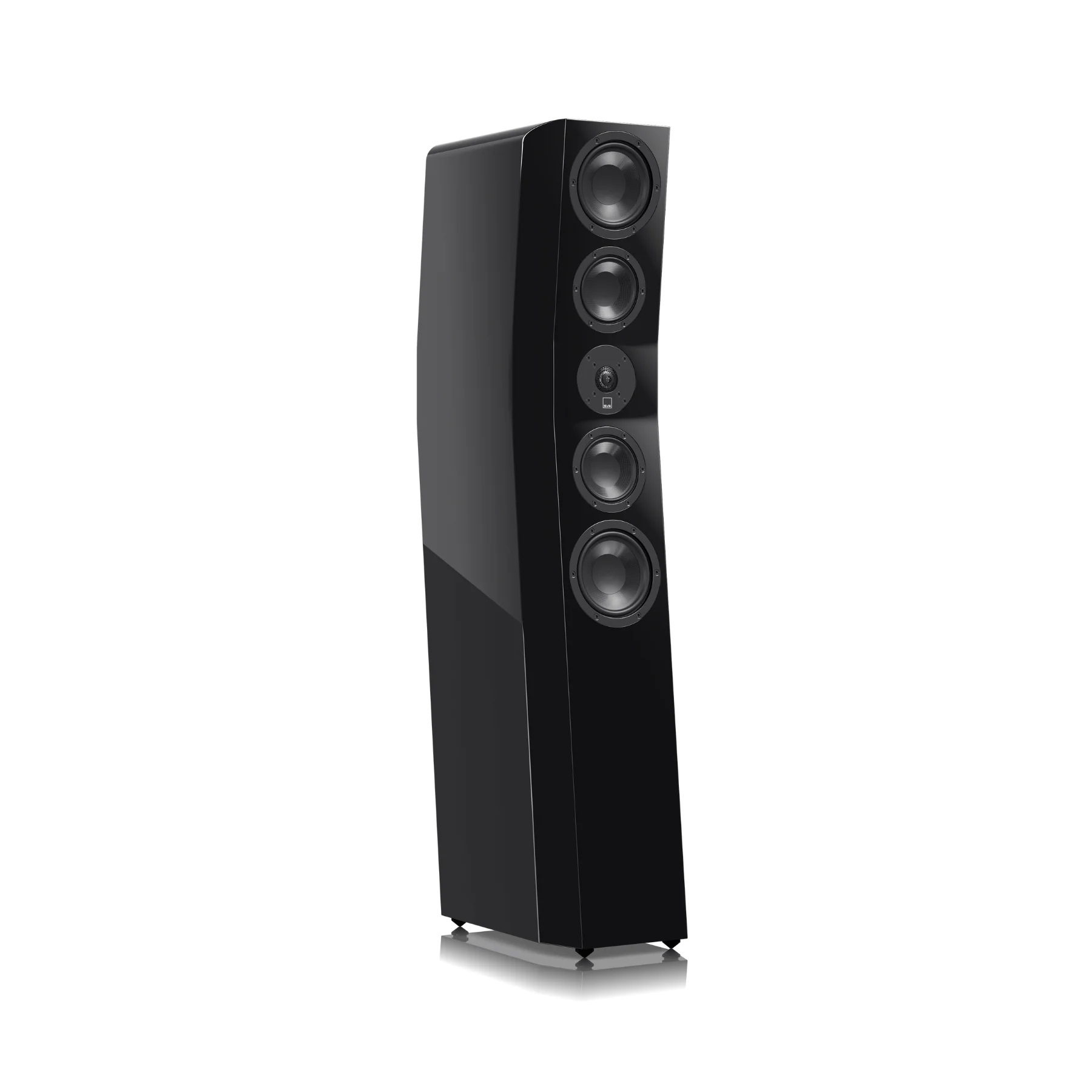

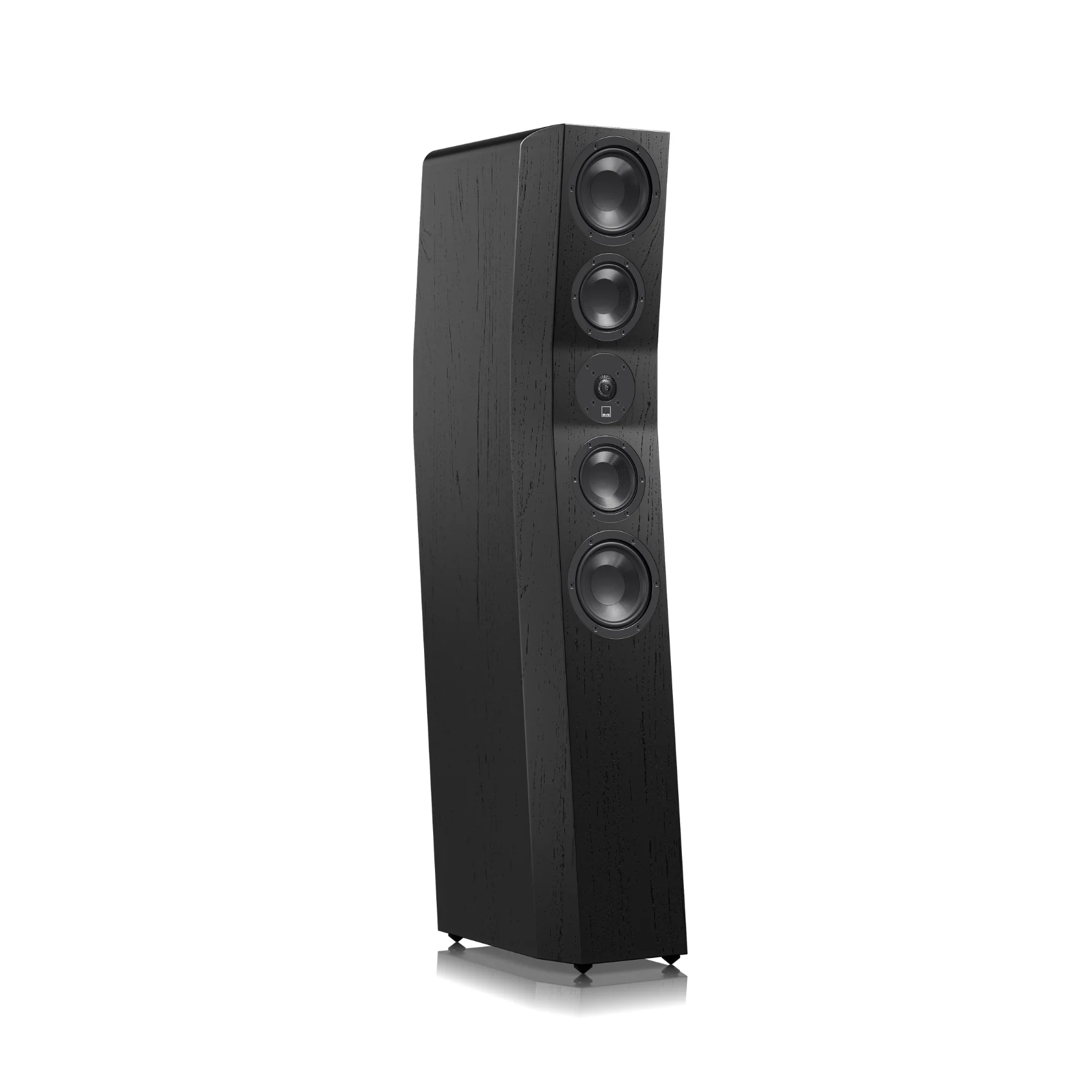

• Finish options: Piano gloss black, piano gloss white, real black oak veneer

SVS Ultra Evolution Tower Specifications:

In-room Frequency Response: 30Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Recommended amplifier power: 20 – 300 watts

Tweeter-to-Midrange crossover: 1.8 kHz

Midrange-to-woofer crossover: 170 Hz

Cabinet Dimensions: 43.9” (H) x 8.58” (W) x 16.69” (D) / 1115mm (H) x 218mm (W) x 424mm (D)

Overall Dimensions: 44.49” (H) x 8.58” (W) x 16.69” (D) / 1130mm (H) x 218mm (W) x 424mm (D) (includes grille, feet, and binding posts)

Shipped Dimensions: 47.8” (H) x 12.2” (W) x 20.5” (D) / 1215mm (H) x 309mm (W) x 520mm (D)

Weight Packaged: 70.3 pounds / 31.9 kgs

Weight Unboxed: 59.5 pounds / 27.0 kgs

SVS Ultra Evolution Owners Manual
