SVS Ultra Evolution Pinnacle Floor Standing Speakers - Pair - Clearance / Open Box

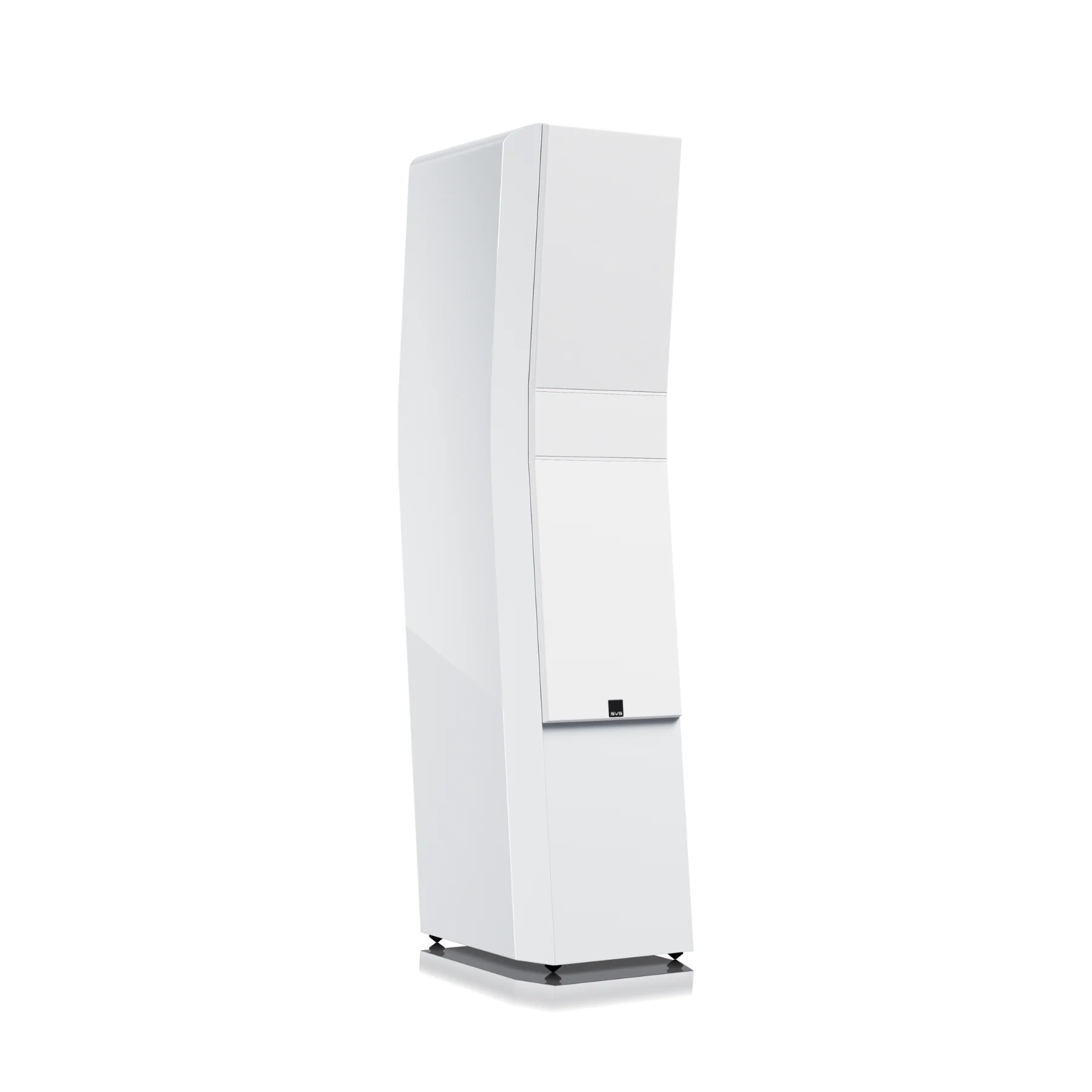

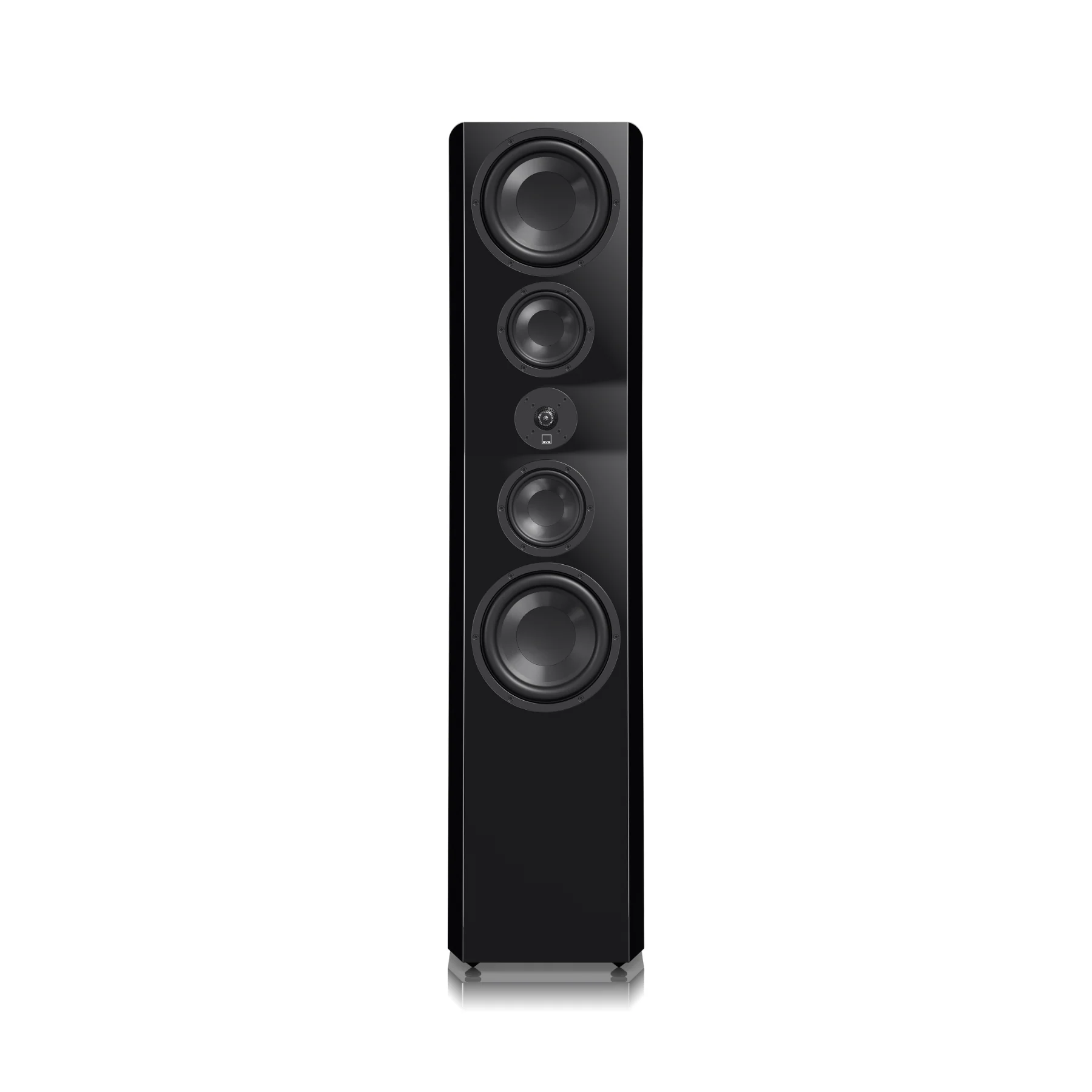

SVS Ultra Evolution Pinnacle Floor-Standing Speakers

are SVS’s best tower speakers. Delivering high-fidelity sound for both two-channel audiophiles and home theater fans at a value price.

See the ListenUp SVS ULTRA EVOLUTION awesome video!

1” Diamond Coated Tweeter:

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Hyper-rigid diamond carbon coating on an aircraft-grade aluminum dome extends high-frequency response beyond human hearing
• Silver tinsel for optimal signal transfer and power handling

5.25” Glass Fiber Composite Midrange Drivers:

• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
• Precision-cast aluminum-alloy baskets ensure precise alignment and thermal dissipation
• Vented Kapton voice coil former for excellent dynamics and transient response

Quad 8” Woofers in Force Balance Array:

• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity
• Precision-cast aluminum alloy baskets ensure precise alignment and thermal dissipation
• Vented aluminum voice coil former for thermal control and minimized air compression artifacts

Cabinet:

• Acoustically-centered architecture for a coherent, integrated, faithful acoustic image
• Time-aligned cabinet geometry for improved linearity and directionality
• Quad 8” woofers in Force-Balanced Opposed Array for deep, accurate, evenly distributed bass
• Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure
• Chamfered front baffle and flush-mounted drivers for improved high-frequency response
• Extra-thick 1” (25mm) driver baffles for resonance-free mounting
• FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation for an inert enclosure and uncolored response

Additional Features:

• Dual gold-plated 5-way binding posts
• Cloth grille with magnetic retention system
• Elastomer screw-in feet – adjustable for level
• Spiked metal screw-in feet included – adjustable for level
• Finish options: Piano gloss black, piano gloss white, real black oak veneer

Ultra Evolution matching Center Speaker

Ultra Evolution matching On-Wall/On-Ceiling Speakers

Ultra Evolution matching Bookshelf Speakers

Ultra Evolution matching Compact Bookshelf Speakers

SVS Ultra Evolution Pinnacle Specifications:

In-Room Frequency Response: 24Hz to 40kHz (+/-3 dB)

Nominal Impedance: 6 ohms

Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)

Tweeter-to-Midrange crossover: 1.8 kHz

Midrange-to-woofer crossover: 140 Hz

Recommended Amplifier Power: 20 – 300 watts

Ports: Dual 3” wide-flared rear-firing

Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)

Overall Dimensions (with grille, feet, and binding posts): 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D)

Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)

Packaged Weight: 110.8 pounds / 50.3 kgs

Unboxed Weight: 96.7 pounds / 43.9 kgs
