SVS Ultra Evolution Nano Bookshelf Speakers - pair

SVS Ultra Evolution Nano Bookshelf Speakers

SVS Ultra Evolution Nano is a compact, high-end 2-way bookshelf speaker engineered to deliver startling detail, wide soundstage imaging, and bass impact that feels oversized for its footprint. Its time-aligned cabinet geometry helps the tweeter and mid-woofer launch sound in sync for a more cohesive, “locked-in” stereo image, while the diamond-coated aluminum dome tweeter extends far beyond audibility for airy, low-distortion treble and effortless dynamics. A precision-tuned rear-firing port adds punch and weight, making the Nano an ideal choice for a refined stereo setup in a small-to-medium room—or as LCR/surround duties in a serious home theater. With premium finishes and robust build quality, it’s a true audiophile bookshelf speaker designed for flexible placement and long-term listening satisfaction. The SVS Ultra Evolution Nano is part of ListenUp's SVS Bookshelf Speakers Collection.

What It's Good At:

• Delivering audiophile-grade detail, clarity, and transparency from a compact bookshelf speaker
• Creating a wide, stable soundstage with precise imaging thanks to time-aligned cabinet geometry
• Producing surprisingly bold bass and punch for its size via a tuned rear-firing port design
• Maintaining smooth, refined treble with ultra-low distortion from a diamond-coated tweeter design
• Excelling in both 2-channel music systems and home theater roles (LCR, surrounds)
• Offering premium aesthetics with multiple high-gloss and veneer finish options

SVS Ultra Evolution Nano Full Specifications:

• Speaker Type: Bookshelf Loudspeaker
• In-room Frequency Response: 44Hz to 40kHz (+/-3 dB)
• Nominal Impedance: 6 ohms
• Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
• Recommended Amplifier Power: 20 – 150 watts
• Finish Options: Piano gloss black, piano gloss white, real black oak veneer finish options
• Binding Posts: Gold-plated 5-way binding posts

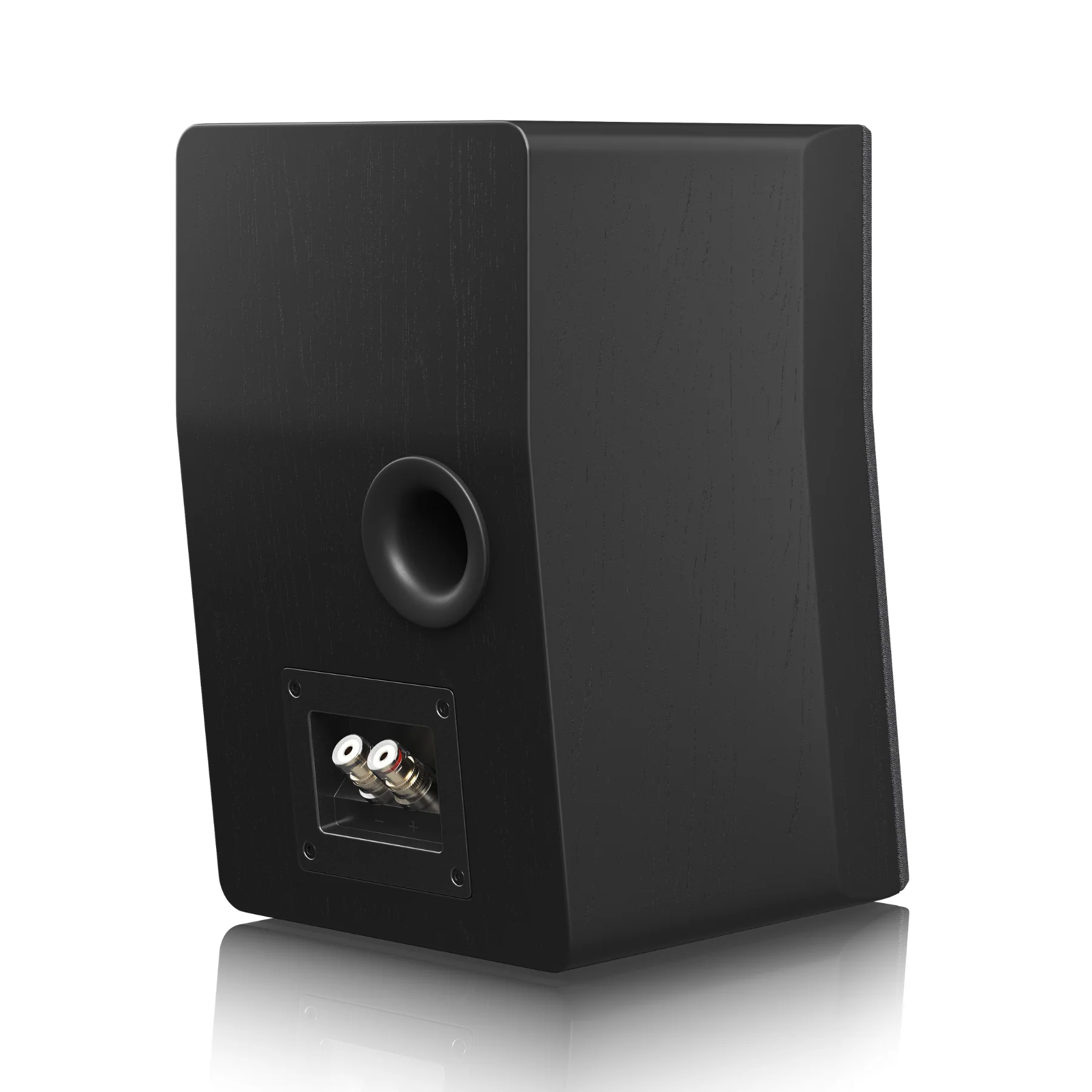

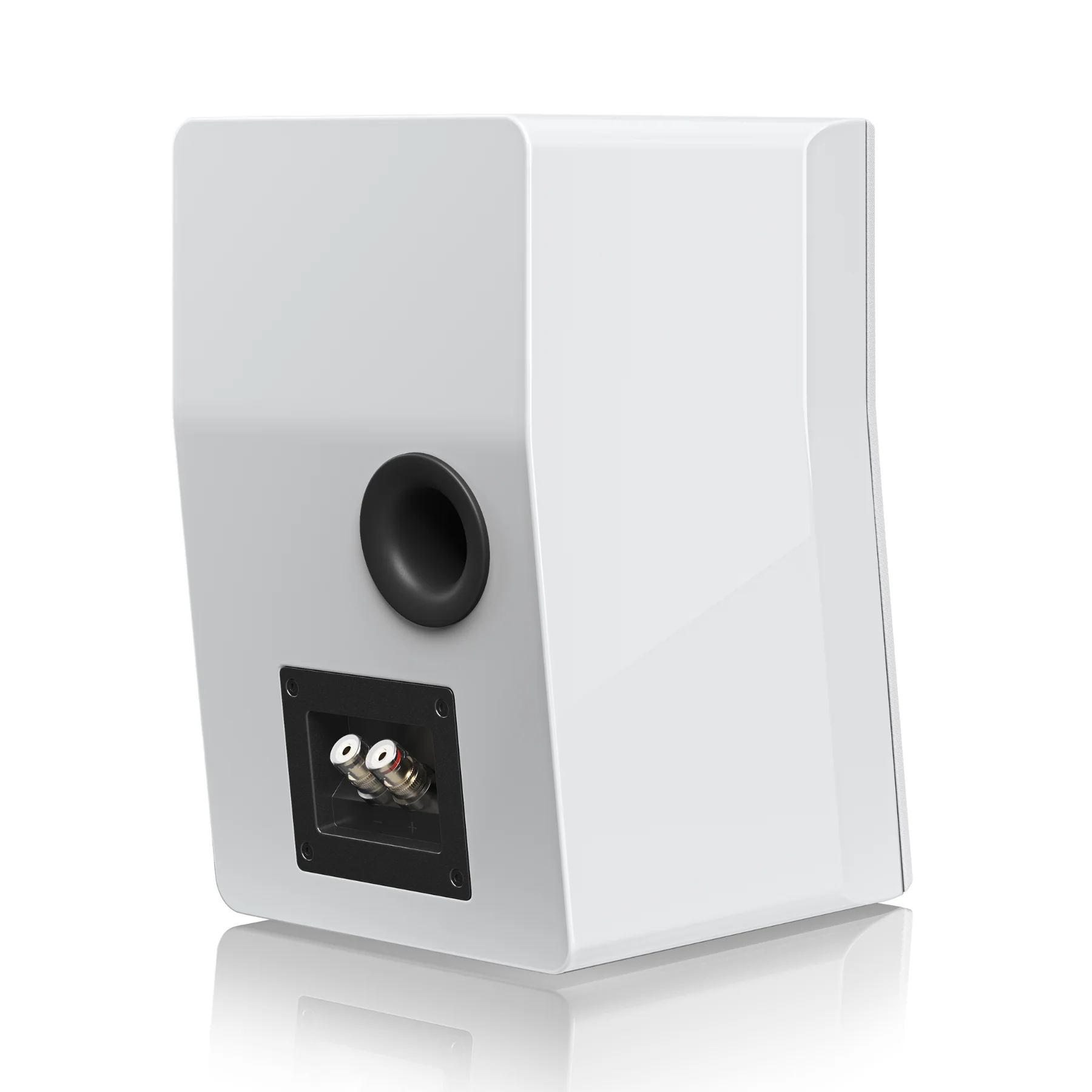

• Ports: 1.6” wide-flared rear-firing ports
• Grille: Cloth grille with magnetic retention system
• Feet: Elastomer stick-on bumper feet
• Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 233.9mm (D)
• Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D) (includes grille, feet, and binding posts)
• Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
• Weight Packaged Pair: 31.0 pounds / 14.1 kgs
• Weight Unboxed Each: 13.5 pounds / 6.1 kgs
• Tweeter: 1” Diamond Coated Tweeter
• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity
• Vapor-deposition diamond carbon coating on an aircraft-grade aluminum dome for best-in-class fidelity, linearity, and transient response
• Silver tinsel for optimal signal transfer and power handling
• Mid-Woofer: 5.25” Mid-Woofer
• Long stroke motor and suspension for high output
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass-band
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels
• Crossover: 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
• Tweeter-to-Woofer Crossover: 1.9 kHz
• Cabinet Architecture:

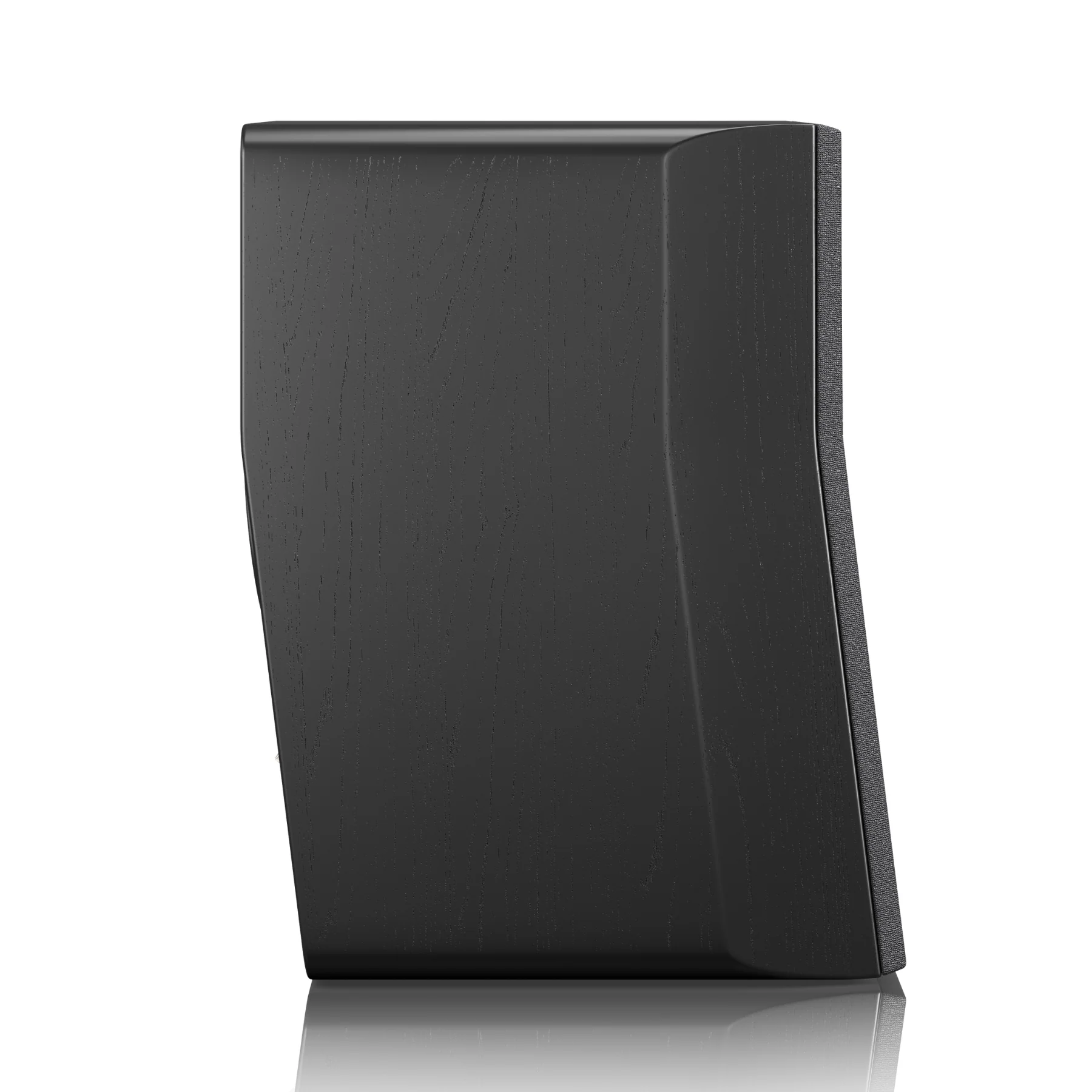

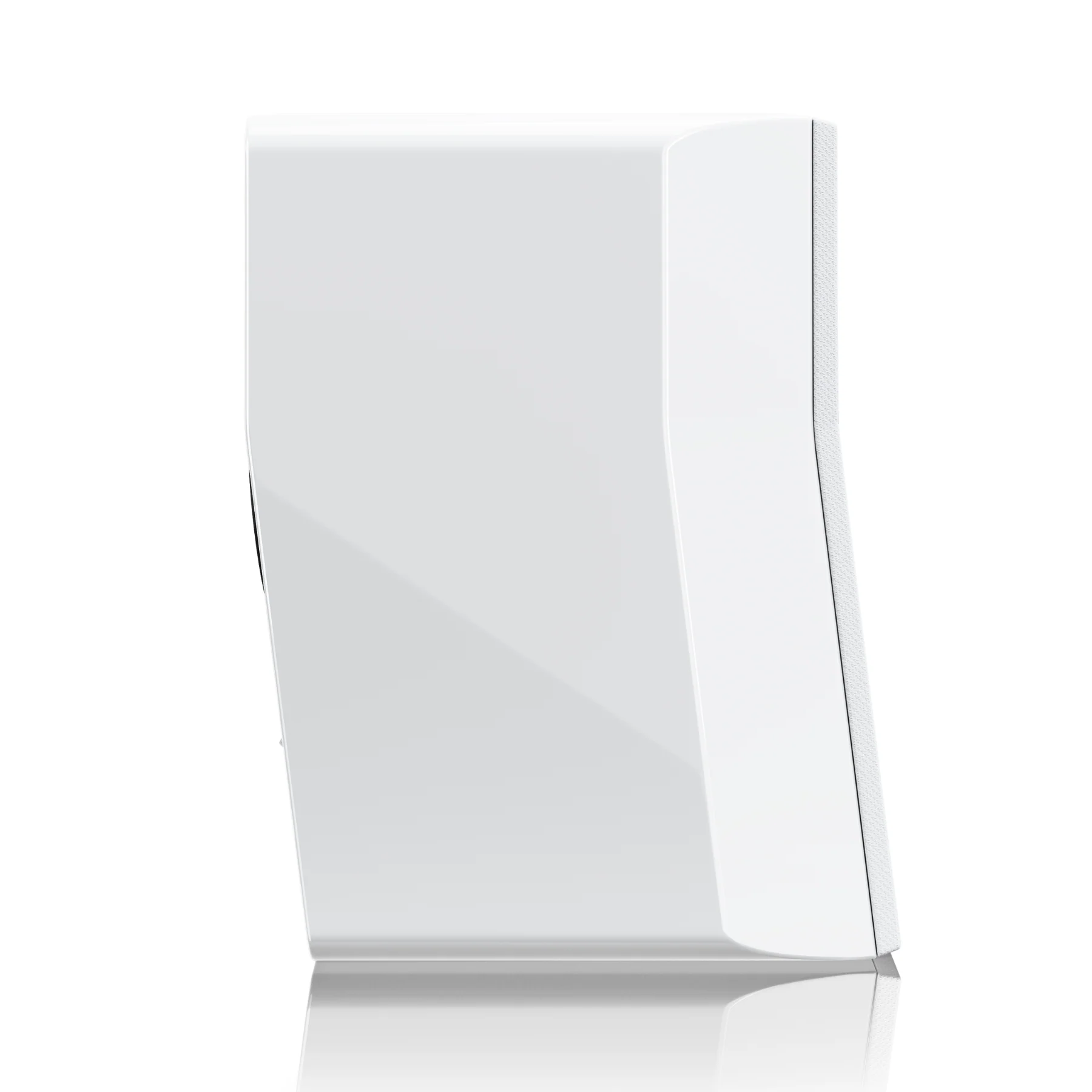

• Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring the effective-acoustic-center of each driver is equidistant from the listener for improved linearity and directionality throughout the crossover frequencies and a more accurate soundstage
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
• Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers
• FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels

SVS Ultra Evolution Nano Q&A:

Is the SVS Ultra Evolution Nano sold individually or as a pair?

Pricing is typically listed per speaker, so order two for a stereo pair. This makes it easy to build systems gradually or match specific channel needs in a home theater.

What kind of sound can be expected from a speaker this size?

The Nano is tuned for high detail and refined clarity with impressive bass presence for a compact enclosure. It’s built to sound bigger than it looks, with strong imaging and dynamics.

What amplifier power is recommended?

SVS recommends 20–150 watts of amplifier power. A quality AVR or integrated amp within this range is a strong match.

How low does the Ultra Evolution Nano play?

Its in-room frequency response is rated down to 44Hz (+/-3 dB). For deeper sub-bass in movies or electronic music, pairing with a subwoofer is ideal.

What finishes are available?

The Nano is offered in Piano Gloss Black, Piano Gloss White, and Real Black Oak Veneer finish options. These are designed to fit both modern and classic room aesthetics.

Can it be used for home theater surround or LCR?

Yes. It works well as a left/center/right speaker in smaller theaters or as surrounds where clarity and seamless panning matter.

Does it support banana plugs or spades?

Yes. The gold-plated 5-way binding posts are compatible with banana plugs, spade connectors, pins, and bare wire.

What helps the Nano image so precisely?

The cabinet geometry is designed to time-align the drivers so their output arrives together, improving coherence through the crossover region and sharpening the soundstage.
