SVS SB1000Pro Subwoofer

SVS SB-1000 Pro Subwoofer

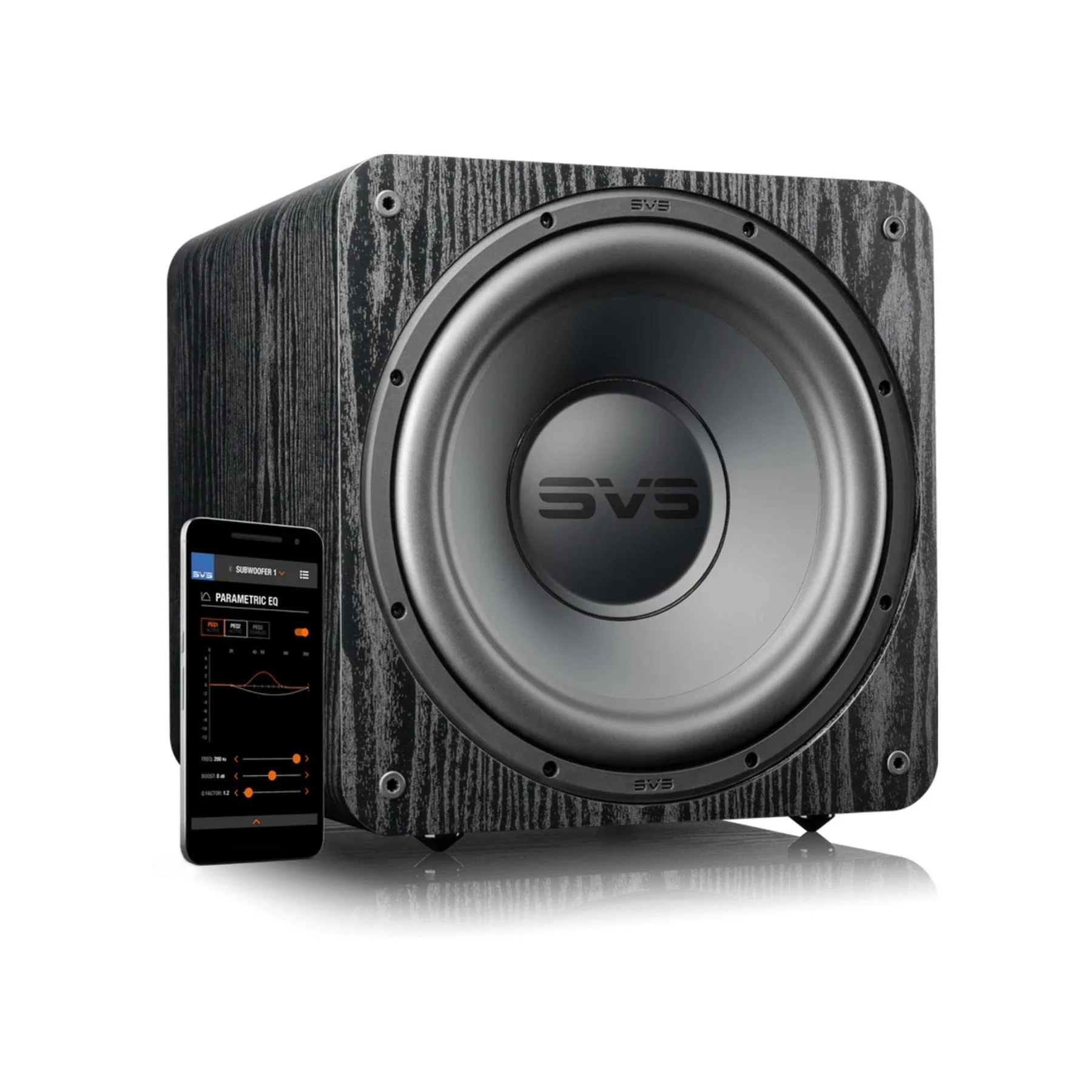

The SVS SB-1000 Pro is a compact, sealed 12-inch powered subwoofer built to deliver deep, accurate bass down to 20Hz without needing a huge footprint. It pairs an all-new high-excursion SVS driver with the Sledge STA-325D amplifier (325W RMS / 820+W peak) and a sophisticated 50MHz Analog Devices DSP for tight control, fast transients, and room-energizing impact for both music and home theater. Dialing it in is refreshingly easy: use the rear-panel Intelligent Control Interface for core adjustments, or unlock deeper tuning with the SVS Subwoofer Smartphone App (Bluetooth)—including 3 custom presets, 3-band parametric EQ, phase, polarity, low pass, and room gain compensation from your seat. With strong output, precise detail, and an easy-to-place cabinet, the SB-1000 Pro is a high-performance upgrade that blends seamlessly into modern stereo and surround systems. The SVS SB-1000 Pro is part of ListenUp's SVS Sealed Subwoofers Collection.

What It's Good At:

• Delivering deep, musical bass down to 20Hz with the speed and control sealed subwoofers are known for
• Producing big output from a compact cabinet, ideal for living rooms, apartments, and dedicated media spaces

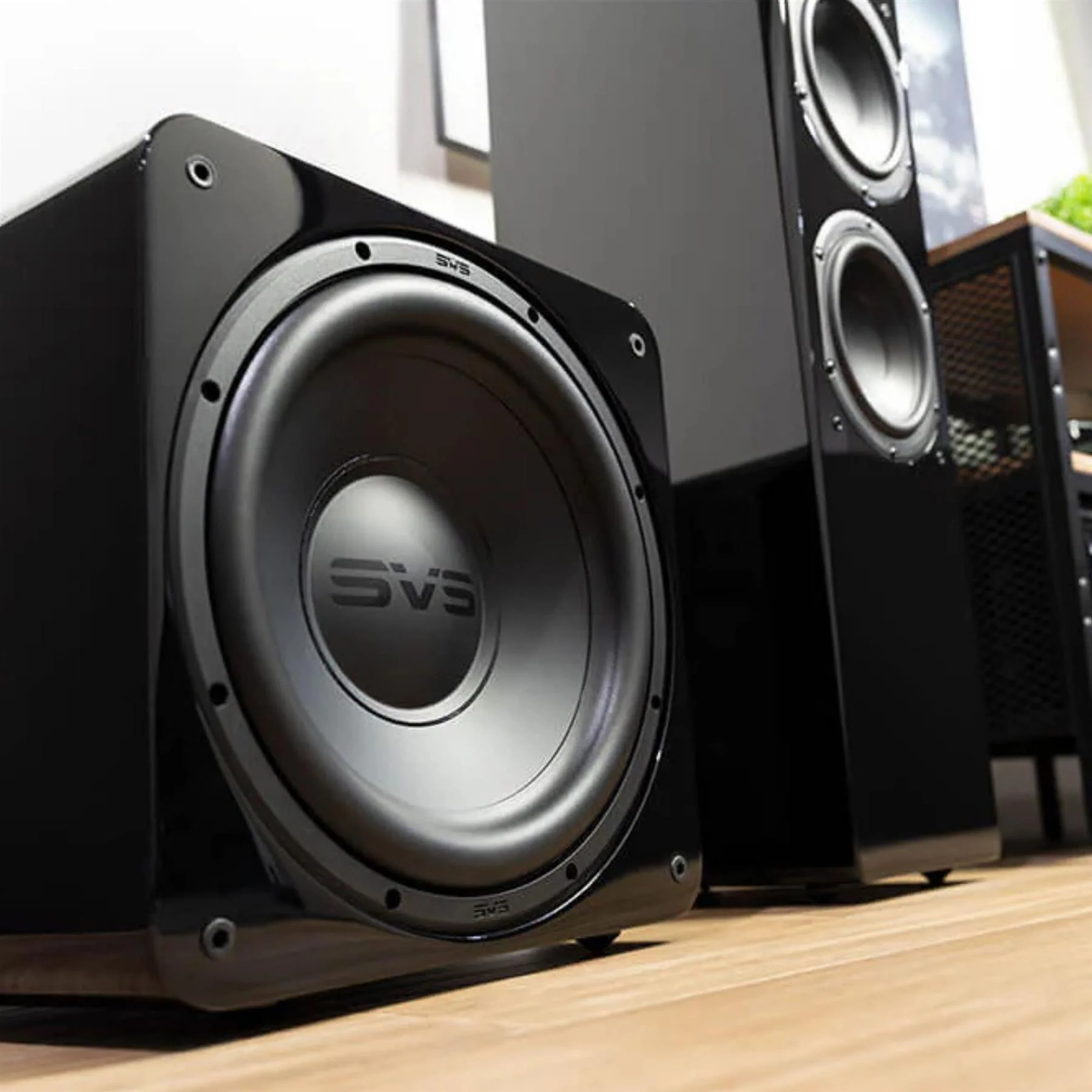

• Seamless integration with bookshelves, towers, and home theater speaker packages via flexible DSP controls
• One-touch switching between Movie / Music / Custom voicings using 3 app presets
• Fine-tuning troublesome rooms with 3-band PEQ, phase, polarity, and room gain compensation
• Supporting clean system expansion with RCA outputs for easy daisy-chaining or multi-sub setups

SVS SB-1000 Pro Full Specifications:

• Model: SVS SB-1000 Pro
• Design: Sealed (acoustically optimized)
• Driver: 12"
• Frequency Response: 20–270 Hz ±3 dB
• In-room extension note: Expect 2–3 Hz deeper extension in small to mid-size rooms
• Measurement notes: 2-meter ground plane away from reflective structures (quasi-anechoic); roll-off slope optimized to maximize available room gain
• Amplifier: SVS Sledge STA-325D
• Amplifier Power: 325 watts RMS continuous (820+ watts peak dynamic power)
• DSP: 50MHz Analog Devices Audio DSP; high resolution double precision 56-bit filtering
• Power supply: High efficiency LLC resonant SMPS with 17A 650V MOSFET
• Amplifier topology details: Cool-running Class D switching topology with 34A 120V MOSFETs
• Cabinet size note: Compact 13" cabinet (easy-to-place footprint)
• Dimensions: 13.5" (H) × 13" (W) × 14.76" (D)
• Driver engineering: Proprietary 12-inch long-throw driver; high-precision tuned overhung motor configuration
• Woofer/Motor mass: 8.33 lb (3.78 kg) woofer with 5.73 lb (2.6 kg) motor
• Excursion: 13.3 mm Xmax; 26.9 mm Xmech precision-aligned excursion
• Voice coil: 1.5" diameter; high current 6-layer high-purity copper wire windings
• Magnet motor: Two-piece high grade oversized Y30 ferrite magnet motor
• Former/Bobbing: High temperature 3003-H18 aluminum former/bobbing
• Spider: 6" composite cotton-poly extreme excursion linear spider
• Leads: Dual 24-strand copper-alloy high-temperature leads
• Gasket/Surround: Proprietary injection molded gasket and NBR extreme-excursion surround
• Cone: Lightweight treated fiber composite cone for enhanced sensitivity and transient response
• Top plate steel: Low carbon 1010 steel for optimal magnetics
• T-yoke: Oversized low carbon 1008 steel T-yoke with integrated pole piece extension
• Basket: 12" premium powder coated basket with FEA optimized analysis
• Motor system: Oversized motor system for driving full excursion and high SPL with transient speed
• Machining/tolerances: Precision machining and narrow tolerance suspension parts for linearity across excursion

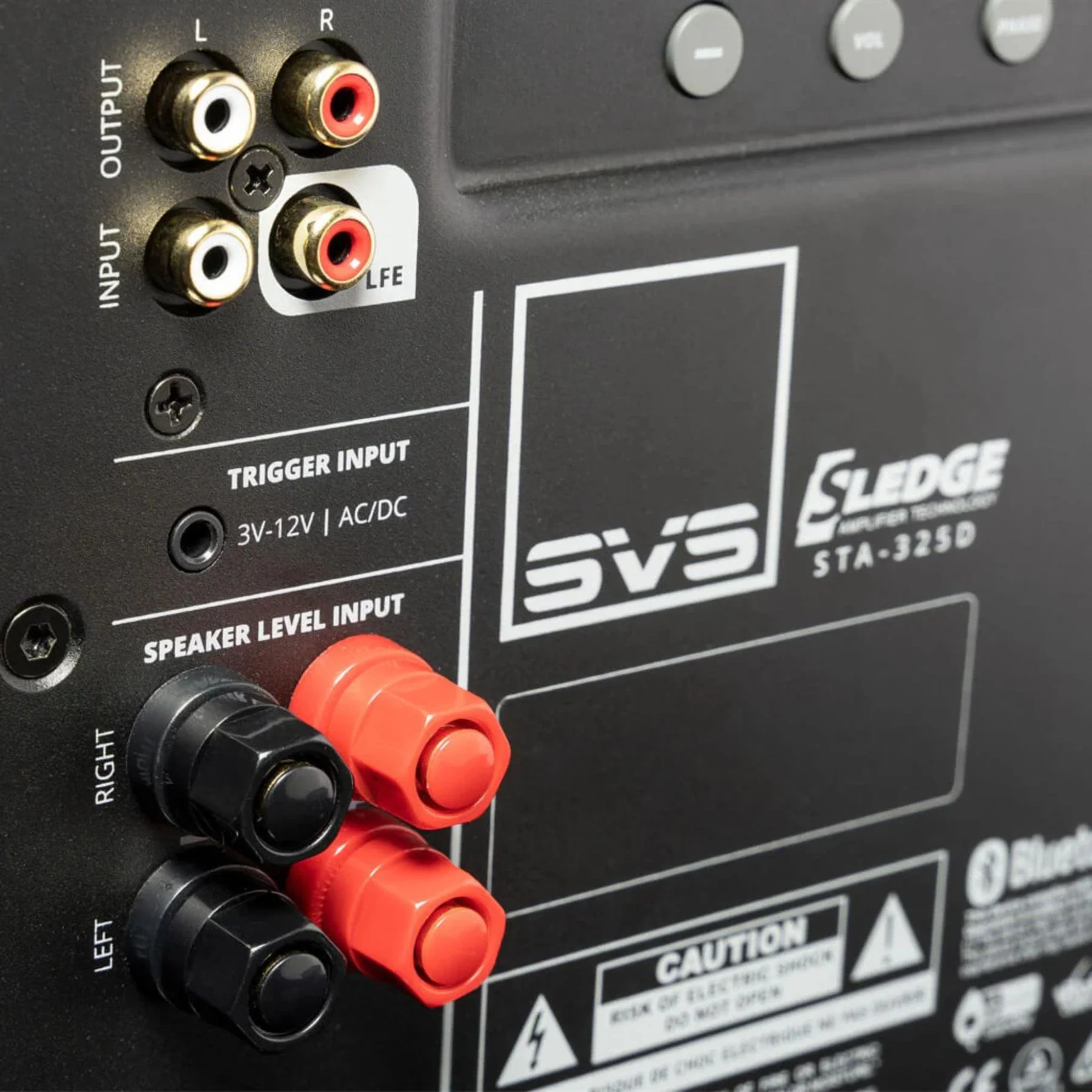

• Inputs: Unbalanced (RCA) line level inputs; speaker level (high level) stereo inputs
• Outputs: Unbalanced (RCA) line level outputs; unbalanced stereo input/output
• Trigger: 3V–12V trigger input (3–12V AC/DC supported); TS 1/8" mono cable required
• USB: USB Type-A port for firmware updates and powering USB devices (e.g., SVS SoundPath Wireless Audio Adapter)
• Rear-panel controls: Volume, Low Pass, Phase; Intelligent Control Interface with LED bar and push buttons
• Operating modes: Auto / On / Trigger
• Auto standby behavior: Standby after ~10 minutes with no audio signal
• App control platform: SVS Bluetooth-controlled DSP smartphone app (iOS, Android, Amazon OS noted)
• App presets: Three name-able/customizable presets
• PEQ per preset: 3 PEQs per preset
• Live feedback: Bidirectional feedback with real-time updates on app and sub interface
• App tutorial: Included
• Supported mobile devices noted: iOS (iPhone 5 or newer) or Android (4.42 or newer)
• Advanced DSP ranges:
  • Volume: -60 dB to 0 dB (1 dB steps)
  • Low Pass Filter Frequency: 30 Hz to 200 Hz (1 Hz steps)
  • Low Pass Filter Slope: 6 dB, 12 dB, 18 dB, 24 dB
  • Phase: 0° to 180° (1° steps)
  • Polarity: Positive (+) / Negative (-)
  • PEQ Frequency: 20 to 200 Hz (1 Hz steps)
  • PEQ Boost: -12.0 to 6.0 dB (0.1 dB steps)
  • PEQ Q Factor: 0.2 to 10.0 (0.1 steps)
  • Room Gain Compensation (app)
  • Presets: up to three (Movie, Music, Custom; renameable)
• Input impedance: 16 kohm (unbalanced RCA); 1 kohm (speaker level)
• Compliance: RoHS compliant, lead-free construction; worldwide safety certifications
• Low standby power: 0.5-watt standby power consumption

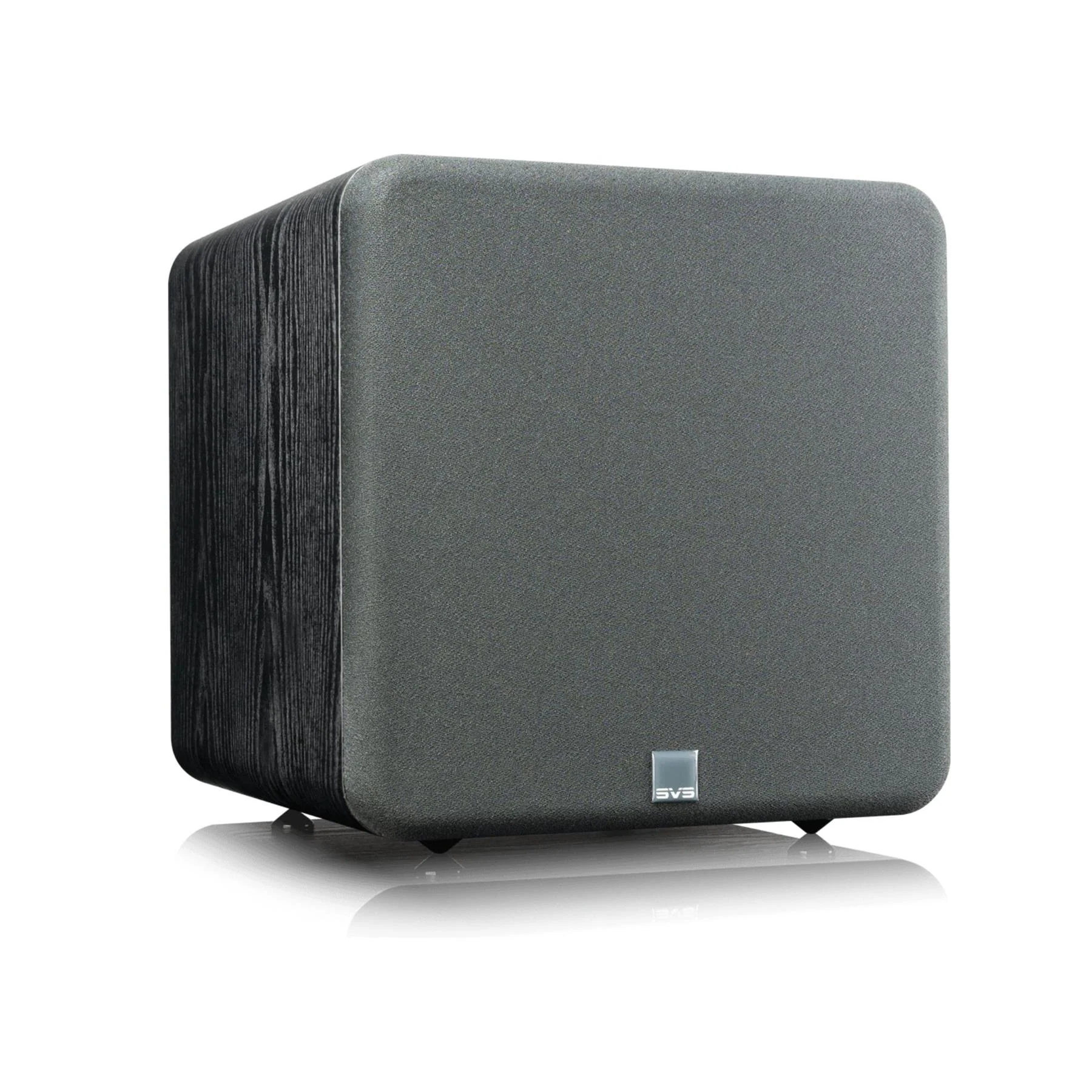

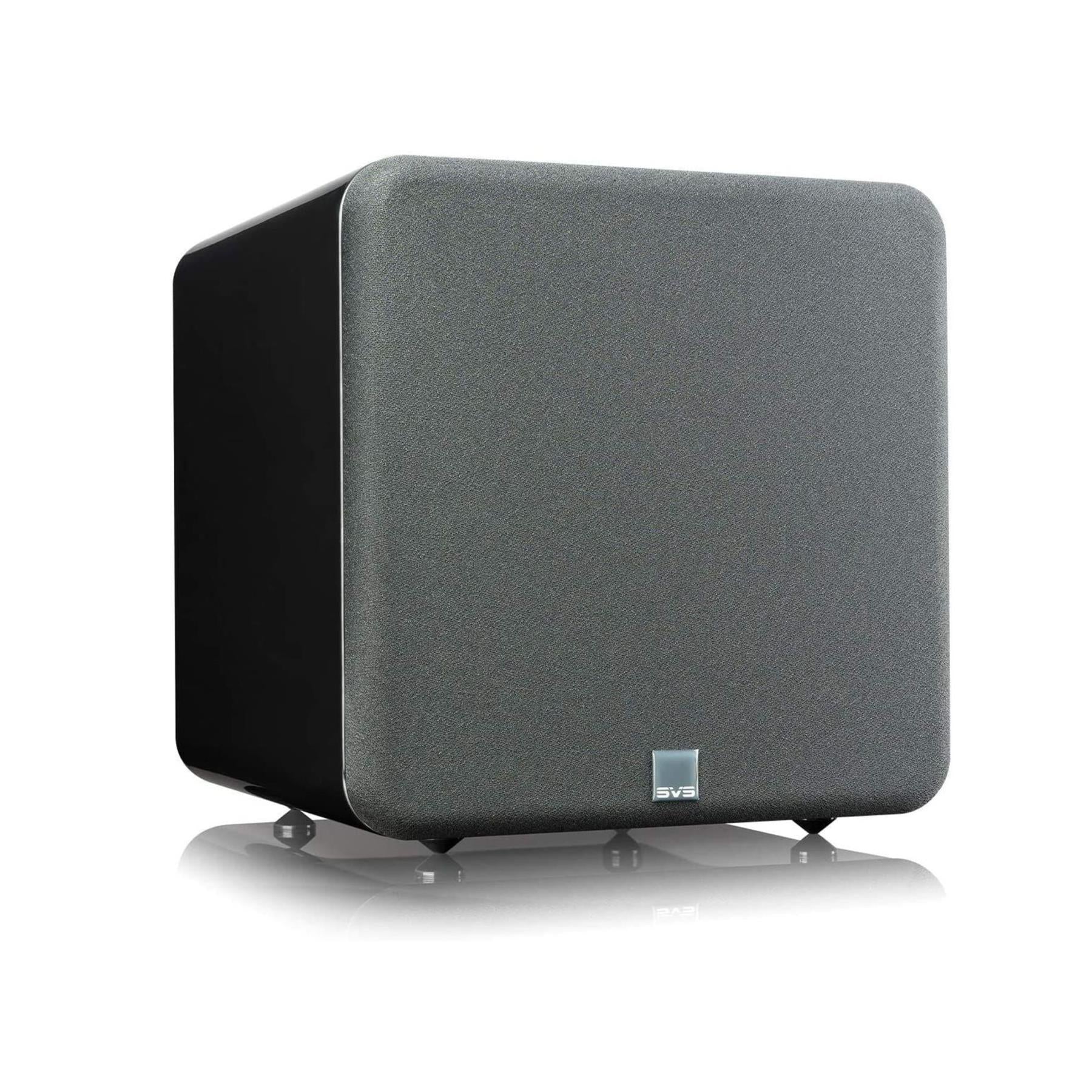

• Included accessories: Extra-thick ABS fabric mesh grille; iso-elastomer feet; heavy-duty 6' power cord; Quick Start Guide

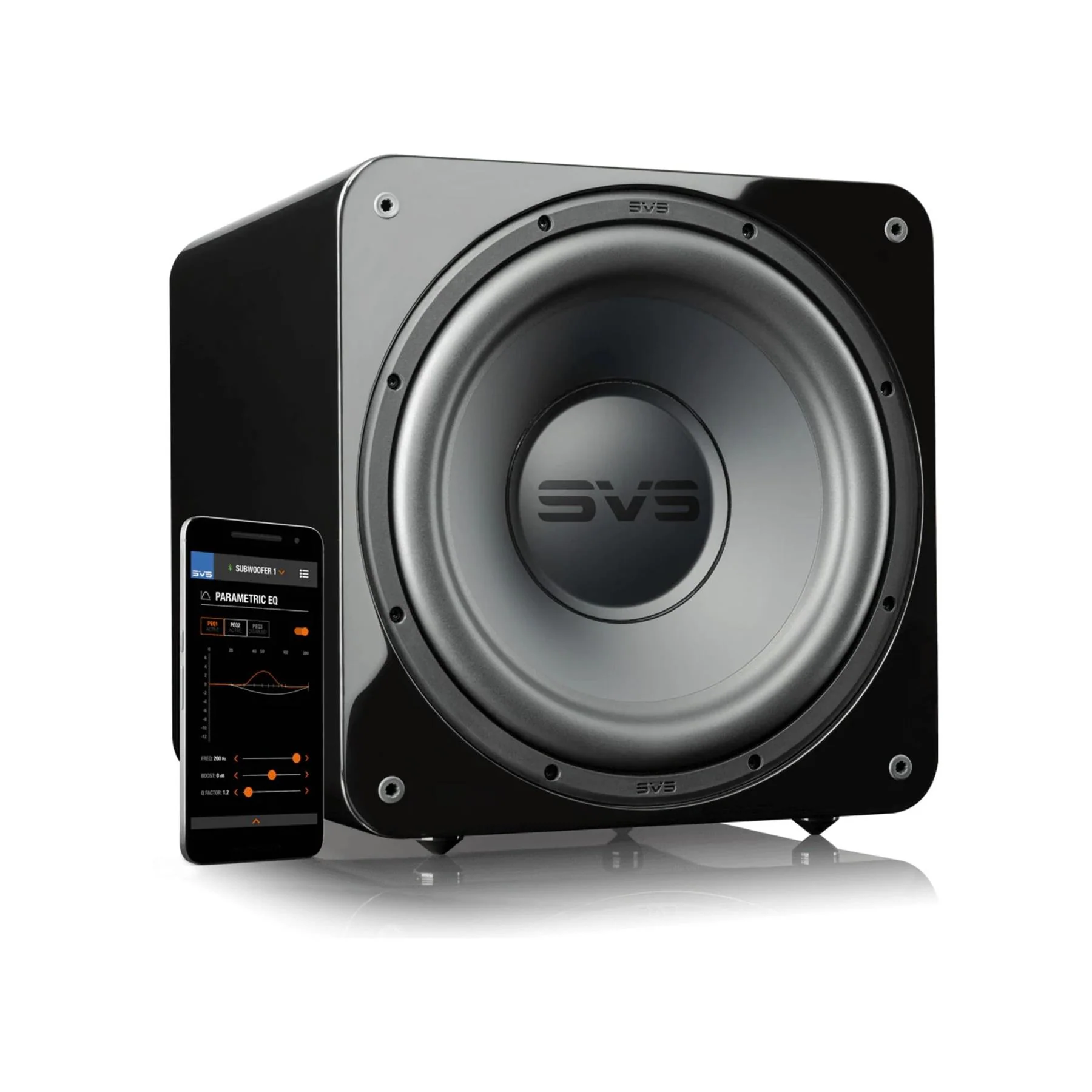

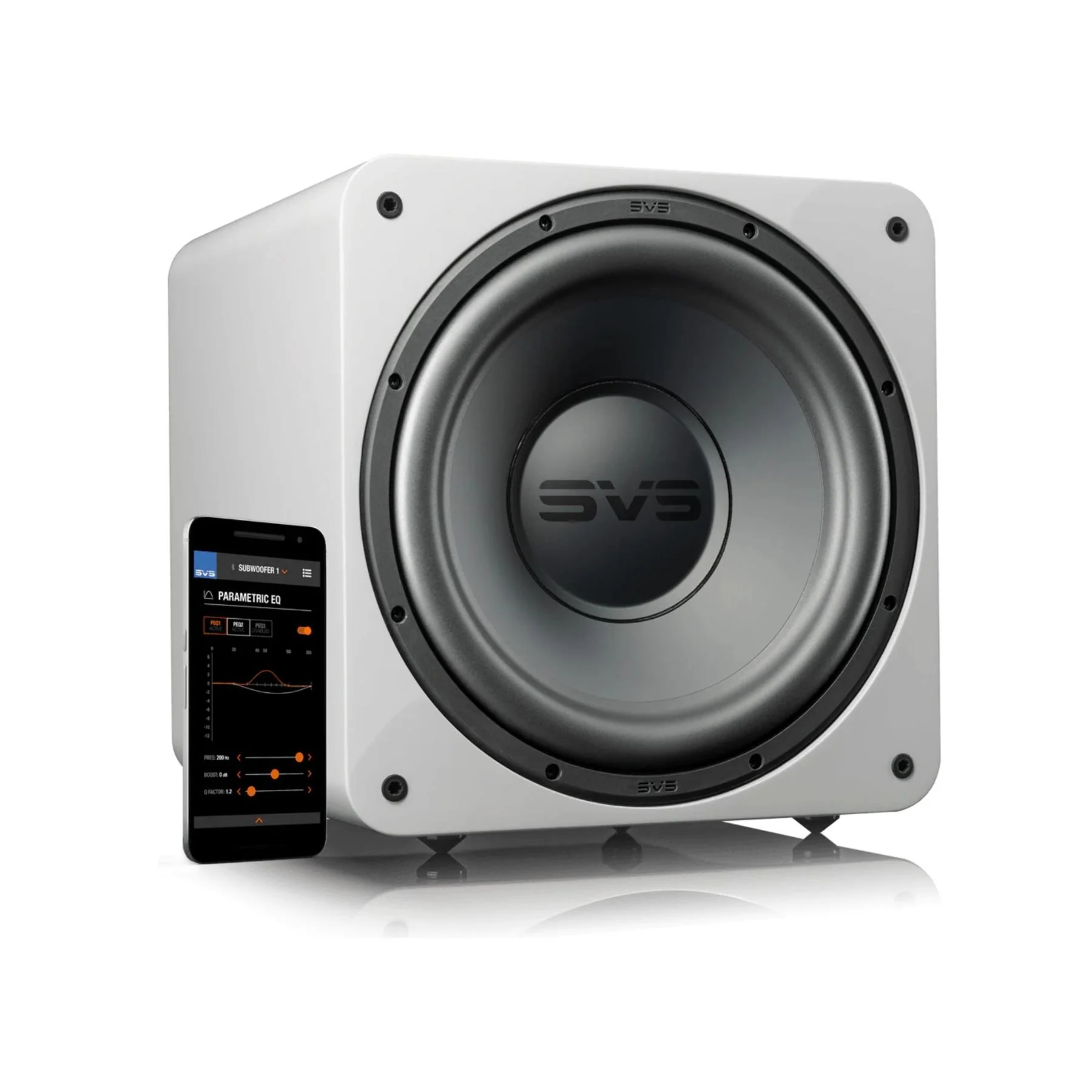

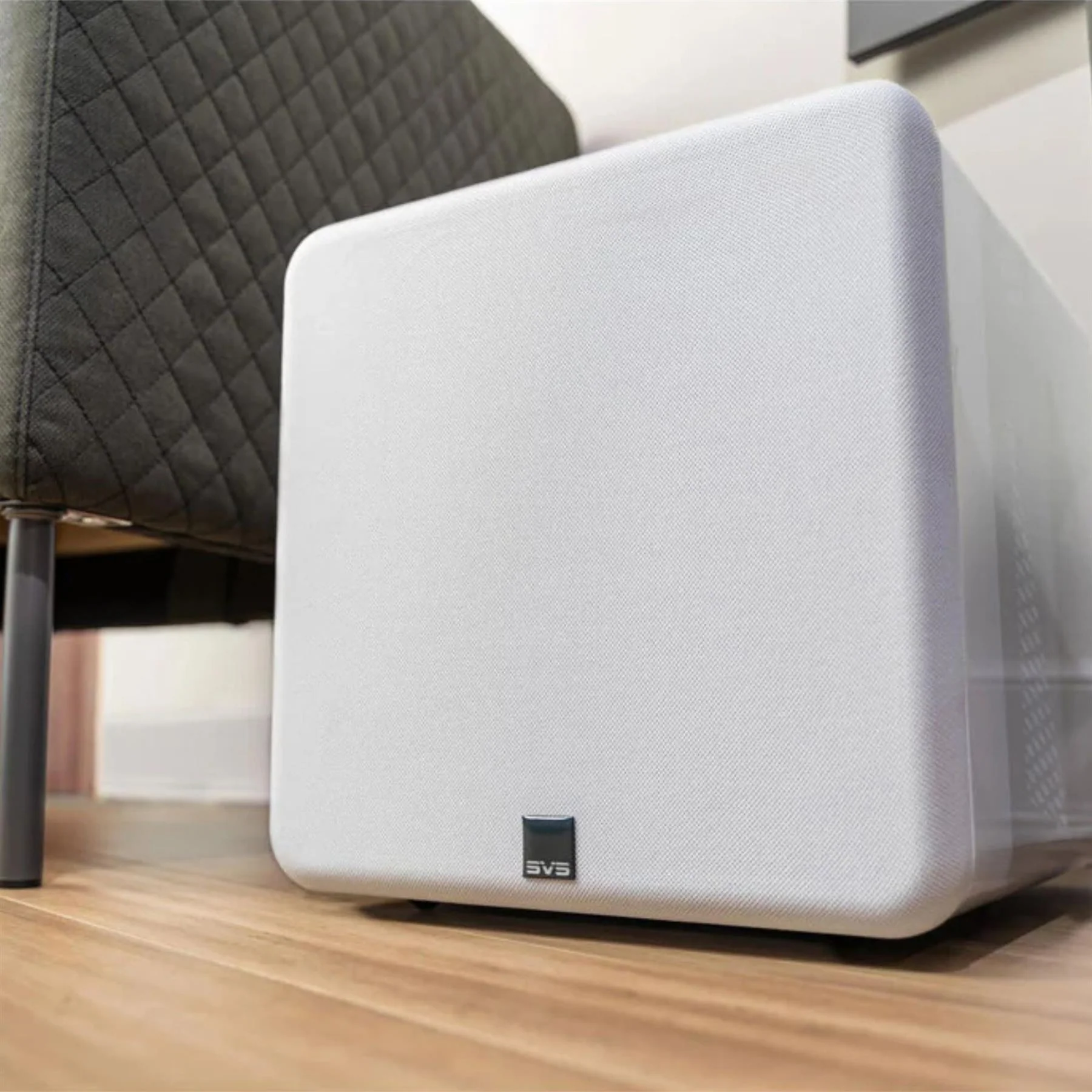

• Finish options: Premium Black Ash; Piano Gloss Black; Piano Gloss White
• Purchase coverage noted: 45 Day Risk-Free In-Home Trial; Fast & Free Shipping and Returns; 5-Year Unconditional Warranty

SVS SB-1000 Pro Q&A:

Will the SB-1000 Pro work well for both music and movies?

Yes. The sealed design and DSP-driven amplifier control deliver tight, musical bass for stereo listening while still providing the depth and slam needed for home theater impact down to 20Hz.

How do you control and tune the SB-1000 Pro?

You can use the rear-panel control interface for quick adjustments, or use the SVS Subwoofer Smartphone App via Bluetooth to access advanced DSP features like presets, PEQ, phase, polarity, low pass filter, and room gain compensation.

What kind of inputs does it support?

It supports unbalanced RCA line-level inputs, speaker-level (high-level) stereo inputs, and a 3V–12V trigger input for automatic power control. It also includes RCA outputs for daisy-chaining or expanding to multiple subs.

Does it have an auto-on feature?

Yes. You can run it in Auto, On, or Trigger modes. In Auto mode, it enters standby after about 10 minutes with no audio signal.

How compact is the cabinet?

It’s designed for easy placement with dimensions of 13.5" H × 13" W × 14.76" D, while still delivering serious low-frequency output.

What tuning controls are available in the app?

The app includes 3 presets, a 3-band parametric EQ (with adjustable frequency/boost/Q), phase and polarity controls, low pass filter frequency and slope options, and room gain compensation to help smooth bass in smaller rooms.

Can I use two SB-1000 Pro subs together?

Yes. Dual subs can improve bass consistency across more seats and add headroom. The SB-1000 Pro includes RCA outputs that make it easy to integrate multiple subwoofers.

What comes in the box?

The subwoofer includes a protective ABS fabric mesh grille, iso-elastomer feet, a heavy-duty 6-foot power cord, and a Quick Start Guide.
