Rotel T11 Tuner

Rotel T11 FM/DAB+ Tuner

Rotel has been building respected radio tuners since the 1960s, and the T11 brings that heritage to modern listening with both classic FM and DAB+ digital radio in one elegant component. Designed for clean reception and straightforward everyday use, it delivers a stable, low-noise analog output to your amplifier or preamp so broadcast music and talk sound full, clear, and natural. With RDS support for FM, you can view station and program information at a glance, while up to 30 presets for FM and 30 presets for DAB+ make favorite stations instantly accessible. The T11 also includes a remote control, a dimmable front display and power LED for comfortable viewing in any room lighting, plus RS232 control for custom-install and automation integration.

The Rotel T11 is part of ListenUp's Rotel Tuner Collection.

What It's Good At:

• Pulling in both FM and DAB+ stations for maximum free, over-the-air listening options
• One-touch listening with 30 FM presets + 30 DAB+ presets for quick recall
• Clear station info and broadcast metadata with RDS (Radio Data System) for FM
• Clean integration into hi-fi systems via stereo analog RCA outputs
• Easy, comfortable operation with a remote control and dimmable display/power LED
• Custom integration support with RS232 control for automation systems

Rotel T11 Full Specifications:

• Tuner Type: FM / DAB+ tuner
• Presets: Up to 30 presets for FM and 30 presets for DAB+
• FM Features: RDS (Radio Data System) capability
• Included: Remote control

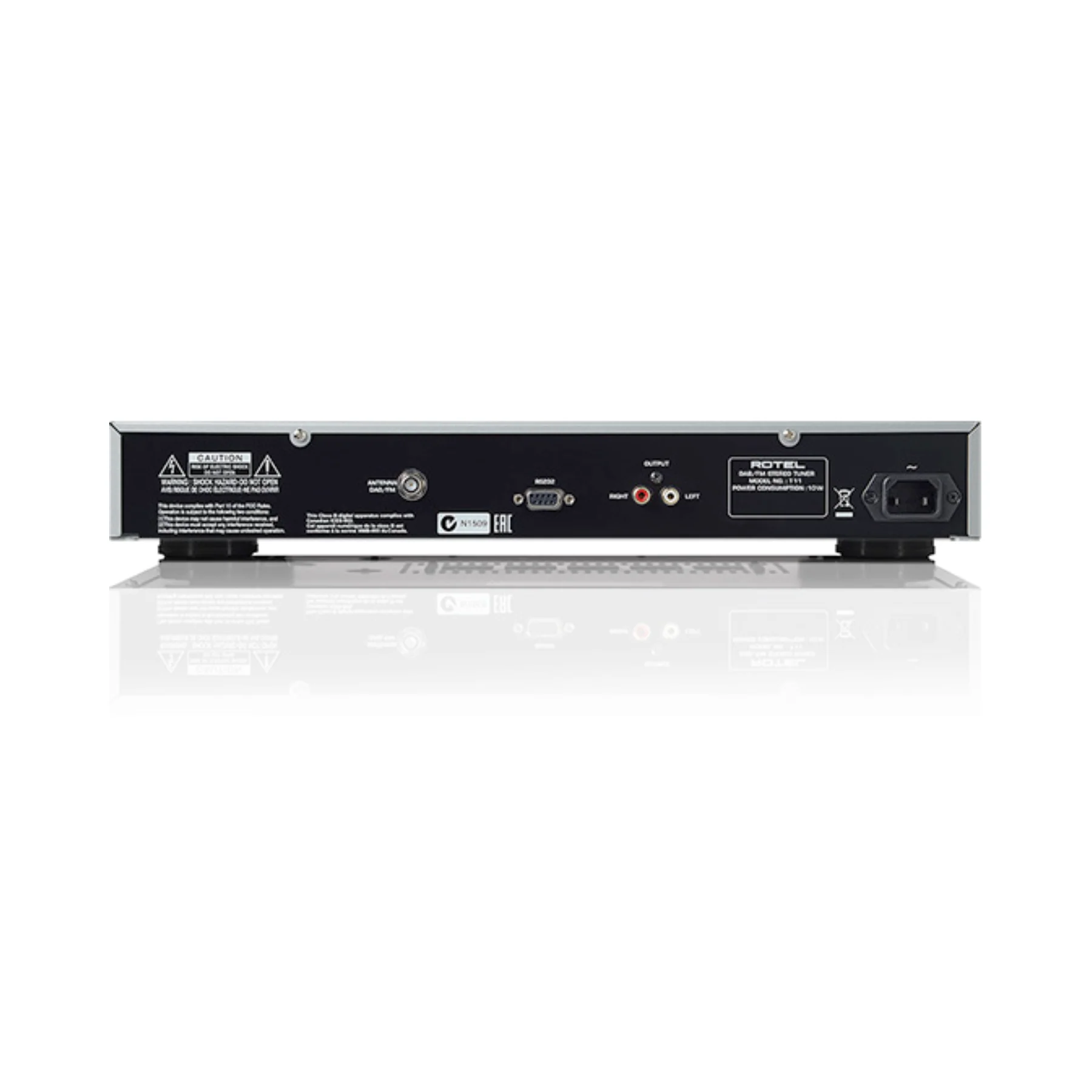

• Outputs: Stereo analog output (L/R RCA)
• Control / Integration: RS232 (DB-9 connection; straight male-to-female cable)
• Antenna Inputs:
  • FM Antenna Input: 75Ω F connector
  • DAB Antenna Input: 75Ω F connector
• FM Tuner Specifications:
  • Usable Sensitivity: 22.2 dBf
  • 50 dB Quieting Sensitivity: 27.2 dBf (mono)
  • Signal-to-Noise Ratio (at 65 dBf): 63 dB (mono), 60 dB (stereo)
  • Harmonic Distortion (at 65 dBf): 0.2% (mono), 0.3% (stereo)
  • Frequency Response: 10 Hz – 15 kHz, ±3 dB
  • Stereo Separation (100 Hz / 1 kHz): 40 dB / 37 dB
  • Analog Output Level: 1.0 V
• DAB Tuner Specifications:
  • Sensitivity: -80 dBm
  • Tuning Range: Band III (174 – 240 MHz)
  • Audio Data Rate: 224 kbps (max)
  • Frequency Response: 20 Hz – 20 kHz, ±1.0 dB
  • Analog Output Level: 2.1 V at 0 dBFS
• General Specifications:
  • Power Requirements (AC): Europe 230 V, 50 Hz; USA 120 V, 60 Hz
  • Power Consumption: 10 W
  • Standby Power Consumption: < 0.5 W
  • Finishes: Silver and Black
  • Dimensions (W × H × D): 430 × 73 × 331 mm (also listed as 430 × 73 × 330 mm)
  • Front Panel Height: 60 mm
  • Weight (net): 4.3 kg (listed as approx. 9–9.5 lb)
  • BTU Rating: 17 BTU/h

Rotel T11 Q&A:

What’s the difference between FM and DAB+ on the Rotel T11?

FM is traditional analog radio, while DAB+ is digital radio that can provide additional stations and program information where DAB+ broadcasting is available.

How many stations can be saved as presets?

The T11 can store and recall up to 30 presets for FM and 30 presets for DAB+, making favorite stations quick to access.

Does the T11 display station information and song/program details?

Yes. The T11 supports RDS (Radio Data System) for FM broadcasts, which can show station and program information when provided by the broadcaster.

Does the Rotel T11 come with a remote control?

Yes, a remote control is included for convenient tuning, preset selection, and day-to-day operation.

What outputs does the T11 use to connect to my amplifier or preamp?

The T11 provides a stereo analog output (L/R RCA) to connect to a standard line-level input on your amplifier, integrated amp, or preamp.

What antenna connections does the T11 use for FM and DAB+?

Both FM and DAB antenna inputs use a 75Ω F connector, and the tuner is designed to work with appropriate antennas for your region and reception conditions.

Can the T11 be used in a custom installation or automation system?

Yes. The T11 includes RS232 control for integration, using a standard DB-9 serial connection.

Can I dim the display for nighttime or theater-room listening?

Yes. The T11 includes the ability to dim the display panel and power LED for comfortable viewing in different lighting environments.

Rotel T11 Downloads:

Rotel T11 Manual
Rotel T11 Specifications Sheet
Rotel T11 Drawing
