Rotel RA-1592MKII Integrated Amplifier
Rotel RA-1592MKII Stereo Integrated Amplifier
The Rotel RA-1592MKII is Rotel’s no-compromise flagship integrated amplifier for listeners who want true separates-level performance in one elegant chassis. It delivers 200 watts per channel (8Ω) of Class AB power with the speed, control, and musical authority needed to drive demanding speakers, backed by Rotel’s in-house toroidal transformer and carefully optimized signal paths for exceptional dynamics and low noise.
Built for modern systems, the RA-1592MKII brings your sources together with moving-magnet phono for turntables, balanced XLR for premium analog components, and a high-resolution digital platform featuring a Texas Instruments 32-bit/384kHz DAC, PC-USB with MQA, plus coax/optical inputs for streamers and TVs. Add aptX™/AAC Bluetooth for quick wireless playback, and integration-friendly touches like A/B speaker outputs, Ethernet, RS232, and 12V triggers—all designed to make a serious two-channel system simple, powerful, and future-ready.
The Rotel RA-1592MKII is part of ListenUp's Rotel Integrated Amplifiers Collection.
What It's Good At:
- Driving real-world speakers effortlessly with 200W/ch (8Ω) Class AB amplification
- Delivering a wide, precise soundstage via premium 32-bit/384kHz TI DAC and tuned output filters
- Elevating vinyl playback with a built-in moving-magnet phono stage
- Handling high-res digital libraries and streaming rigs with PC-USB up to 32-bit/384kHz and MQA/MQA Studio support
- Making system building easy with balanced XLR, multiple coax/optical inputs, and Bluetooth (aptX/AAC)
- Integrating cleanly into custom installs with A/B speaker outputs, RS232, Ethernet, and 12V triggers
Rotel RA-1592MKII Full Specifications:
- Type: Stereo Integrated Amplifier
- Amplifier Class: Class AB
- Continuous Power Output: 200 watts/channel (8 ohms)
- Maximum Power Output: 350 watts/channel (4 ohms)
- Total Harmonic Distortion (THD): < 0.008%
- Intermodulation Distortion (60 Hz : 7kHz, 4:1): < 0.03%
- Frequency Response (Phono Input): 20 Hz – 20kHz, 0 ± 0.5 dB
- Frequency Response (Line Level Inputs): 10 Hz – 100kHz, 0 ± 0.5 dB
- Damping Factor (20 Hz – 20kHz, 8 ohms): 600
- Input Sensitivity / Impedance (Phono MM): 5.2 mV / 47k ohms
- Input Sensitivity / Impedance (Line RCA): 340 mV / 100k ohms
- Input Sensitivity / Impedance (Line XLR): 540 mV / 100k ohms
- Input Overload (Phono MM): 52 mV
- Input Overload (Line RCA): 3.5 V
- Input Overload (Line XLR): 5.5 V
- Preamplifier Output Level / Impedance: 1.9 V / 100 ohms
- Signal-to-Noise Ratio (A weighted, Phono MM): 80 dB
- Signal-to-Noise Ratio (A weighted, Line Level): 103 dB
- Digital Section Frequency Response: 10 Hz – 90k Hz (0 ± 2 dB, Max)
- Digital Section Signal-to-Noise Ratio (IHF “A” weighted): 102 dB
- Digital Input Sensitivity / Impedance: 0 dBfs / 75 ohms
- Digital Preamplifier Output Level: 1.43 V (at -20 dB)
- Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192k Hz / 24 bit)
-
PC-USB:
- USB Audio Class 1.0 (up to 96kHz / 24bit)
- USB Audio Class 2.0 (up to 384kHz / 32bit)*
- *Driver installation required
- MQA and MQA Studio (up to 24bits/384kHz)
- Roon Tested
- DAC: Texas Instruments premium 32-bit/384kHz Digital-to-Analog Converter
- Bluetooth: aptX™ and AAC
- Analog Inputs: Moving Magnet Phono (with ground), RCA line inputs (CD, Tuner, AUX)
- Balanced Inputs: XLR L/R
- Digital Inputs: Coaxial (x3), Optical (x3), PC-USB

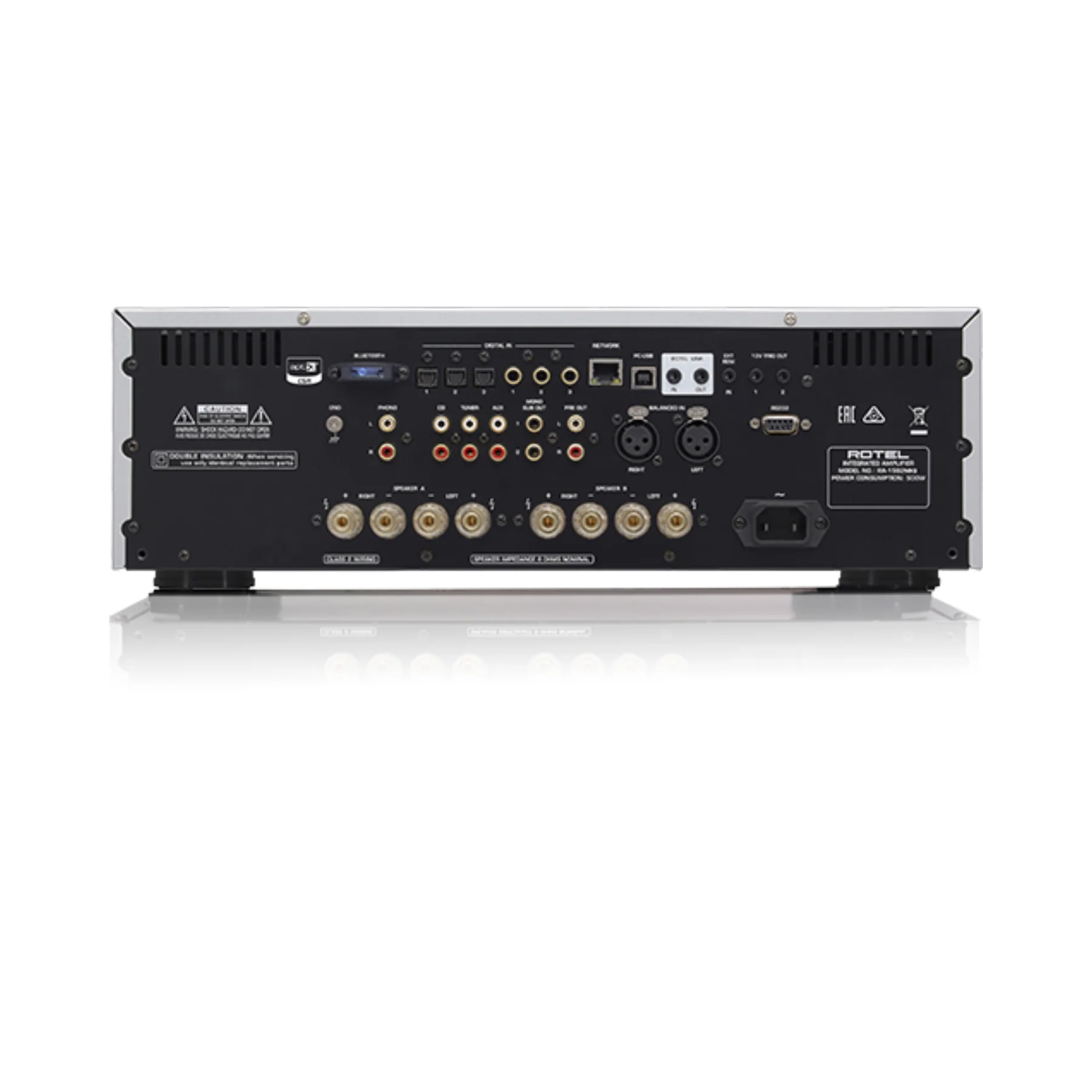

- Outputs: A/B speaker outputs, Pre Out, Sub Out (mono), Headphone output
- Control / Integration: Ethernet (Network), RS232, 12V Trigger (IN/OUT and OUT), Rotel Link (IN/OUT), External Remote In
- Power Requirements: USA: 120 volts, 60 Hz; EC: 230 volts, 50 Hz
- Power Consumption: 500 watts
- Standby Power Consumption: Normal < 0.5 watts; Network Wakeup < 2 watts
- BTU (4 ohms, 1/8th power): 1239 BTU/h
- Dimensions (W x H x D): 431 x 144 x 425 mm (17 x 5 7/8 x 16 ins.)
- Front Panel Height: 3U (132.6 mm, 5 1/4 ins)
- Weight (net): 17.6 kg, 38.8 lbs.
- Finish: Black / Silver
Rotel RA-1592MKII Q&A:
- How much power does the Rotel RA-1592MKII deliver?
- It provides 200 watts per channel into 8 ohms and up to 350 watts per channel into 4 ohms, giving excellent control and headroom for demanding speakers.
- Does it have a built-in DAC for digital sources?
- Yes. It uses a Texas Instruments 32-bit/384kHz DAC and supports high-resolution playback through multiple digital inputs.
- Can I connect my computer for high-res audio?
- Yes. The PC-USB input supports USB Audio Class 2.0 up to 384kHz/32-bit (driver required) and can also be set for Class 1.0 compatibility.
- Does it support MQA playback?
- Yes. Over PC-USB, it supports MQA and MQA Studio up to 24-bit/384kHz when configured for MQA playback.
- Is there a phono input for a turntable?
- Yes. It includes a moving-magnet (MM) phono stage plus a grounding terminal for proper turntable setup.
- Can I connect sources with balanced XLR outputs?
- Absolutely. It includes left/right balanced XLR inputs for cleaner analog signal transfer in high-end systems.
- Does it have Bluetooth for wireless listening?
- Yes. Built-in Bluetooth supports aptX™ and AAC for higher-quality wireless playback from compatible devices.
- Can it integrate into a control system or custom install?
- Yes. It includes Ethernet, RS232, 12V triggers, and A/B speaker outputs, making it easy to integrate into advanced systems.
Rotel RA-1592MKII Downloads:
Rotel RA-1592MKII Manual
Rotel RA-1592MKII Specifications Sheet
Rotel RA-1592MKII Drawing
