Rotel RA-1572MKII Integrated Amplifier
Rotel RA-1572MKII Integrated Amplifier
The Rotel RA-1572MKII is built for music lovers who want a single, high-performance integrated amplifier that excels with both modern digital sources and classic analog gear. At its core is Rotel’s oversized in-house toroidal transformer and high-current power supply, engineered to deliver authoritative dynamics and deep, controlled bass—backed by 120 watts per channel of Class AB power into 8 ohms (and up to 200 watts per channel into 4 ohms).
For digital playback, the RA-1572MKII features a premium Texas Instruments 32-bit/384kHz DAC and carefully tuned output filter stages to reveal low-level detail, spacious imaging, and a natural, balanced presentation. Connectivity is equally future-ready: stream wirelessly via aptX and AAC Bluetooth, connect a computer through PC-USB with MQA support, and integrate into custom systems with Ethernet and RS232. Add in balanced XLR inputs, a Moving Magnet phono stage for turntables, dual mono sub outputs, and a full-featured preamp section, and you have an audiophile-grade stereo amplifier designed to anchor a serious two-channel system for years.
The Rotel RA-1572MKII is part of ListenUp's Rotel Integrated Amplifiers Collection.
What It's Good At:
- Delivering powerful, controlled stereo sound with 120W/ch Class AB amplification (8Ω) and strong 4Ω capability
- Elevating digital audio with a premium TI 32-bit/384kHz DAC and MQA/MQA Studio support over PC-USB
- Making turntable playback easy and clean with a built-in Moving Magnet phono stage and grounding post
- Simplifying system building with dual mono subwoofer outputs plus preamp output for expansion
- Supporting modern streaming and everyday convenience with aptX/AAC Bluetooth and Roon Tested certification
- Fitting into custom installations with Ethernet connectivity, RS232 control, and 12V trigger options
Rotel RA-1572MKII Full Specifications:
- Model: Rotel RA-1572MKII
- Product Type: Stereo Integrated Amplifier
- Amplifier Topology: Class AB
- Continuous Power Output: 120 W/ch (8Ω)
- Maximum Power Output: 200 W/ch (4Ω)
- Total Harmonic Distortion (THD): < 0.018%
- Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
- Frequency Response (Phono Input): 20 Hz – 20 kHz, 0 ± 0.5 dB
- Frequency Response (Line Level Inputs): 10 Hz – 100 kHz, 0 ± 0.5 dB
- Frequency Response (Digital Section): 10 Hz – 90 kHz (0 ± 2 dB, Max)
- Damping Factor (20 Hz – 20 kHz, 8Ω): 300
- Input Sensitivity / Impedance (Phono Input, MM): 2.1 mV / 47 kΩ
- Input Sensitivity / Impedance (Line Level Inputs, RCA): 270 mV / 100 kΩ
- Input Sensitivity / Impedance (Line Level Inputs, XLR): 440 mV / 100 kΩ
- Input Sensitivity / Impedance (Digital Inputs): 0 dBFs / 75 Ω
- Input Overload (Phono Input, MM): 32 mV
- Input Overload (Line Level Inputs, RCA): 4 V
- Input Overload (Line Level Inputs, XLR): 5.5 V
- Preamplifier Output / Impedance: 1.5 V / 470 Ω
- Preamplifier Output Level (Digital): 1.42 V (at -20 dB)
- Mono Subwoofer Outputs: 2 (mono summed)
- Headphone Output: 3.5 mm (1/8") mini stereo headphone connector
- Speaker Outputs: 2 sets (Speaker A and Speaker B)
- Signal to Noise Ratio (IHF “A” weighted, Phono Input MM): 80 dB
- Signal to Noise Ratio (IHF “A” weighted, Line Level Inputs): 100 dB
- Signal to Noise Ratio (IHF “A” weighted, Digital Inputs): 100 dB
- Coaxial/Optical Digital Signals: SPDIF LPCM (up to 24-bit / 192 kHz)
- PC-USB (USB Audio Class 1.0): up to 24-bit / 96 kHz
- PC-USB (USB Audio Class 2.0): up to 32-bit / 384 kHz (driver installation required)
- MQA and MQA Studio: up to 24-bit / 384 kHz
- Roon Tested: Yes
- Bluetooth: Wireless aptX and AAC Bluetooth

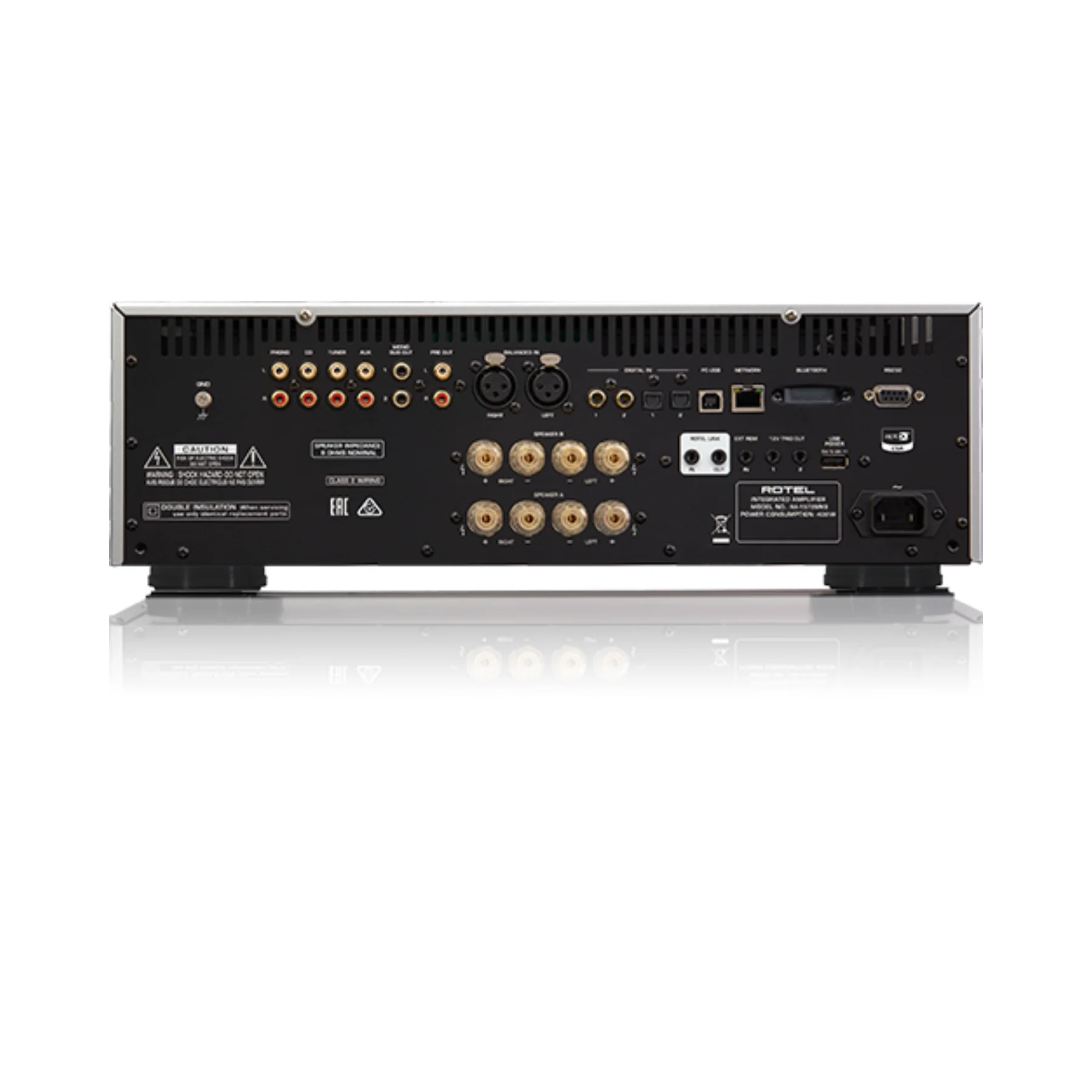

- Balanced Inputs: XLR L/R (pair)
- Analog Inputs: Phono (MM), CD, Tuner, Aux (RCA)
- Digital Inputs: Coaxial (1/2), Optical (1/2), PC-USB
- Network / Control: Ethernet (network), RS232
- 12V Trigger: Trigger outputs plus configurable IN/OUT trigger (market dependent)
- Other Control Connections: IR/External remote input and Rotel Link (as labeled on rear panel)
- Power Requirements (Europe): 230 V, 50 Hz
- Power Requirements (USA): 120 V, 60 Hz
- Power Consumption: 400 W
- Standby Power Consumption (Normal): < 0.5 W
- Standby Power Consumption (Network Wakeup): < 2 W
- BTU (4Ω, 1/8th power): 810 BTU/h
- Dimensions (W × H × D): 431 × 144 × 358 mm (17 × 5 5/8 × 14 1/8 in)
- Front Panel Height: 3U / 132.6 mm / 5 1/4 in
- Net Weight: 13.63 kg (30.05 lb)
- Finish: Silver and Black
Rotel RA-1572MKII Q&A:
- How much power does the RA-1572MKII deliver to speakers?
- It delivers 120 watts per channel into 8 ohms and can produce up to 200 watts per channel into 4 ohms, providing strong drive and control for a wide range of speakers.
- Does this integrated amplifier support MQA playback?
- Yes. The RA-1572MKII supports MQA and MQA Studio up to 24-bit/384 kHz via the PC-USB connection when configured for the appropriate USB audio mode.
- What kind of Bluetooth is included, and is it high quality?
- Built-in Bluetooth supports aptX and AAC for improved wireless sound quality and better compatibility with phones, tablets, and computers.
- Can I connect a turntable directly to the RA-1572MKII?
- Yes. It includes a Moving Magnet (MM) phono input and a dedicated ground connection to reduce hum and noise.
- What digital inputs are available for TVs, streamers, or disc players?
- It supports coaxial and optical digital inputs (two of each) for SPDIF PCM signals up to 24-bit/192 kHz, plus PC-USB for high-resolution computer audio.
- Can I add a subwoofer (or two) to this system?
- Yes. It includes two mono subwoofer outputs, allowing you to connect one or two subs with a summed mono signal.
- Does it work well with Roon?
- Yes. The RA-1572MKII is certified Roon Tested, designed to deliver a smooth and reliable experience when used with Roon software.
- Can this amplifier be integrated into a custom control system?
- Yes. Ethernet and RS232 support make it suitable for system integration, with additional control connections (such as triggers and remote inputs) available as labeled on the rear panel.
Rotel RA-1572MKII Downloads:
Rotel RA-1572MKII Manual
Rotel RA-1572MKII Specifications Sheet
Rotel RA-1572MKII Downloads
