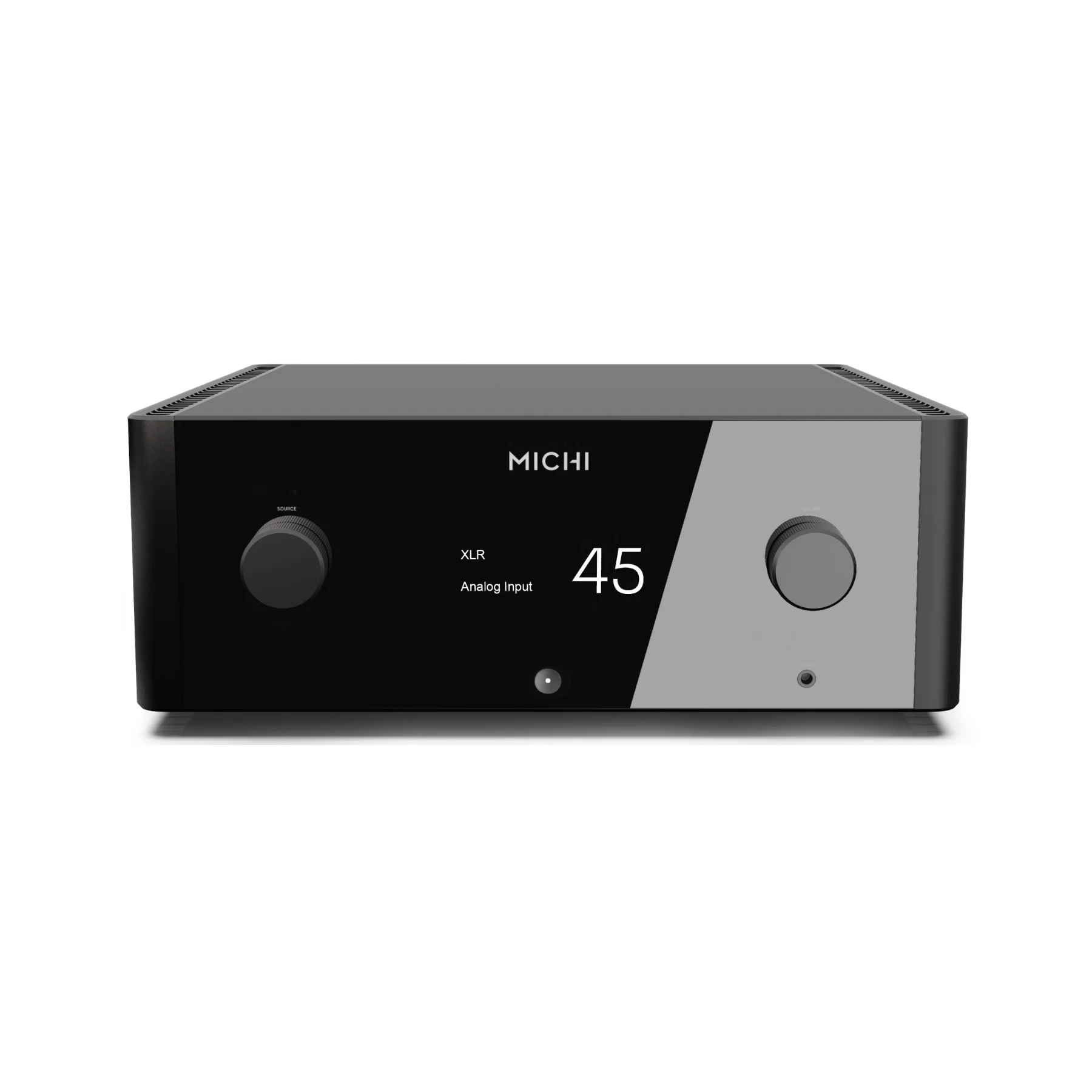

Rotel Michi X5 Integrated Amplifier

The Michi X5 Integrated Amplifier - Closeout Special $2000 Off!

• 350 Watts Per Channel at 8-Ohms / 600 Watts Per Channel at 4-Ohms of Class AB Amplification

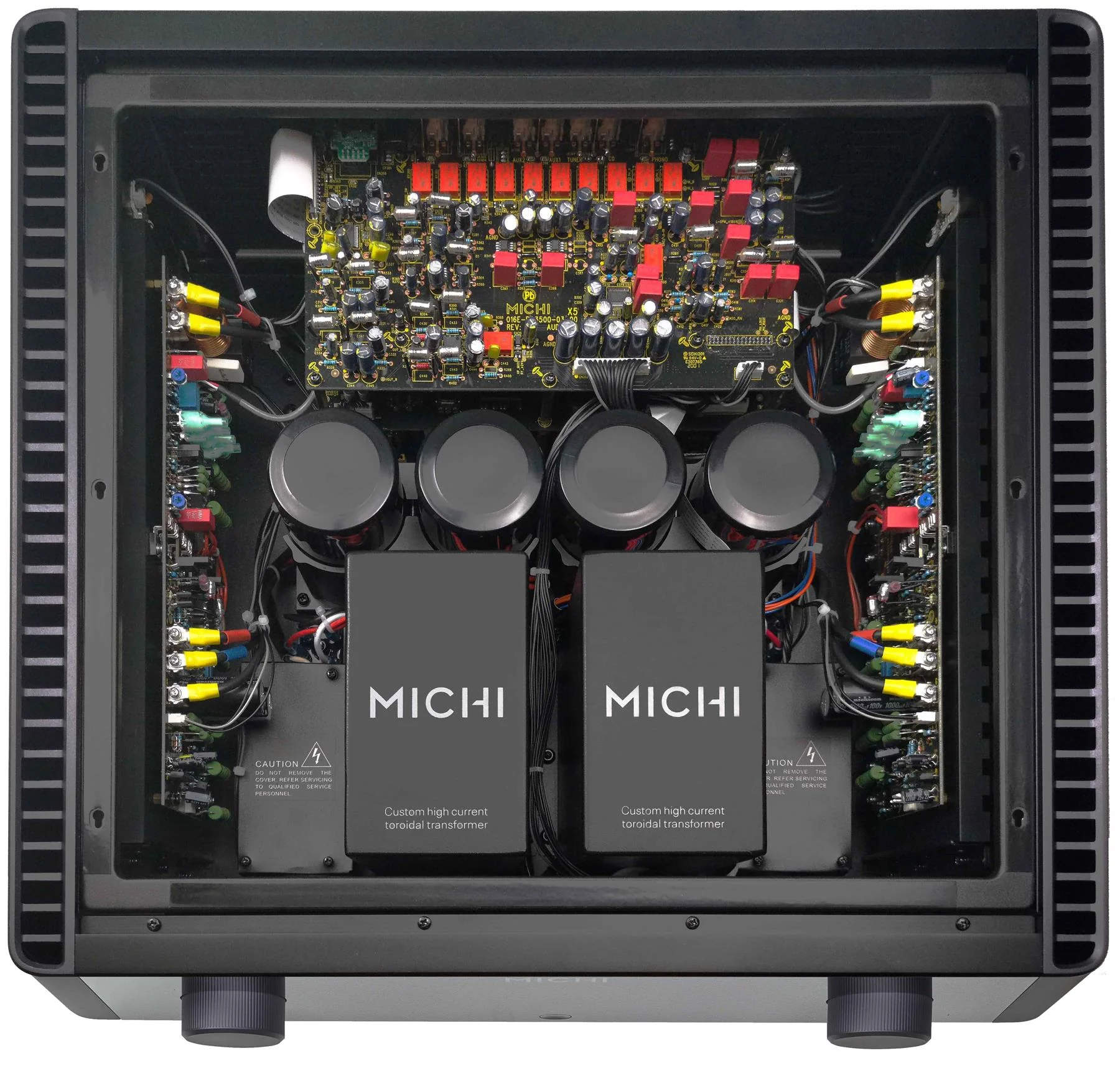

• Oversized Toroidal Transformer (built in-house) feeds 88,000uF of high efficiency bulk storage smoothing capacitors with an isolated power supply.
• roon Tested & Certified
• Supports MQA
• XLR Balanced Inputs
• 3x Digital Optical Inputs
• 5x Stereo Analog Inputs including Phono MM/MC

Rotel Michi X5 Specifications

Continuous Power Output: : 350 watts per channel at 8-ohms | 600 watts per channel at 4-ohms

Total Harmonic Distortion: < 0.009%

Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%

Frequency Responses: Phono Input 20 Hz-20k Hz (+0 dB, -0.2 dB) | Line Level Inputs 10 Hz-100k Hz (+0 dB, -0.6 dB)

Damping Factor (20 Hz - 20kHz, 8 ohms): 350

Input Sensitivity /Impedance:

Phono Input (MM) 5.7 mV / 47k ohms

Phono Input (MC) 570 uV/ 100 ohms

Line Level Inputs (RCA) 380 mV / 100k ohms

Line Level Inputs (XLR) 580 mV / 100k ohms

Input Overload

Phono Input (MM) 197 mV

Phono Input (MC) 19 mV

Line Level Inputs (RCA) 12.5 V

Line Level Inputs (XLR) 12.5 V

Preamplifier Output Level / Impedance: 1 V / 470 ohms

Tone Controls: Bass ±10 dB at 100 Hz | Treble ±10 dB at 10k Hz

Signal to Noise Ratio (IHF “A” weighted): Phono Input (MM/MC) 80 dB | Line Level Inputs 102 dB

Channel Separation: Phono Input (MM) > 65 dB | Line Level Inputs > 65 dB

Digital Section

Frequency Response: 20 Hz - 20k Hz (0 ± 0.4 dB)

Signal to Noise Ratio (IHF “A” weighted): 102 dB

Input Sensitivity/Impedance: 0 dBFs / 75 ohms

Preamplifier Output Level: 1.2 V (at -20 dB Volume Position)

Digital to Analog Converter: Texas Instruments PCM5242 32-Bit / 768kHz

Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192kHz 24 bit)

PC-USB:

USB Audio Class 1.0 (up to 96kHz 24-bit)

USB Audio Class 2.0 (up to 384kHz 32-bit)*

*Driver installation required

Power Requirements: 120 V, 60 Hz

Standby Power Consumption-Normal: < 0.5 watts

Standby Power Consumption-Network Wakeup: < 2 watts

Dimensions: 19" W x 7 5/8" H x 17 3/4" D

Front Panel Height: 7”

Weight (net): 96.56 lb

Finish: Black

Owner's Manual
