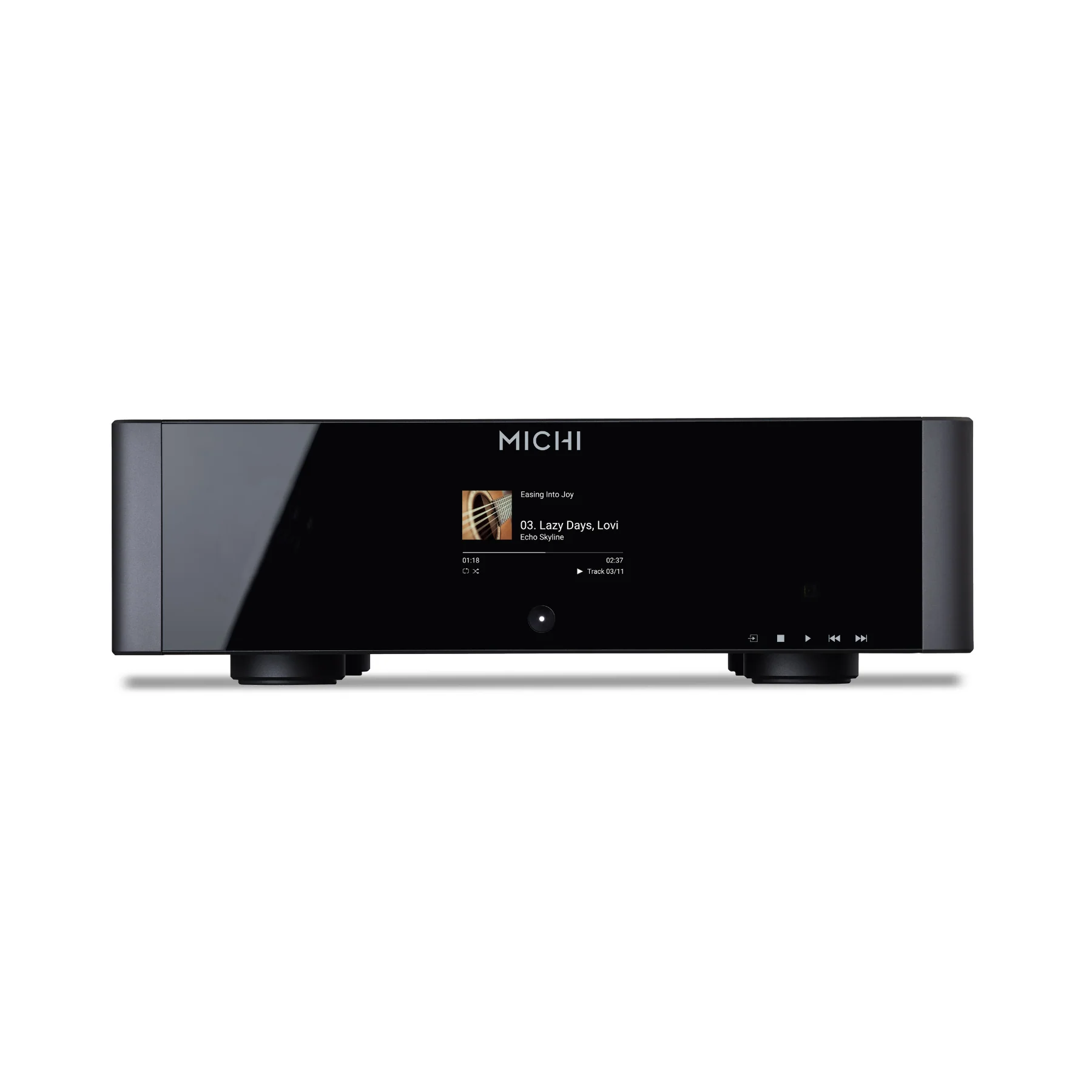

Rotel Michi Q5 CD Player (Black) - Clearance / Open Box

Rotel Michi Q5 CD Player, CD Transport,  DAC (digital to analog converter)

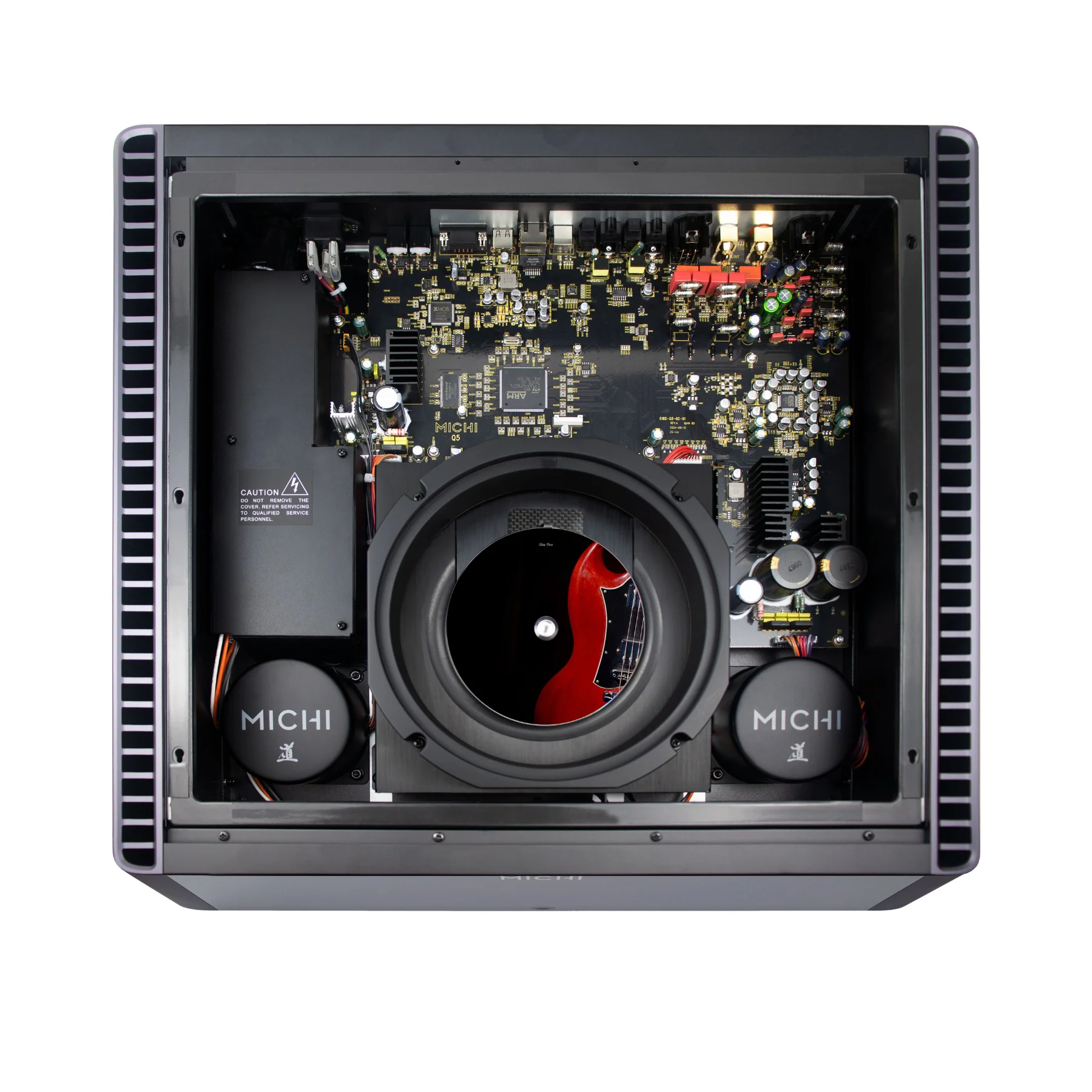

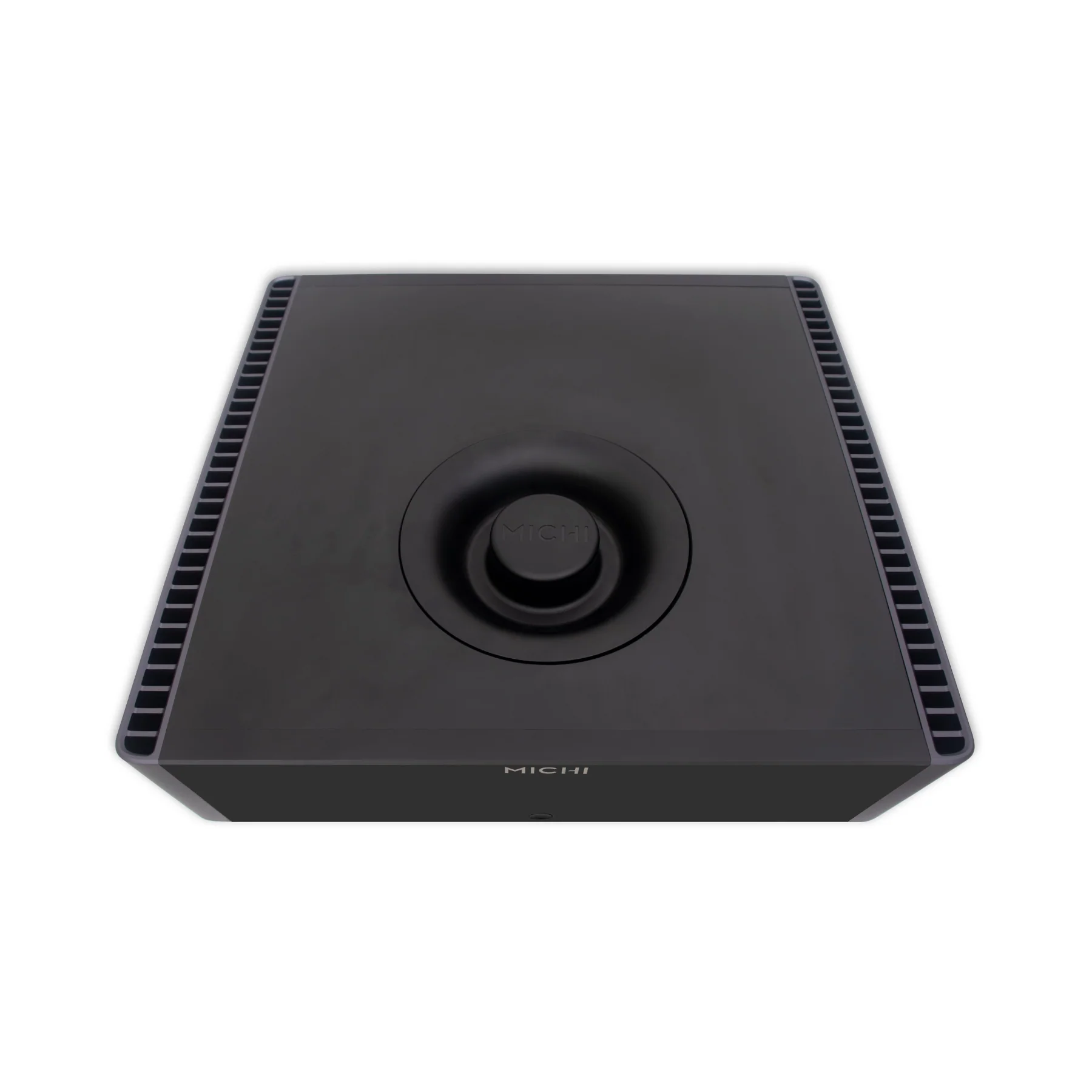

• Top-loading CD Mechanism mounted on a floating spring assembly for improved acoustic isolation
• ESS ES9028PRO 32-bit/8-Channel DAC (4-channels each to the left and right audio signal paths)

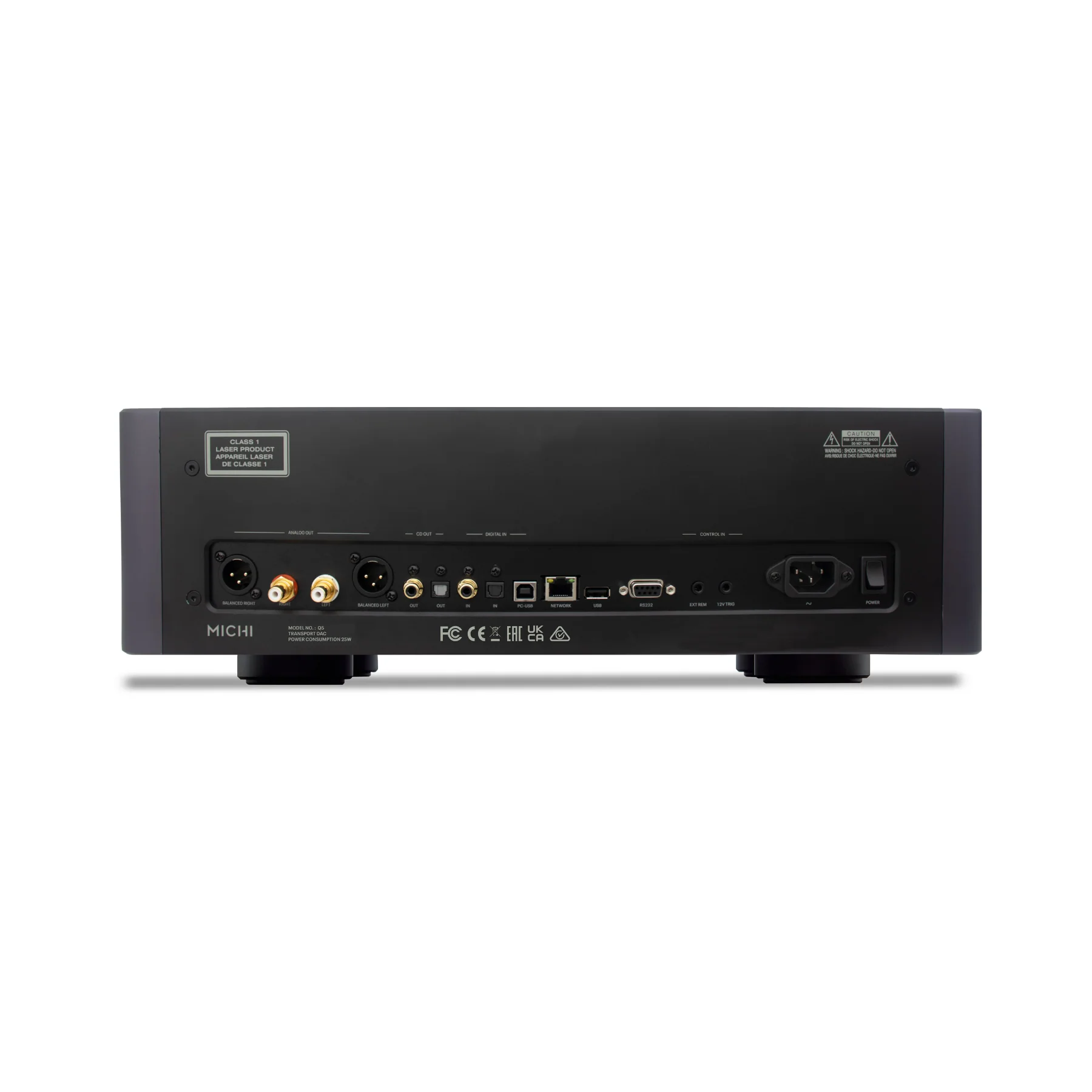

• XLR and RCA Analog Outputs.
• Coaxial and Optical Toslink Digital Outputs
• 24-bit / 192kHz Coaxial and Optical Inputs
• PC-USB (up to 32-bit / 384kHz)
• RS232 and Ethernet ports
• Full-Color TFT Display showcasing CD album artwork

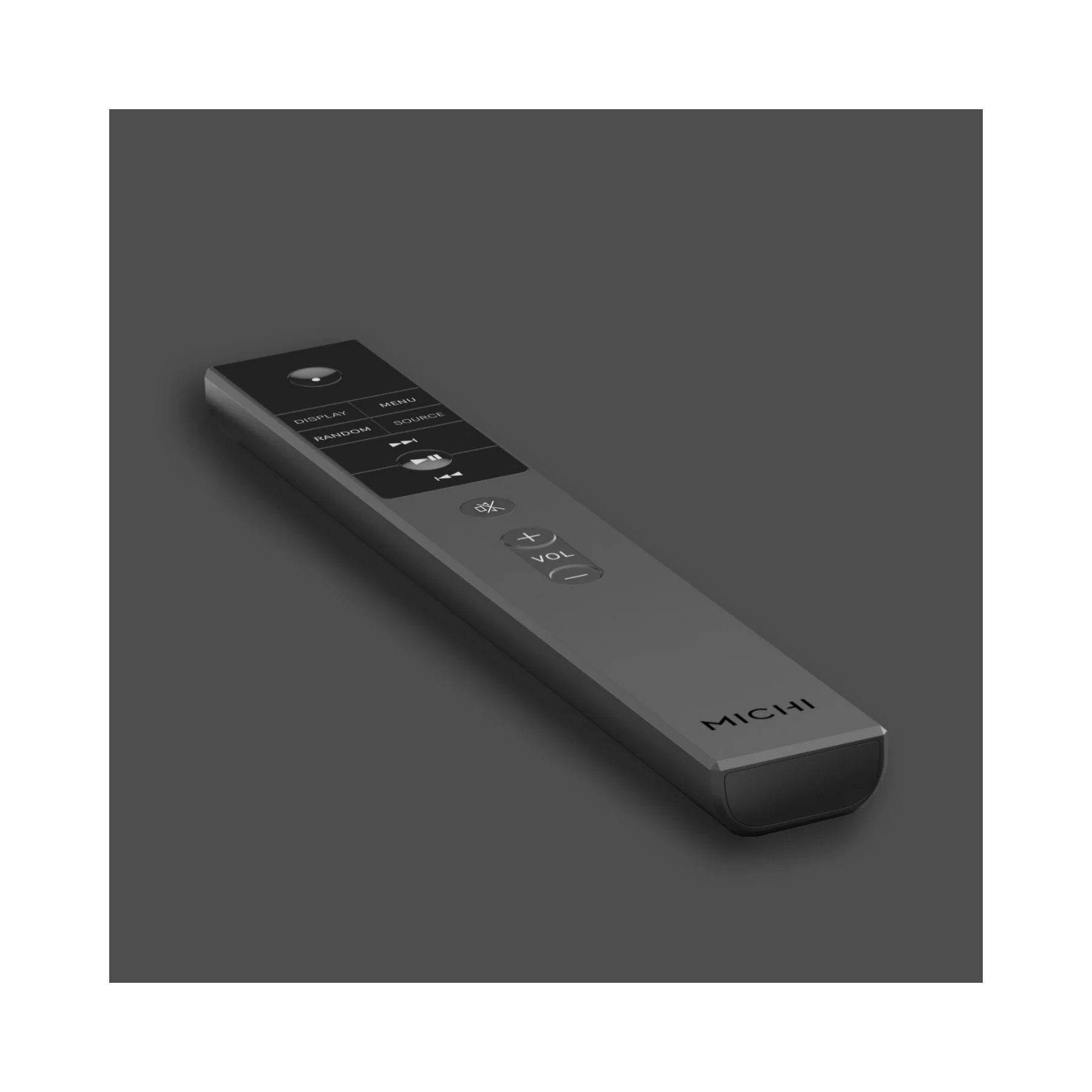

• IR Remote Control
• Certified Roon Tested
• Supports MQA and MQA Studio
• Rotel Dual Toroidal Transformers
• Electrically Isolated Drive Motor Power Supplies

Rotel Michi Q5 Specifications:

Total Harmonic Distortion + Noise for the CD/Coaxial/Optical/PC-USB Input: < 0.0006%

Intermodulation Distortion: < 0.002%

Frequency Response: 20 Hz - 20k Hz (+0 dB, -0.1 dB) | 10 Hz - 70k Hz (+0 dB, -3 dB)

Channel Balance: ± 0.5 dB

Channel Separation: > 104 dB @ 10k Hz

Signal to Noise Ratio (IHF A-Weighted): > 115 dB

Dynamic Range: > 99 dB

Input Sensitivity: 0 dBfs / 75 ohms

CD Digital Output: 16-Bit/44.1kHz, 0 dBFS

Analog Output Level/Impedance Unbalanced(RCA): 2.3V/100 ohms | Balanced(XLR): 4.9V/4K ohms

Digital to Analog Converter (DAC):ESS ES9028PRO

Coaxial/Optical Digital Input: SPDIF LPCM (up to 24-bit / 192k Hz)

PC-USB: USB Audio Class 2.0 (up to 32-bit / 384k Hz)*Driver installation required

Supports: DSD (up to 4X, 11.2M), DoP (up to 2X, 5.6M), MQA & MQA Studio (up to 24-bit / 384k Hz)

Roon Tested

Power Requirements: 120 V, 60 Hz

Power Consumption: 25 watts

Standby Power Consumption: < 0.5 watts

Dimensions: 19”W x 6”H x 17.75”D

Front Panel Height: 5.25”

Weight: 51.8 lbs.

Finish: Black

Rotel Michi Q5 CD Player Owners Manual
