Rotel Michi Prestige X430 Integrated Amplifier
Rotel Michi Prestige X430 Integrated Amplifier
- 210 watts per channel (8 ohms) / 340 watts per channel (4 ohms) for powerful, high-current performance
- Class AB amplifier design with custom-tuned push-pull output transistors for dynamic, low-distortion sound
- Roon Tested certification for seamless integration with Roon music systems
- ESS SABRE ES9039Q2M 32-bit DAC for audiophile-grade digital-to-analog conversion and exceptional clarity
- Bluetooth with aptX HD and AAC for high-quality wireless music streaming
- HDMI ARC input for direct, high-performance connection to your TV audio system
- PC-USB input (32-bit/384kHz PCM, DSD 256/4X DoP) for high-resolution audio playback from computers
- Three coaxial and three optical (Toslink) digital inputs for versatile source connectivity
- Moving Magnet (MM) phono input for turntable and vinyl playback
- Dual subwoofer outputs for enhanced low-frequency performance and system expansion
- A/B speaker switching terminals for two-zone or multi-speaker configurations
- Three pairs of RCA analog inputs for flexible component connections

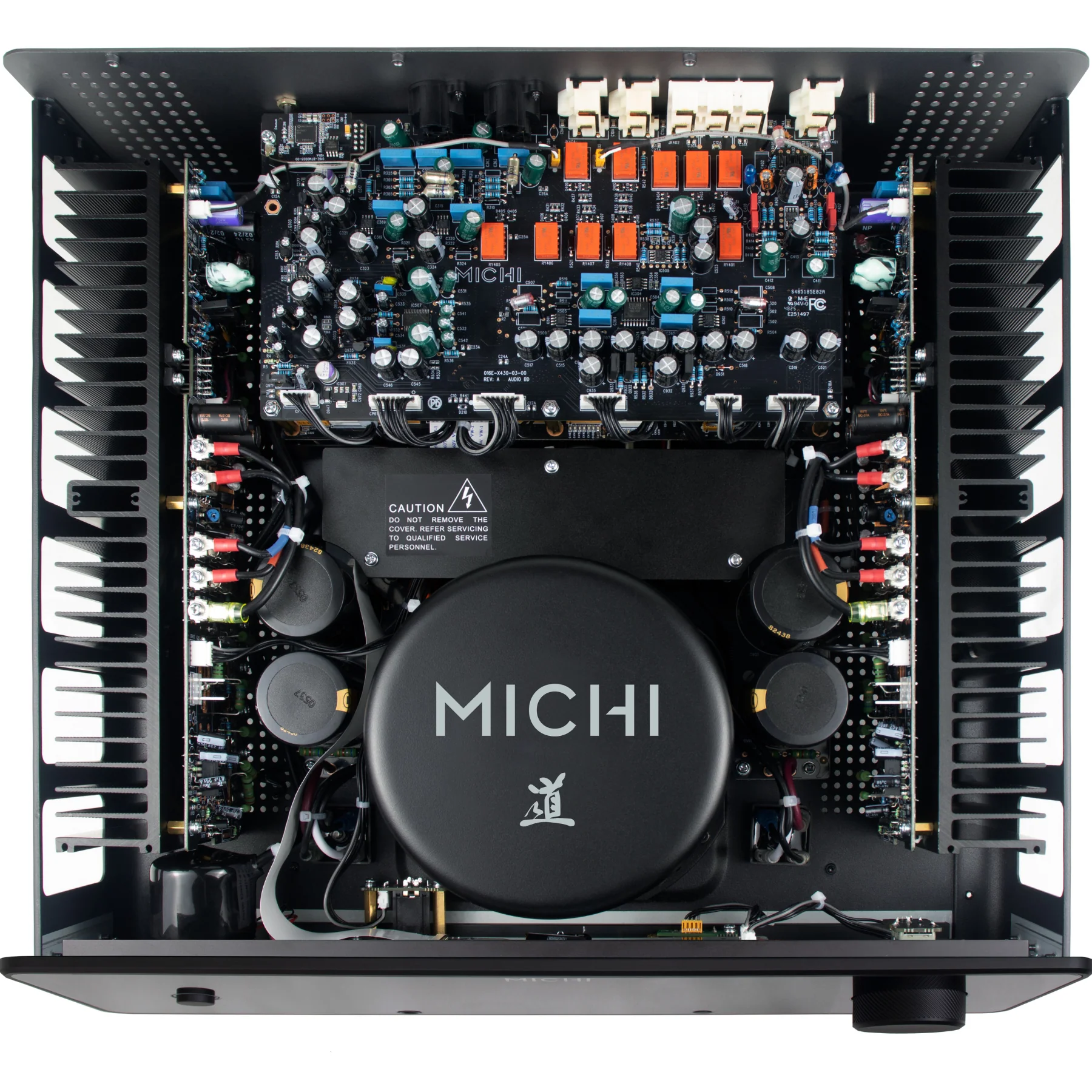

- Massive Rotel-engineered toroidal transformer with noise-rejecting enclosure for ultra-low noise and superior dynamics
- Isolated circuit design to minimize interference and preserve signal purity
- Premium anodized aluminum chassis with knurled volume control for durability and refined aesthetics
- Customizable glass front panel display with high-resolution color screen, including spectrum analyzer and VU meters

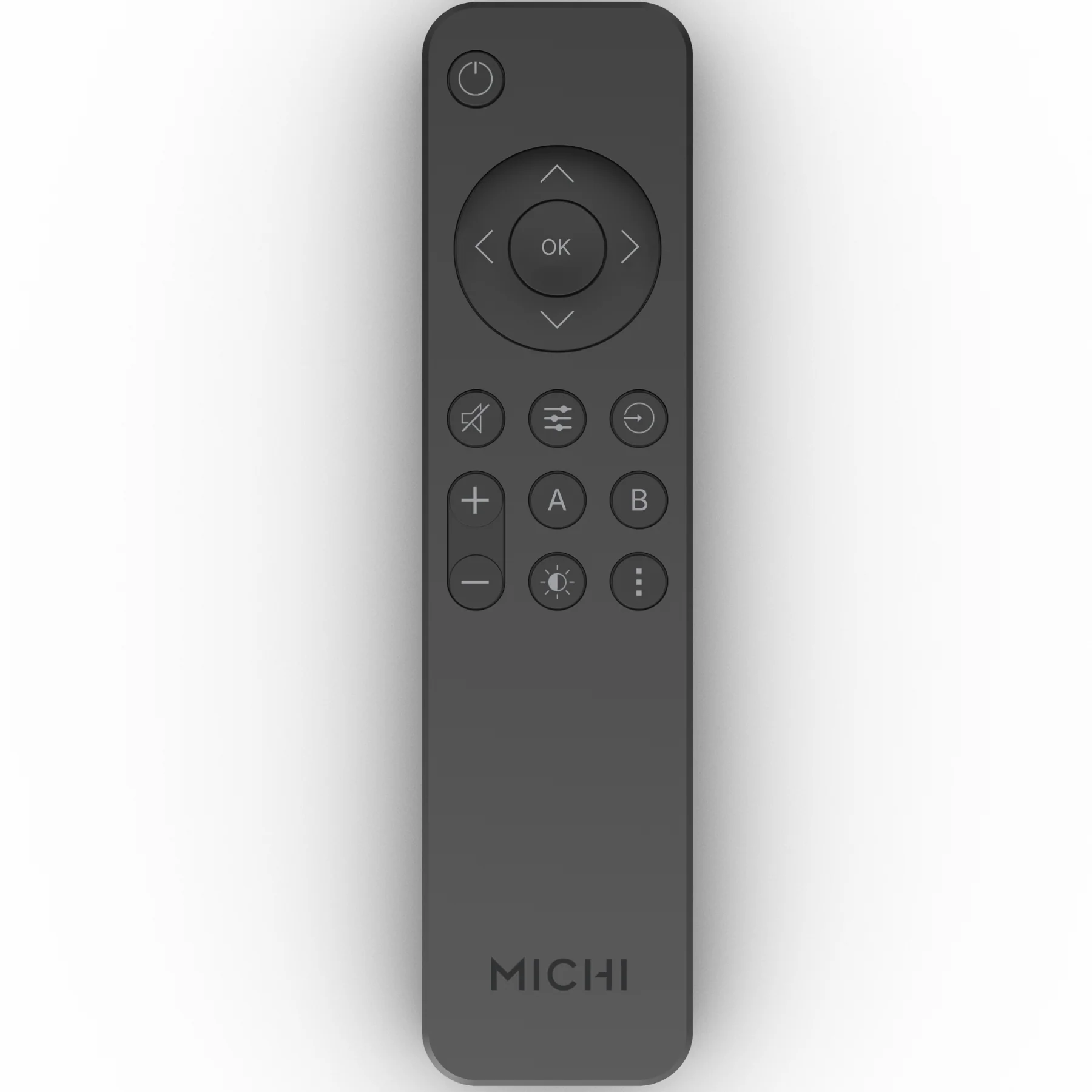

- Includes premium remote control for convenient system operation

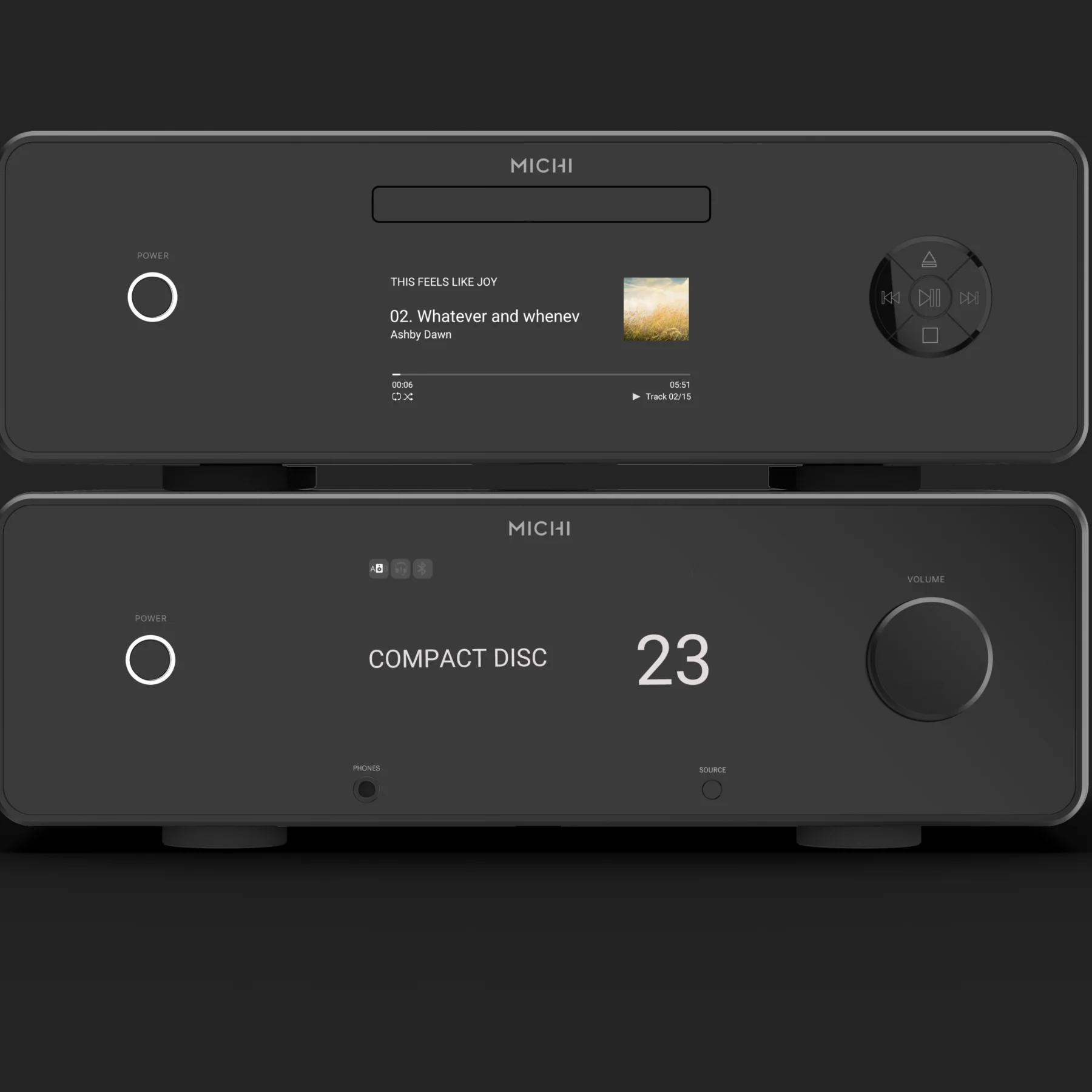

See the matching Michi Prestige Q430 CD Player.
Rotel Michi X430 Specifications:
Power Output:
Continuous (Non FTC): 210 watts/channel (8 ohms)
FTC: 220 watts/channel (8 ohms)
Maximum (Non FTC): 340 watts/channel (4 ohms)
Total Harmonic Distortion (THD): < 0.03%
Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
Frequency Response:
Phono Input: 20 Hz-20k Hz (+0 dB, -0.5 dB)
Line Level Inputs: 10 Hz-100k Hz (+0 dB, -0.5 dB)
Damping Factor (20 Hz - 20kHz, 8 ohms): 260
Input Sensitivity / Impedance:
Phono Input (MM): 5.56 mV / 47k ohms
Line Level Inputs (RCA):356 mV / 100k ohms
Line Level Inputs (XLR): 743 mV / 50k ohms
Input Overload:
Phono Input (MM): 66 mV
Line Level Inputs (RCA): 4 V
Line Level Inputs (XLR): 10 V
Signal to Noise Ratio (IHF “A” weighted):
Phono Input: > 80 dB
Line Level Inputs (RCA): > 105 dB
Line Level Inputs (XLR): > 100 dB
Preamplifier Output Level / Impedance: 1.92 V / 100 ohms
Tone Controls
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10k Hz
Channel Separation
Phono Input: > 55 dB
Line Level Inputs: > 55 dB
Digital Section
Frequency Response: 10 Hz - 20k Hz (+0,-0.4 dB, Max)
Signal to Noise Ratio (IHF “A” weighted): > 110 dB
Input Sensitivity/Impedance: 0 dBFs / 75 ohms
Preamplifier Output Level: 1.15 V (at -20 dB Volume Position)
Digital to Analog Converter: ESS ES9039Q2M DAC
Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192kHz 24 bit)
PC-USB:
USB Audio Class 2.0 (up to 384kHz 32-bit)*
*Driver installation required
Support DSD (up to 4X, 11.2MHz)
and DoP (up to 2X, 5.6MHz)
Roon Tested
HDMI: Support CEC with ARC function 2-channel PCM only (up to 48 kHz, 24-bit)
Power Requirements: 120 V, 60 Hz
Power Consumption: 520 watts
Standby Power Consumption: Normal < 0.5 watts | Network Wakeup < 2 watts
Dimensions: 17” W x 6” H x 16.5” D
Front Panel Height: 5.25”
Weight (net): 37.3 lbs
Finish: Black
