Rotel DX-5 Integrated Amplifier

Rotel DX-5 Integrated Amplifier

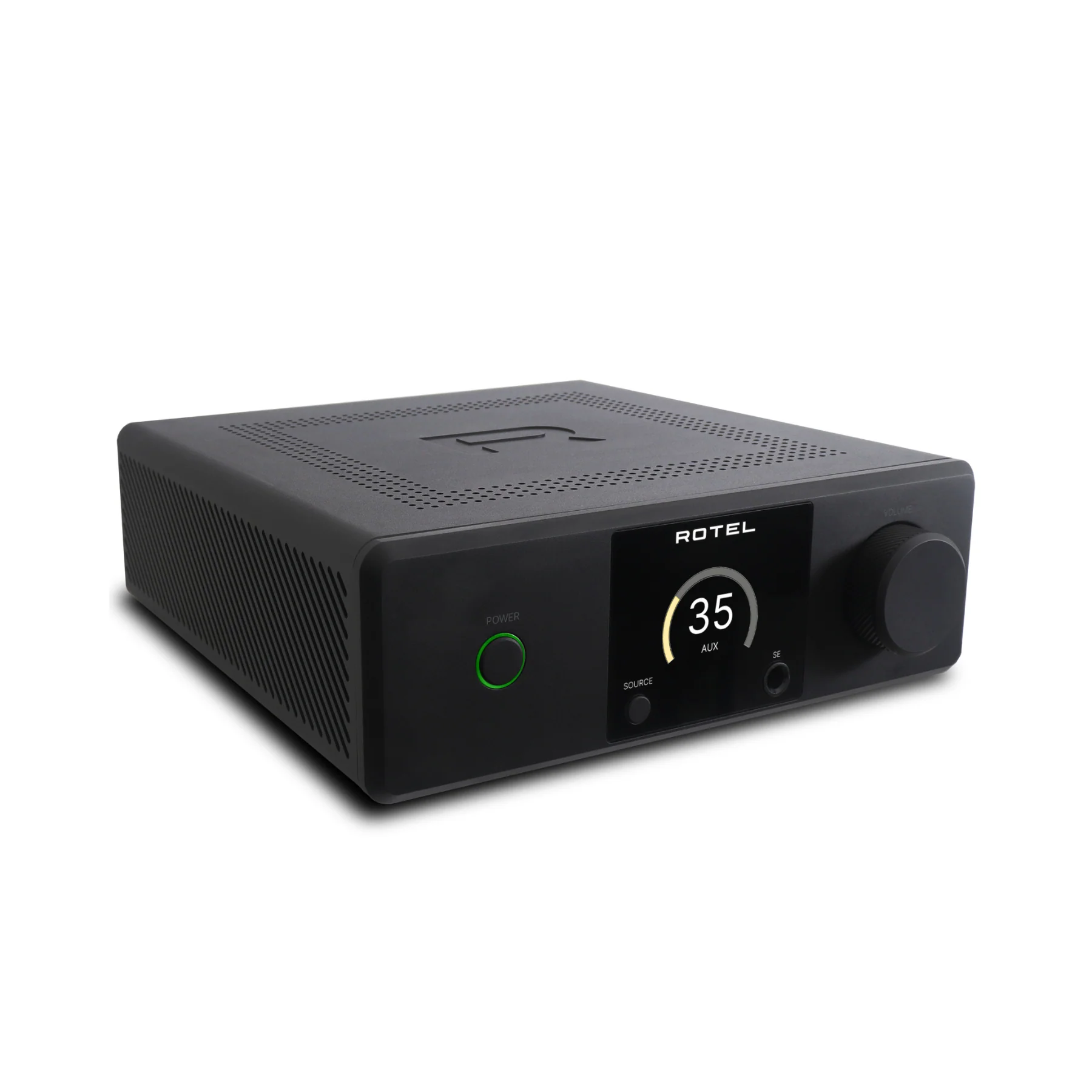

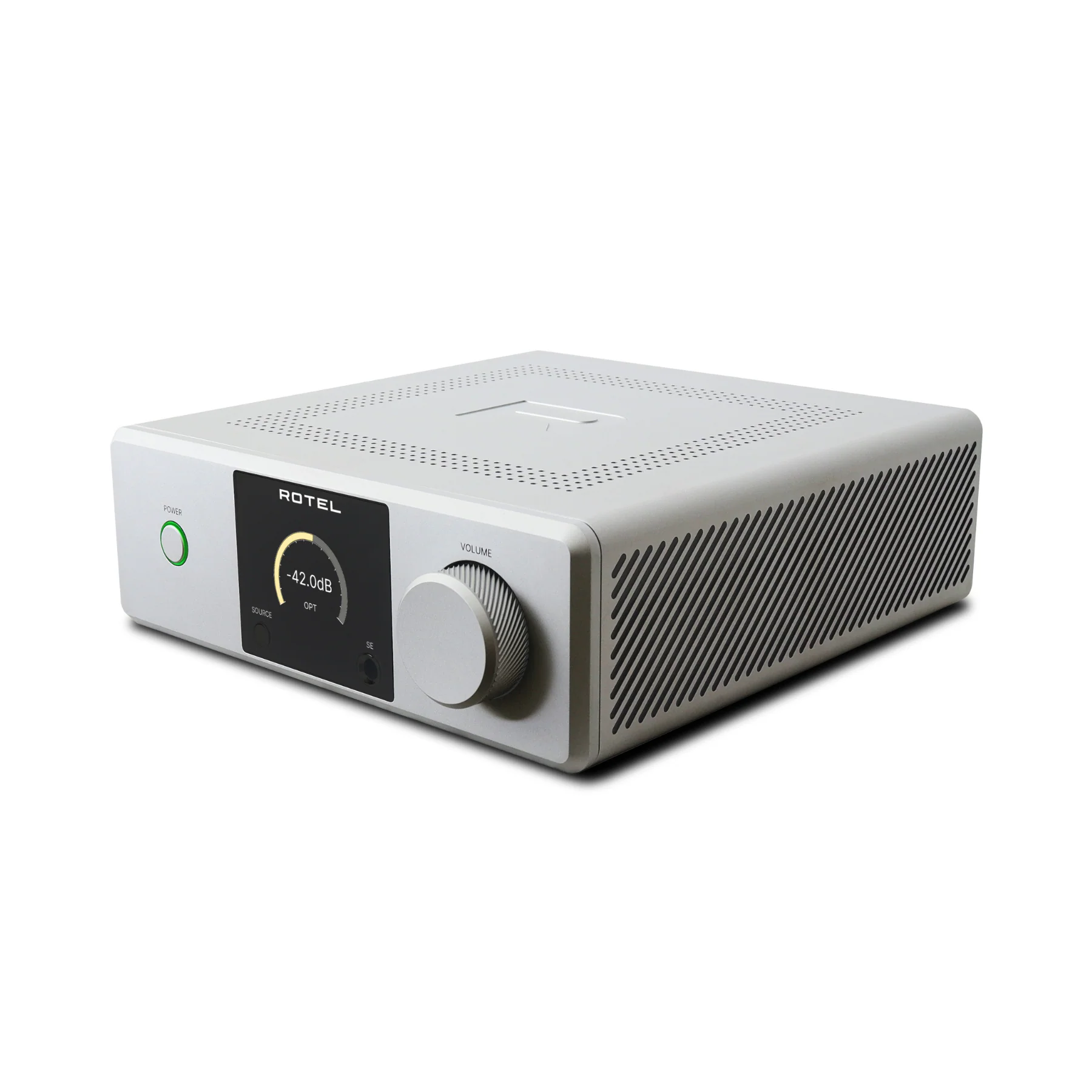

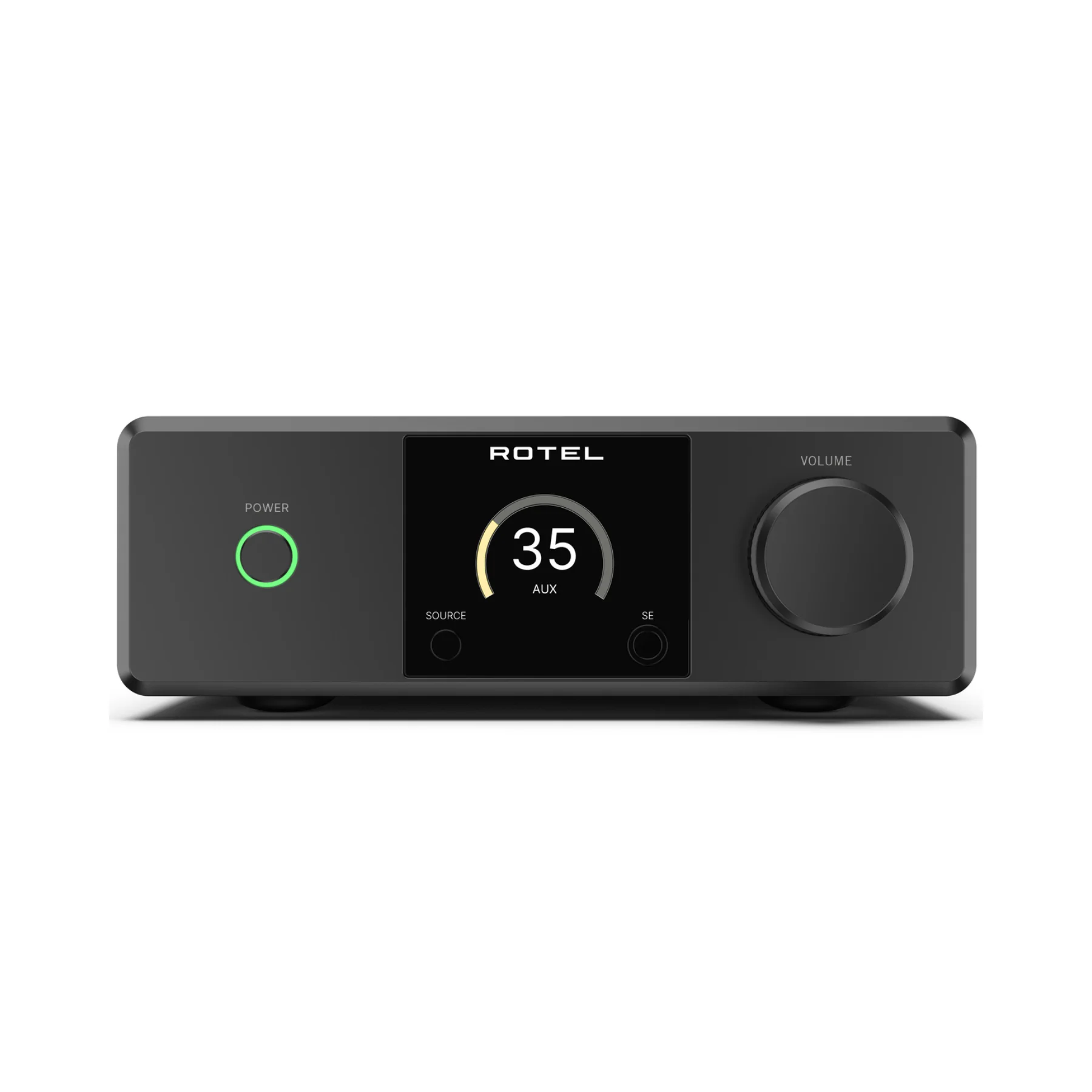

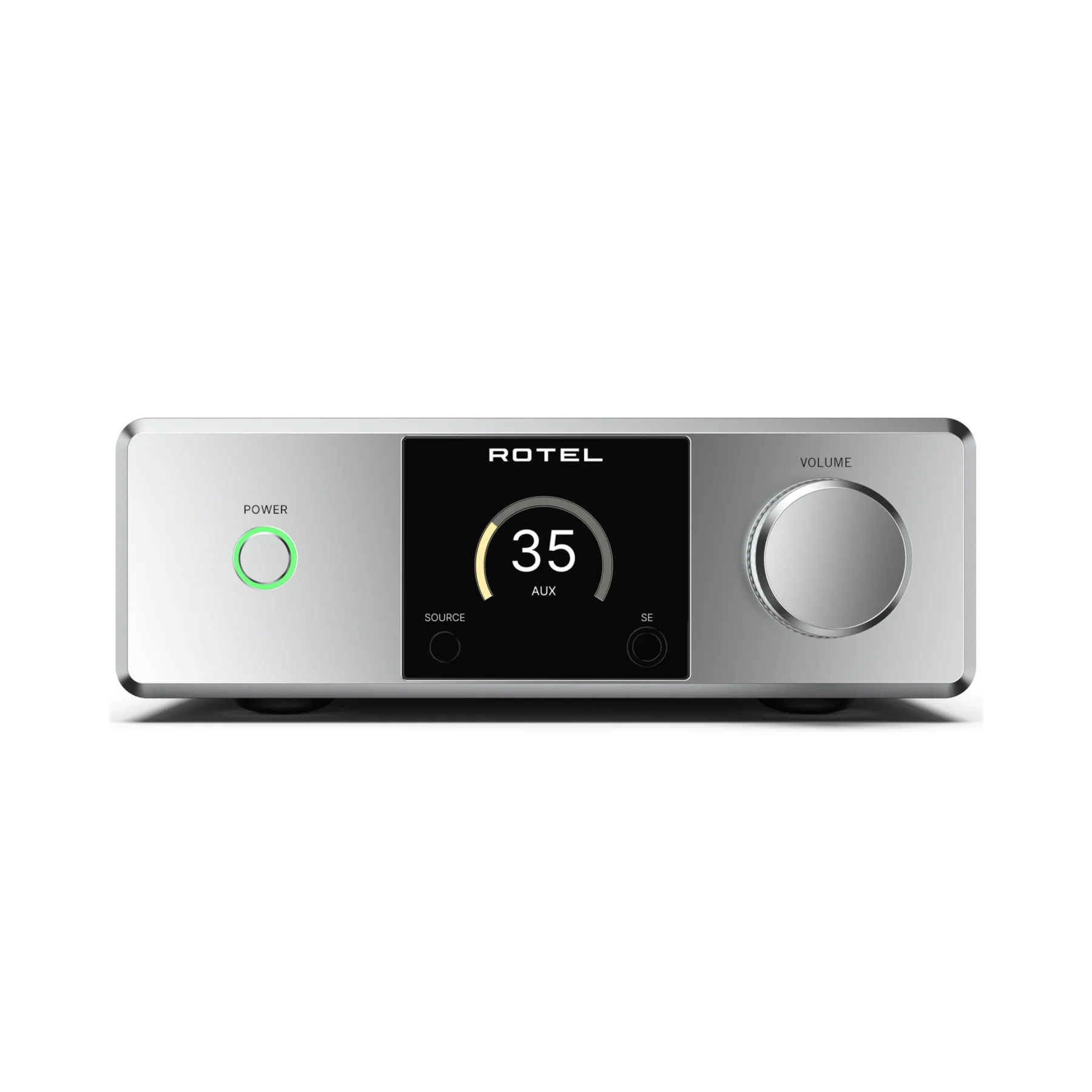

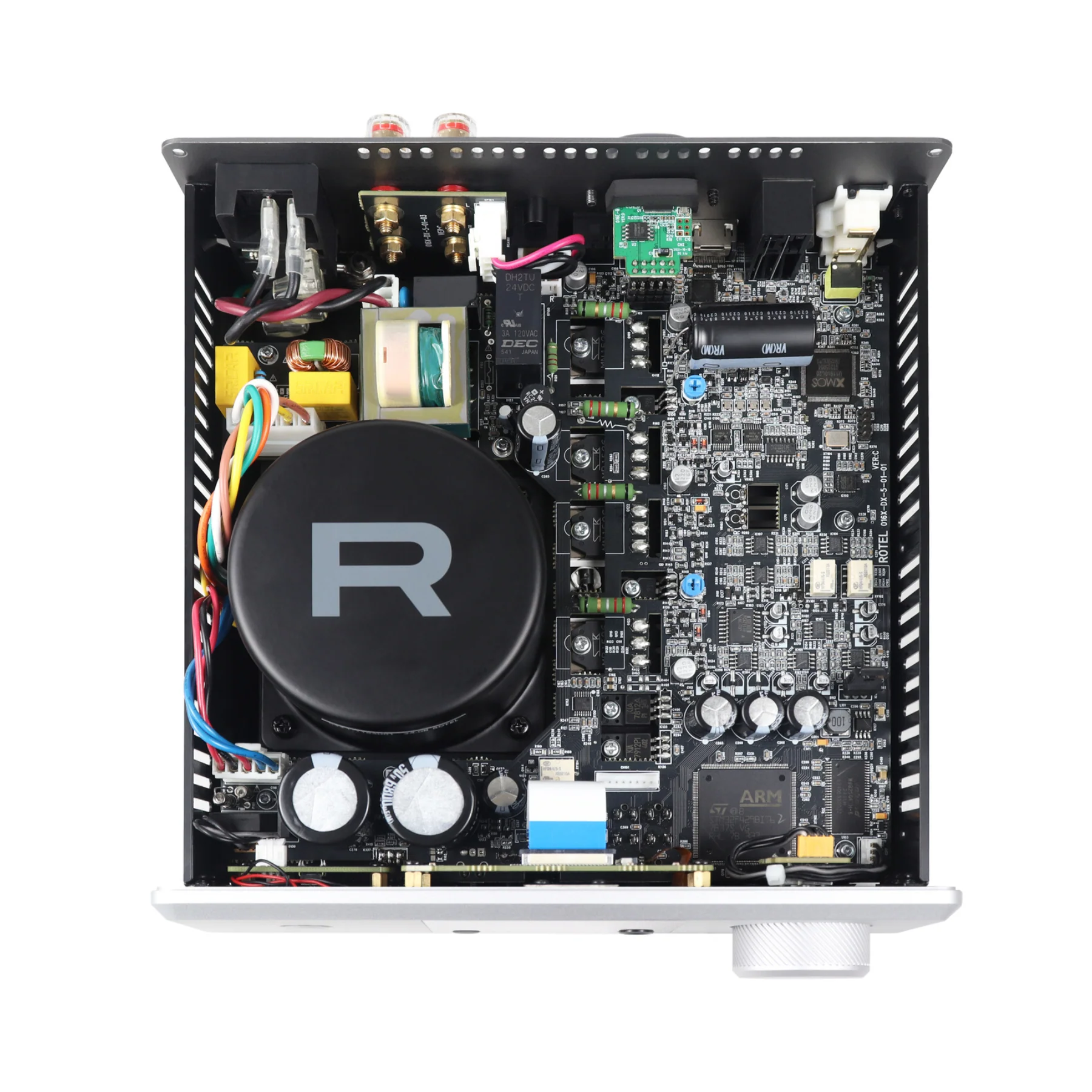

The Rotel DX-5 Personal Audio Integrated Amplifier delivers true hi-fi performance in a sleek, space-efficient chassis built for modern desktops, media consoles, and compact listening rooms. Inside, classic Rotel Class AB amplification is driven by an in-house wound, high-current toroidal transformer to produce clean, controlled power with wide soundstage imaging and confident bass authority. A premium ESS ES9039Q2M Sabre DAC elevates every digital source, while versatile connectivity makes the DX-5 equally at home powering a 2-channel music system, a 2.1 TV setup via HDMI ARC, or private listening through the front-panel 6.35mm headphone jack. With a full-color display, intuitive controls, Bluetooth streaming (including aptX HD and AAC), and an included remote, the DX-5 is a refined all-in-one solution for audiophiles, music lovers, and home entertainment enthusiasts.

The Rotel DX-5 is part of ListenUp's Rotel Integrated Amplifiers Collection.

What It's Good At:

• Delivering detailed, dynamic Class AB sound with strong control and low distortion
• Upgrading digital playback with an ESS ES9039Q2M Sabre DAC for clarity and spacious imaging
• Handling high-resolution audio via PC-USB (up to 32-bit/384kHz PCM, plus DSD)
• Creating a simple, great-sounding TV + speakers setup with HDMI ARC (and CEC support)
• Streaming wirelessly in higher quality with Bluetooth aptX HD and AAC support
• Building a compact 2.1 system with a dedicated subwoofer output and robust speaker drive

Rotel DX-5 Full Specifications:

• Product type: Integrated Amplifier / Personal Audio Integrated Amplifier
• Amplifier class: Class AB
• DAC: ESS ES9039Q2M Sabre DAC (premium 32-bit)
• Roon: Roon Tested (via PC-USB)
• Analog Section — Power Output (FTC): 25 W/ch
• Analog Section — Continuous Power Output (Non FTC): 25 W/ch (1k Hz, 8 ohms)
• Analog Section — Maximum Power Output (Non FTC): 33 W/ch (1k Hz, 4 ohms)
• Analog Section — Total Harmonic Distortion: < 0.03%
• Analog Section — Intermodulation Distortion (60 Hz : 7k Hz, 4:1): < 0.03%
• Analog Section — Frequency Response: 10 Hz – 100k Hz (0 ± 0.19 dB)
• Analog Section — Damping Factor (20 Hz – 20k Hz, 8 ohms): 140
• Analog Section — Input Sensitivity / Impedance: 680 mV / 100k ohms
• Analog Section — Input Overload: 4.2 V
• Analog Section — Signal to Noise Ratio (IHF “A” weighted): > 100 dB
• Digital Section — Frequency Response: 10 Hz – 80k Hz (0 ± 2 dB, Max)
• Digital Section — Input Sensitivity / Impedance: -10.3 dBFS / 75 ohms
• Digital Section — Signal to Noise Ratio (IHF “A” weighted): > 100 dB
• Digital Inputs: SPDIF LPCM (up to 24-bit / 192k Hz)
• PC-USB: USB Audio Class 2.0 (up to 384k Hz / 32 bit)
• PC-USB note: Driver installation required (Windows)
• DSD Support: Up to 4X (11.2M Hz)
• DoP Support: Up to 2X (5.6M Hz)
• HDMI: Supports ARC function
• Bluetooth audio: Traditional Bluetooth, AAC, aptX HD

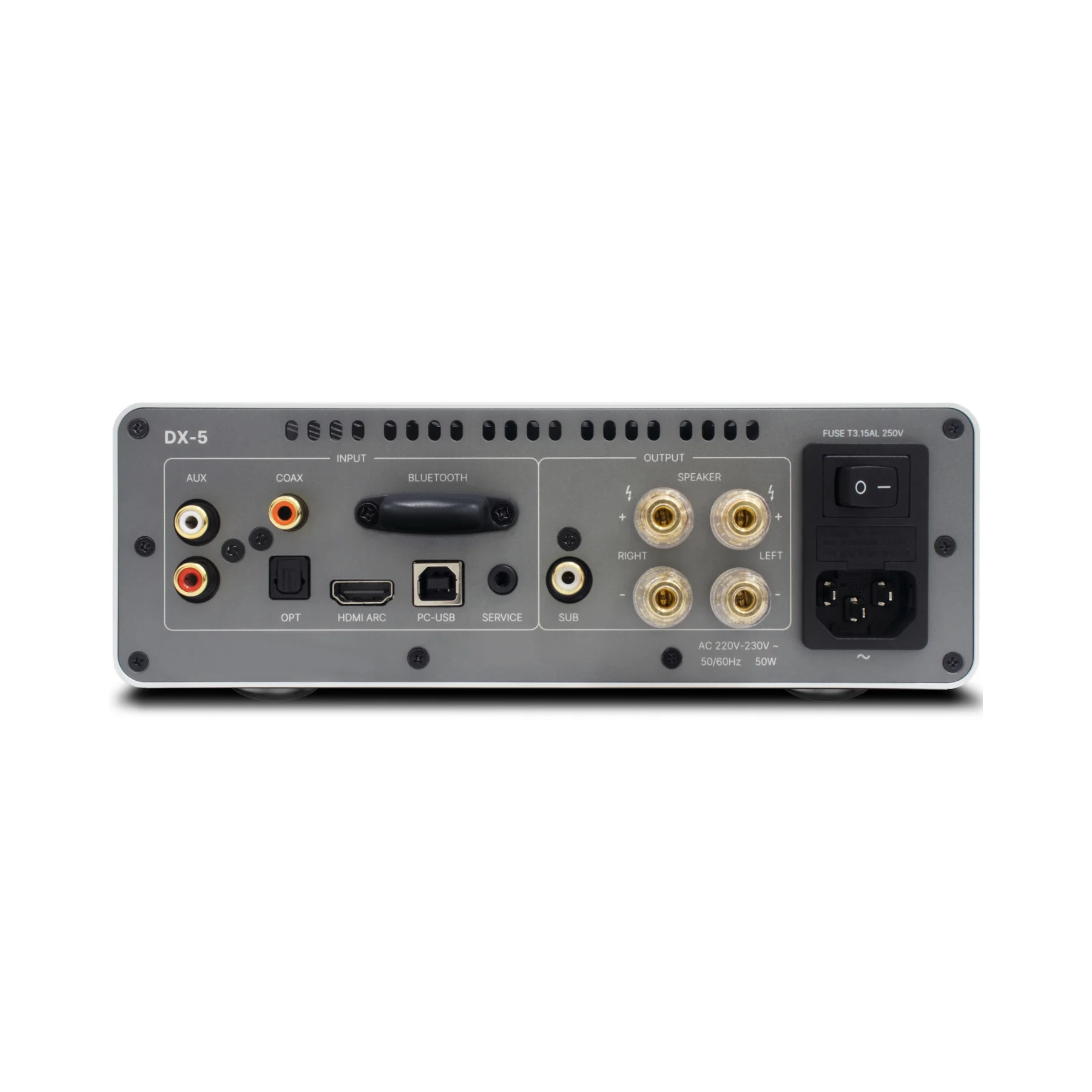

• Connections — Analog input: AUX (RCA) “line level” input
• Connections — Digital input: Coaxial (SPDIF)
• Connections — Digital input: Optical (PCM)
• Connections — HDMI: HDMI ARC input (for TV audio)
• Connections — Computer input: PC-USB input
• Connections — Bluetooth: Rear Bluetooth antenna connection
• Connections — Subwoofer output: SUB output (summed L/R; full-range output)
• Connections — Speaker outputs: Left/Right speaker connectors
• Connections — Headphone output: Front-panel 6.35mm (1/4") single-ended headphone connector
• Connections — Service: Service port (factory use only)
• Connections — Power: AC power input
• Connections — Master power: Rear master power switch
• Connections — Main fuse: T3.15AL 250V
• Power Requirements (USA): 120 V, 60 Hz
• Power Requirements (EC/Europe): 230 V, 50 Hz
• Power Consumption: 80 W
• Standby Power Consumption: Normal < 0.5 W
• BTU (4 ohms, 1/8 power): 241 BTU/h
• Dimensions (W x H x D): 215 x 76 x 251 mm
• Dimensions (inches): 8 1/2" x 3" x 10"
• Front panel height: 70 mm / 2 3/4"
• Net weight: 4.1 kg / 9.1 lbs
• Finish: Black and Silver
• Included accessory: Remote control (aluminum)

Rotel DX-5 Q&A:

How much power does the Rotel DX-5 deliver per channel?

The DX-5 delivers 25 watts per channel into 8 ohms (FTC rated) and up to 33 watts per channel into 4 ohms, providing robust Class AB performance in a compact chassis.

What digital audio formats and resolutions does the DX-5 support over USB?

Over PC-USB, it supports USB Audio Class 2.0 up to 32-bit/384kHz PCM, plus DSD up to 4X (11.2MHz) and DoP up to 2X (5.6MHz).

Does the DX-5 work well with a TV?

Yes. HDMI ARC support makes TV audio integration simple, and CEC support can enable convenient control depending on your TV’s features.

What Bluetooth codecs are supported for wireless streaming?

The DX-5 supports traditional Bluetooth, AAC, and aptX HD for improved wireless sound quality with compatible devices.

Can I connect a subwoofer to build a 2.1 system?

Yes. The DX-5 includes a dedicated SUB output designed for connecting an active subwoofer, ideal for compact 2.1 setups.

What inputs does the DX-5 include for legacy and digital sources?

It includes an RCA AUX line-level input plus coaxial and optical digital inputs, along with PC-USB and HDMI ARC for modern systems.

Does the DX-5 have a headphone output for private listening?

Yes. The front panel includes a standard 6.35mm (1/4") single-ended headphone connector.

Is the DX-5 compatible with Roon?

It is Roon Tested via PC-USB, designed to provide a reliable experience when used with Roon software.

Rotel DX-5 Downloads:

Rotel DX-5 Manual
Rotel DX-5 Specifications Sheet
Rotel DX-5 Drawing
