Rotel A8 Integrated Amplifier - Clearance / Open Box

Rotel A8 Integrated Amplifier

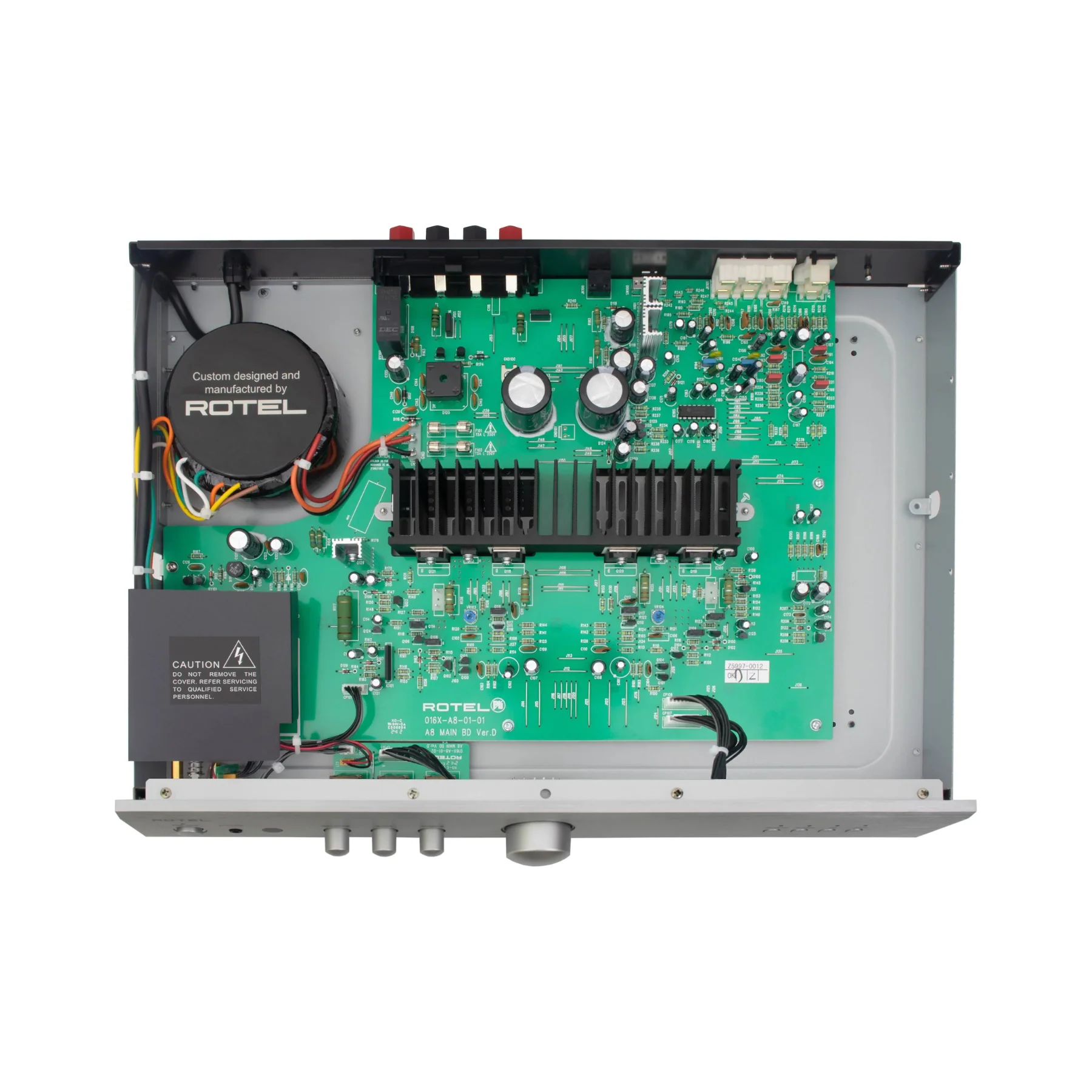

With Rotel’s in-house manufactured, high current, toroidal power transformer to conservativly deliver 30 watts per channel of Class A/B power into 8-ohms or 40 watts per channel into 4-ohms.

• (3) RCA Line-Level RCA Inputs and a (MM) Phono Input
• Front Panel ⅛” Headphone Jack
• IR Remote Control
• LED Volume Indicator with Selectable Colors (Red, Green, Blue, or Purple)
• 5-way Speaker Binding Posts
• Available in either Black or Silver

Rotel A8 Specifications:

Power Output: 30 watts per channel at 8-ohms | 40 watts per channel at 4-ohms

Total Harmonic Distortion (20 Hz - 20k Hz): < 0.03%

Intermodulation Distortion (60 Hz : 7k Hz, 4:1):  < 0.03%

Frequency Response Phono Input: 20Hz - 20kHz, -0.5 dB, +0 dB

Frequency Response Line Level Inputs: 10Hz - 100kHz, -0.5 dB, +0 dB

Damping Factor (20 - 20,000 Hz, 8 ohms): 80

Input Sensitivity/Impedance: Phono 2.5 mV / 40k Ohms |  Line Level 180 mV / 60k Ohms

Input Overload: Phono 50mV | Line Level 4V

Tone Controls - Bass/Treble: ± 6 dB at 100 Hz / 10k Hz

Signal to Noise Ratio (IHF “A” weighted): Phono Input 80dB | Line Level Inputs 90 dB

Power Requirements USA: 120V/60Hz

Power Consumption: 110 Watts

Standby Power Consumption: < 0.5 watts

Dimensions: 17”W x 2 7/8”H x 13 5/8”D

Panel Height: 2 3/8”.

Weight: 12.8 lbs.

Finish: Black or Silver

Rotel A8 Manual
