Rotel A11MKII Integrated Amplifier

Rotel A11MKII Integrated Amplifier

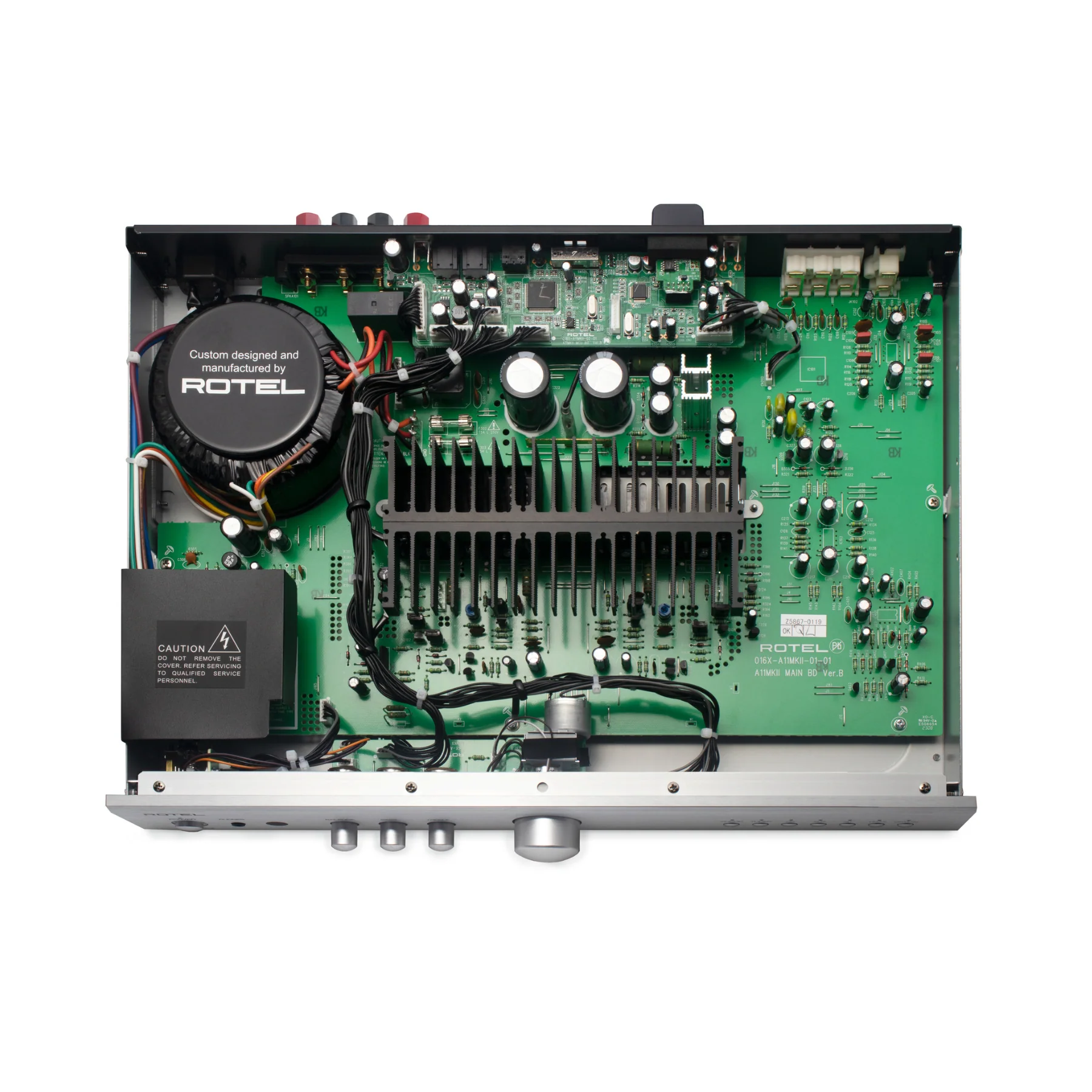

The Rotel A11MKII Integrated Amplifier is a high-value stereo integrated amplifier built for listeners who want real hi-fi power, modern source flexibility, and classic Rotel musicality in one clean, easy-to-use component. At its core is a Rotel-built toroidal transformer and a carefully engineered linear power supply that help deliver a quiet noise floor, fast dynamics, and confident control over a wide range of speakers.

With 50 watts per channel of Class A/B power into 8 ohms (62W into 4 ohms), the A11MKII provides the punch and refinement needed for everyday listening and serious sessions alike. It welcomes both analog and digital sources with three RCA line inputs, a built-in Moving Magnet phono stage for turntables, plus coaxial and optical digital inputs feeding a Texas Instruments 32-bit/384kHz DAC. For wireless playback, Bluetooth with aptX HD and AAC makes streaming sound notably better than basic Bluetooth implementations.

Daily operation is intentionally straightforward: front-panel bass, treble, and balance controls, simple source selection, and a motorized analog volume control driven by the included IR remote. Add in the dedicated headphone amplifier circuit with a front 1/8" headphone jack, dual 12V trigger outputs, and signal-sensing auto power on/off, and the A11MKII becomes an exceptionally easy amplifier to integrate into a modern two-channel system.

The Rotel A11MKII is part of ListenUp's Rotel Integrated Amplifiers Collection

What It's Good At:

• Delivering clean, confident Class AB stereo power with strong speaker control and dynamics
• Powering a turntable directly with a built-in Moving Magnet phono stage
• Improving TV, CD, and streamer sound using coax/optical digital inputs plus a premium TI DAC
• High-quality wireless playback via Bluetooth with aptX HD and AAC
• Simple, satisfying everyday use with tone controls, balance control, and included remote
• System-friendly integration with dual 12V triggers and signal-sense auto power

Rotel A11MKII Full Specifications:

• Product Type: Stereo Integrated Amplifier
• Amplifier Topology: Class A/B
• Power Output: 50 W/ch (8 ohms); 62 W/ch (4 ohms)
• Total Harmonic Distortion (THD): < 0.03%
• Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
• Damping Factor (20 Hz–20 kHz, 8 ohms): 120
• Frequency Response:
  • Phono input: 20 Hz – 20 kHz, -0.5 dB, +0.3 dB
  • Line level inputs: 10 Hz – 100 kHz, -0.5 dB, +0.05 dB
  • Digital input: 20 Hz – 20 kHz, -0.15 dB, +0 dB
• Signal-to-Noise Ratio (IHF “A” weighted):
  • Phono input: 85 dB
  • Line level inputs: 90 dB (Max Volume)
  • Line level inputs: 95 dB (Min Volume)
• Input Sensitivity / Impedance:
  • Phono input (MM): 1.6 mV / 43k ohms
  • Line level inputs: 130 mV / 45k ohms
  • Digital input: -20 dBFS / 75 ohms
• Input Overload:
  • Phono input: 50 mV
  • Line level inputs: 4 V
• Tone Controls: Bass / Treble ±6 dB at 100 Hz / 10 kHz
• Digital Inputs Format Support: SPDIF LPCM (up to 24-bit/192 kHz)
• Digital-to-Analog Converter (DAC): Texas Instruments PCM5102A, 32-bit / 384 kHz

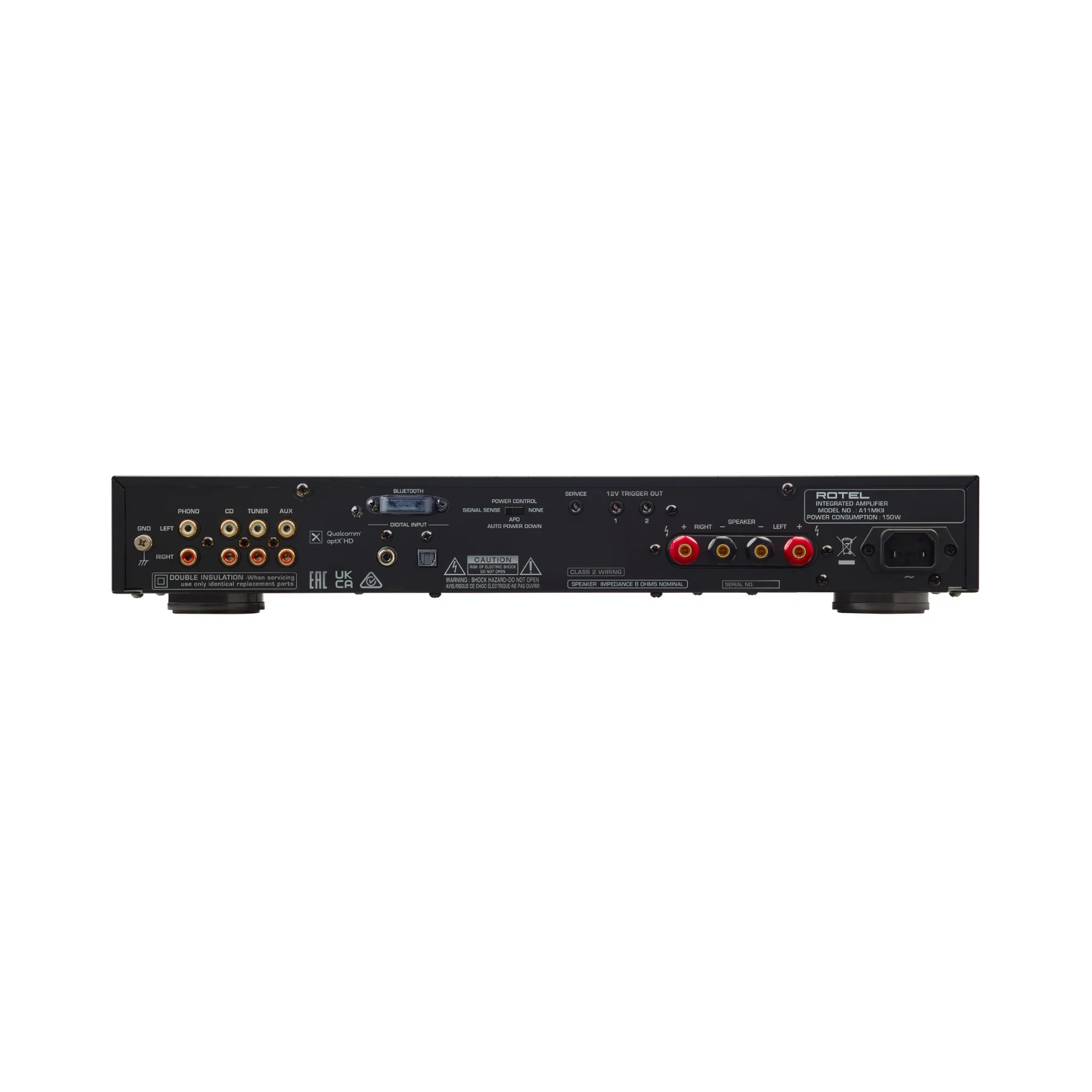

• Analog Inputs: 3 x RCA line-level inputs (CD / Tuner / Aux); 1 x Moving Magnet phono input (RCA) + ground terminal
• Digital Inputs: 1 x Coaxial (SPDIF); 1 x Optical (Toslink)
• Wireless: Bluetooth audio streaming with aptX HD and AAC
• Headphone Output: Front-panel 1/8" headphone jack with dedicated headphone amp circuit
• Speaker Outputs: Heavy-duty 5-way binding posts (left/right)
• Control / Integration: Included IR remote control (RR-AX1402); motorized analog volume control; 2 x 12V trigger outputs (3.5 mm); signal sensing auto power on/off
• Power Requirements: USA 120 V, 60 Hz; Europe 230 V, 50 Hz
• Power Consumption: 150 W
• Standby Power Consumption: < 0.5 W
• BTU Rating (4 ohms, 1/8 power): 450 BTU/h
• Dimensions (W × H × D): 430 × 73 × 347 mm (17" × 2 7/8" × 13 5/8")
• Front Panel Height: 60 mm (2 3/8")
• Net Weight: 6.8 kg (15 lbs.)
• Finish / Color Options: Black or Silver
• Power Connection: Detachable IEC power cord

Rotel A11MKII Q&A:

Does the Rotel A11MKII have a phono input for a turntable?

Yes. It includes a built-in Moving Magnet (MM) phono stage plus a ground terminal for proper, low-noise turntable hookup.

How much power does the A11MKII output per channel?

It delivers 50 watts per channel into 8 ohms and 62 watts per channel into 4 ohms, using a Class A/B amplifier design.

Can I connect a TV or streamer using optical or coaxial digital audio?

Yes. The A11MKII provides one optical and one coaxial SPDIF input, decoding PCM up to 24-bit/192 kHz through its internal DAC.

What DAC is used in the A11MKII?

It uses the Texas Instruments PCM5102A, rated up to 32-bit/384 kHz, for clean, detailed digital playback.

Does it support high-quality Bluetooth streaming?

Yes. Bluetooth streaming is supported with aptX HD and AAC for improved wireless audio performance versus standard Bluetooth.

Can I listen with headphones, and is there a dedicated headphone amp?

Yes. A front 1/8" headphone jack is paired with a dedicated headphone amplifier circuit for private listening.

Can the A11MKII trigger other components to turn on and off automatically?

Yes. It includes two 12V trigger outputs to control compatible components in a system.

Does the amplifier support automatic power saving or auto on/off behavior?

Yes. It includes signal-sensing auto power functionality and power control options designed for convenient daily use.

Rotel A11MKII Downloads:

Rotel A11MKII Manual
Rotel A11MKII Specifications Sheet
Rotel A11MKII Drawing
