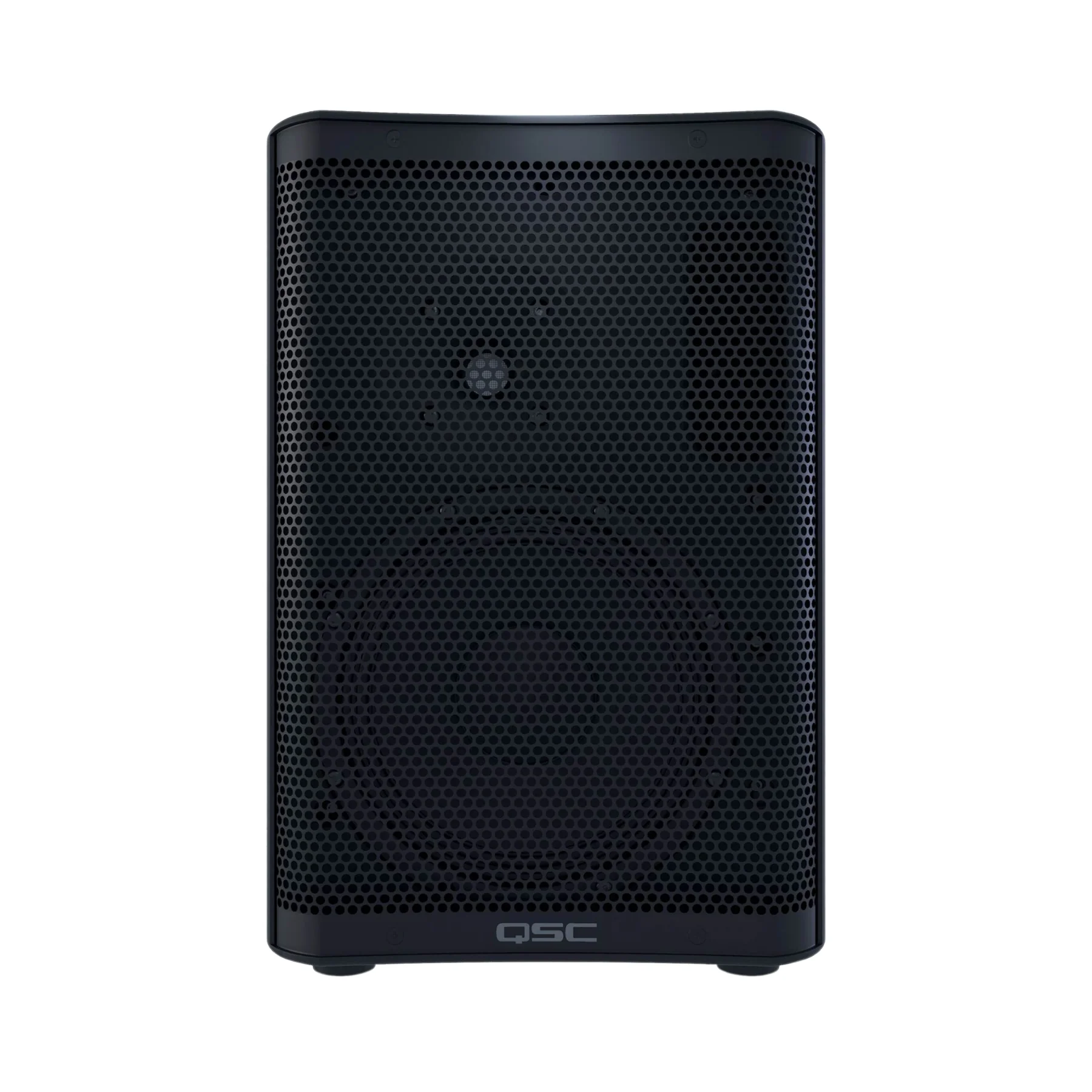

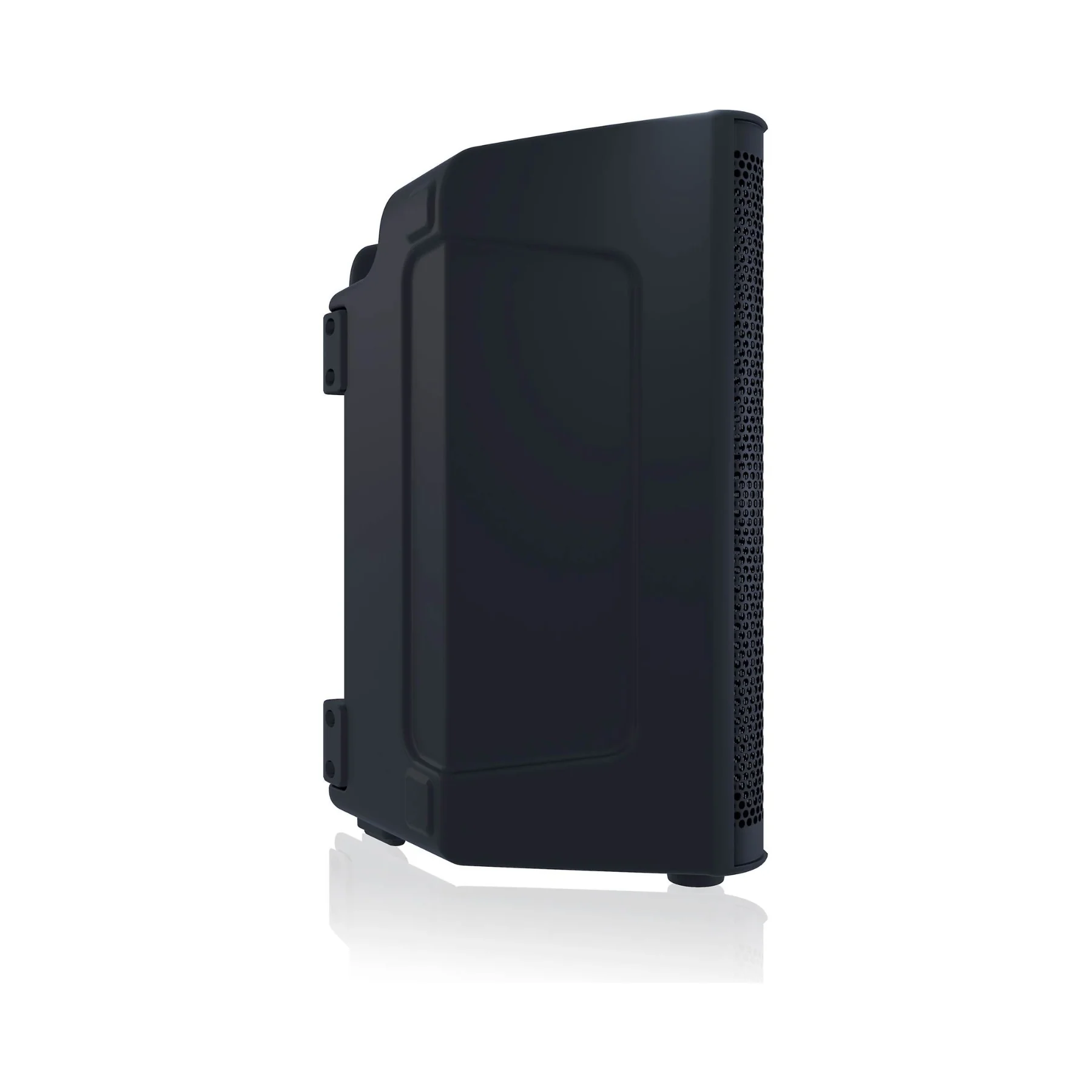

QSC CP8 1000 Watt Compact Loudspeaker - Clearance / Open Box

QSC CP8 Compact Powered Loudspeaker

• 1000 Watt (peak) Power Class-D Amplification
• Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise.
• One-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.
• Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
• Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
• Lightweight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifier
• 35 mm pole socket
• Complete EASE and CAD information available online

QSC CP8 Specifications:

Configuration: Two-way active loudspeaker

LF Transducer: 203 mm (8 in) , cone

HF Transducer: 35.6 mm (1.4 in) compression driver

Frequency Response (-6 dB): 56 - 20 kHz

Frequency Range (-10 dB): 53 - 20 kHz

Nominal Coverage Angle: 90° Axisymmetric

Maximum Rated SPL1: 124 dB

Amplifier: Class D

Peak: 800 W (LF), 200 W (HF)

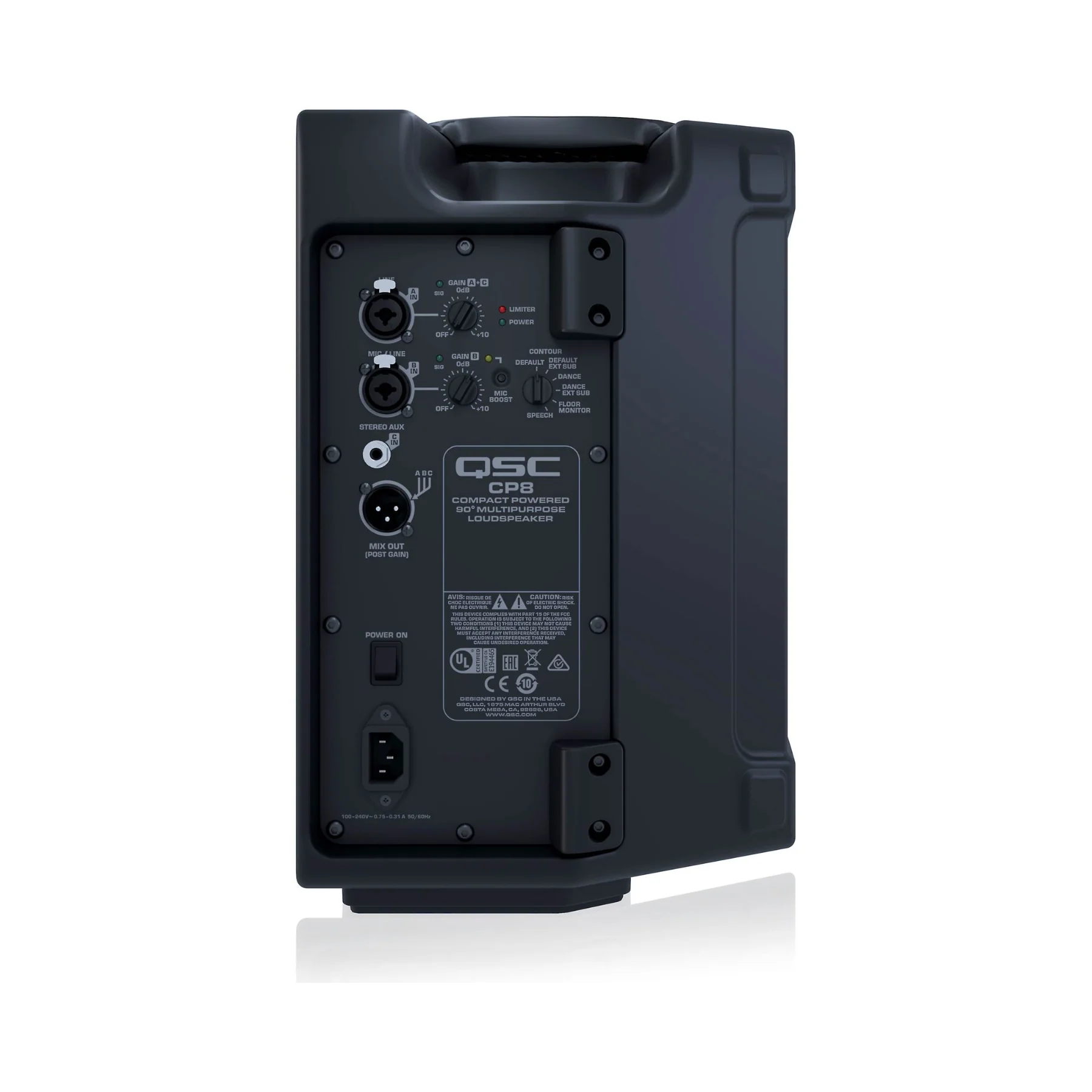

Controls: Power, 2 x Gain, Mic Boost Push Switch, 6-way Contour Selection Switch

Indicators: Power LED, 2 × Input Signal LED, Input B MIC selected LED, Limiter active LED

Connectors: 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input), 1 × 3.5 mm TRS (Stereo Input), 1 × XLR/M (Mix Output),

1 × IEC power connector

AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz

AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A

Enclosure Material: Polypropylene

Attachment Points: M8 threaded insert

Color: Black (RAL 9011)

Grille: 18 Gauge powder-coated steel

Speaker Dimensions: 16.2”H × 10.7”W × 10.1”D

Carton Dimensions: 14.2”H × 14.2”W × 19.5”D

Net Weight:  21.0 lb

Shipping Weight: 25.4 lb

Regulatory: EMC, UL, CB
