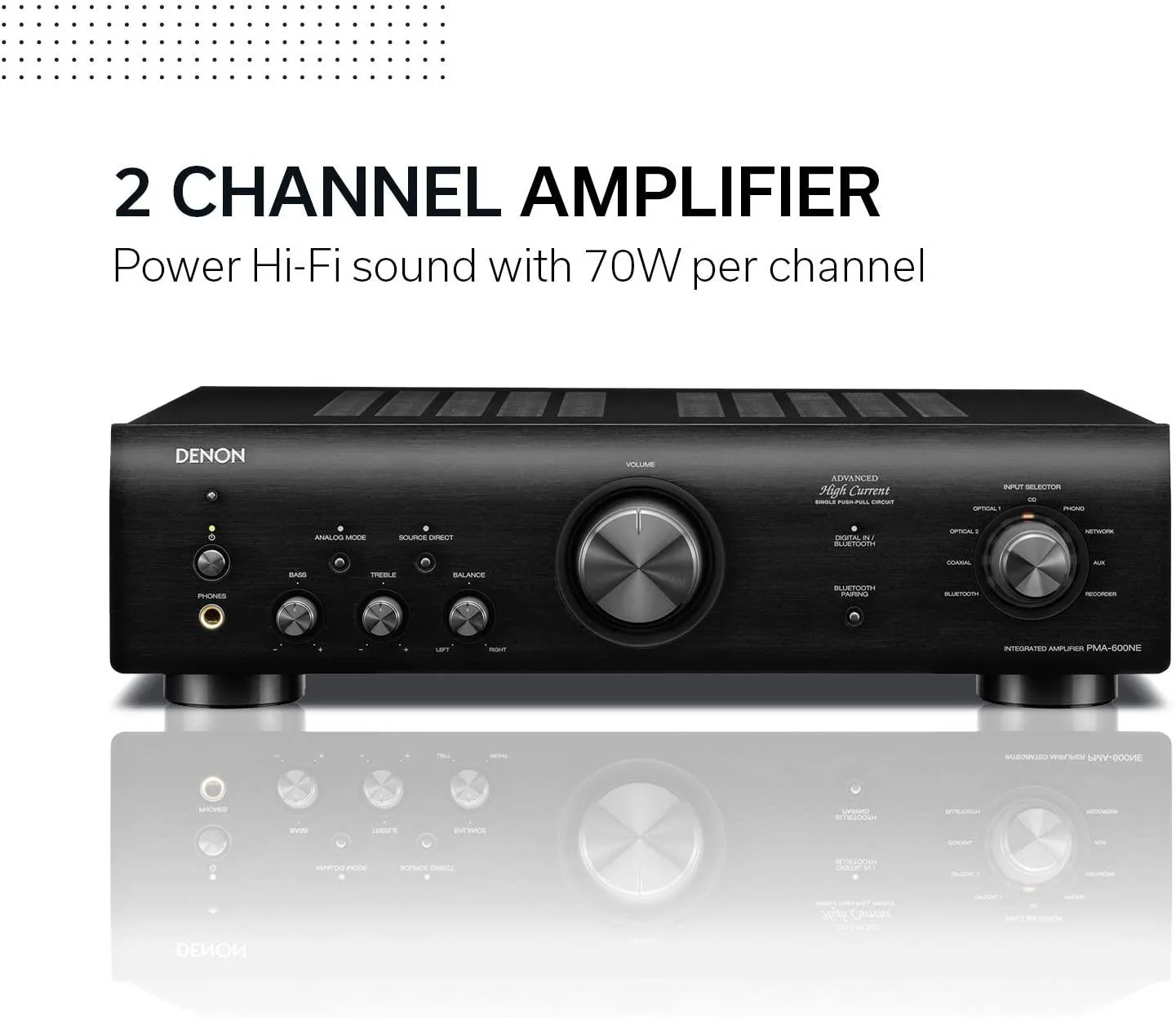

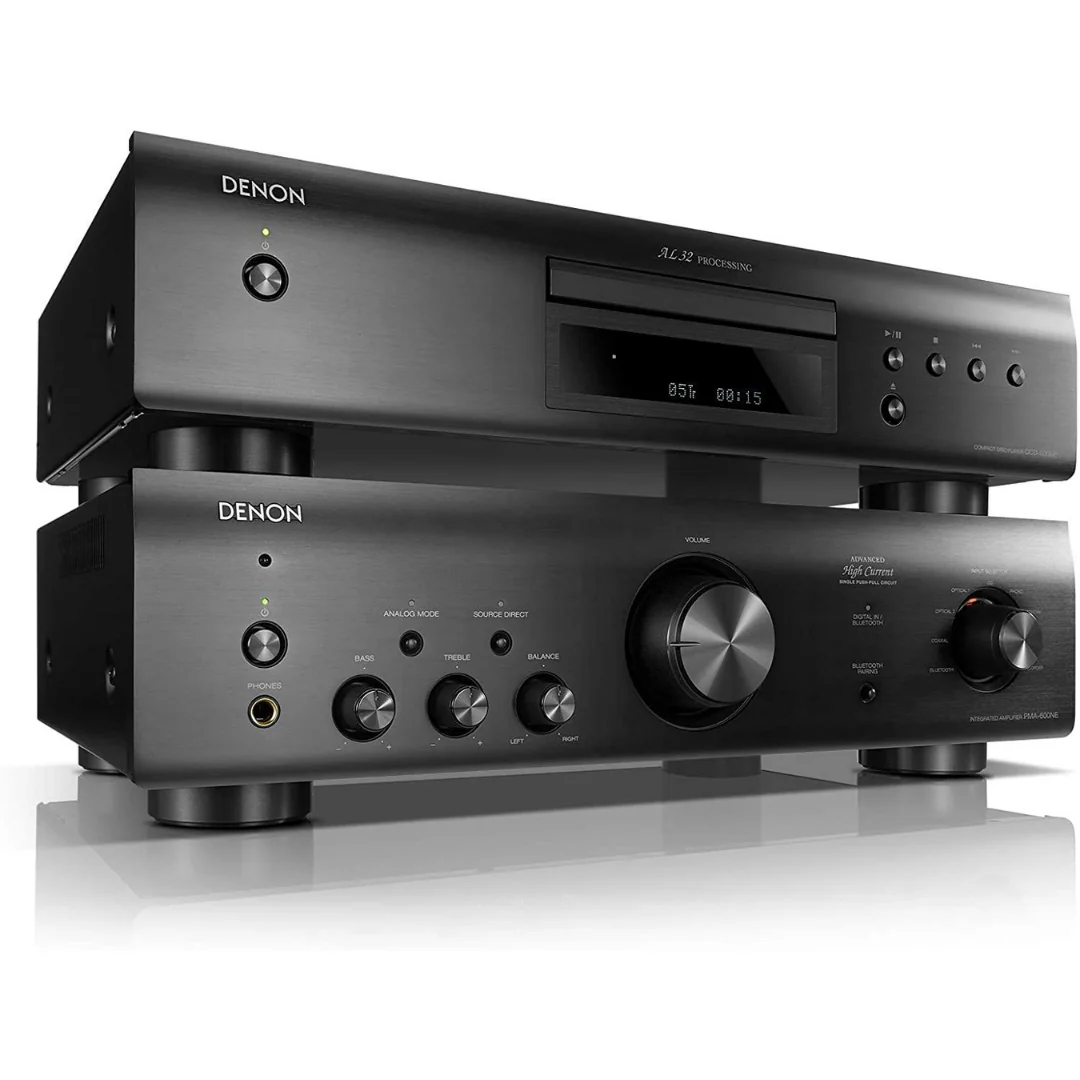

Denon PMA-600NE Integrated Amplifier

Denon PMA-600NE - 2 Ch. 70W Integrated Amplifier

The Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. The PMA-600NE allows for the most vivid and emotional reproduction of vinyl and hi-res audio with digital inputs and a built-in phono equalizer. Listen to your favorite music via Bluetooth as well for seamless streaming of nearly unlimited songs. From deep bass to detailed highs, enjoy your favorite high-resolution audio content with the 192kHz/24bit D/A converter. At 70 Watts (4ohm, 1kHz, THD: 0.7%) per channel, the PMA-600NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-600NE to your favorite components with the two Optical and one Coaxial digital input. Powered by the Denon Advanced High Current (AHC) single-push-pull circuit power amplifier, the PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.

Bluetooth Support and Digital Connectivity

Pair the PMA-600NE to your smart device or computer via Bluetooth, and listen to your favorite music wirelessly. Connect your TV, media player, computer or any digital source via the Optical and Coaxial digital inputs for an exceptional audio performance with the built-in DAC.

Optical and Coaxial Digital Inputs

The PMA-600NE features two Optical inputs and one Coaxial input and supports PCM signals up to 192 kHz/24 bit. These digital inputs help to improve sound and visual quality of your TV audio, Blu-ray, media players and more. Also, use it to input high-resolution sound from an audio source on your computer.

Analog Mode

Analog Mode allows the PMA-600NE to operate as a purely analog amp, disabling digital inputs as well as Bluetooth while you listen to an analog source. Turn on Analog Mode to close power to the dedicated digital power source and stop operation of the digital input and Bluetooth circuity, avoiding any high frequency influence on the analog section of the PMA-600NE. Enjoy your favorite analog sources with uninhibited clarity and detailed reproduction.

Advanced High Current (AHC) Single-Push-Pull Circuit

The PMA-600NE incorporates AHC transistors with two-to-three times the electrical current supply capacity of conventional audio power transistors. The acclaimed Denon AHC single-push-pull circuit now allows for the discrete amplifier in the PMA-600NE, producing powerful sound with musical fidelity.

MM Phono Equalizer

The PMA-600NE includes a phono equalizer that supports playing from sources with a MM cartridge. This phono equalizer has high gain, and unlike loops in other circuit board patterns which cause adverse effects on sound quality, the simple, straightforward design of the PMA-600NE phono equalizer significantly improves sound.

Main Transformer with Individual Wiring

To eliminate interference and maintain exceptional sound quality, the main power transformer of the PMA-600NE has separate coiled wires for the audio and control circuits. An integrated micro-processor features Stop Mode for even greater sound quality while you listen.

Micro-Processor Stop Mode

The micro-processor of the PMA-600NE features a Stop Mode that automatically ceases all operations of the micro-processor when it’s not needed for playback. By stopping the oscillation of the micro-processor clock during these listening moments, the audio signal is protected from external noise and enhances sound quality.

Signal Level Divided

The Signal Level Divided Construction (SLDC) chassis developed by Denon is used in the audio circuit to ensure that delicate musical signals are faithfully amplified and transmitted to the speakers. Listen with exemplary quality, every time.

Denon PMA-600NE Specifications

Features

• Channels: 2
• Digital in: USB-B / optical / coaxial / USB-ANo / 2 / 1 / No
• Sample Rate digital In: 192 kHz / 24-bit
• DAC chip: PCM5141
• Bluetooth / aptX / NFC: Yes / No / No
• Analogue Mode: Yes
• Advanced HC-TR single push pull circuit: Yes
• Wide range amplifier: Yes
• High current dynamic power supply: Yes
• Power amp discrete construction: Yes
• Micro processor auto off: Yes
• Balance / Bass / Treble / Loudness: Yes / Yes / Yes / No

Others

• Shottky diodes: Yes
• Solid Heat Sinks: Yes
• Source Direct: Yes

Inputs/Outputs

• Audio Inputs: 5
• Digital in: USB-B / optical / coaxial / USB-A: No / 2 / 1 / No
• Phono Input: MM / MC: Yes / No
• Audio Outputs: 1
• Pre-out / Main-in: subwoofer / No
• Gold plated Cinch: Yes
• Number of terminals: 2
• Remote Control Bus in / out: Yes
• HEOS Link compatibility: IR / IP: Yes / No
• Headphone Out: Yes

Specifications

• Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%): 45 W
• Output power 4 Ohm (1 kHz, T.H.D. 0.7%): 70 W
• Total Harmonic Distortion: 0.02%
• Input Sensitivity: MM: 2.5 mV / 47 kohm
• Signal to Noise Ratio: MM/MC: 84 dB / No
• Input Sensitivity: High level: 110 mV / 30 kohms
• Signal to Noise Ratio: High level: 105dB
• Treble Control: ± 8 dB at 10 kHz
• Bass Control: ± 8 dB at 100 Hz

General

• Available colors: Black / Premium Silver: Yes / Yes
• Metal Front Panel: Yes
• Power Consumption in W: 185
• Standby Consumption in W: 0.3
• Auto Power Off: Yes

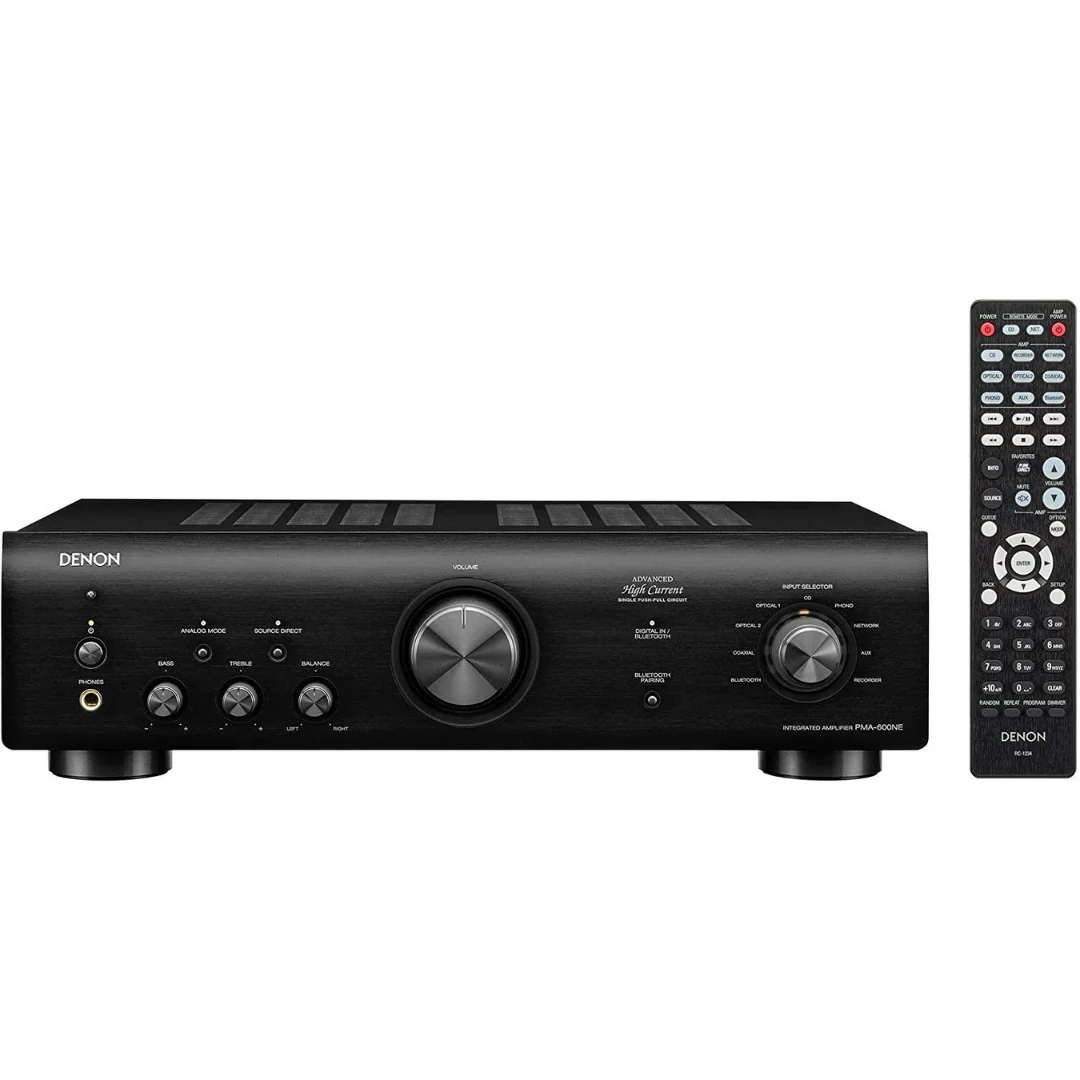

• Remote Control: RC-1234
• System Remote Function: Yes
• Maximum Dimensions (W x D x H) in mm: 434 x 308 x 121
• Weight in kg: 6.8
• Carton Maximum Dimensions (W x D x H) in mm: 520 x 370 x 207
