Ortofon 2M Mono Moving Magnet Cartridge - Clearance / Open Box

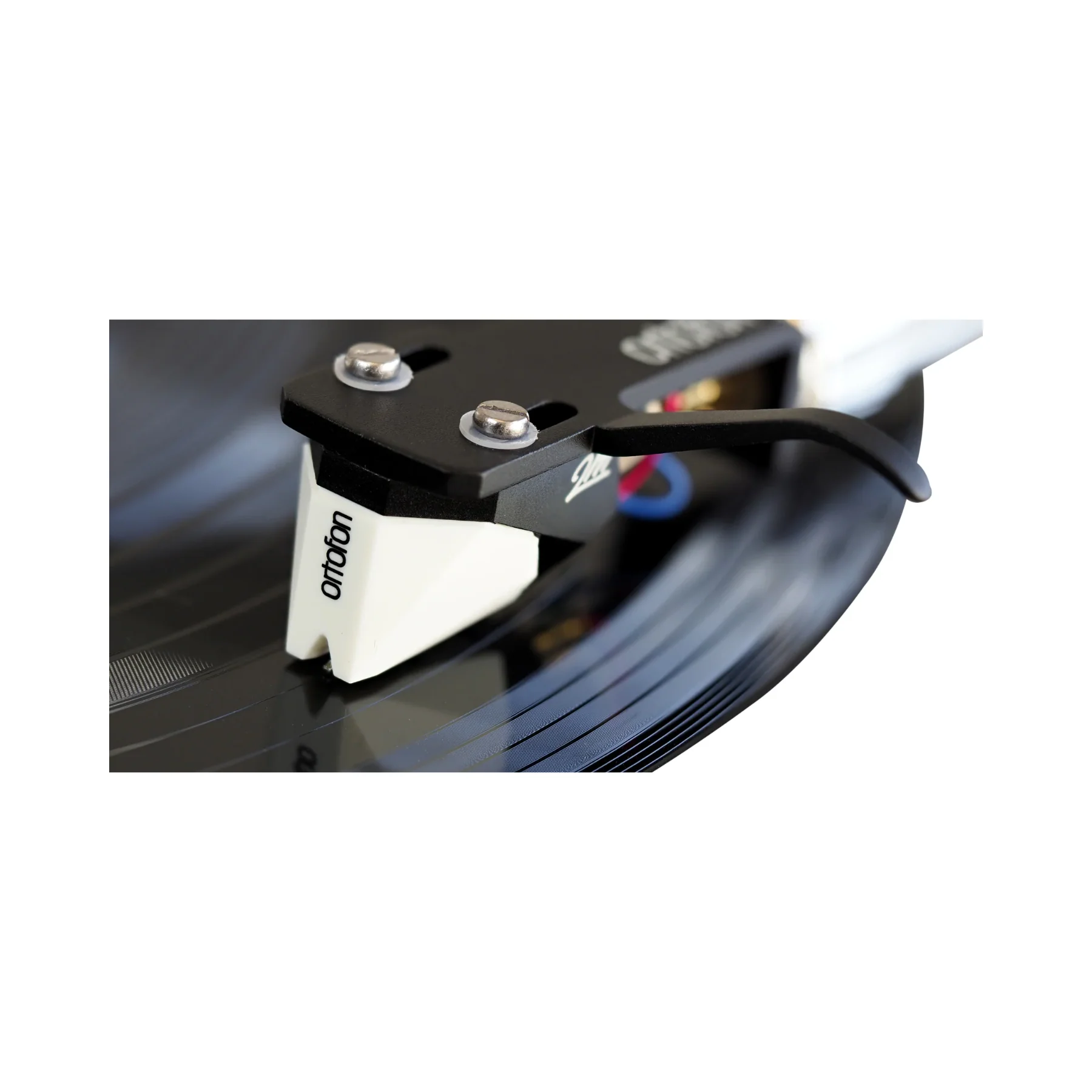

Ortofon 2M Mono Moving Magnet Cartridge: Rediscover the Authenticity of Mono Vinyl

Step into the realm of authentic audio reproduction with the Ortofon 2M Mono Moving Magnet Cartridge. Crafted with precision engineering, this cartridge offers a high level of sonic accuracy, perfect for playing mono microgroove LP vinyl records.

Ortofon 2M Mono Key Features:

• Enhanced Engine: Enjoy superior sound quality with an improved engine design.
• Optimal Stylus: Features an R 18µm Nude Spherical diamond stylus, ideal for mono microgroove vinyl records.
• Hopelex Construction: Manufactured from eco-friendly Hopelex material, ensuring high rigidity and eliminating unwanted resonances.
• Strapped Output: Utilizes a strapped output to deliver the same signal from both sets of pole pins, eliminating the need for mono-specific equipment.
• Easy Mounting: Designed for easy mounting and compatibility with most common turntables on the market.
• Versatile Compatibility: Compatible with a wide range of playback systems and phono preamps.

Ortofon 2M Mono Specifications:

• Output Voltage: 4 mV at 1 kHz, 5cm/sec
• Frequency Response: 20 Hz - 20 kHz (+3 / -1 dB)
• Tracking Ability: 70 µm at 315Hz (recommended tracking force)
• Compliance: 18 µm/mN (dynamic, lateral)
• Stylus Type: Nude Spherical
• Stylus Tip Radius: R18 µm
• Tracking Force Range: 1.6-2.0 g (16-20 mN), recommended at 1.8 g (18 mN)
• Tracking Angle: 20°
• Internal Impedance, DC Resistance: 700 Ohm
• Cartridge Colors: Black/White
• Cartridge Weight: 7.2 g (16.7 g for premounted cartridge)
• Recommended Load Resistance: 47 kOhm
• Internal Inductance: 350 mH
• Recommended Load Capacitance: 150-300 pF

Immerse yourself in the authentic nostalgia of mono vinyl records with the Ortofon 2M Mono Cartridge. Experience the rich, vintage soundscapes with unparalleled clarity and precision.

Ortofon 2M Mono Downloads

Ortofon 2M Mono User Guide
Ortofon 2M Mono Brochure / Data Sheet
