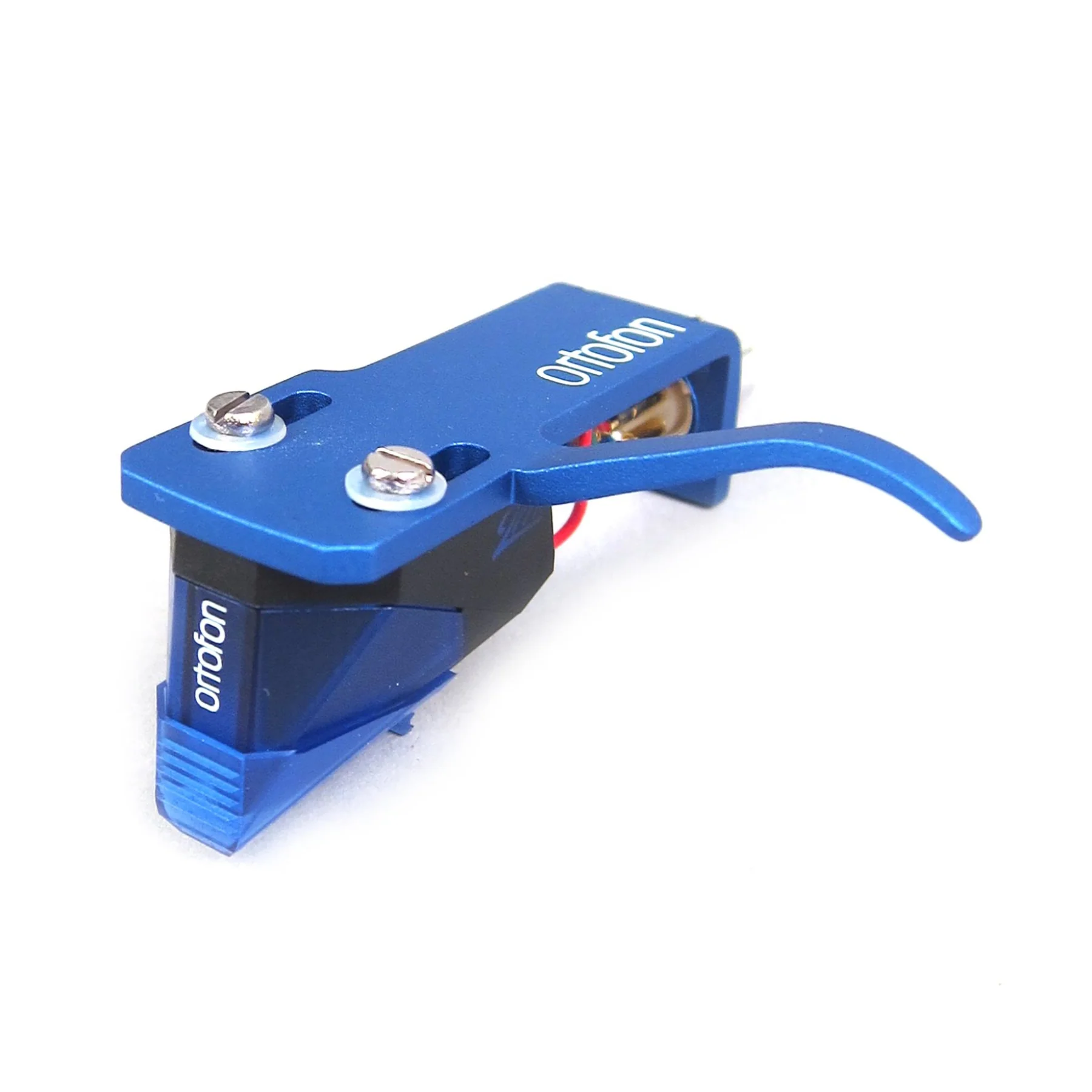

Ortofon 2M Blue Cartridge premounted on SH-4 Headshell - Clearance / Open Box
2M Blue MM Cartridge Mounted on SH-4 Headshell
Ortofon 2M Blue
- An improved engine providing an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
- A nude Elliptical diamond and split pole pins with a copper wire
- Adds more dynamics and resolution, sounds more open and reproduces more detail
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.
2M Blue Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7.2 g
2M series userguide
Ortofon SH-4 Headshell
- High-quality, solid headshells for variety of applications
- Ergonomic design with a long finger that makes it easy to pick-up
- Gold Plated wire terminals
- Compatible with any standard Ortofon DJ cartridge
Solid Headshells For Variety Of Applications
The SH-4 headshell features an ergonomic design with a long finger that makes it easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible. The wire terminals on the rear side are also gold plated for better signal transmission.
Original: $159.00
-65%$159.00
$55.65More Images
Ortofon 2M Blue Cartridge premounted on SH-4 Headshell - Clearance / Open Box
2M Blue MM Cartridge Mounted on SH-4 Headshell
Ortofon 2M Blue
- An improved engine providing an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
- A nude Elliptical diamond and split pole pins with a copper wire
- Adds more dynamics and resolution, sounds more open and reproduces more detail
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.
2M Blue Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7.2 g
2M series userguide
Ortofon SH-4 Headshell
- High-quality, solid headshells for variety of applications
- Ergonomic design with a long finger that makes it easy to pick-up
- Gold Plated wire terminals
- Compatible with any standard Ortofon DJ cartridge
Solid Headshells For Variety Of Applications
The SH-4 headshell features an ergonomic design with a long finger that makes it easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible. The wire terminals on the rear side are also gold plated for better signal transmission.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
2M Blue MM Cartridge Mounted on SH-4 Headshell
Ortofon 2M Blue
- An improved engine providing an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
- A nude Elliptical diamond and split pole pins with a copper wire
- Adds more dynamics and resolution, sounds more open and reproduces more detail
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.
2M Blue Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
Channel balance at 1 kHz - 1.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1.3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7.2 g
2M series userguide
Ortofon SH-4 Headshell
- High-quality, solid headshells for variety of applications
- Ergonomic design with a long finger that makes it easy to pick-up
- Gold Plated wire terminals
- Compatible with any standard Ortofon DJ cartridge
Solid Headshells For Variety Of Applications
The SH-4 headshell features an ergonomic design with a long finger that makes it easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible. The wire terminals on the rear side are also gold plated for better signal transmission.
