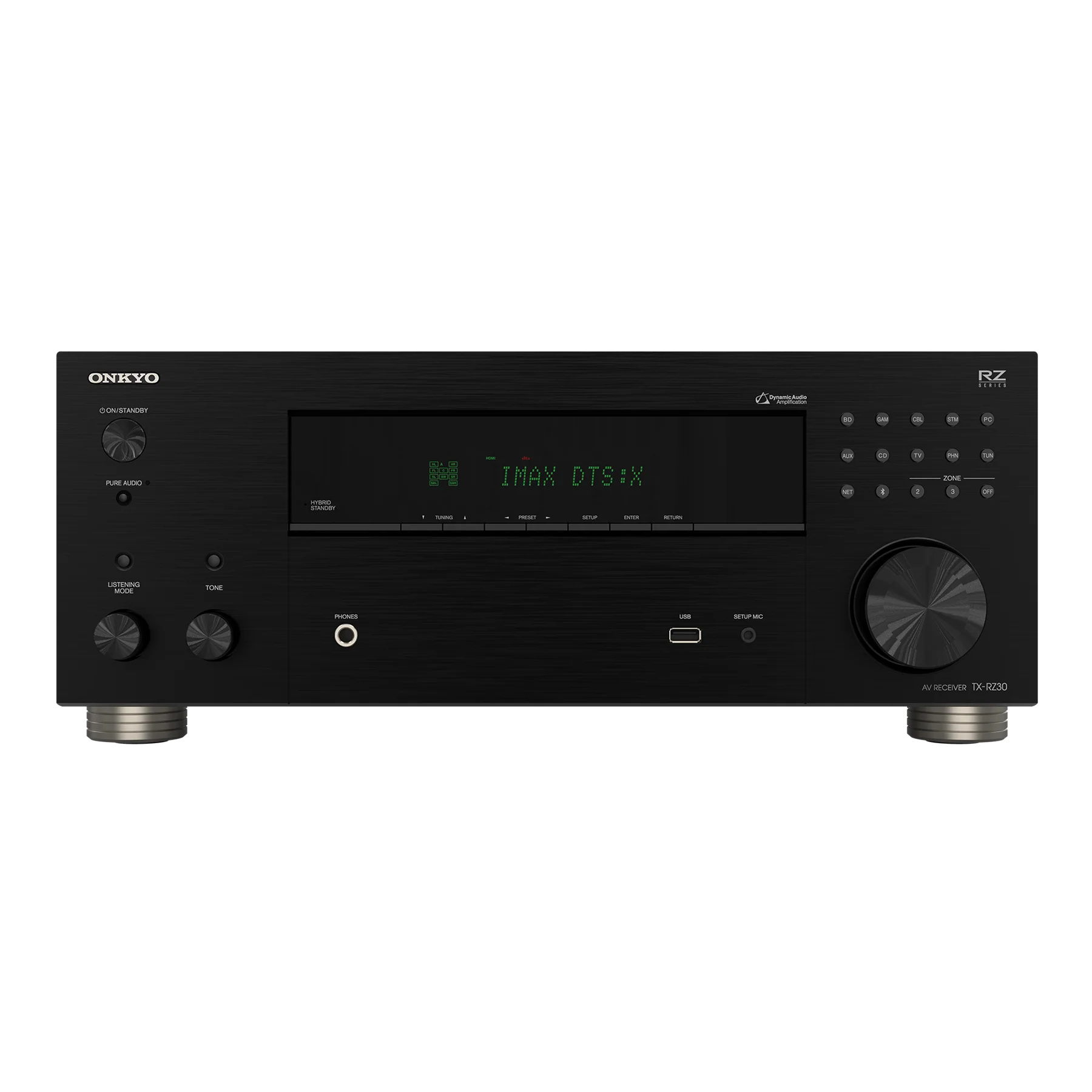

Onkyo TX-RZ30 9.2 Channel Surround Sound Receiver

Onkyo TX-RZ30 9.2 Channel Surround Sound Receiver

Elevate your home theater experience with the Onkyo TX-RZ30, a powerful 9.2-channel surround receiver designed for the ultimate in audio performance and versatility. With cutting-edge technology and a robust feature set, this receiver is perfect for audiophiles and home theater enthusiasts alike.

Onkyo TX-RZ30 Full Specifications:

• Channels: 9.2 channel processing
• Amplifier Type: Class A/B with high-current circuitry
• Power Output: Approx. 100 W per channel (8 Ω, 20 Hz-20 kHz, 2ch driven)
• Frequency Response: 5 Hz – 100 kHz
• Room Correction: Dirac Live Full Bandwidth (included); optional Bass Control upgrade
• Immersive Audio Formats: Dolby Atmos, DTS:X, IMAX Enhanced
• THX® Certification: Select

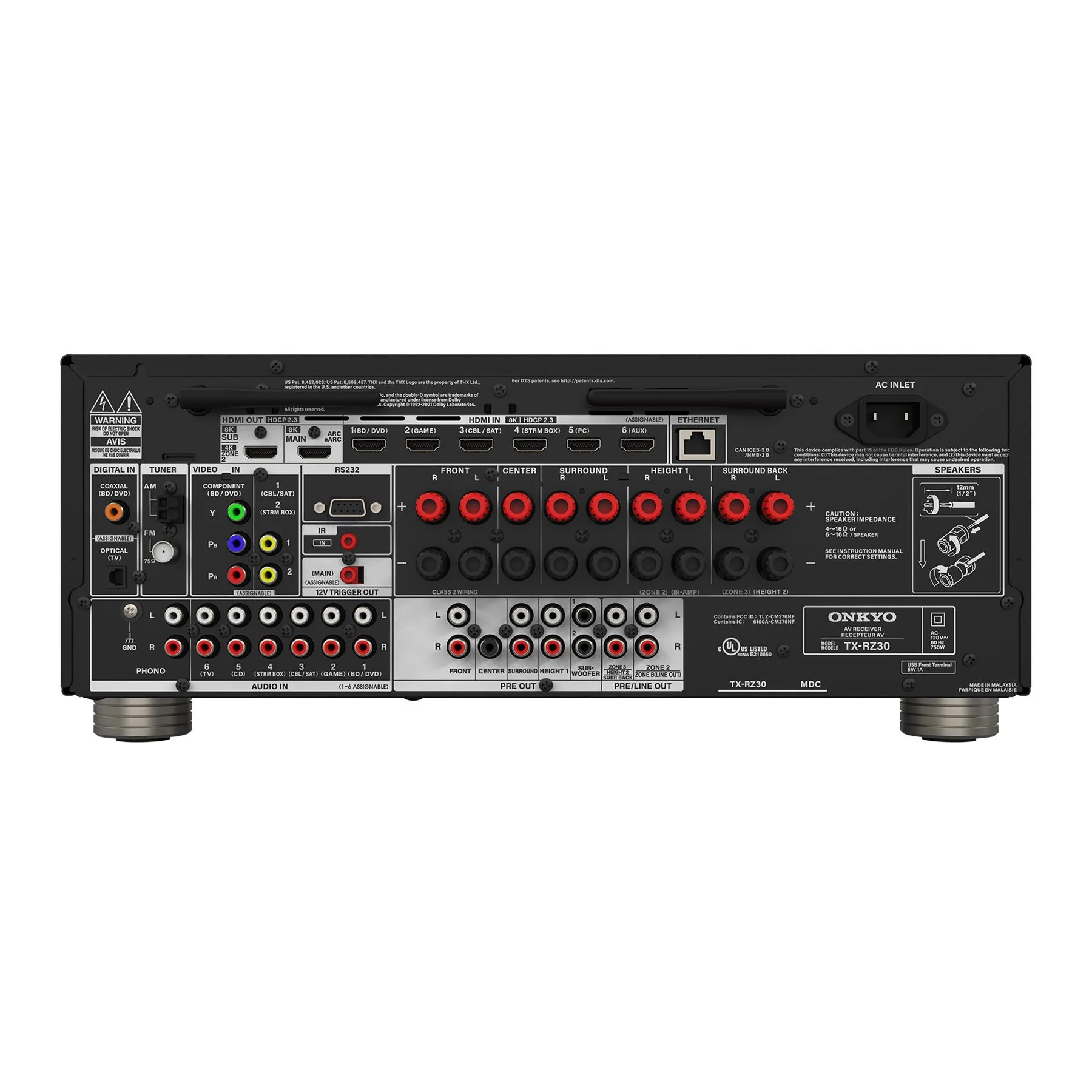

• HDMI Inputs/Outputs: 6x HDMI 2.1 inputs, 2x HDMI outputs (1 with eARC)
• Video Support: 8K/60Hz pass-through, 4K/120Hz pass-through, HDR10, HDR10+, Dolby Vision, HLG
• Gaming Features: ALLM, VRR, QFT
• Streaming & Networking: Built-in streaming apps, Sonos integration, Wi-Fi, Bluetooth
• Subwoofer Outputs: 2 independent subwoofer outputs
• Pre-Outs: 9.2 channel pre-outs
• Legacy Inputs: Analog and component video inputs available
• Dimensions/Weight: Standard AVR form factor (varies by region)

Onkyo TX-RZ30 Q&A:

What audio formats does the Onkyo TX-RZ30 support?

It supports immersive audio formats including Dolby Atmos, DTS:X, and IMAX Enhanced for 3D surround sound.

Does the TX-RZ30 include room calibration software?

Yes, Dirac Live Full Bandwidth room correction is included out of the box to optimize sound for your room.

How many HDMI inputs and outputs are available?

There are six HDMI 2.1 inputs and two HDMI outputs, including one with eARC support.

Can the receiver handle 8K and high refresh-rate content?

Yes, it supports 8K/60Hz and 4K/120Hz passthrough along with HDR10, Dolby Vision, and HDR10+ formats.

Is the TX-RZ30 suitable for gaming?

Absolutely. It includes gaming-friendly features like Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT).

Can I stream music directly through this receiver?

Yes, it has built-in streaming apps and works with Sonos and other wireless protocols for seamless playback.

How many speakers can I connect?

The receiver supports up to 9 speakers and 2 independent subwoofers for full surround setups.

Does it support multi-zone audio setups?

Yes, with pre-outs and zone capabilities, you can configure multi-room audio or bi-amping for front speakers.

Onkyo TX-RZ30 Downloads:

Onkyo TX-RZ30 Specification Sheet
Onkyo TX-RZ30 User Manual
