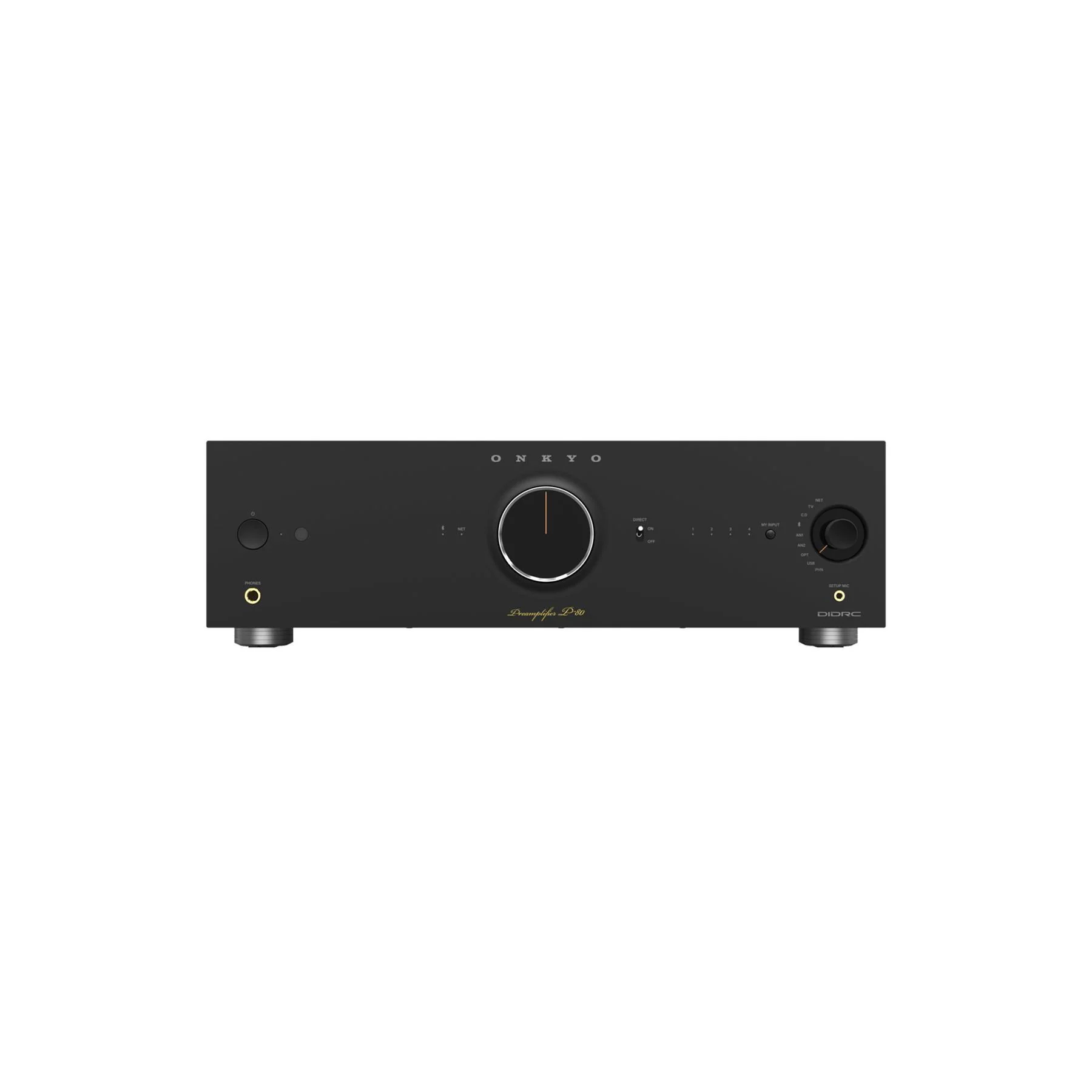

Onkyo P-80 Network Preamplifier

Onkyo P-80 Network Preamplifier

The Onkyo P-80 Network Preamplifier is a high-fidelity 2.2-channel hub that blends reference-grade analog design with modern streaming and room correction. A fanless chassis with extruded aluminum heat-sinking, rigid aluminum/steel panels, and Onkyo’s DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) work together to suppress noise and vibration for ultra-clean, natural sound. You get a premium stereo DAC (32-bit/768 kHz), MM/MC phono stage, balanced XLR and unbalanced RCA pre-outs, dual independent subwoofer outputs, and tone controls for precise system matching. Stream via Spotify Connect, TIDAL Connect, Qobuz, Amazon Music and more, cast with AirPlay 2 or Chromecast built-in, or enjoy Roon Ready playback—all controllable from the Onkyo Controller app.

For system optimization, P-80 includes built-in Dirac Live Room Correction (license-dependent bandwidth) with an upgrade path to full-band correction and optional Dirac Live Bass Control, ensuring your speakers and room perform at their best. An HDMI ARC input, optical/coax digital inputs, USB-A storage playback, Wi-Fi/LAN, and Bluetooth with aptX/aptX HD complete an exceptionally versatile feature set.

Onkyo P-80 Network Preamplifier Full Specifications:

• Preamp Channels: 2.2 ch
• Frequency Response: 5 Hz–100 kHz (+1/–3 dB)
• Tone Control: Bass 100 Hz ±10 dB; Treble 10 kHz ±10 dB

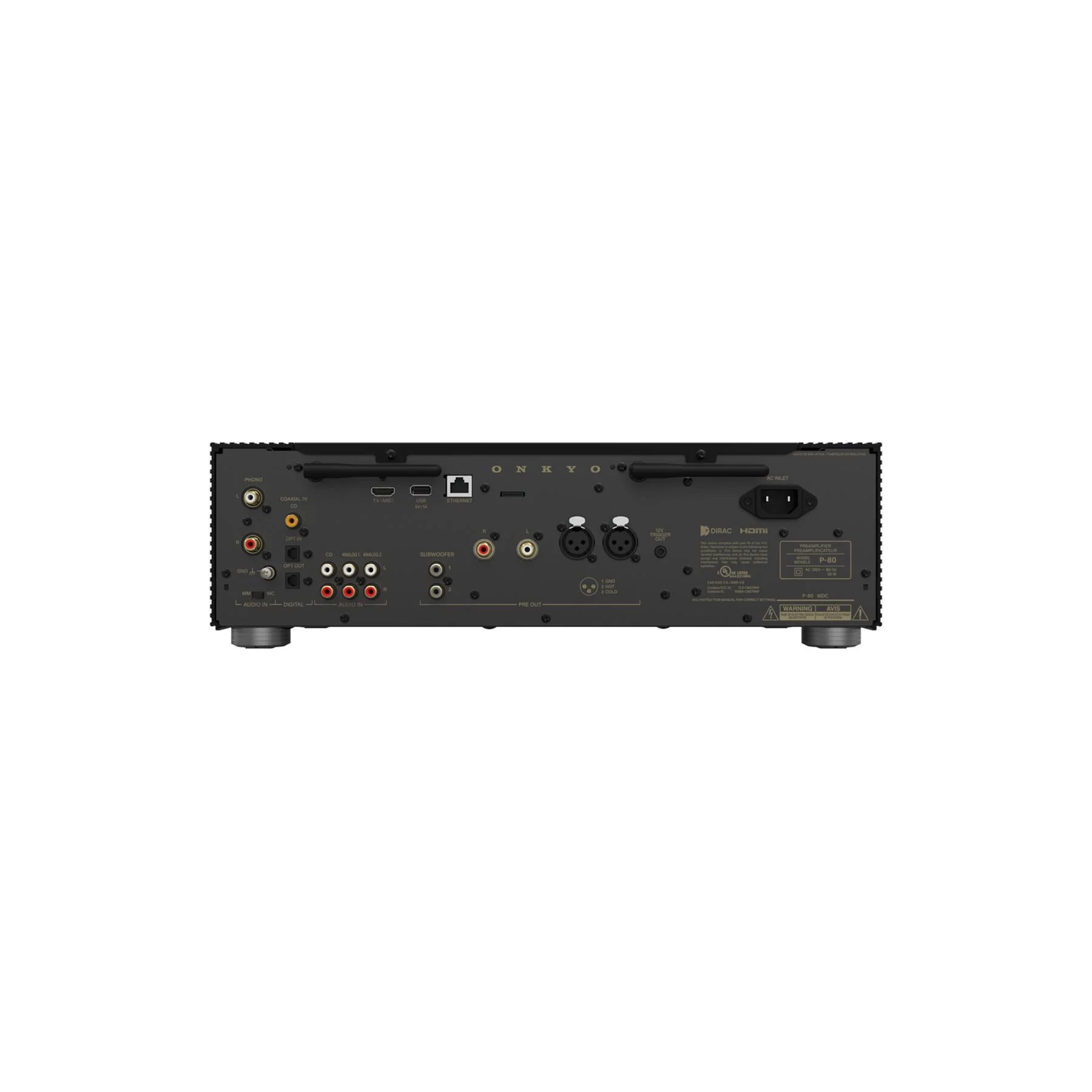

• Analog Audio Inputs: 3 pairs RCA (unbalanced)
• Digital Audio Inputs: HDMI ARC, Coaxial, Optical, USB-A (storage playback)
• Phono Input: 1 pair (MM/MC)
• Audio Pre-Outs: 1 pair RCA (unbalanced), 1 pair XLR (balanced)
• Subwoofer Outputs: 2 × RCA (pre-out)
• Headphone Output: 1/4" (6.3 mm) jack
• Setup Mic Input: 1/8" (3.5 mm) jack
• 12 V Trigger: 1/8" (3.5 mm) trigger out
• Network Connectivity: Wi-Fi, LAN
• Bluetooth Codecs: SBC, aptX, aptX HD
• Streaming / Network Services: Spotify Connect, TIDAL Connect, Amazon Music, Qobuz Connect, QQ Music, TuneIn, Roon Ready
• AirPlay / Casting: Works with Apple AirPlay 2; Chromecast built-in
• Room Calibration: Dirac Live Room Correction (license-dependent bandwidth; optional Bass Control)
• DAC: Premium stereo DAC, 32-bit / 768 kHz

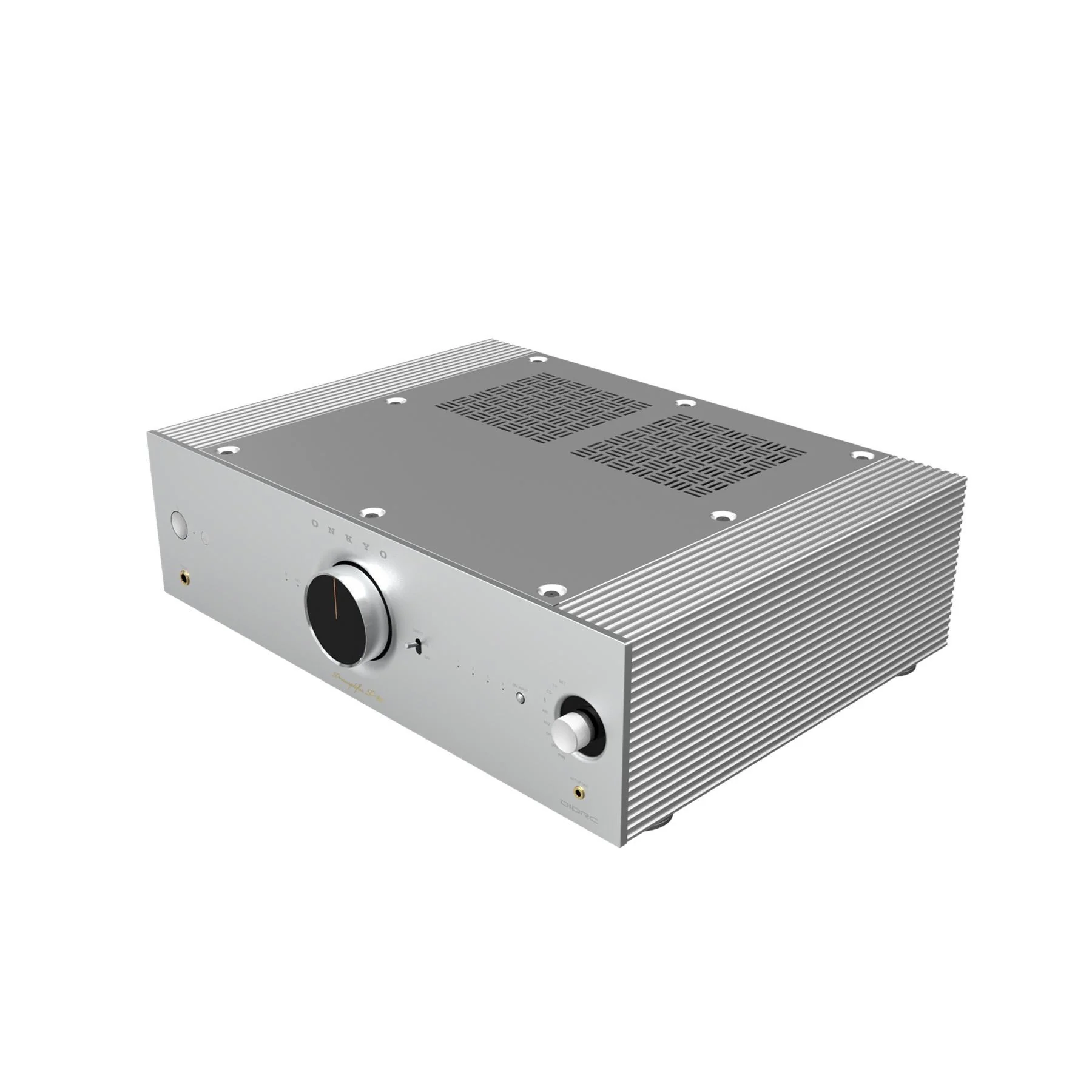

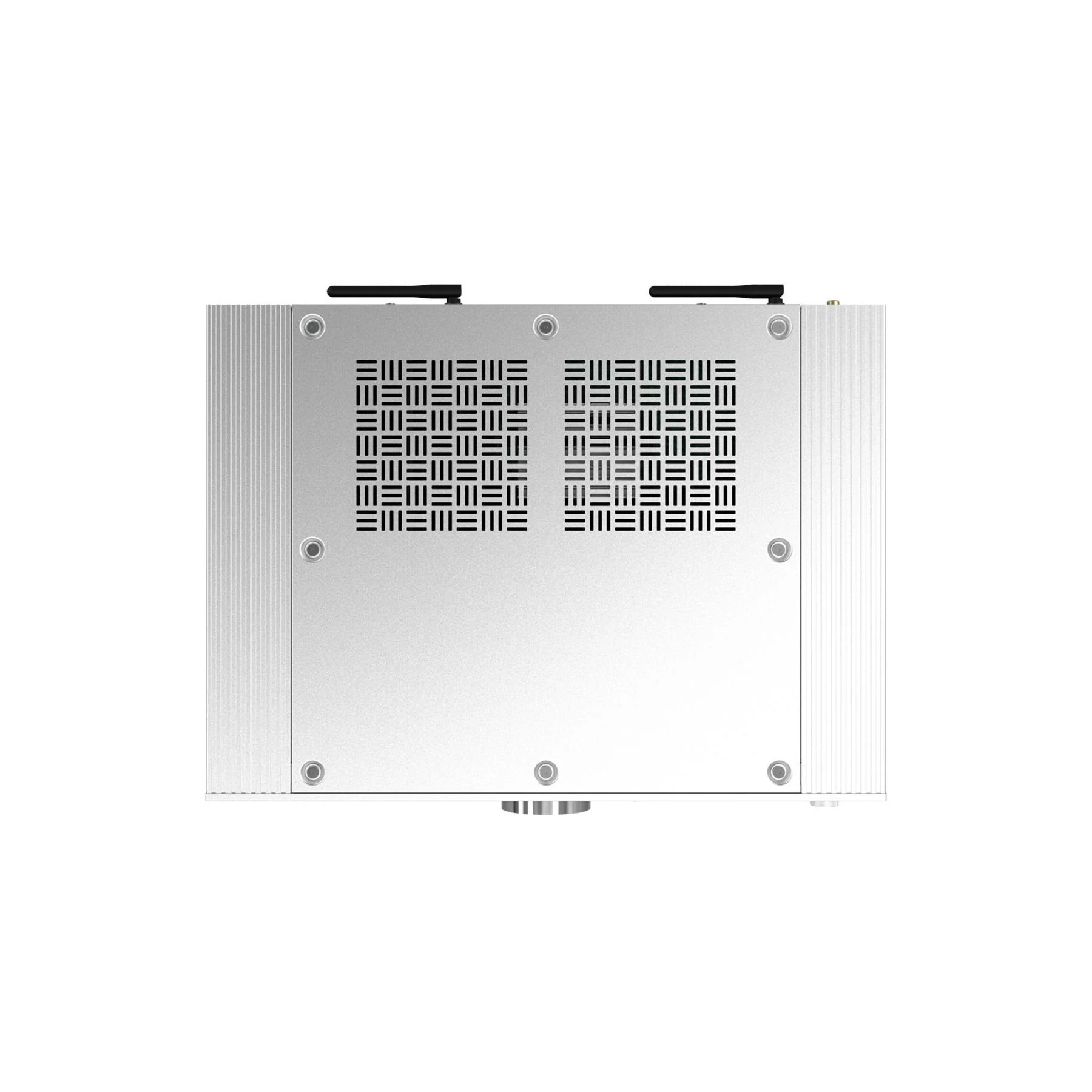

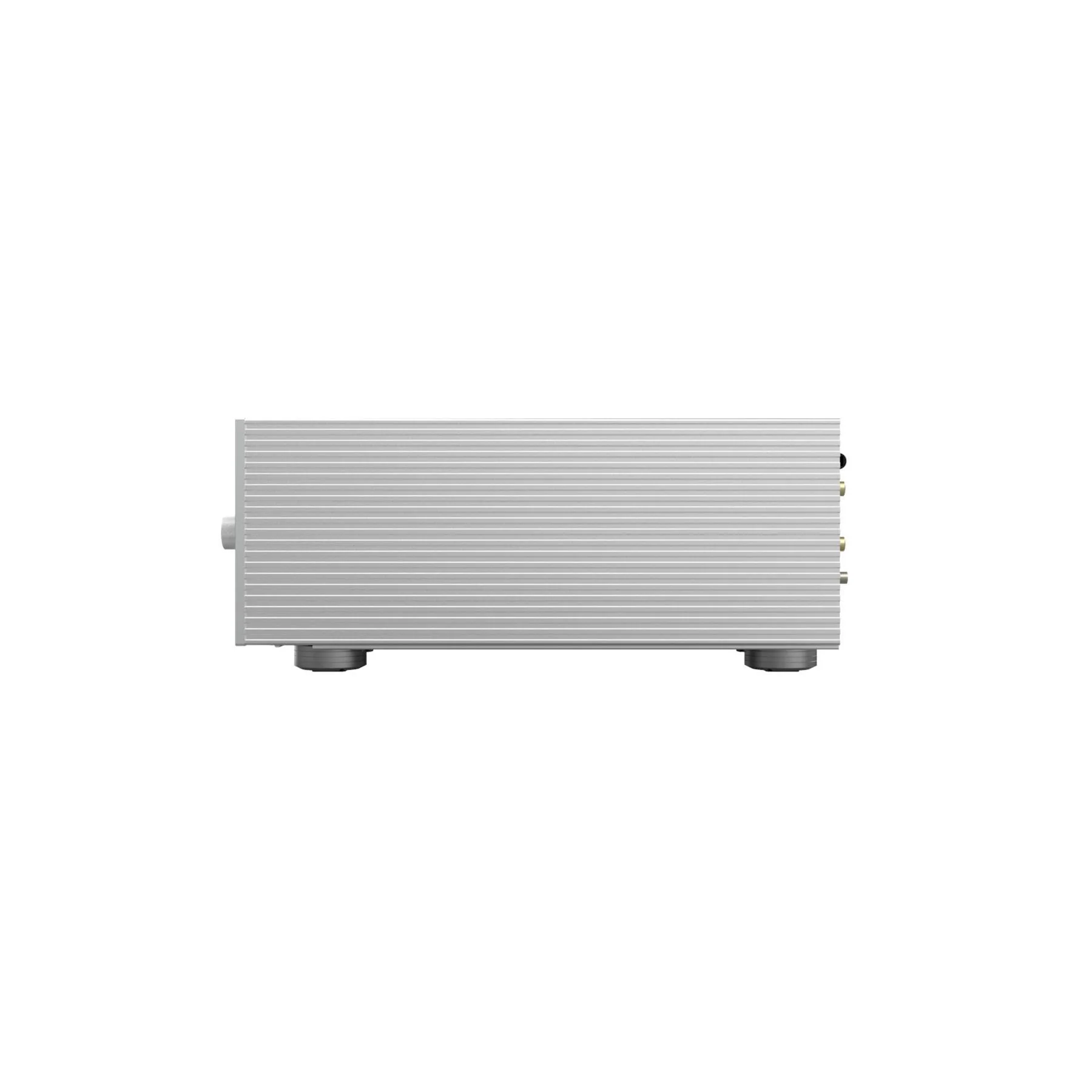

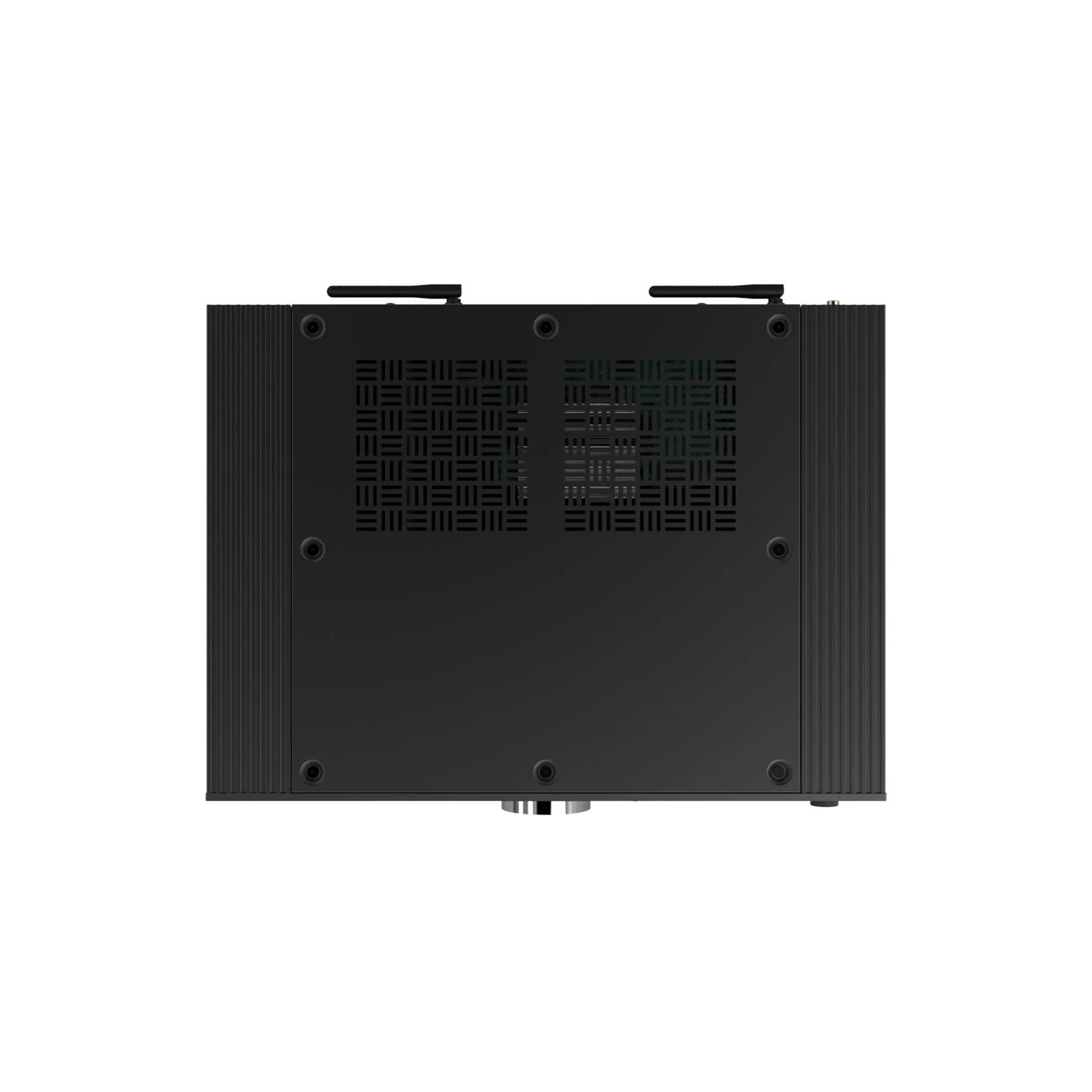

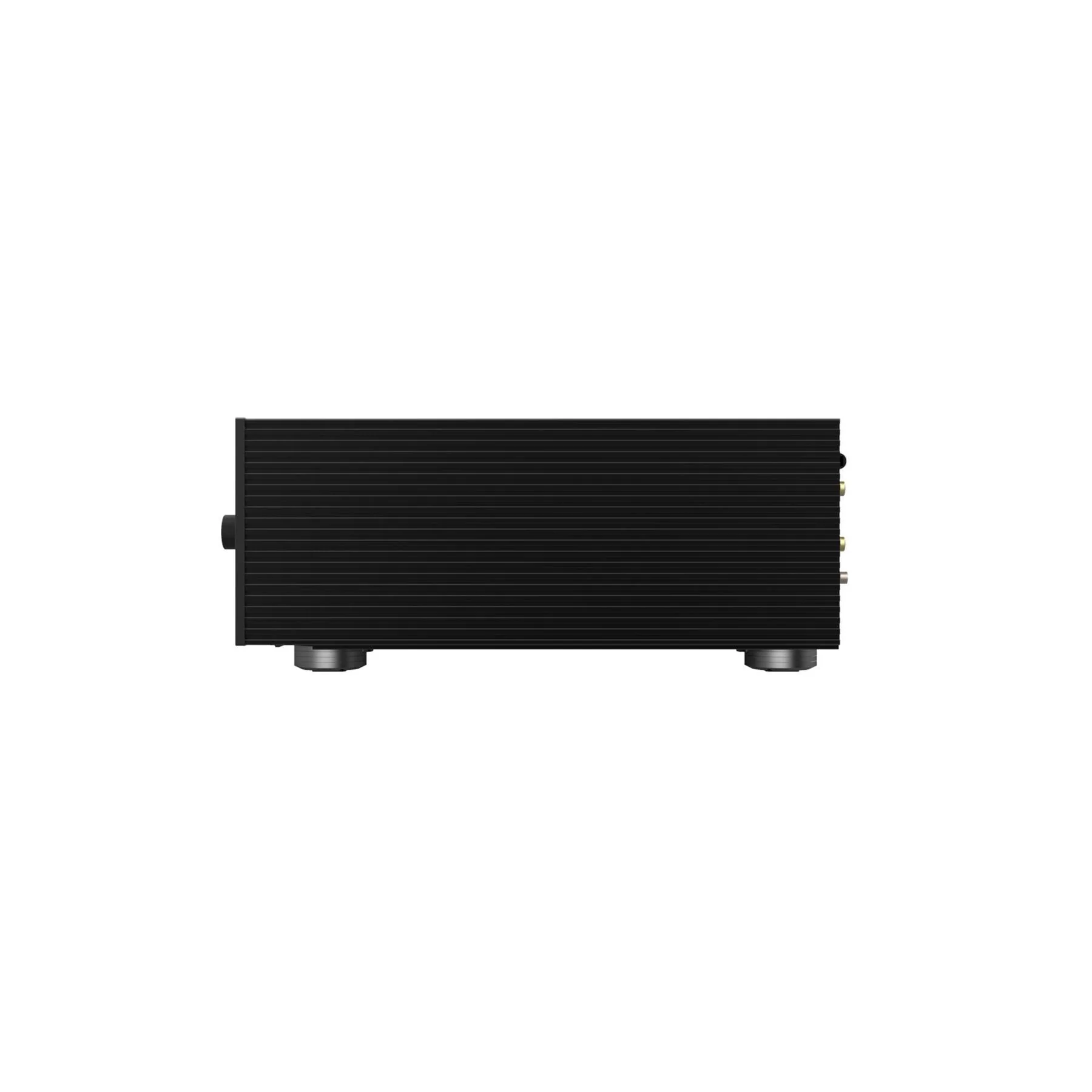

• Chassis & Design: Fanless design; extruded aluminum heat sink; rigid aluminum side panels and steel top; oval-press bottom for seismic rigidity
• Controls: Onkyo Controller app compatibility; Fidelity IQ (Auto Loudness); bass/treble tone controls
• Product Dimensions (W×H×D): 17.1" (435 mm) × 5.3" (135 mm) × 14" (355 mm)
• Package Dimensions (W×H×D): 21.3" (542 mm) × 9.3" (236 mm) × 17.4" (441 mm)
• Weight: 12.0 kg
• Power Consumption: 35 W (30 W idle), <0.3 W standby

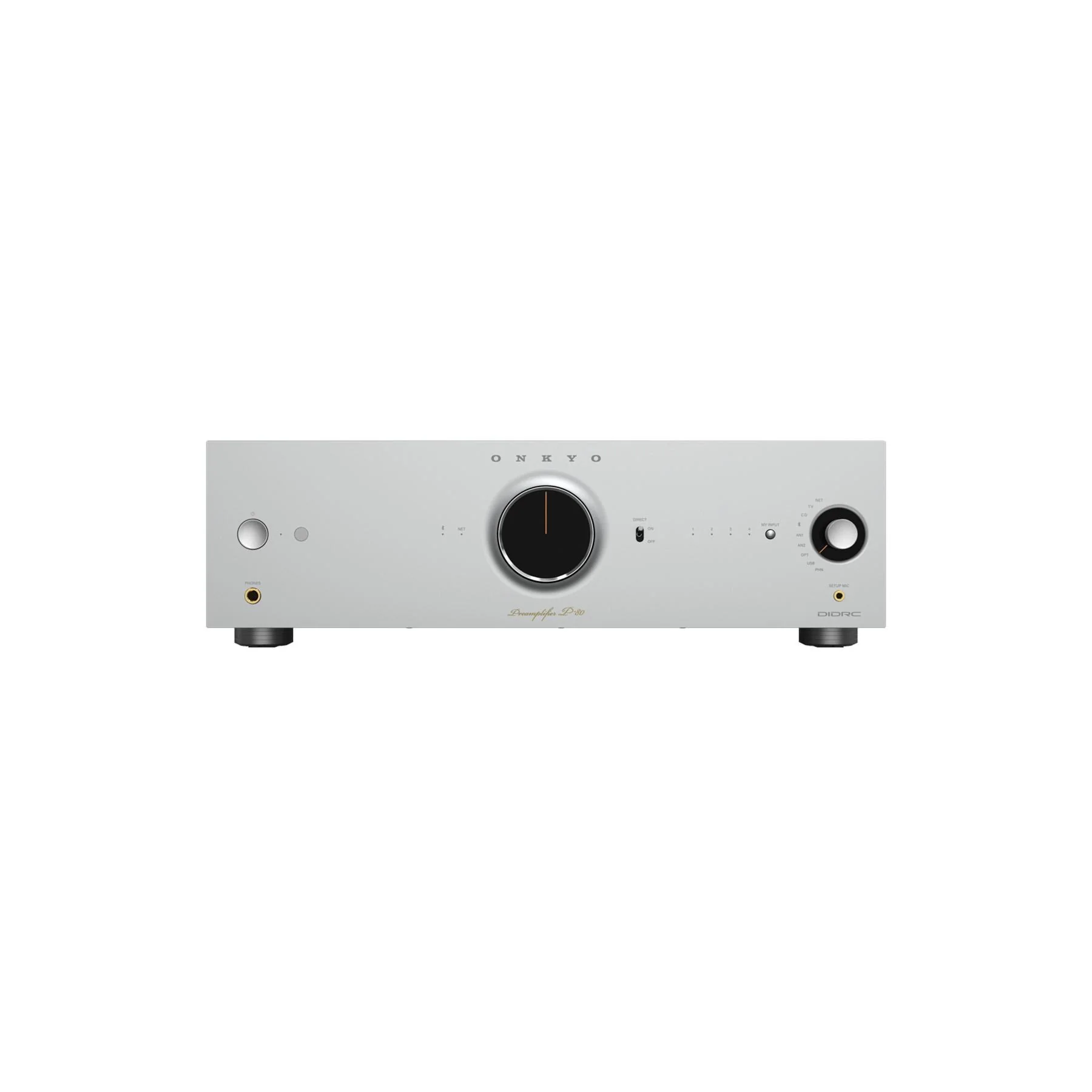

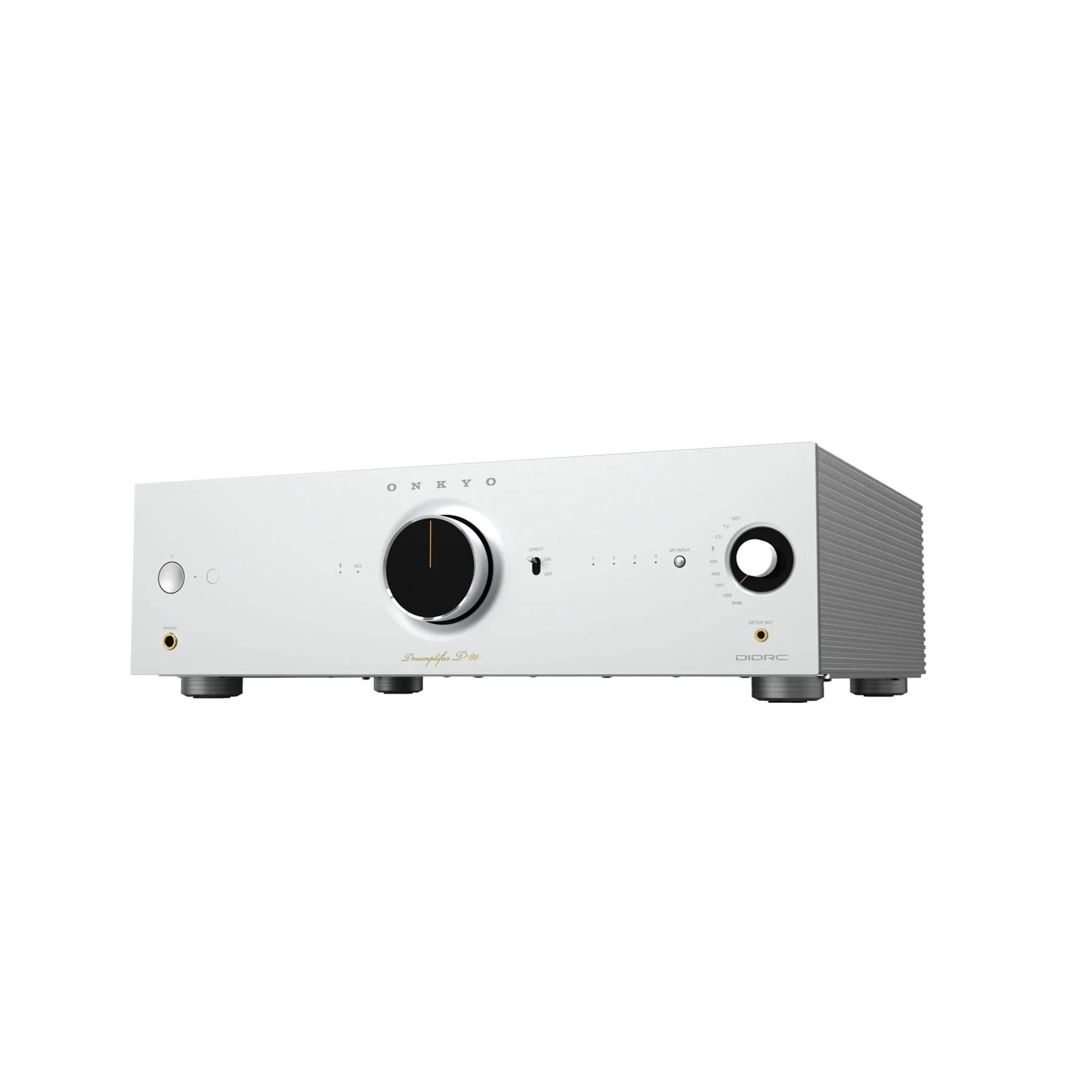

• Finishes: Black (P80SMMM, EAN 4573211155730); Silver (P80SMMP, EAN 4573211155754)

Onkyo P-80 Network Preamplifier Q&A:

Does the P-80 have a built-in DAC?

Yes—P-80 features a premium stereo DAC capable of 32-bit/768 kHz playback.

Which streaming platforms are supported?

Spotify Connect, TIDAL Connect, Qobuz, Amazon Music, TuneIn, and Roon Ready, plus AirPlay 2 and Chromecast built-in.

Is there HDMI on this preamp?

Yes, it includes an HDMI ARC input for TV audio.

Can I connect a turntable?

Yes—there’s a dedicated MM/MC phono input.

What room correction is included?

Dirac Live Room Correction is built in, with optional full-band upgrade and Dirac Live Bass Control.

What Bluetooth codecs does it support?

SBC, aptX, and aptX HD.

Are there balanced outputs?

Yes—balanced XLR pre-outs and unbalanced RCA pre-outs are provided.

How big and how heavy is it?

17.1" × 5.3" × 14" (435 × 135 × 355 mm); 12.0 kg.

Onkyo P-80 Network Preamplifier Downloads:

Onkyo P-80 Network Preamplifier User Manual
Onkyo P-80 Network Preamplifier Setup Guide
Onkyo P-80 Network Preamplifier Specification Sheet
