Music Hall Mini Phono Preamp - Clearance / Open Box

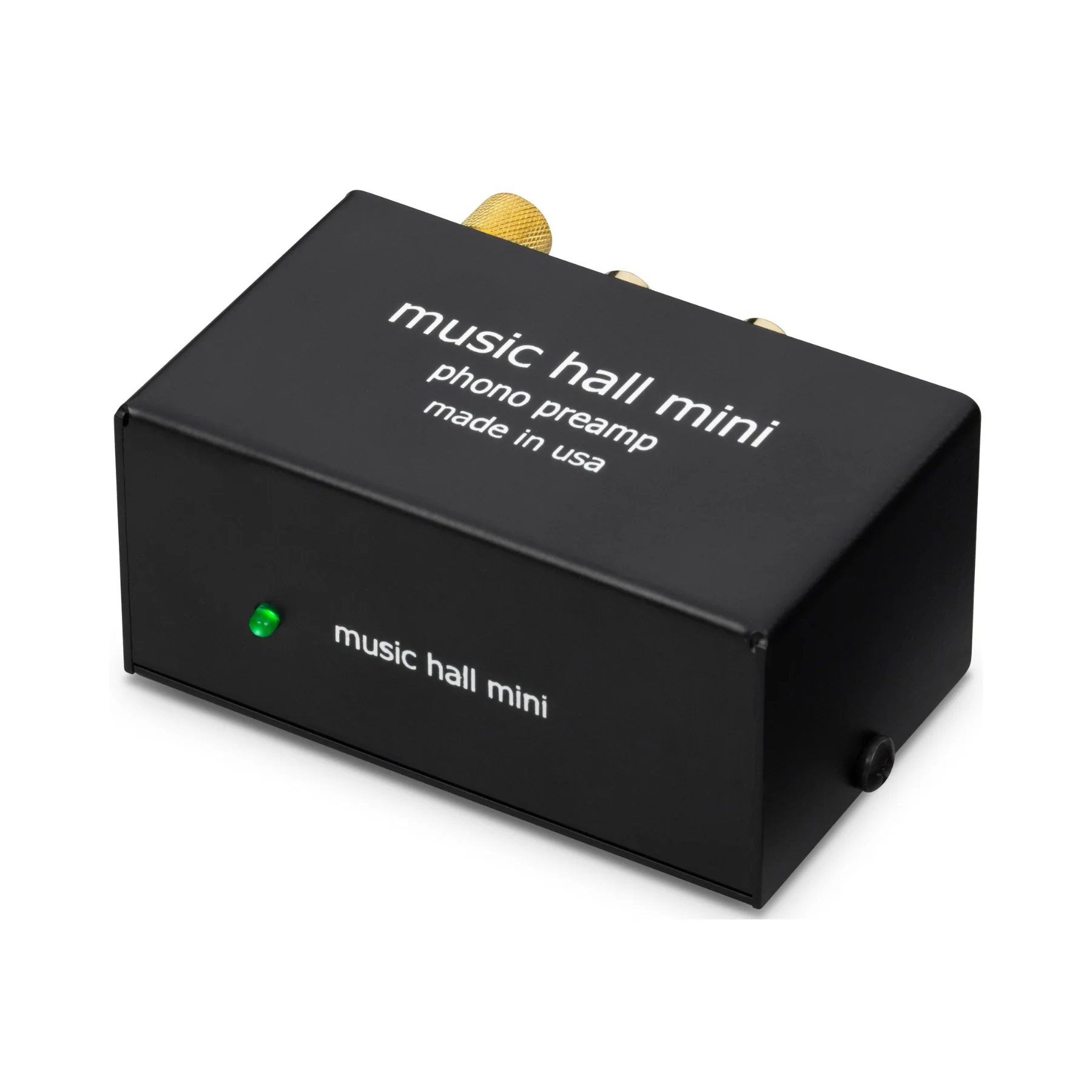

Music Hall Mini Phono Preamp

Music Hall Mini – High-Quality Solid-State Phono Preamp on a Budget

If you're searching for an affordable yet high-performance solid-state phono preamp, the Music Hall Mini is the perfect choice. Designed to work seamlessly with both moving magnet (MM) and high-output moving coil (MC) cartridges, this compact powerhouse amplifies your phono signal to line level with precision and clarity—all while maintaining RIAA compliance for accurate sound reproduction.

Big Performance in a Compact Design

• High-Quality Build – Housed in a rugged steel chassis for durability and resistance to interference.
• Precision RIAA Equalization – ±1.5dB from 20Hz to 20kHz ensures accurate, natural vinyl playback.
• Versatile Connectivity – Features both RCA outputs and a 3.5mm TRS stereo jack, making it easy to integrate into any setup.
• Proudly Made in the USA – Designed and built with premium components for long-lasting performance.

Music Hall Mini Phono Preamp Specifications:

Input & Output Connectors: RCA, 1/8″ TRS Stereo

Input Sensitivity: 42 dB gain 1kHz, 47k Ohms

Input Capacitance: 120pf

Sensitivity: 5mV for 635mV output

Input Impedance: 50k Ohms

Output Impedance: 1K Ohms

Frequency Response: + / – .5 dB 20 Hz – 20 kHz

(Conforms to RIAA Equalization Curve)

THD: .01% @ 1 kHz

S/N Ratio: >83 dB unweighted

PWR: 9 – 15 VDC

Dimensions: 3.5"x 2" x 1.5"

Weight: 1 lbs.

Warranty: 1 year
