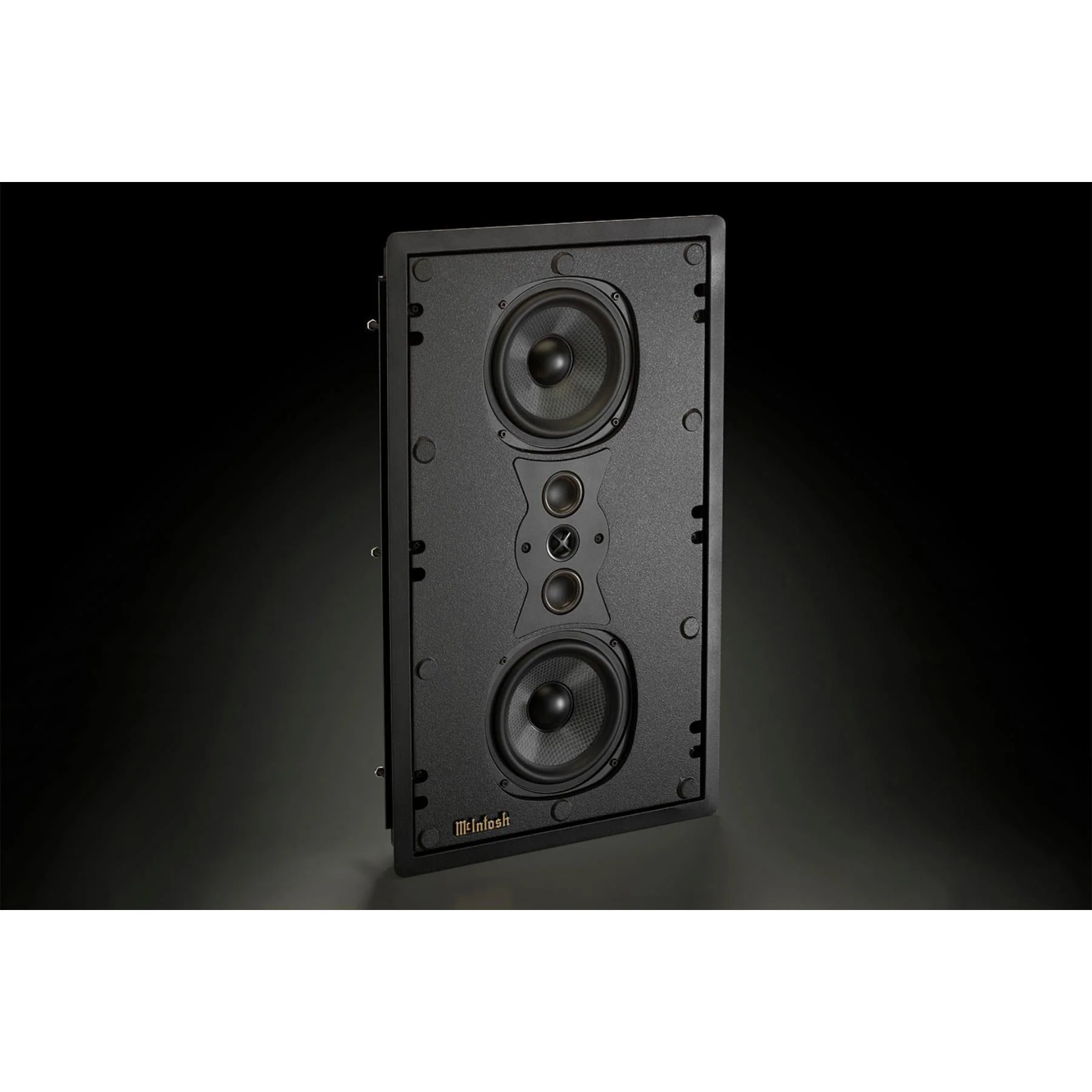

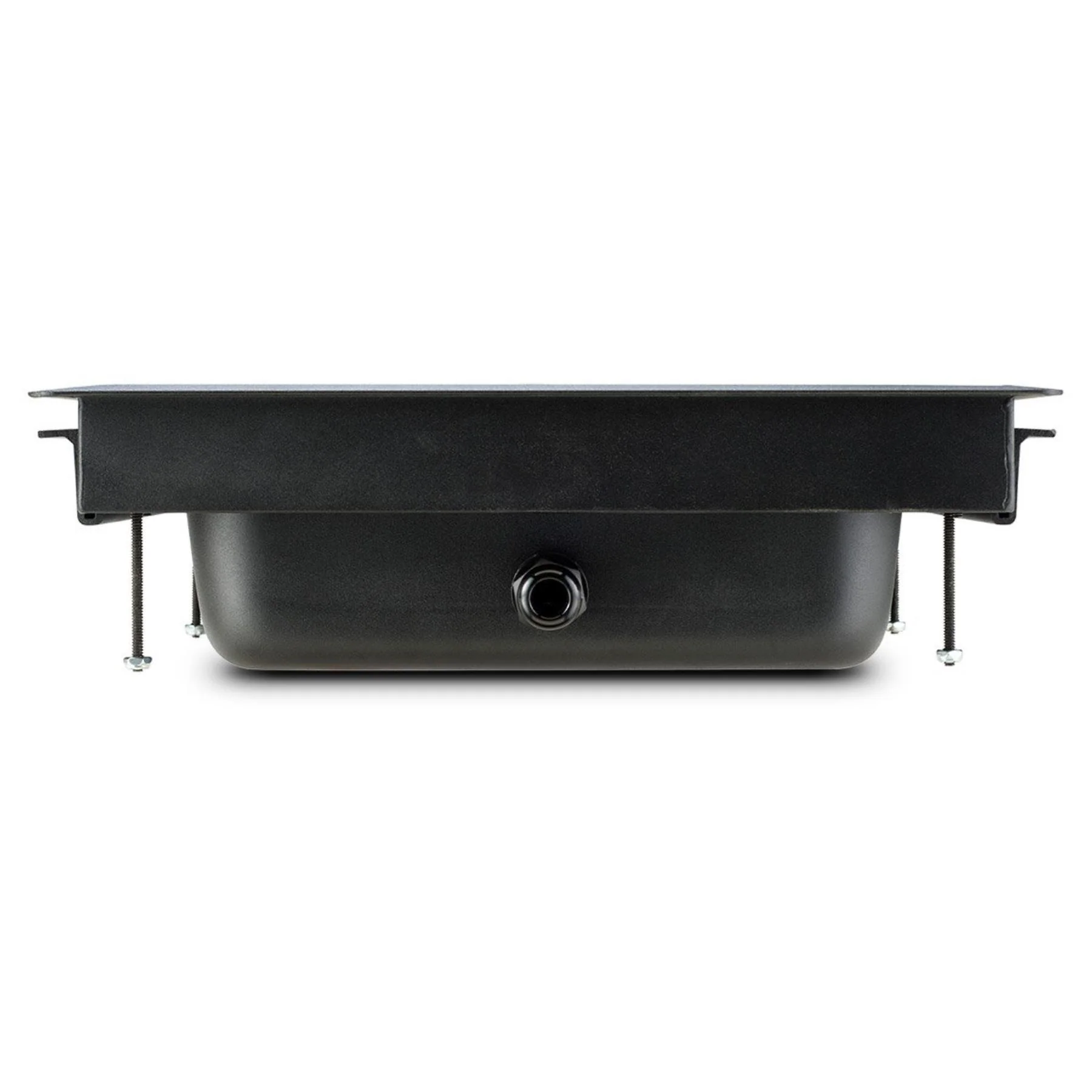

McIntosh WS500 In-Wall Loudspeaker
McIntosh WS500 In-Wall Loudspeaker
Introducing the McIntosh WS500 In-Wall Loudspeaker, your ultimate solution for immersive sound in custom home installations. Crafted for both 2-channel home audio and home theaters, these versatile speakers can seamlessly serve as front, center, or surround sound speakers. Paired perfectly with our MI128 or MI254 distribution amplifiers, and our WS300 in-wall speaker and CS200 in-ceiling speaker, the WS500 ensures a harmonious auditory experience.
Designed as a 3-way system, the WS500 is enclosed to guarantee outstanding performance in any setting, while its controlled air chamber minimizes distortion and ensures precise response. Boasting two 6.5" woofers, two 2" inverted Titanium dome midranges, and one 3/4" Titanium dome tweeter, this speaker delivers unparalleled audio quality. The woofer's shallow design fits effortlessly into standard 2x4 wall construction, facilitating hassle-free installation. Utilizing high-power, long-throw design and carbon-reinforced cones with elastomeric surrounds, the woofers ensure exceptional linearity. The midranges and tweeters, identical to those used in our renowned XR50 and XR100 home audio speakers, guarantee top-notch performance.
Featuring a magnetically attachable grille, the WS500 seamlessly blends into any decor. The paintable grille leaves virtually no visible edge of the mounting flange, allowing the speaker to disappear into its surroundings. Complete with all necessary hardware and mounting mechanisms for post-construction installations, and an optional rough-in kit (#RK500) available if needed, the WS500 offers unmatched convenience.
McIntosh WS500 Specifications:
Electronic Specifications:
- Impedance Nominal: 4 Ohms
- Power Rating: Up to 250 Watts
- Frequency Response: 80Hz to 20kHz
- Sound Pressure Level, 2.8V/1m: 86dB
- Crossover: 350Hz, 2,500Hz
Driver Specifications:
- Number of Woofers: 2
- Woofer Size: 6.5"
- Woofer Type: Woven Glass Fiber
- Number of Midranges: 2
- Midrange Size: 2"
- Midrange Type: Inverted Titanium Dome
- Number of Tweeters: 1
- Tweeter Size: 3/4"
- Tweeter Type: Titanium Dome
General Specifications:
- System Type: 3-Way In-Wall
- Grille: Magnetic metal mesh
- Available Finishes: Black chassis with white paintable grille
Weights & Dimensions:
- Unit Dimensions (W x H x D): 14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
- Unit Weight: 24 lbs (10.9 kg)
- Shipping Weight: 29 lbs (14.1 kg)
Elevate your audio experience with the McIntosh WS500 In-Wall Loudspeaker.
