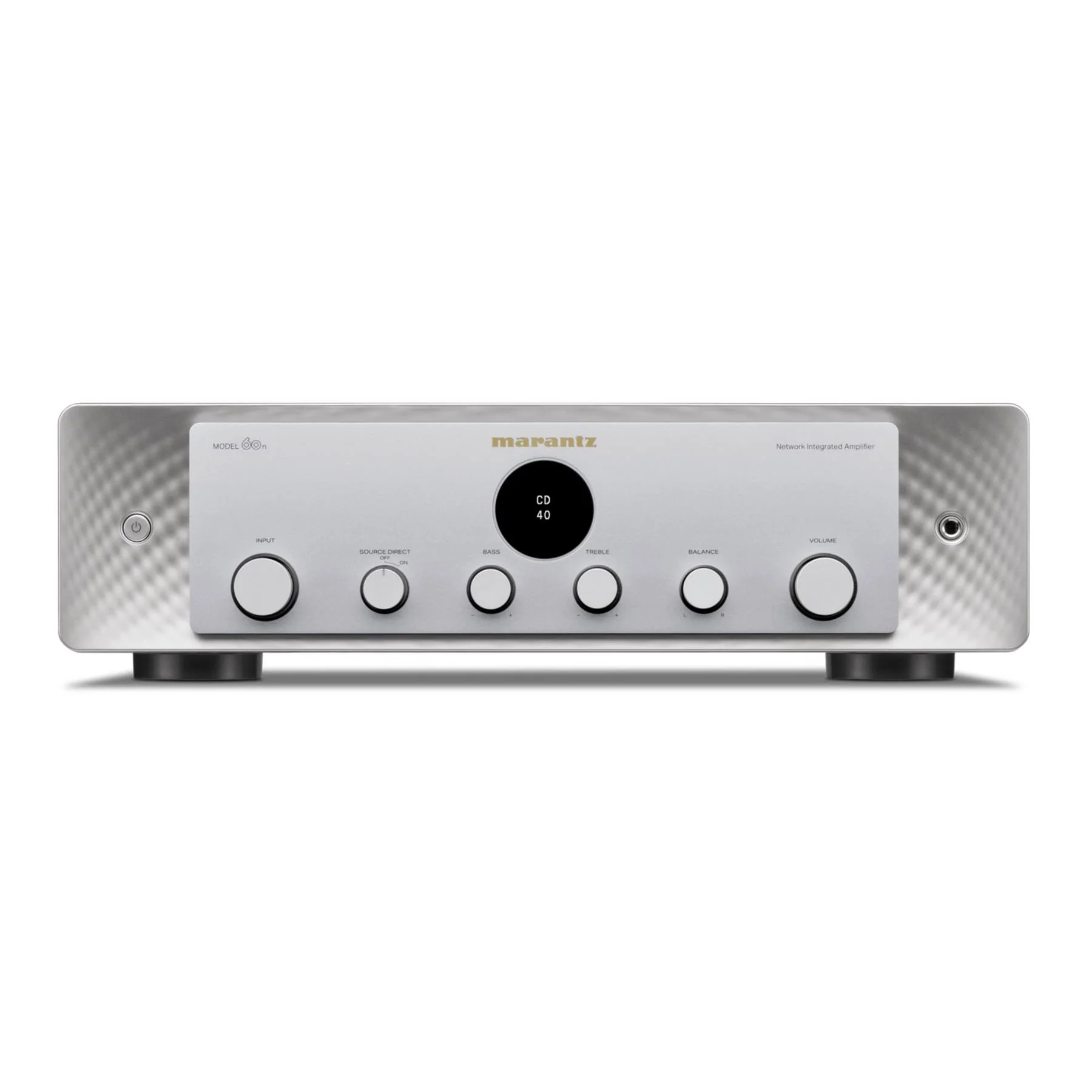

Marantz MODEL 60n Premium Integrated Amplifier

The Marantz MODEL 60n is a premium 2-channel network integrated amplifier designed for listeners who want true hi-fi sound without sacrificing modern convenience. Built around Marantz’s signature tuning and proprietary HDAM circuitry, it delivers rich detail, natural tone, and confident dynamics from vinyl, CDs, and high-resolution streaming alike. With HEOS Built-in, you can stream from popular services in high resolution, control multiroom audio, and enjoy seamless playback over Wi-Fi, Ethernet, AirPlay 2, Bluetooth, and more. Add HDMI ARC with CEC for dramatically better TV and gaming sound, plus flexible connectivity—including four gold-plated analog inputs, an MM phono stage, and a subwoofer/preamp output—to build a complete, elegant stereo system around one exceptional amplifier. The Marantz MODEL 60n is part of ListenUp's Marantz Amplifiers Collection.

What It's Good At:

• Delivering classic Marantz musicality with clarity, texture, and punch (HDAM + Sound Master tuning)
• Powering stereo speakers with confident control (60W/ch @ 8Ω, 80W/ch @ 4Ω, Class A/B)
• High-quality TV and gaming audio via HDMI ARC + CEC (single-cable convenience)
• Effortless hi-res streaming & multiroom with HEOS Built-in (Wi-Fi/Ethernet, app control)
• Building a full system with real-world inputs: CD/Line + MM phono, plus digital inputs
• Adding low-end weight and expansion via subwoofer output / preamp out

Marantz MODEL 60n Full Specifications:

• Product Type: Network Integrated Amplifier
• Channels: 2
• Amplifier Topology: Class A/B
• Power Output (RMS, 8Ω / 4Ω): 60 W / 80 W
• RMS Power Output (20 Hz–20 kHz, both channels driven): 60 W x 2 (8Ω), 80 W x 2 (4Ω)
• PSU Transformer: Toroidal
• Current Feedback Topology: Yes
• HDAM Version: SA3, SA2
• High Grade Audio Components: Yes
• Customised Components: Yes
• Symmetric PCB Layout: Yes
• Aluminium Extrusion Heat Sink: Yes
• Copper Plated Chassis: No
• Marantz Musical Digital Filtering: No
• Linear Drive Power Supply: Yes
• BI-AMP and Multichannel Option: No
• Shottky Diodes: Yes
• Speaker A / B: No
• Speaker Terminals: Marantz SPKT-1+
• Number of Terminals: 2
• D-Bus: Yes
• Digital Inputs: Coaxial, Optical, USB-A
• Max PCM Sample Rate: 192 kHz / 24-bit
• Max DSD Sample Rate: DSD 4X (11.2 MHz)
• HDMI: 1 (ARC)
• HEOS Multiroom and Streaming: Yes
• Streaming Technologies: Bluetooth, AirPlay 2, Roon Ready, Spotify Connect, Tidal Connect
• Streaming Services (subject to change and local availability): Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
• Lossy Formats: MP3, WMA, AAC
• Lossless Formats: DSD/DSF, FLAC, ALAC, WAV, AIFF
• Gapless Playback: Yes
• HEOS App: iOS, Android
• Wi-Fi / Wired LAN: Yes / Yes
• Display: Low-Noise OLED Monochrome
• Phono EQ: MM Standard
• Analog Audio Inputs: 4
• Audio Adjustments: Bass / Treble EQ, Balance
• Source Direct: Yes
• Power Amp Direct: No
• Balanced In / Out: No / No
• Preamp Outputs: 1
• Subwoofer Output: 1 (Mono)
• Headphone Out: Yes
• Tuner (FM / AM): No
• Frequency Response: 5 Hz – 100 kHz
• Total Harmonic Distortion: 0.02 %
• Damping Factor: 100 and over
• Input Sensitivity: MM: 1.9 mV / 47 kOhm
• Signal to Noise Ratio: MM/MC: 87 dB / –
• Input Sensitivity: High Level: 190 mV / 20 kOhm
• Signal to Noise Ratio: High Level: 113 dB
• Treble Control: ± 10 dB (listed at 15 kHz)
• Bass Control: ± 10 dB (at 50 Hz)
• Metal Front Panel: Yes
• Power Consumption: 220 W
• Standby Consumption: 0.3 W
• Auto Power Off: Yes
• Detachable Power Cable: Yes
• Remote Control: RC006PM
• System Remote Function: Yes
• Maximum Dimensions (W x D x H) mm: 442 x 431 x 129
• Maximum Dimensions (W x D x H) in: 17.4 x 17 x 5.1
• Weight: 28.1 lbs
• Carton Maximum Dimensions (W x D x H) mm: 527 x 517 x 255
• Carton Maximum Dimensions (W x D x H) in: 20.8 x 20.4 x 10.1
• Carton Weight (inc. product): 15.5 kg / 34.3 lbs
• Voice Control Support: Amazon Alexa, Apple Siri

Marantz MODEL 60n Q&A:

What speakers can the Marantz MODEL 60n drive?

MODEL 60n delivers 60W per channel into 8Ω and 80W per channel into 4Ω, making it a strong match for many bookshelf and floor-standing speakers that benefit from clean, controlled Class A/B power.

Can I connect my TV to the MODEL 60n with one cable?

Yes—use the HDMI ARC port to bring TV audio into the amplifier and control volume/power behavior via CEC for a simpler, better-sounding TV setup.

Does the MODEL 60n have built-in streaming?

Yes. HEOS Built-in enables streaming over Wi-Fi or Ethernet and supports AirPlay 2, Bluetooth, Roon Ready, Spotify Connect, and Tidal Connect for broad compatibility.

Is this amplifier good for vinyl playback?

It includes an MM (moving magnet) phono stage, so you can connect a turntable directly without needing an external phono preamp.

What music file formats does it support over the network or USB?

It supports lossy formats like MP3/WMA/AAC and lossless formats including DSD/DSF, FLAC, ALAC, WAV, and AIFF, with gapless playback supported.

Can I add a subwoofer?

Yes—there is a mono subwoofer output, making it easy to create a 2.1 system with deeper low-end impact.

How many devices can I connect besides streaming and TV?

You get four analog inputs (including CD/Line and MM phono) plus digital inputs (coaxial, optical, and USB-A), so it’s ready for a full system of sources.

Can I control it from my phone?

Yes—the HEOS app (iOS/Android) provides streaming, input control, multiroom grouping, and convenient day-to-day operation.

Marantz MODEL 60n Downloads:

Model 60N User Manual
Model 60N User Info Sheet
