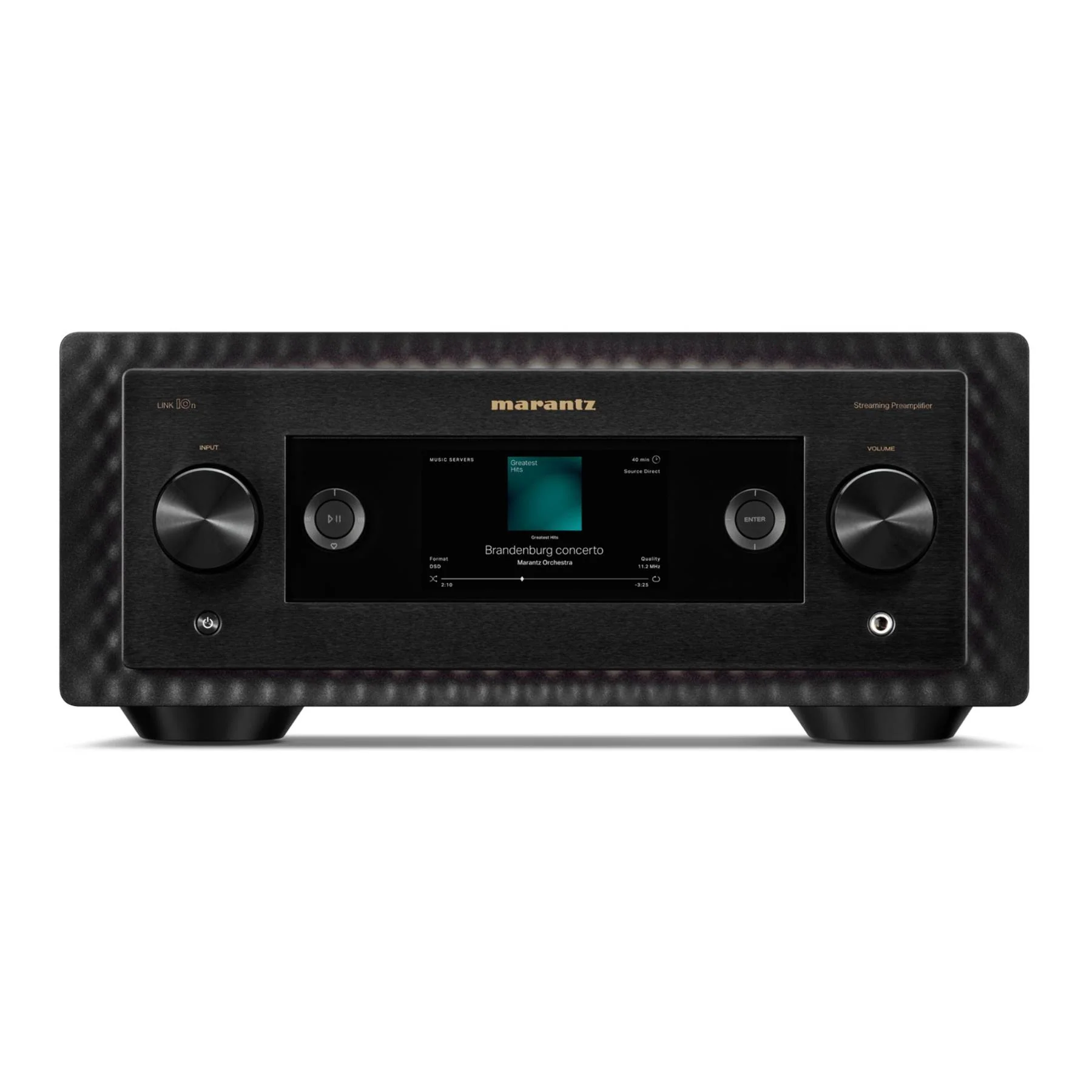

Marantz Link 10n - Reference Streaming Preamplifier

Marantz LINK 10n Streaming Preamplifier

Marantz LINK 10n is a reference-class network audio player and fully featured 2.1-channel streaming preamplifier built for no-compromise, high-end stereo systems. Designed with a fully balanced architecture and Marantz’s newest HDAM and MMM-Conversion circuits, it delivers exceptional transparency, dynamics, and musical detail whether you’re streaming hi-res music, connecting a TV via HDMI ARC, or integrating premium analog sources. Its luxurious multi-layer construction—including a triple-layer copper-plated chassis design, isolated sub-enclosures, and precision-machined aluminum controls—supports ultra-low noise performance and a refined listening experience. Add in a high-resolution full-color front display, HEOS multi-room streaming, Roon Ready support, and broad digital/analog connectivity, and LINK 10n becomes a true centerpiece for modern reference audio. The Marantz LINK 10n is part of ListenUp's Marantz Amplifiers Collection.

What It's Good At:

• Serving as a true reference stereo preamp with fully balanced signal paths and premium volume control (MUSES 72323)
• High-resolution streaming and playback up to PCM 384 kHz / 32-bit and DSD up to 11.2 MHz (via supported sources)
• Elevating turntable performance with a premium MM/MC phono stage and selectable MC impedance settings
• Delivering superior TV and gaming audio through HDMI ARC with CEC for seamless system control
• Integrating clean, controlled low-end with dedicated subwoofer output and adjustable low-pass filtering (2.1 setup)
• Providing flexible system building with both fixed and variable analog outputs (XLR/RCA) and robust digital I/O

Marantz LINK 10n Full Specifications:

• Product type: Reference network audio player / streaming preamplifier (2.1-channel capability)
• Streaming / platform: HEOS Built-in; Roon Ready; supports Qobuz (via supported services)
• Display: New HD TFT color display; 20-step dimmer
• Dimensions (W × H × D): 440 × 192 × 472 mm (with antenna)
• Cabinet size: 440 × 192 × 422 mm
• Net weight: 33.3 kg
• Packaging dimensions (W × H × D): 600 × 379 × 540 mm
• Packaging gross weight: 38.7 kg
• Panel color: Black / Marantz Champagne
• Front (center) panel: Aluminum
• Back-shell: Aluminum
• Front panel illumination: Yes (all sides, dimmer)
• Side cover: Aluminum (max thickness 15.8 mm)
• Foot: Solid aluminum with copper
• Rear panel design: Triple-layer copper-plated
• Power supply: AC 120 V, 60 Hz
• Power consumption: 75 W
• Standby power consumption: 0.3 W
• Network Control “On” mode consumption: 2 W
• Operating temperature: 41°F–95°F (5°C–35°C)
• Analog audio (PREAMP OUT) rated output voltage / impedance:
  • Unbalanced: 1.58 V / 30 Ω
  • Balanced: 3.16 V / 140 Ω
  • Subwoofer: 240 mV / 1.16 kΩ
• Maximum output voltage:
  • Unbalanced: 10 V (1 kHz, THD 0.05%)
  • Balanced: 20 V (1 kHz, THD 0.05%)
• THD+N (20 Hz–20 kHz): 0.001%
• Frequency response (analog input): 5 Hz–100 kHz (+0 dB/−3 dB)
• Input sensitivity / input impedance:
  • Phono MC Low: 400 µV / 32 Ω
  • Phono MC Mid: 400 µV / 100 Ω
  • Phono MC High: 400 µV / 390 Ω
  • Phono MM: 3.6 mV / 39 kΩ
  • Balanced: 700 mV / 33 kΩ
  • Line: 350 mV / 47 kΩ
• Max allowable phono input level (1 kHz): MC 8 mV; MM 80 mV
• RIAA deviation (20 Hz–20 kHz): ±0.5 dB
• S/N (IHF-A):
  • Phono (MC): 76 dB
  • Phono (MM): 88 dB
  • Balanced: 122 dB
  • Line: 122 dB
• Tone control: Bass (50 Hz) ±10 dB; Treble (15 kHz) ±10 dB
• Headphone output: 130 mW (32 Ω load, 1 kHz, THD 0.7%); 6.3 mm ×1; gain Low/Mid/High; discrete circuit
• Digital audio performance (LINE OUT):
  • Output voltage: Unbalanced 2.0 V; Balanced 4.0 V
  • THD+N (1 kHz): PCM 0.0015%; DSD 0.0004%
  • S/N: PCM 113 dB; DSD 116 dB
  • Dynamic range: 112 dB
  • Playable frequency range: PCM 2 Hz–96 kHz; DSD 2 Hz–100 kHz
• Digital input formats:
  • USB-DAC (Type B): DSD 2.8/5.6/11.2 MHz (1-bit); PCM 44.1–384 kHz (16/24/32-bit)
  • HDMI ARC: PCM 32–192 kHz (16/20/24-bit)
  • Coaxial/Optical In: PCM 44.1–192 kHz (16/24-bit)
• Digital outputs: Coax 0.5 Vp-p / 75 Ω; Optical −19 dBm
• Optical I/O: 2 in / 1 out (on/off switchable), 44.1–192 kHz
• Coaxial I/O: 1 in / 1 out (on/off switchable), 44.1–192 kHz
• Analog inputs: RCA (Cinch ×1); Balanced XLR (1 pair); Phono MM/MC with selectable MC impedance (3-position)
• Analog outputs: Fixed RCA (Cinch ×1); Variable RCA (Cinch ×1); Fixed XLR (1 pair); Variable XLR (1 pair)
• Subwoofer output: Yes, with adjustable low-pass filter
• Wi-Fi: IEEE 802.11a/b/g/n/ac; 2.4/5 GHz; WEP 64/128; WPA/WPA2-PSK (AES/TKIP); WPA3-SAE (AES)
• Bluetooth: Version 5.4; Power Class 1; up to ~30 m / 98.4 ft line-of-sight; profiles A2DP 1.4, AVRCP 1.5; codec SBC
• Supported file playback (USB/Network):
  • WMA: 32/44.1/48 kHz, 48–192 kbps (.wma)
  • MP3: 32/44.1/48 kHz, 32–320 kbps (.mp3)
  • WAV: 32–384 kHz (.wav)
  • AAC (MPEG-4): 32/44.1/48 kHz, 48–320 kbps (.aac/.m4a)
  • FLAC: 44.1–384 kHz (.flac)
  • ALAC: 44.1–384 kHz (.m4a)
  • DSD: 2.8/5.6/11.2 MHz (.dsf/.dff)
• USB media limits: 8 folder levels; 500 folders; 5000 files; 2 GB max file size
• Control / convenience: HEOS app; Apple Siri & Google Assistant; HDMI CEC; remote RC004PMND; AAA ×2 batteries
• Included accessories: Audio-grade OFC power cord; Stereo RCA cable ×1; Remote connector cable ×1; CoA card

Marantz LINK 10n Q&A:

Is the Marantz LINK 10n only a streamer, or can it run my whole stereo system as a preamp?

It can serve as a complete stereo preamplifier with fully balanced architecture, volume control, tone controls (bass/treble), and extensive analog/digital inputs.

What’s the easiest way to connect LINK 10n to my TV for higher-quality sound?

Use HDMI ARC for a simple one-cable connection, plus CEC support for convenient control and switching from your TV remote.

Does LINK 10n support high-resolution audio formats and file playback?

Yes—supported playback includes PCM up to 384 kHz / 32-bit and DSD up to 11.2 MHz (via supported inputs and file sources), plus FLAC, ALAC, WAV, and more.

Can I connect a turntable directly to LINK 10n?

Yes—there’s a premium phono input that supports both MM and MC cartridges, including selectable MC impedance settings.

Can I use subwoofers with a 2-channel setup?

Yes—LINK 10n supports a 2.1 configuration with a dedicated subwoofer output and an adjustable low-pass filter for smoother integration.

What streaming and multi-room options are available?

LINK 10n includes HEOS Built-in for multi-room playback and app control, and it also supports popular streaming integrations like Roon Ready and compatible services through HEOS.

What wireless connections does LINK 10n offer?

It supports dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 5.4, including Bluetooth receiver and transmitter functionality (SBC codec).

What are the physical size and weight of the LINK 10n?

The unit measures 440 × 192 × 472 mm (with antenna) and weighs 33.3 kg, reflecting its heavy-duty, reference-grade construction.

Marantz LINK 10n Downloads:

Marantz LINK 10n Info Sheet
Marantz LINK 10n Manual
