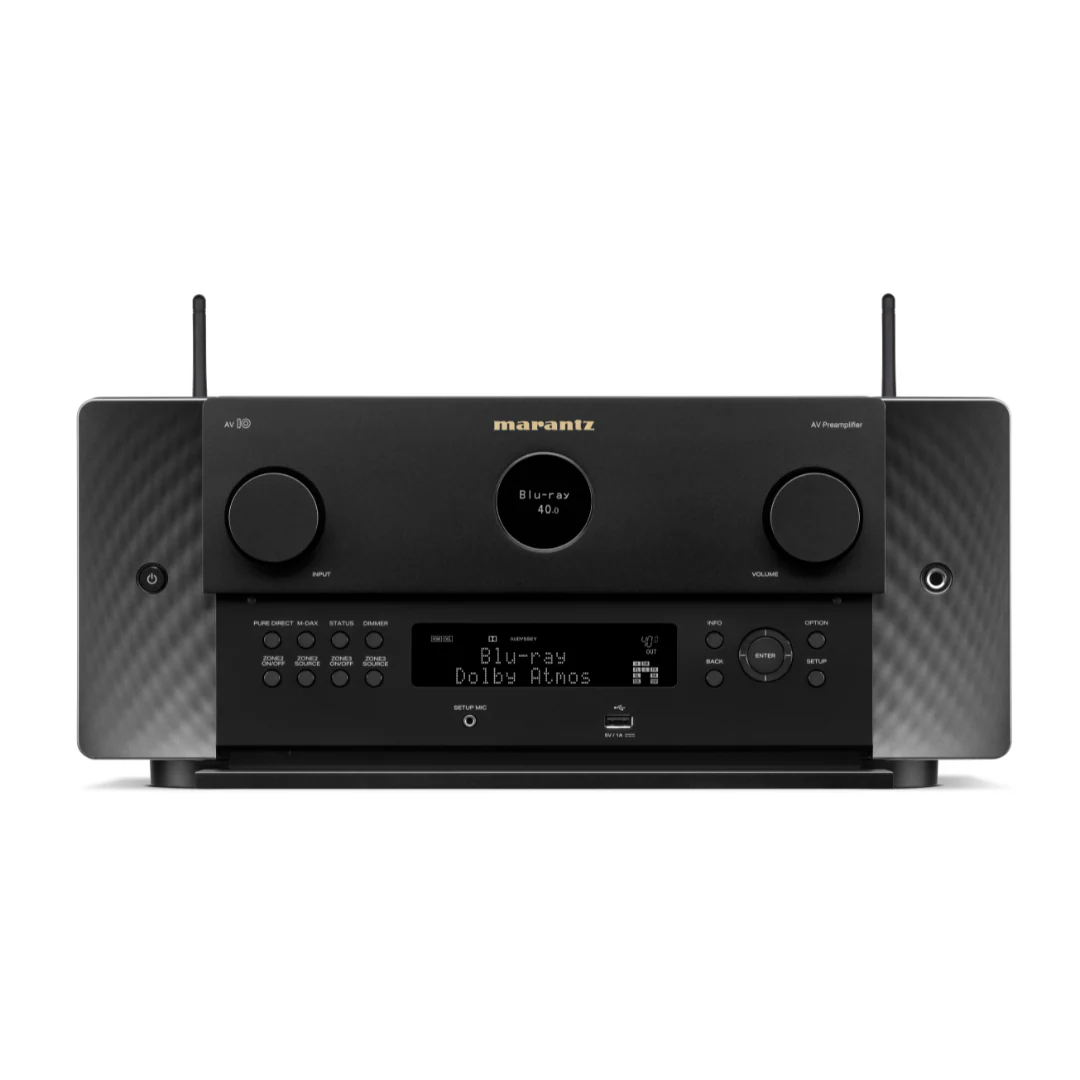

Marantz AV 10 15.4-Channel Preamplifier/Processor

Marantz AV 10 Preamplifier

The Marantz AV 10 is a reference-grade 15.4-channel home theater preamplifier/processor built for enthusiasts who want true cinema performance with the musical refinement Marantz is known for. Engineered and sound-master tuned with Marantz’s proprietary HDAM circuitry, it delivers immersive detail, lifelike dynamics, and a rich tonal balance that elevates everything from blockbuster Atmos mixes to high-resolution stereo streaming. With 7 HDMI 2.1 inputs, 8K/60 and 4K/120 pass-through, and wide HDR support, AV 10 is ready for next-gen gaming and premium home cinema—while advanced processing for Dolby Atmos, DTS:X Pro, IMAX Enhanced, and Auro-3D creates a huge, precise soundstage. Add HEOS Built-in multi-room streaming, Audyssey MultEQ XT32 room calibration, and Dirac Live upgradability, and you have a flagship control center designed to anchor elite, fully-custom home theater systems. The Marantz AV 10 is part of ListenUp's Marantz AV Separates Collection.

What It's Good At:

• Creates a truly reference-level theater with 15.4 channels of processing and expansive 3D surround formats
• Delivers premium system integration with 17.4 RCA + 17.4 XLR multichannel pre-outs and 4 independent subwoofer outputs
• Future-proofs video sources with 7 HDMI 2.1 inputs, 8K/60, 4K/120, and broad HDR compatibility
• Optimizes real rooms with Audyssey MultEQ XT32 (plus Dirac Live upgradability) for tighter imaging and cleaner bass
• Powers whole-home audio with HEOS multi-room streaming, AirPlay 2, Spotify Connect, and high-res file support including DSD
• Fits custom installs with IP/RS-232 control, web control, app control, DC triggers, and CI-friendly zone features

Marantz AV 10 Full Specifications:

• Multichannel Surround
  • DTS HD Master / DTS:X / DTS:X Pro:
  • DTS Neural:X (15ch)
  • DTS Virtual:X
  • IMAX Enhanced
  • Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music
  • Dolby Surround
  • Auro 3D
  • 360 Reality Audio / MPEG H
  • Multichannel Stereo
  • Max Number of Processing (Preamp) Channels: 15.4
• Sound Enhancements
  • Copper Plated Chassis
  • Current Feedback Topology
  • Hyper Dynamic Amplifier Modules (HDAM)
  • Pure Direct
  • Gold plated RCA terminals
  • Clock Jitter Reducer
  • Audyssey MultEQ XT32
  • Audyssey Dynamic EQ / Dynamic Volume
  • Audyssey LFC
  • Dirac Live upgradability
  • Compressed Audio Enhancer (MDAX2)
• Network
  • HEOS Multi-room and Streaming
  • Bluetooth Re-transmit for Bluetooth headphones
  • Alexa / Google Voice Assistant / Apple HomePod
  • Network Audio Sharing
  • Lossy formats (MP3 / WMA / AAC)
  • Lossless formats (FLAC / ALAC / WAV)
  • Lossless formats (FLAC HD 192/24 / WAV 192/24 / ALAC 192/24)
  • DSD Audio Streaming: (2.8/5.6MHz)
  • Gapless Playback:  (FLAC, WAV, ALAC, DSD)
  • AirPlay Audio Streaming: (AirPlay2)
  • Internet radio: (TuneIn)
  • Spotify* (connect)
  • Pandora
  • SiriusXM
  • Other Streaming Services*: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
  • Roon Tested
  • Remote App (Tablets): Android / iOS / Amazon Kindle
  • Ethernet Ports
  • Wi-Fi
  • Bluetooth
• HDMI
  • HDMI Inputs (Back): 7
  • HDCP2.3 support
  • HDMI Outputs: Main / Zone 2 / 1
  • HDMI to HDMI Scaling: 1080P/4K to 8K
  • GUI Overlay on HDMI
  • HDMI 2.1 (8K/60Hz AB / 4K/120Hz AB)
  • 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
  • HDMI 2.0 (3D / 4K / CEC / ARC)
  • Enhanced ARC: Yes
  • HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
  • ALLM Pass-through for gaming
  • Variable Refresh Rate / Quick Frame Transport
  • 3D Signal Pass-Through
  • 8K signal pass-through / scaling / GUI overlay
  • 4K Signal Pass-Through / Scaling / GUI Overlay
  • HDMI pass-through in standby mode
  • CEC
  • DSD Audio Capability
  • Audio Return Channel
  • Auto LipSync
• Multi-Room CI
  • HEOS Multi-Room Integrated
  • HEOS Link Compatibility (IR / IP)
  • Multi-Room Zones: 3
  • Zone Audio Source (HDMI / Opt, Coax / Network, USB / Analog): Yes (2ch) / Yes (2ch) / Yes / Yes
  • Zone Audio Output (Speaker / Preout): No / Yes
  • Zone HDMI Output from HDMI Source: Yes
  • IP Control / RS232 Control / Web Control / App Control
  • IR Flasher In: Yes
  • Marantz Remote Bus: Yes
  • DC Trigger Output: 2
  • HDMI Diagnostics: Yes
• Others
  • Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
  • Dirac Live: (upgrade)
  • Front Display: 2 line FLD + port hole OLED
  • Graphic User Interface (GUI): Modern HD GUI
  • GUI Languages: 3
  • Setup Assistent: Yes
  • Smart Select: Yes
  • Firmware Update by Network / USB: Yes / Yes
  • Variable Cross Over: Yes
  • Optimized Bass Redirection: Yes
  • Bass Sync: Yes
  • Auto Power off: Yes
  • Sleep Timer: Yes
• Inputs / Outputs
  • Composite In / Out: No / No
  • Component In / Out: No / No
  • HDMI In / Out: 7 / 3
  • Multi-Room Video Out (Video / HDMI): No / Yes
  • Analogue In / Out: 5 (1x XLR) / No
  • Phono (MM) In: Yes
  • Digital In (Optical / Coaxial): 2 / 2
  • Multi-Room Out (analog / digital): 2 / No
  • Multichannel Pre Out: Yes (17.4 RCA & 17.4 XLR)
  • Subwoofer Out: 4 (independent)
  • Speaker A / B assignable pre out
  • Bi-amp drive assignable pre out
  • Multi-Room Speaker Terminal pre out
  • Front Inputs (Audio / Composite / Digital (Opt) / HDMI / USB): No / No / No / No / Yes
  • USB Audio / Made for iPod / Made for iPhone: Yes / No / No
  • AM/FM Tuner: Yes
• General
  • Metal Front Panel: Yes
  • System Remote Control: RC047SR
  • Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
  • Power Consumption (W): 100
  • Standby Consumption (W): 0.2
  • CEC Standby Consumption (W): 0.5
  • Network Standby Consumption (W): Less than 2.0
  • Maximum Dimensions:
    • W/o Antenna (W x D x H) in inches: 17.4 x 19.8 x 7.4
  • Weight (lbs.): 37.0
  • What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord

Marantz AV 10 Q&A:

Is the Marantz AV 10 a receiver with built-in amplification?

No. AV 10 is a pre-amplifier/processor, so it requires external power amplification to drive speakers.

How many channels can the AV 10 process for immersive surround sound?

It supports up to 15.4 channels of processing, enabling advanced multi-speaker layouts for Dolby Atmos, DTS:X Pro, and more.

How many subwoofers can I connect, and are they independent?

You can connect up to four subwoofers, and the outputs are independent for more flexible bass setup and tuning.

Does it support 8K video and next-gen gaming features?

Yes. It supports 8K/60 and 4K/120 pass-through with gaming features like ALLM, VRR, and QFT, plus broad HDR support.

How many HDMI inputs and outputs does it have?

It includes 7 HDMI inputs and 3 HDMI outputs, with eARC support via HDMI.

What room calibration is included, and can it be upgraded?

It includes Audyssey MultEQ XT32 and is Dirac Live upgradable (upgrade).

Can I stream music directly from the AV 10?

Yes. With HEOS Built-in, it supports popular streaming services, AirPlay 2, Spotify Connect, and high-resolution playback including DSD.

Is it friendly for custom installation and control systems?

Yes. It supports IP control, RS-232, web control, app control, plus DC triggers and multi-zone capabilities.

Marantz AV 10 Downloads:

Marantz AV10 User Guide
Marantz AV10 Info Sheet

Marantz AV 10 Video:
