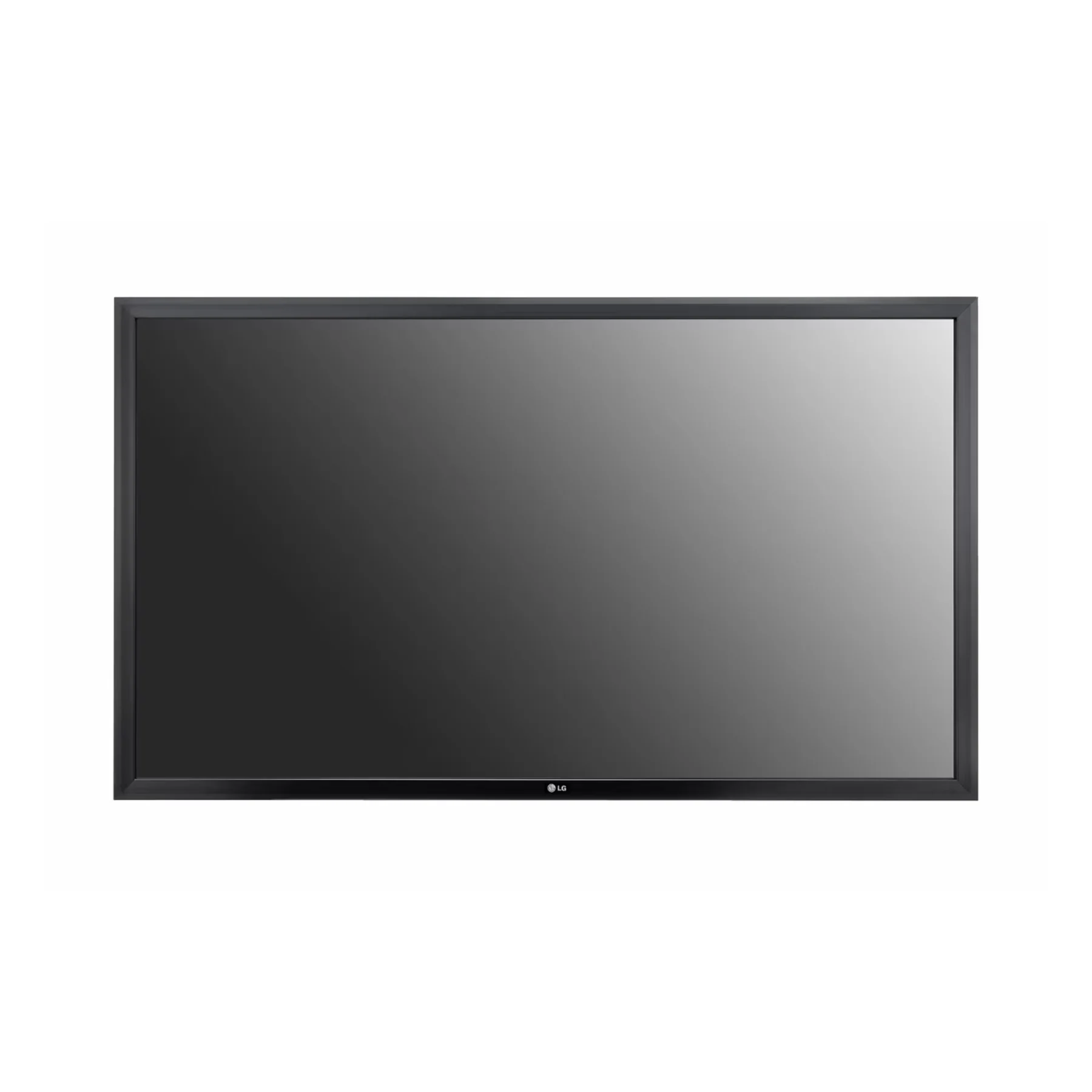

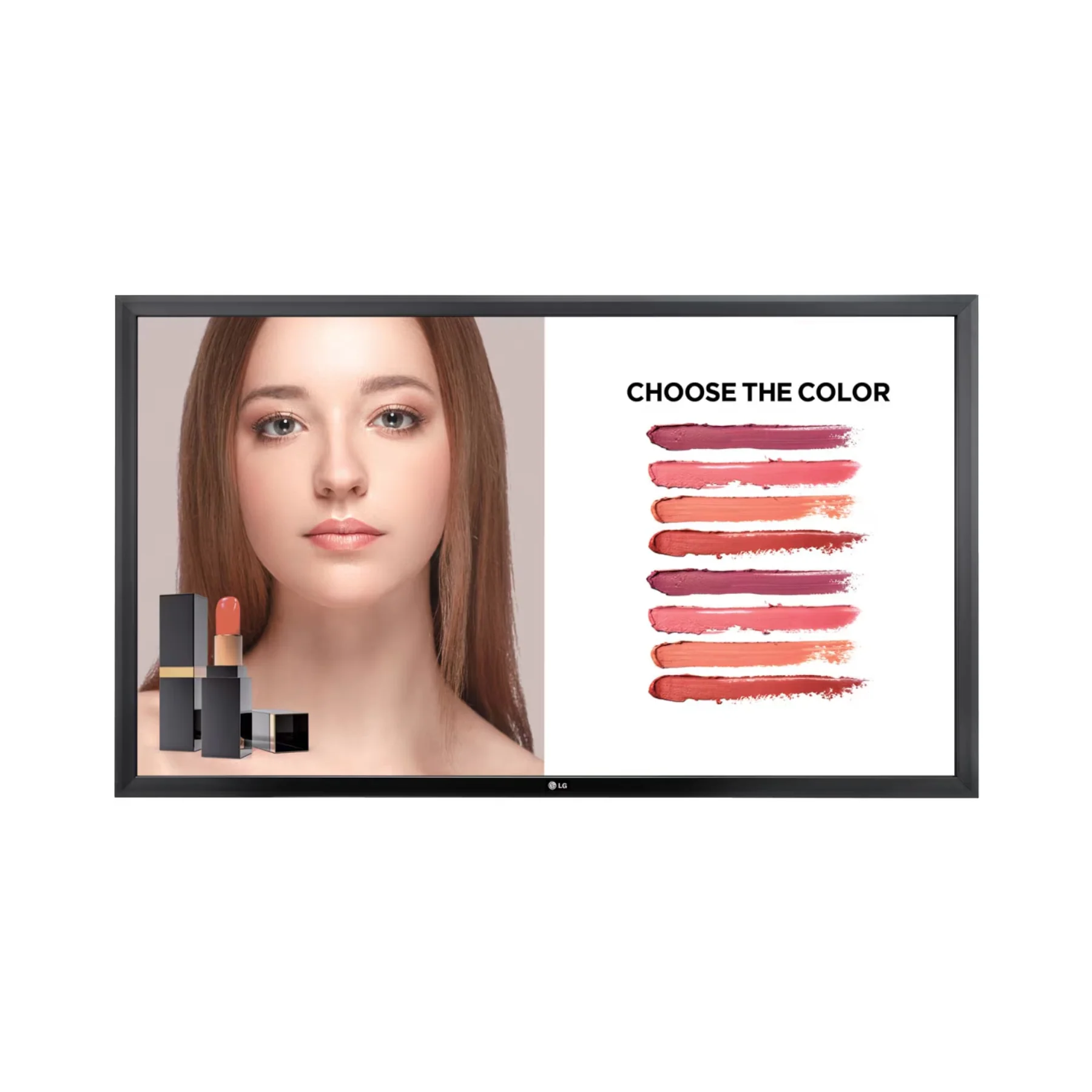

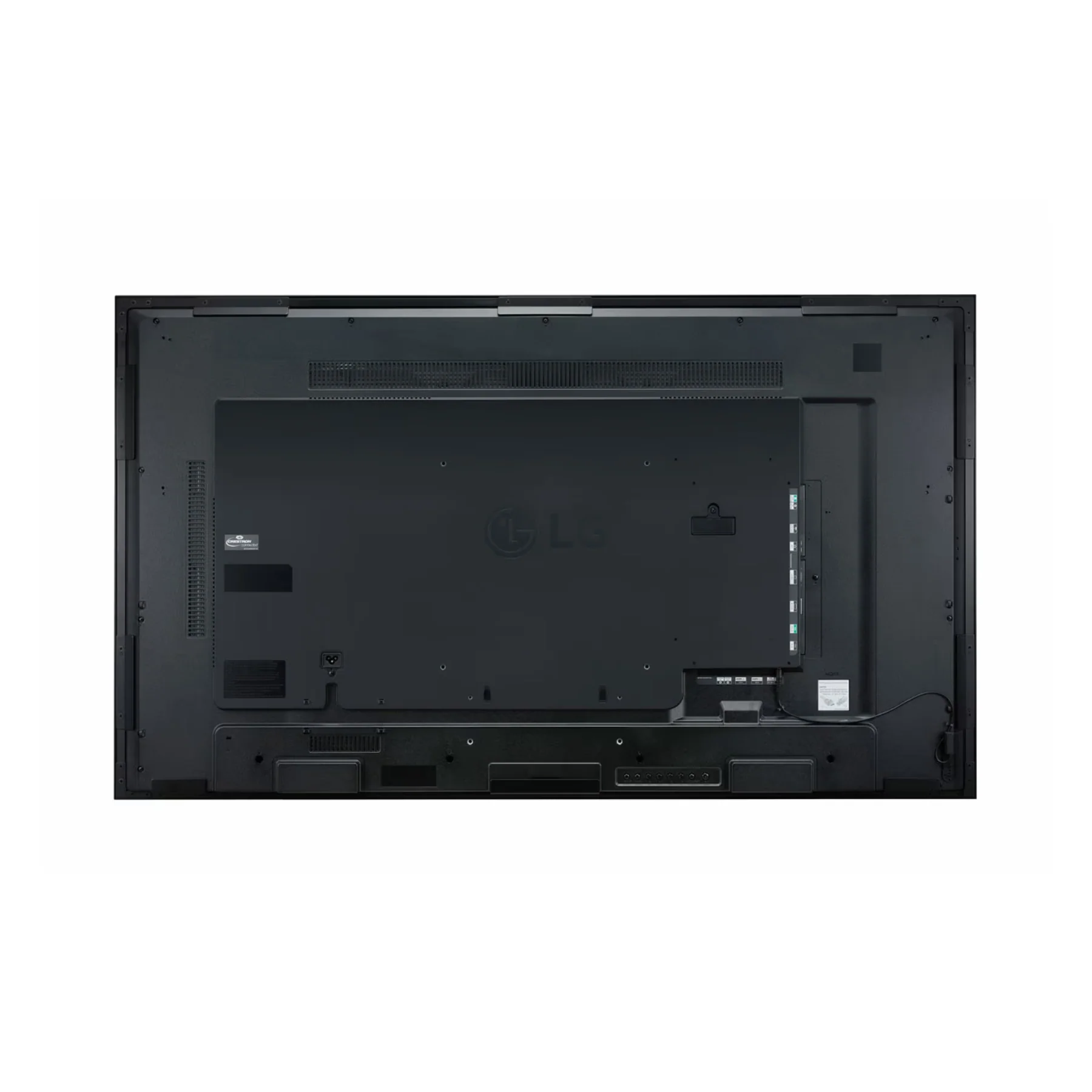

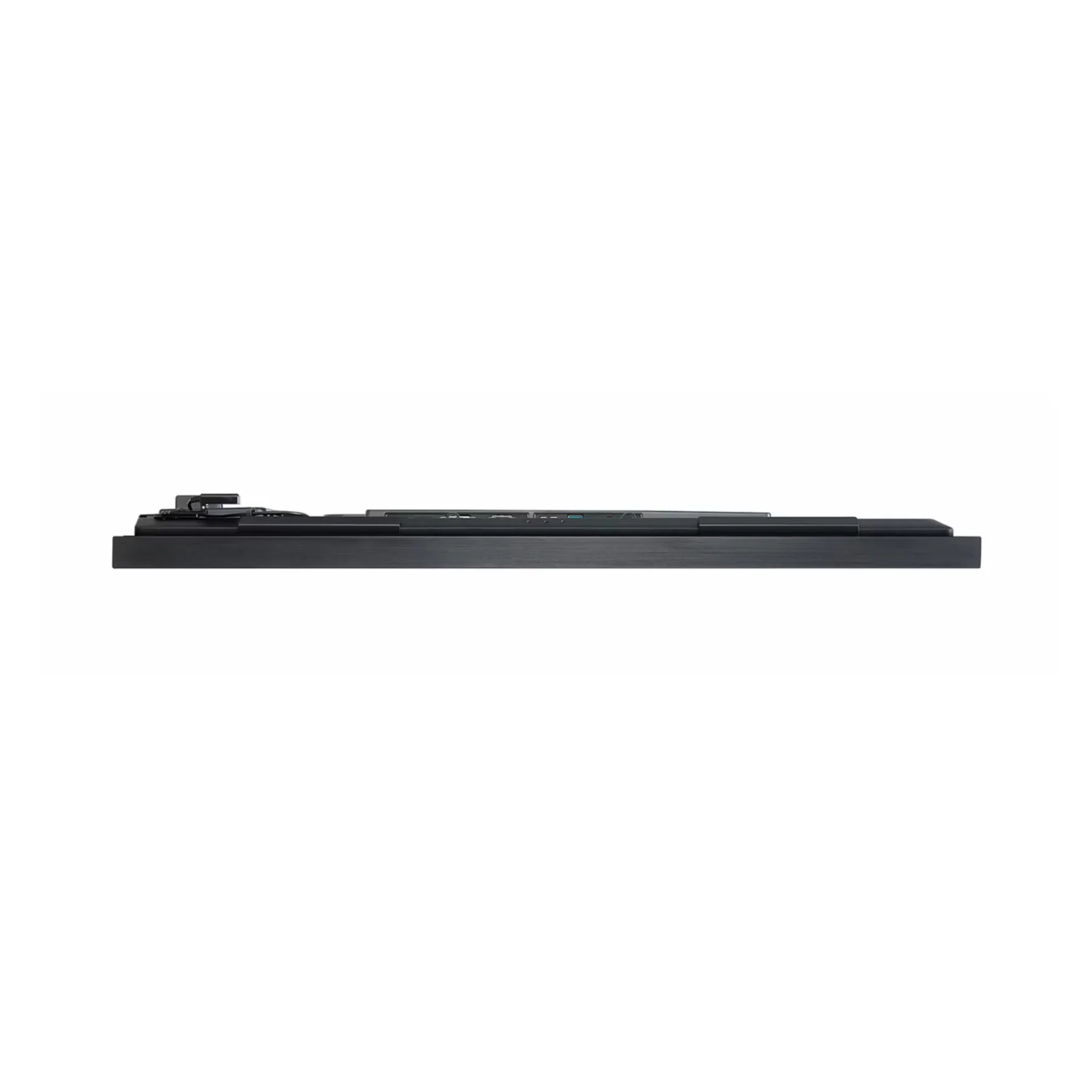

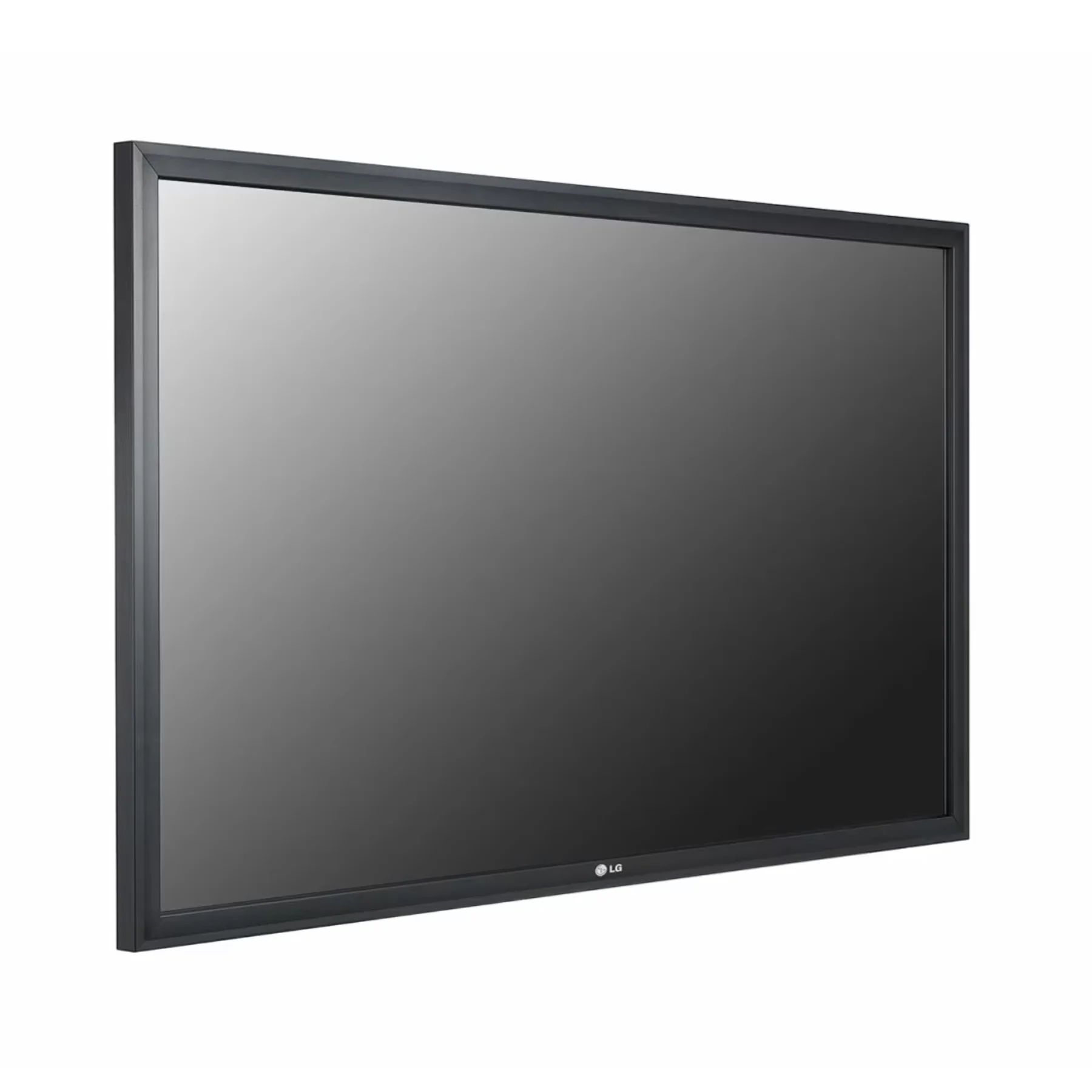

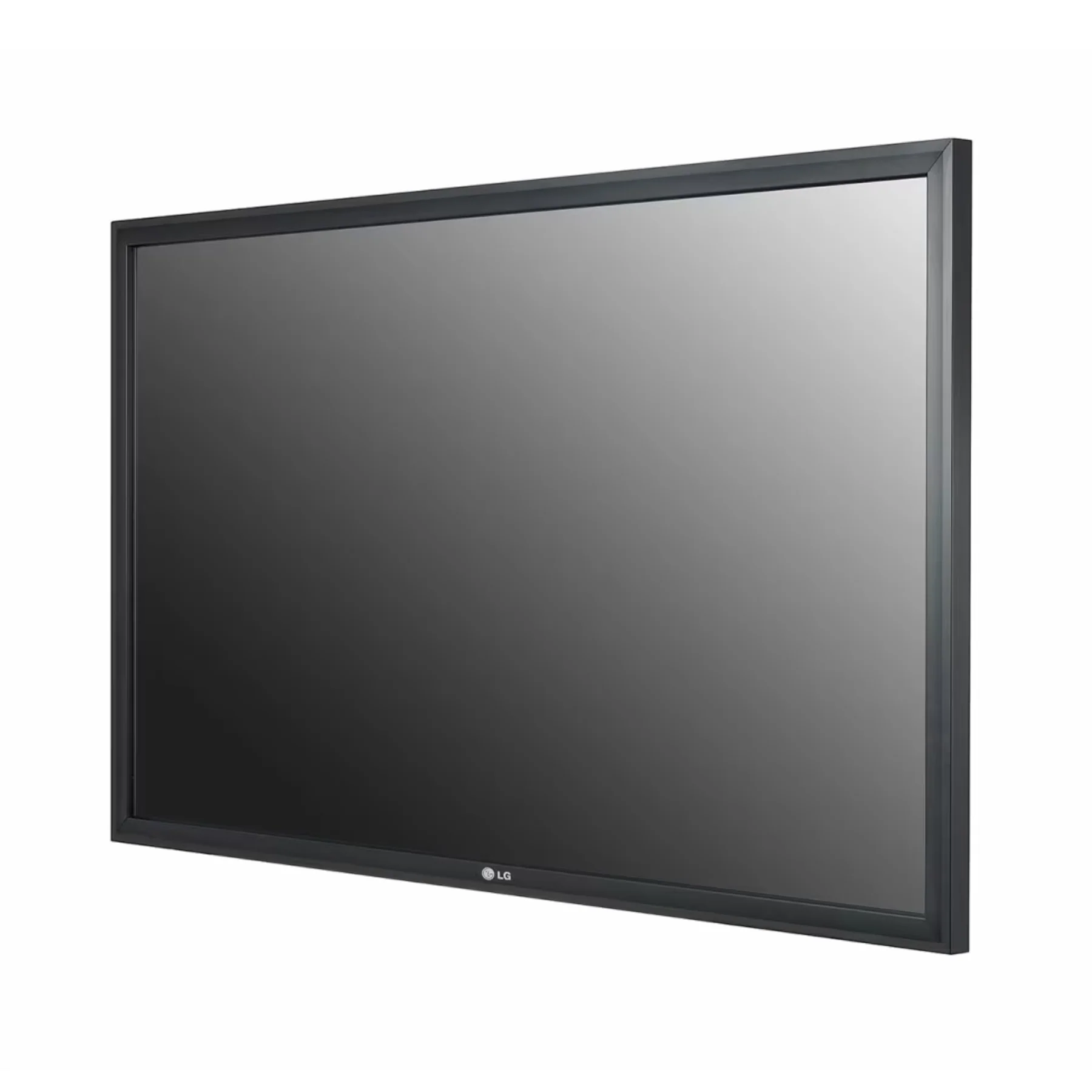

LG 55" Class TA3E Series - Effective Customer Engagement with Touch Display (55TA3E-B) - Clearance / Open Box
LG 55" Class TA3E Series - Effective Customer Engagement with Touch Display (55TA3E-B) - Clearance / Open Box
TA3E - All-in-one Touch Experience
The LG touch display TA3E series offers an all-in-one touch experience powered by a webOS Smart Signage Platform. The built-in touch capability and
embedded writing app facilitates powerful and meaningful interactions between customers and your brand.
- Floating Tool Bar
- SoC and LG webOS
- IDB App for Efficient Collaboration
- LG FHD Technology
- LG IPS Panel with Wide Viewing Angles and True Color
- Auto Signal/Touch Switching
Built-in Interactive Touch
The TA3E series is a built-in touch display that provides immediate touch experiences without the need to purchase any separate overlay touch accessories. Various touch-based solutions can be applied for customer interactions to promote your brand, with a maximum of 10 touch points supported.
Embedded Writing Solution
The LG IDB, the embedded writing application, offers an all-in-one solution for advanced customer engagement. No separate PC or software is necessary for white board performance, so operators can easily create two-way communication channels.
User-friendly Smart Platform
The LG webOS smart platform supports web-based HTML5 and offers an SDK, allowing system integrators to easily build their own apps for customer solutions. Also, the platform enhances user convenience with an intuitive UI optimized for business purposes.
Compatibility with AV Control System
The TA3E series is compatible with network-based AV control systems, with which users can easily manage, monitor and control LG commercial displays from one location.
Beacon Supported
With Beacon and Bluetooth Low Energy (BLE) support, the TA3E series enables stores to provide coupons and information in real-time, which increases interactivity with customers at the moments when it most counts.
Easy Touch Navigator on Display
The touch menu is a pop-up menu introduced to improve user-friendliness. Users can run a desired function or change the from anywhere by softly pressing the screen to call up the touch menu. The SI Folder within the menu is especially designed to gather and show customized apps, making it easy for users to find and use them.
Auto Signal Switching
The failover function enables the display to detect the available input signals and automatically change the source when the current signal is disconnected. It can also change the source when higher priority signals are connected. Users can prepare backup sources to account for any unexpected errors.
Multi Screen with PBP/PIP
PBP features multiple screens in a single display with up to 2 input sources, thus maximizing usability of the screen. In addition, PIP supports playing both main screen and sub screen at the same time with various layouts, so presenters can arrange many different usage scenarios efficiently.
Superior Picture Quality with IPS
The LG IPS panel has a wide viewing angle that delivers clear content, no matter where viewers see content on the display. Moreover, every pixel in the IPS panel truly reproduces the image colors without distorting them.
Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Specifications:
PANEL
Screen Size: 55"
Brightness (Module, Typ., cd/m²): 450
CONNECTIVITY

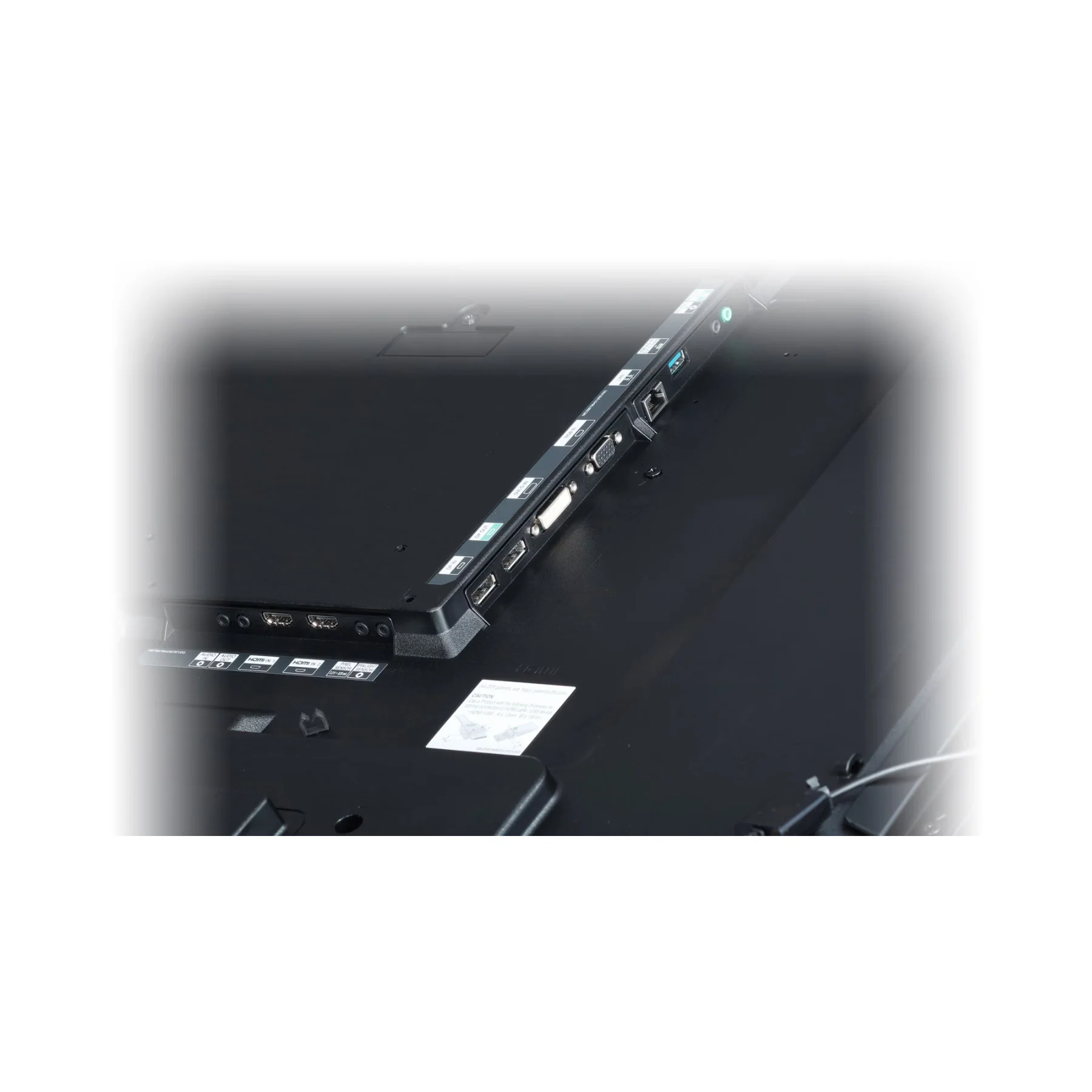

Input: HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
Output: DP, Audio Out
External Control: RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
PHYSICAL SPECIFICATION
Carton Dimensions (W x H x D): 1,410 x 880 x 207 mm / 55.5" x 34.6" x 8.1"
Monitor Dimension (W x H x D): 1,278 x 748.8 x 71.4 mm / 50.3" x 29.8" x 2.8"
Weight (Head): 28.0 kg / 61.7 lbs
Bezel Width: 32.7 mm (Even)
VESA TM Standard Mount Interface: 300 x 300 mm
Bezel Color: Black
Packed Weight: 33 kg / 72.8 lbs
ENVIRONMENT CONDITIONS
Operating Humidity Range: 10 % to 80 %
Operating Temperature Range: 0°C to 40°C / 32°F to 104°F
SOFTWARE COMPATIBILITY
Control and Monitoring Software: SuperSign Link
Content Management Software: SuperSign CMS
ACCESSORY
Basic: Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
Optional: Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT- OPSA), HDBaseT (EB-B100)
TOUCH
Touch Type: IR (Scattering)
Protection Glass Thickness: 2.8T (Anti-glare)
Multi touch point: Max 10 Points
Interface: USB 2.0
Operating System Support: Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
Scan Time: 10 ms ↓
Spec Sheet
Original: $2,099.00
-65%$2,099.00
$734.65More Images
