Klipsch RW-5802 II In-Wall Subwoofer
Klipsch RW-5802 II In-Wall Subwoofer
The Klipsch RW-5802 II In-Wall Subwoofer delivers powerful, room-filling bass without sacrificing floor space—making it an ideal choice for architectural home theater and high-performance two-channel systems. Built as a high-powered passive in-wall subwoofer module, it features a sealed integrated enclosure designed to minimize sound transfer while maintaining tight, accurate low-frequency impact. Its dual 8-inch long-throw Cerametallic woofers provide fast, distortion-resistant bass response for explosive movie effects and clean musical depth. For proper performance, the RW-5802 II is designed to be used only with the Klipsch RSA-500 dedicated subwoofer amplifier (sold separately). The Klipsch RW-5802 II is part of ListenUp's Klipsch In Wall Speakers Collection.
What It's Good At:
- Delivering deep, impactful bass while staying completely out of sight
- Producing tight, musical low frequencies with fast transient response
- Anchoring a premium in-wall home theater with clean LFE performance
- Handling high output demands thanks to dual long-throw 8" drivers
- Fitting standard 2" x 4" construction for flexible new-build or retrofit installs

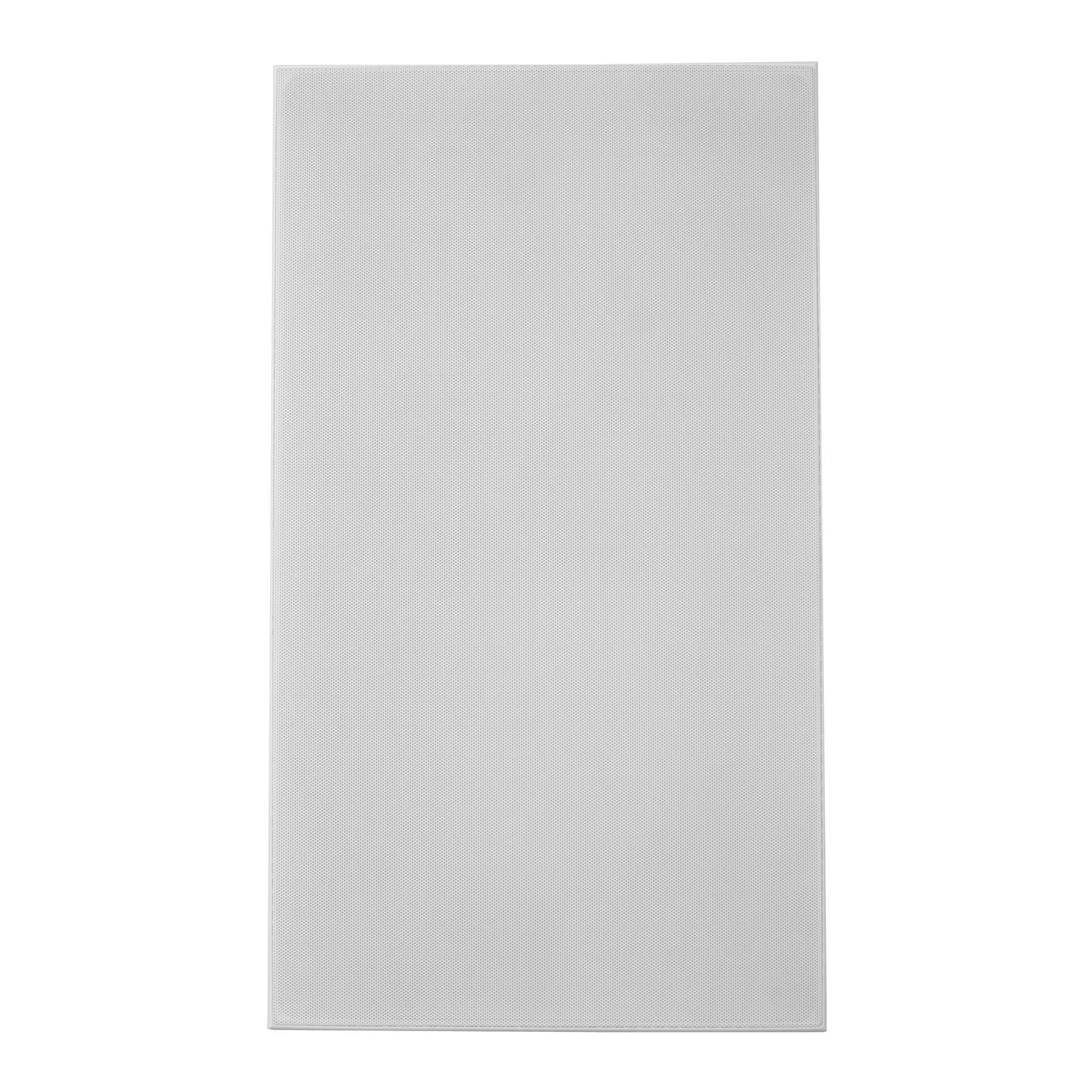

- Blending into any room with a flat, magnetic, paintable grille
Klipsch RW-5802 II Full Specifications:
- Frequency Response: 45 Hz – 140 Hz ± 4 dB
- Sensitivity: 90 dB @ 1 watt / 1 meter
- Nominal Impedance: 8 ohms

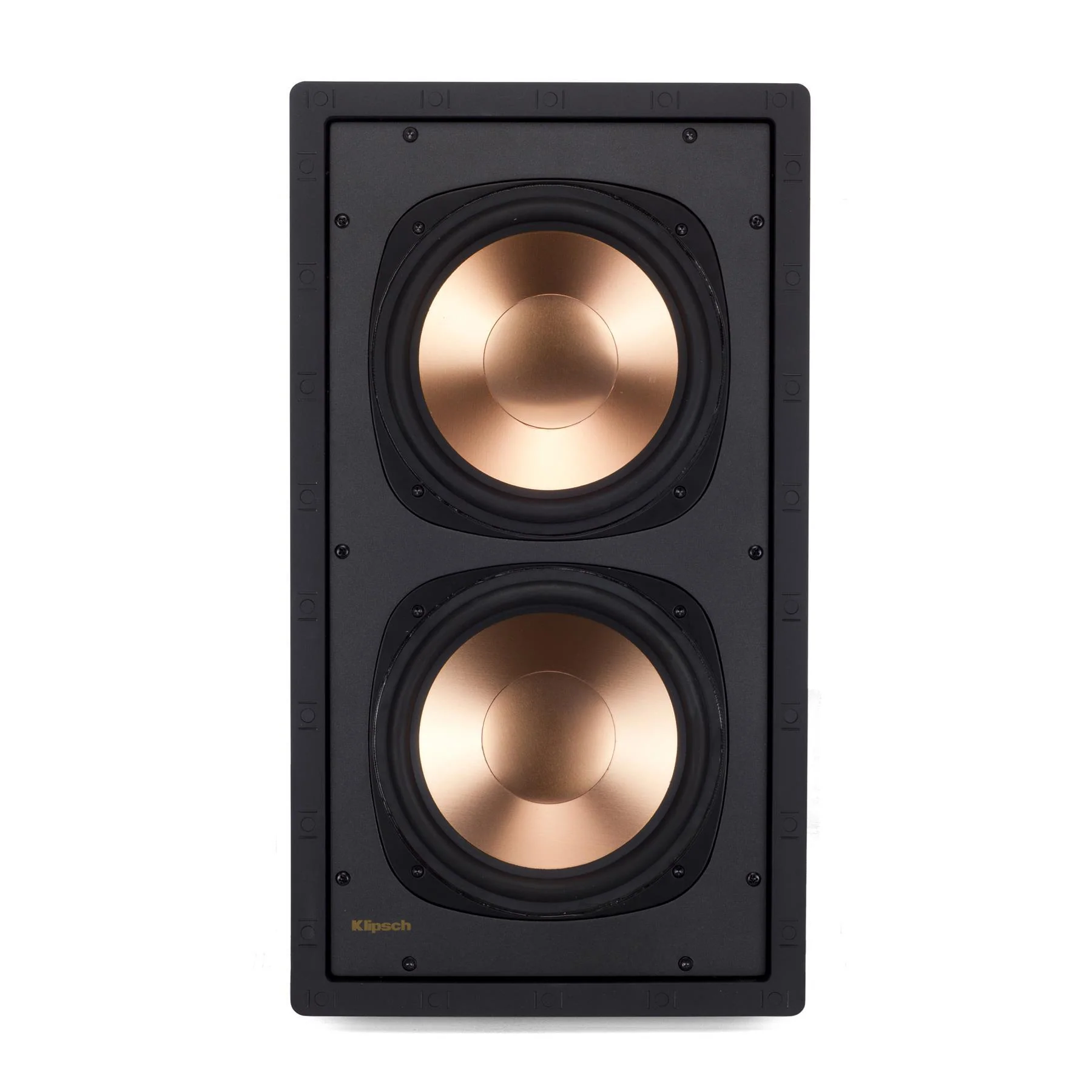

- Low Frequency Driver: Dual 8" (20.3 cm) front-firing Cerametallic cone, cast aluminum frame drivers
- Enclosure Type: Sealed enclosure
- Enclosure Material: Sealed: MDF baffle, ABS shell
- Amplifier Requirement: Use only with RSA-500
- Amplifier Power: See RSA-500 specifications
- Hole Dimension (Cutout): 19" (48.3 cm) H x 10" (25.4 cm) W
- Overall Height: 20.8" (52.8 cm)
- Overall Width: 11.8" (29.9 cm)
- Depth: 3.7" (9.4 cm)
- Weight: 22 lbs (10 kg)
- Finish: White
- Built From: 2015
Klipsch RW-5802 II Q&A:
- Is the RW-5802 II a powered subwoofer?
- No. It’s a passive in-wall subwoofer module and must be used with the Klipsch RSA-500 amplifier.
- Which amplifier is required for the RW-5802 II?
- Klipsch specifies using the RW-5802 II only with the dedicated RSA-500 subwoofer amplifier.
- What makes this subwoofer a good fit for architectural home theaters?
- It delivers strong low-frequency effects while installing in-wall, keeping the room clean and freeing up floor space.
- What drivers are used in the RW-5802 II?
- It uses dual 8-inch front-firing Cerametallic long-throw woofers designed for clean, high-output bass.
- What are the cutout dimensions for installation?
- The required cutout (hole dimension) is 19" H x 10" W.
- How deep is the RW-5802 II once installed?
- The enclosure depth is 3.7", making it well-suited to standard in-wall applications.
- Will it match my room’s decor?
- Yes. It includes a flat, magnetic, paintable steel grille designed to blend into nearly any wall finish.
- What kind of bass performance should I expect?
- It’s tuned for tight, impactful bass with a rated frequency response of 45 Hz–140 Hz, ideal for punchy musical lows and home theater effects.
Klipsch RW-5802 II Downloads
Klipsch RW-5802 II Spec Sheet
Klipsch RW-5802 II Manual
Original: $839.99
-65%$839.99
$294.00More Images
