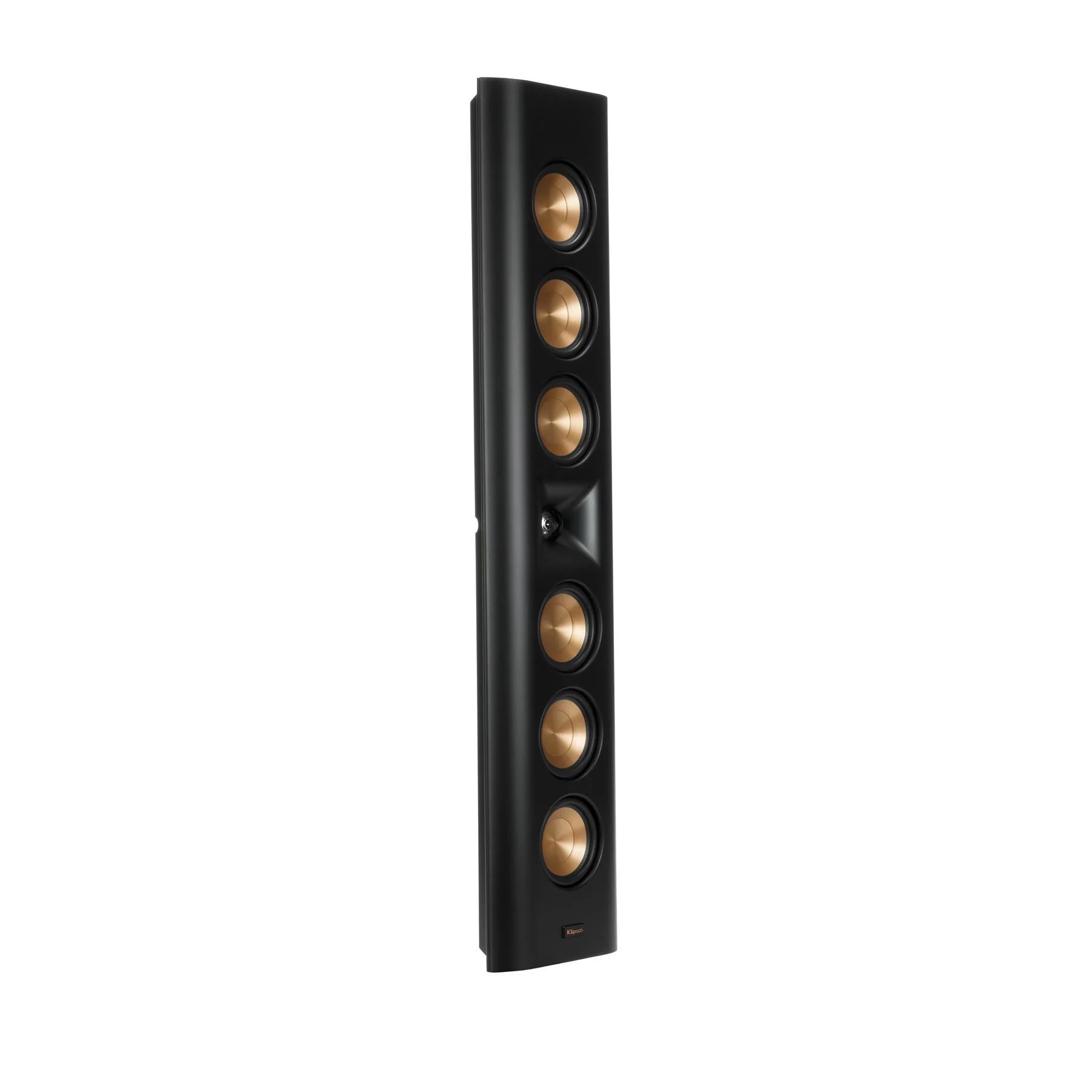

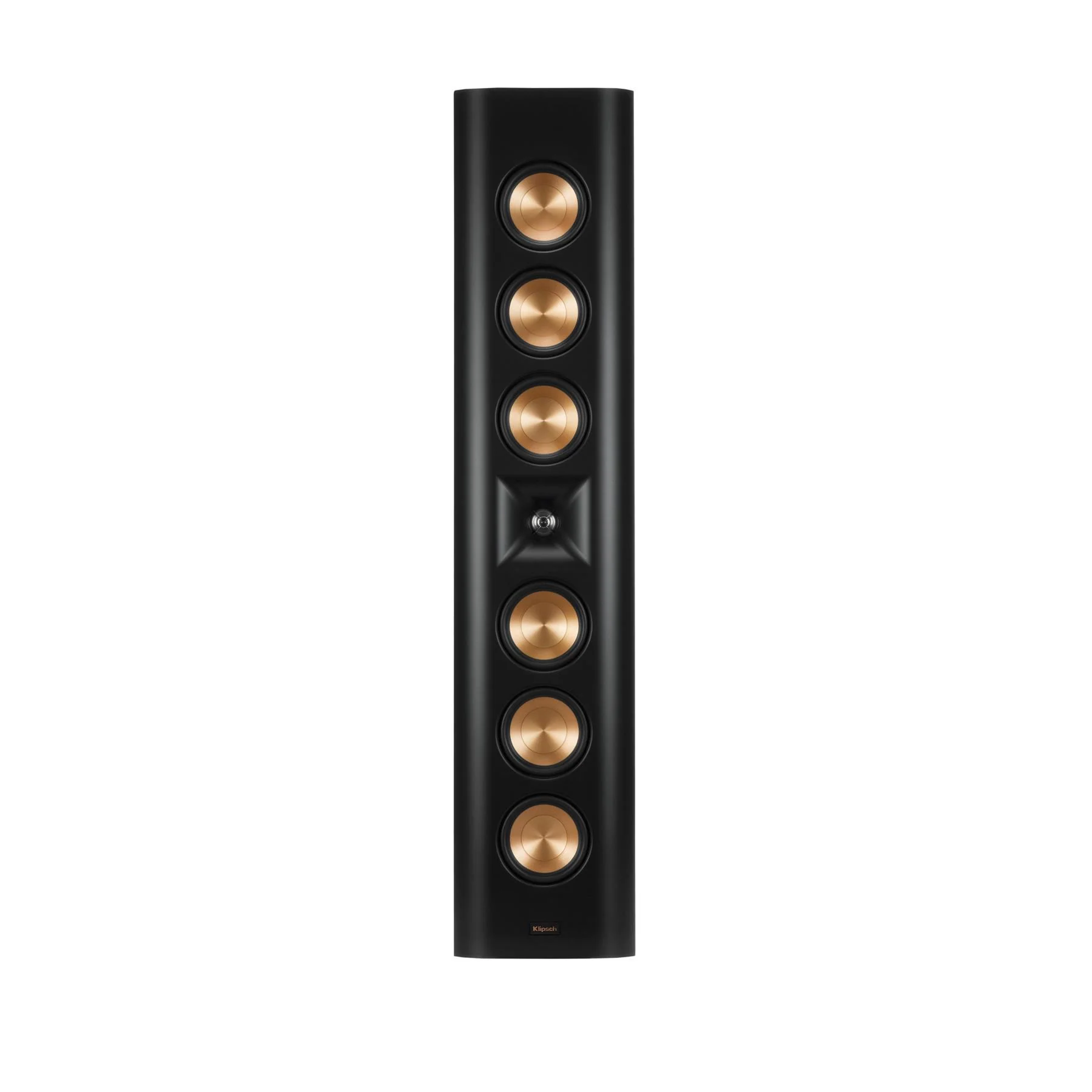

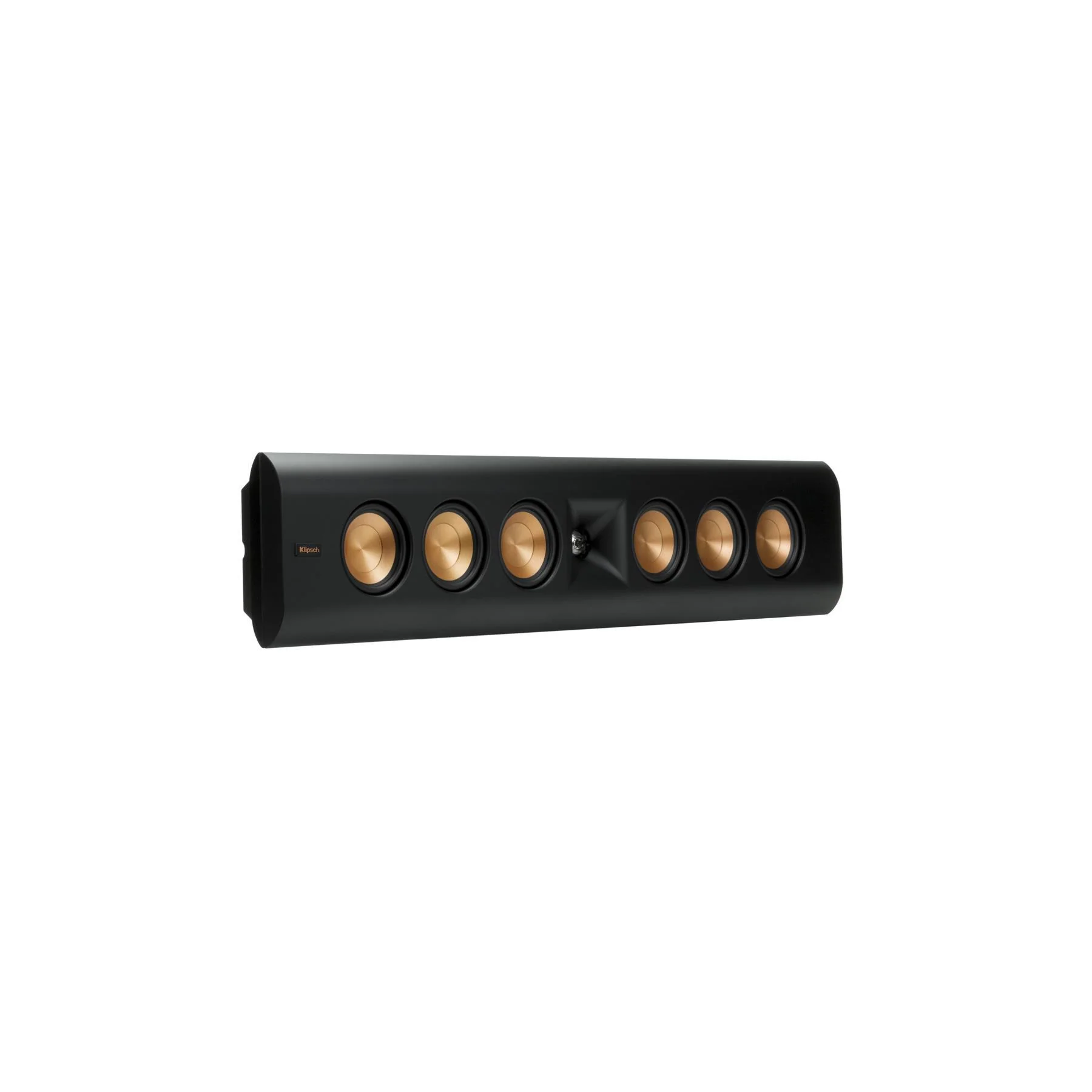

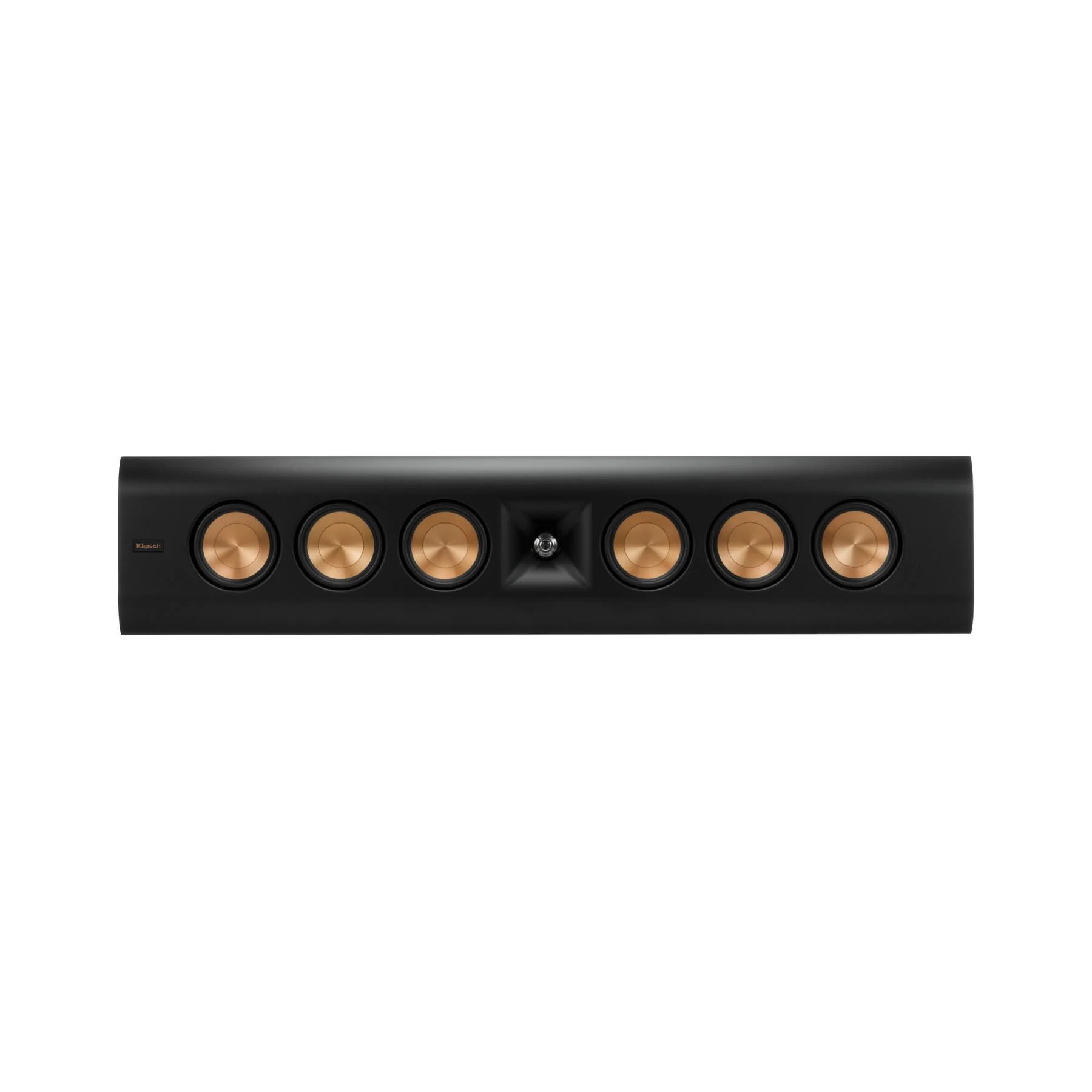

Klipsch RP-640D On-Wall Speaker - Reference Premiere Designer Series
RP-640D On-Wall Speaker

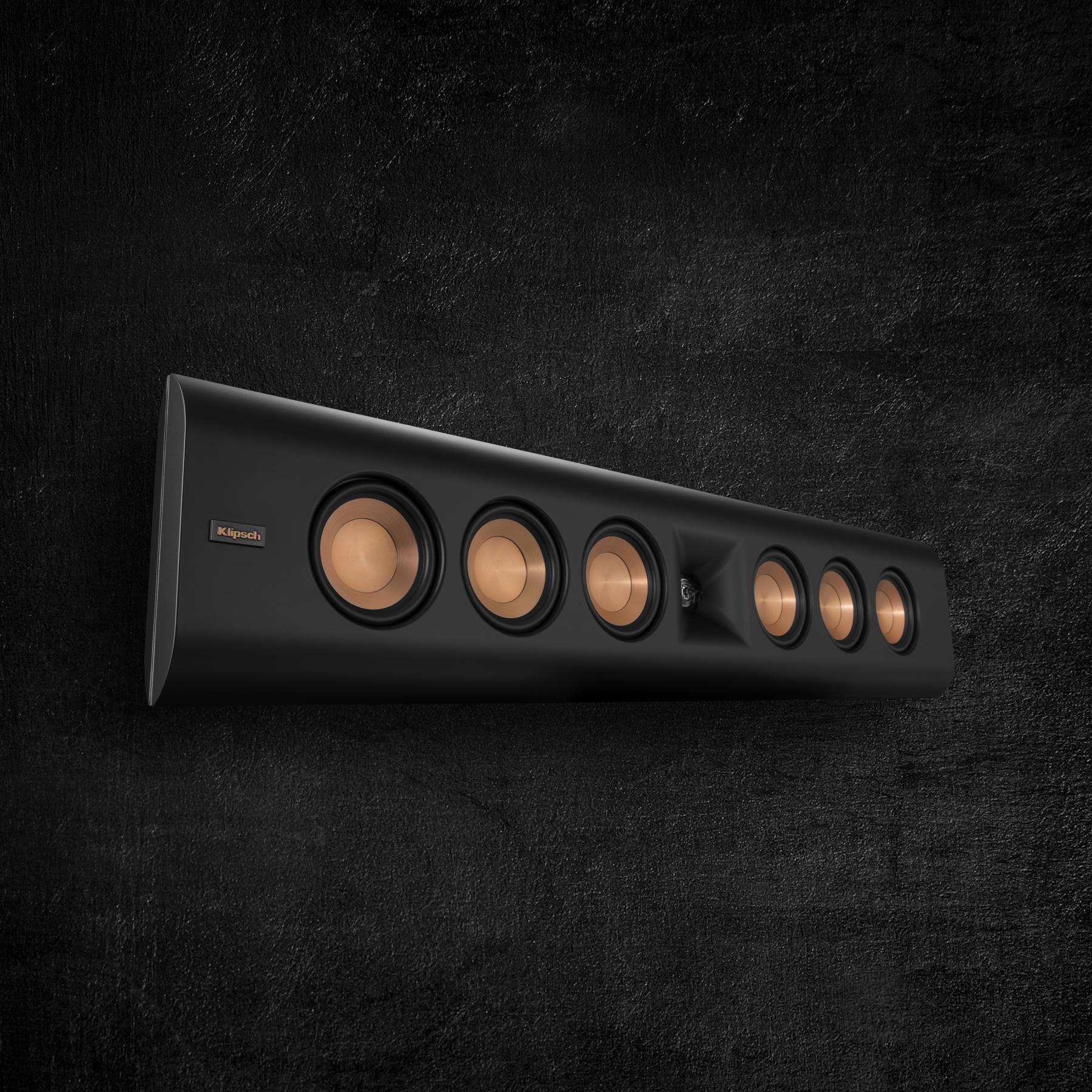

The Klipsch RP-640D Reference Premiere Designer On-Wall Speaker delivers the dynamic, detailed, high-output sound Klipsch is known for in a slim, wall-hugging cabinet that fits modern spaces and ultra-flat TVs. Built for bigger rooms and serious home theater impact, it combines a 90°x90° Tractrix® horn with a 1" titanium LTS tweeter for crisp dialogue, precise imaging, and effortless clarity at any volume. Dual 3.5" spun-copper Cerametallic™ active woofers plus four matching passive radiators add punch and fullness, while the matte black painted finish and wrap-around magnetic grille keep the look clean and contemporary. Mount it vertically or horizontally for left/right, center, or surround duty—or use the included glass base for a premium tabletop install when floor and shelf space matter. The Klipsch RP-640D is part of the Reference Premiere Designer On-Wall Series.
What It's Good At:
- Big, cinematic sound from a slim on-wall design that pairs perfectly with modern TVs
- Crisp, intelligible dialogue and detailed highs thanks to the LTS titanium tweeter + Tractrix horn
- Punchy, room-filling midbass using dual active woofers and quad passive radiators
- Flexible placement (horizontal or vertical) for LCR, surround, or multi-purpose theater layouts
- Clean, modern aesthetics with matte black finish and a wrap-around magnetic grille
- Easy installation options with secure keyhole mounting and an included glass base for tabletop use
RP-640D Full Specifications:
- Series: Reference Premiere Designer On-Wall
- Product Type: On-wall speaker (Reference Premiere Designer On-Wall series)
- Acoustic Design: Horn-loaded high frequency, bass reflex enclosure
- Frequency Response: 55Hz–25kHz ±3dB
- Sensitivity: 94dB @ 2.83V / 1m
- Power Handling (Continuous/Peak): 75W / 300W
- Nominal Impedance: 8 ohms compatible
- Crossover Frequency: 2200Hz
- High-Frequency Driver: 1" (2.54 cm) titanium dome Linear Travel Suspension (LTS) tweeter with 90° x 90° Tractrix horn
- Low-Frequency Driver: Dual 3.5" (8.89 cm) Cerametallic cone active woofers + Quad 3.5" (8.89 cm) Cerametallic cone passive radiators
- Enclosure Material: ABS
- Enclosure Type: Bass reflex

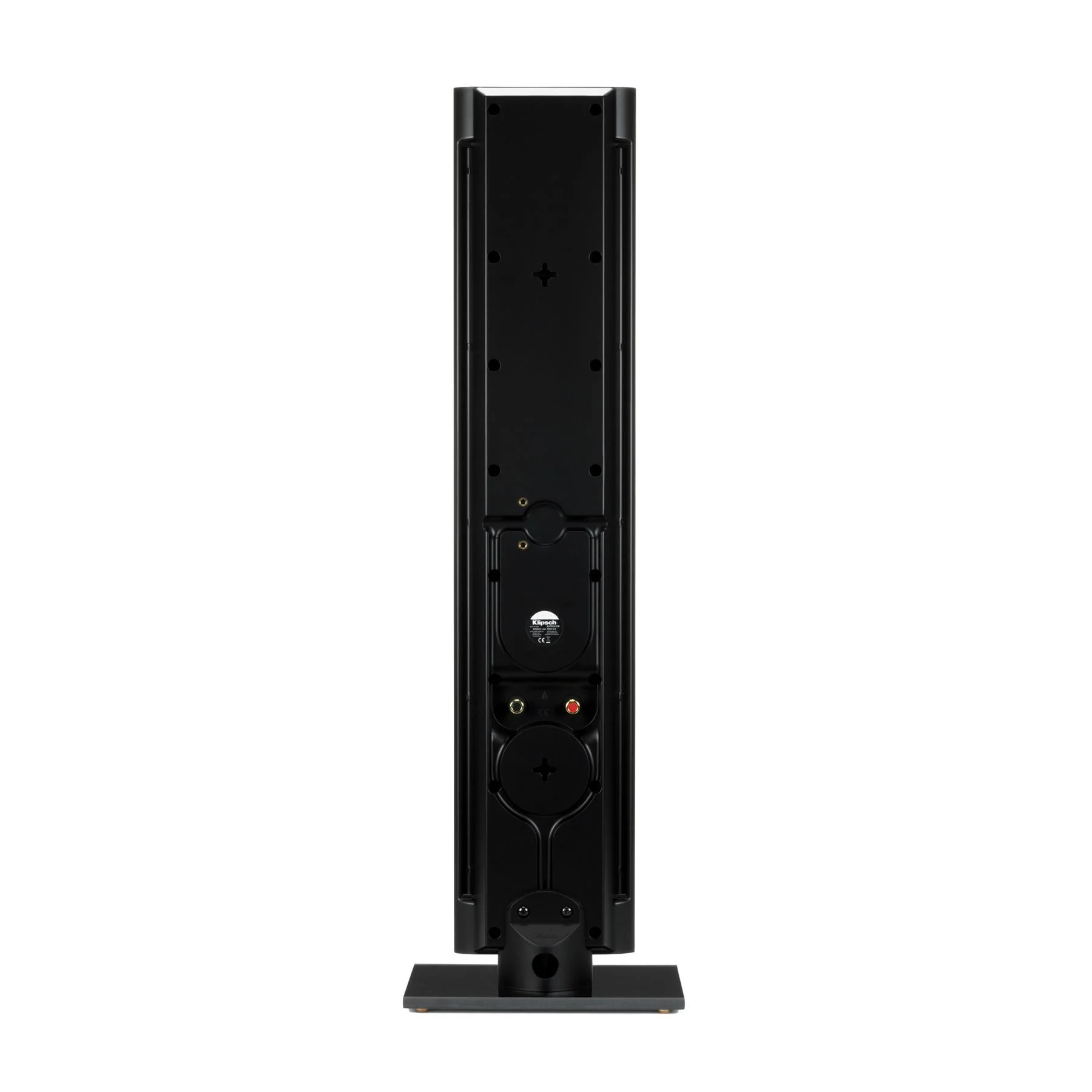

- Inputs: Single binding posts
- Mounting Orientation: Horizontal or vertical

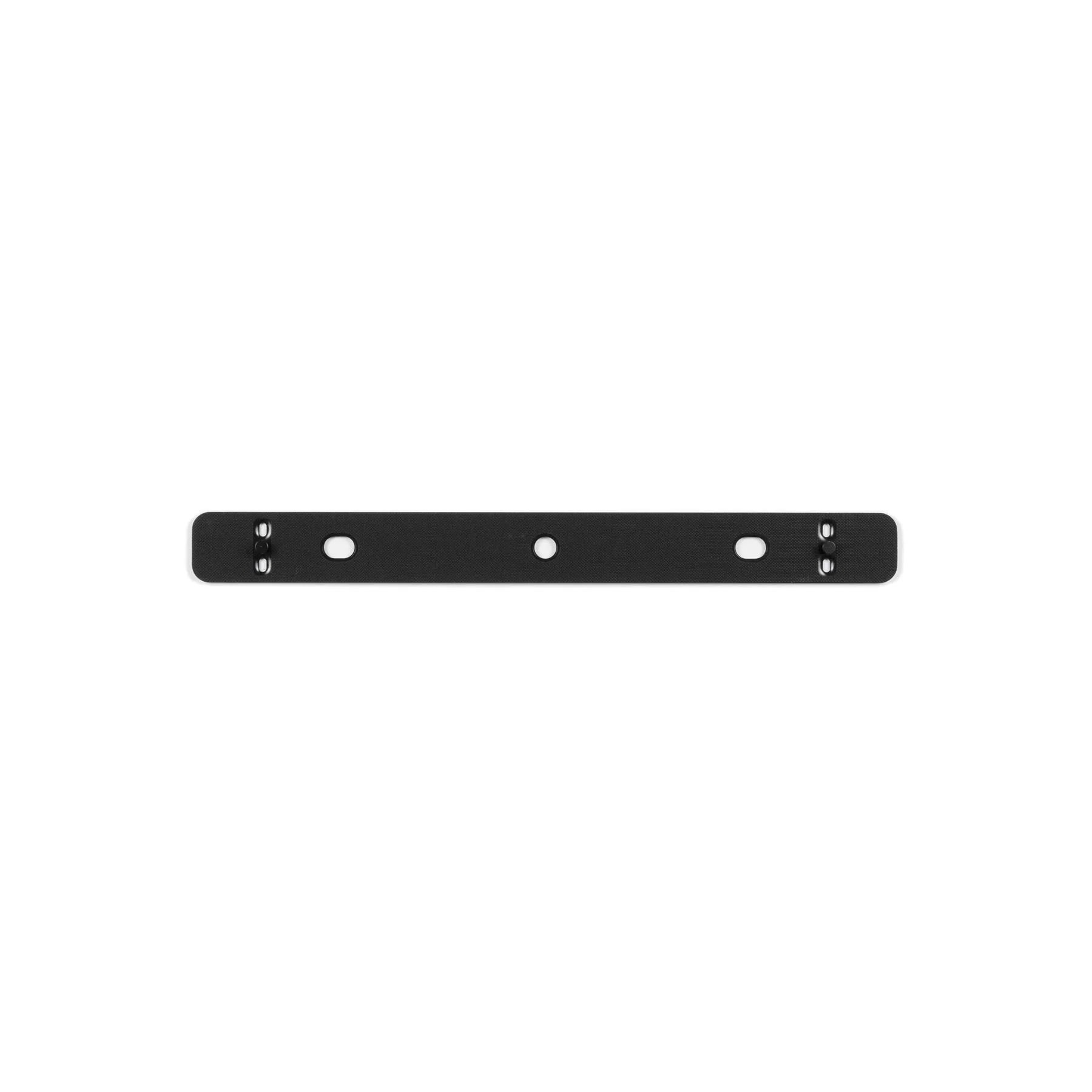

- Wall Mounting: Dual 4-way keyholes for secure on-wall mounting

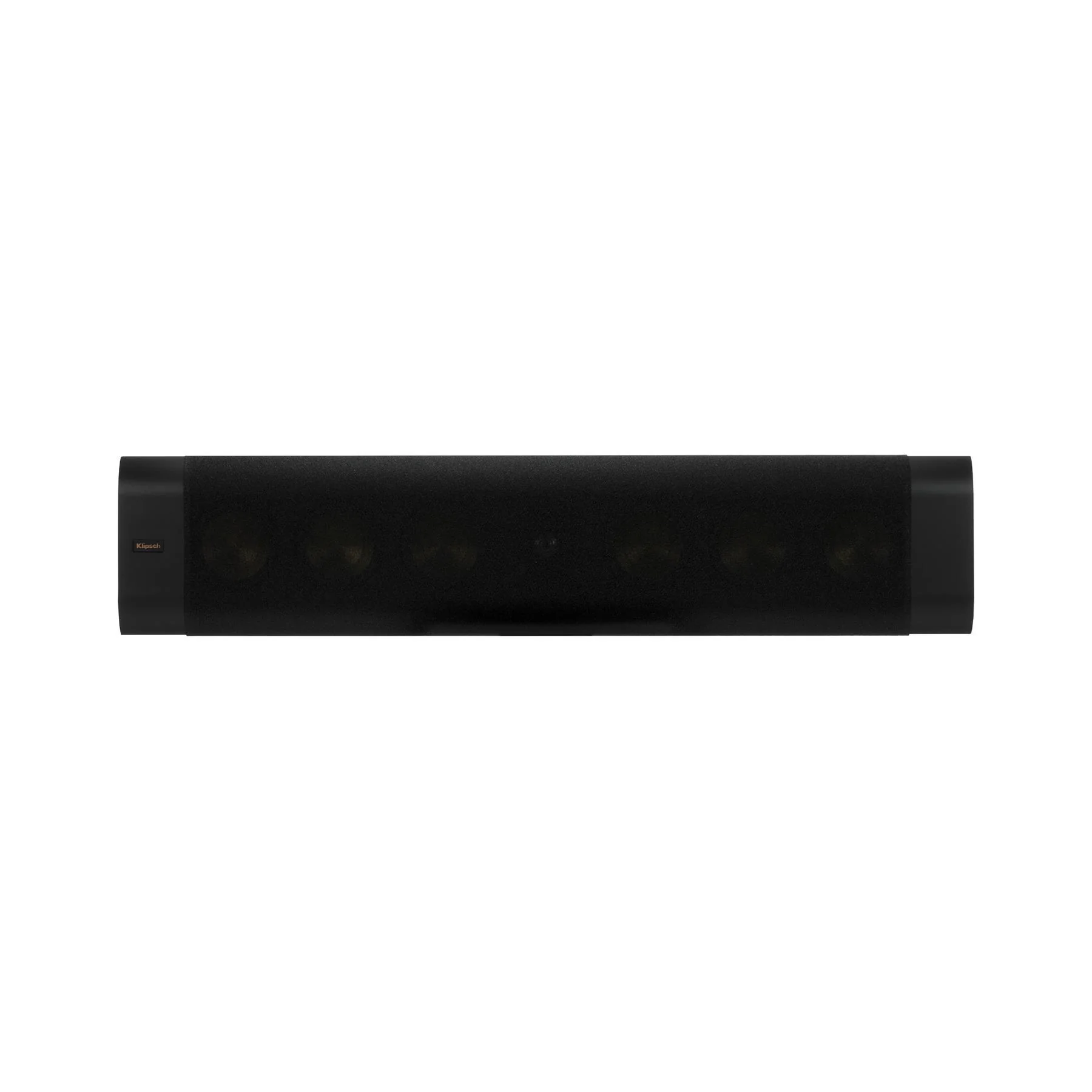

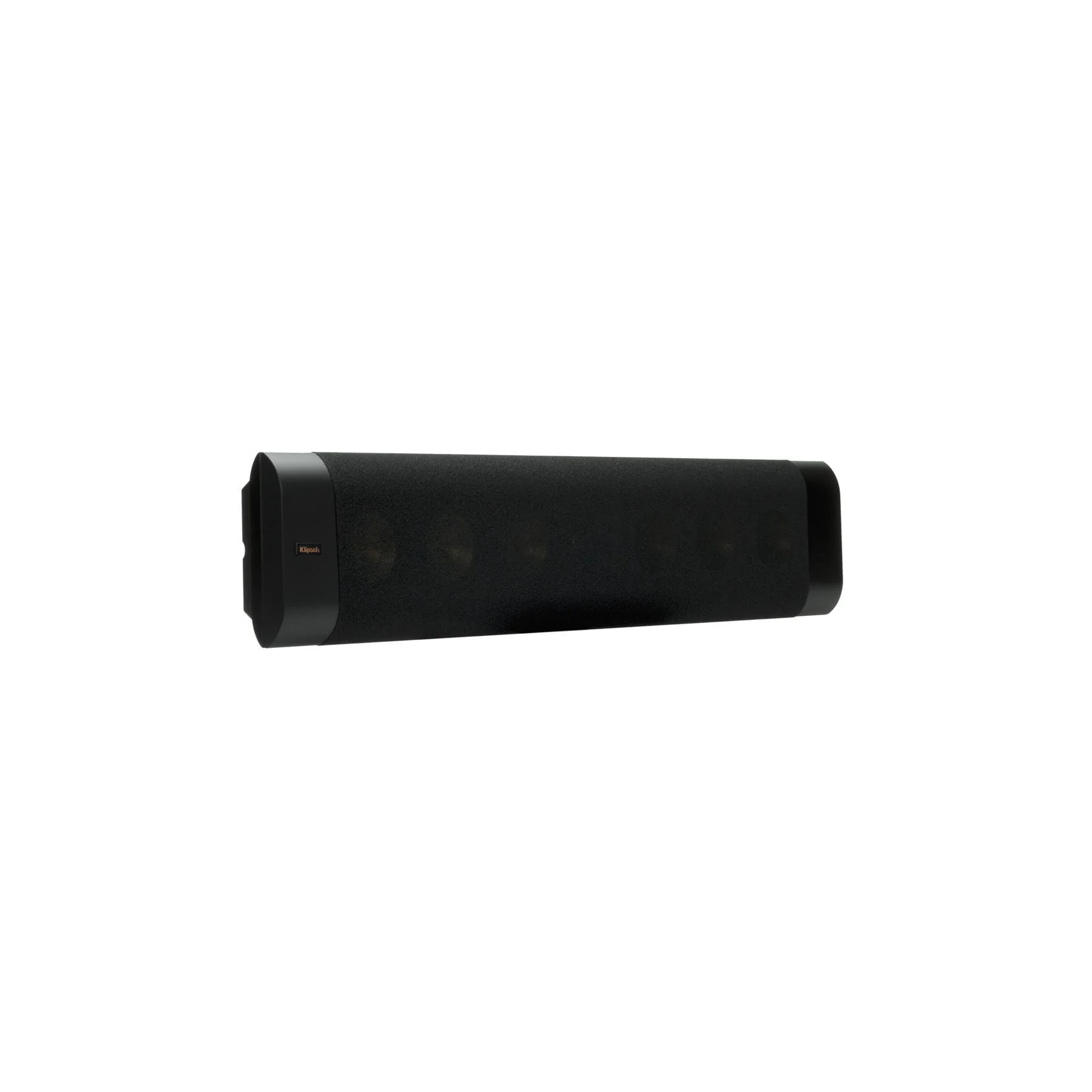

- Grille: Wrap-around magnetic grille

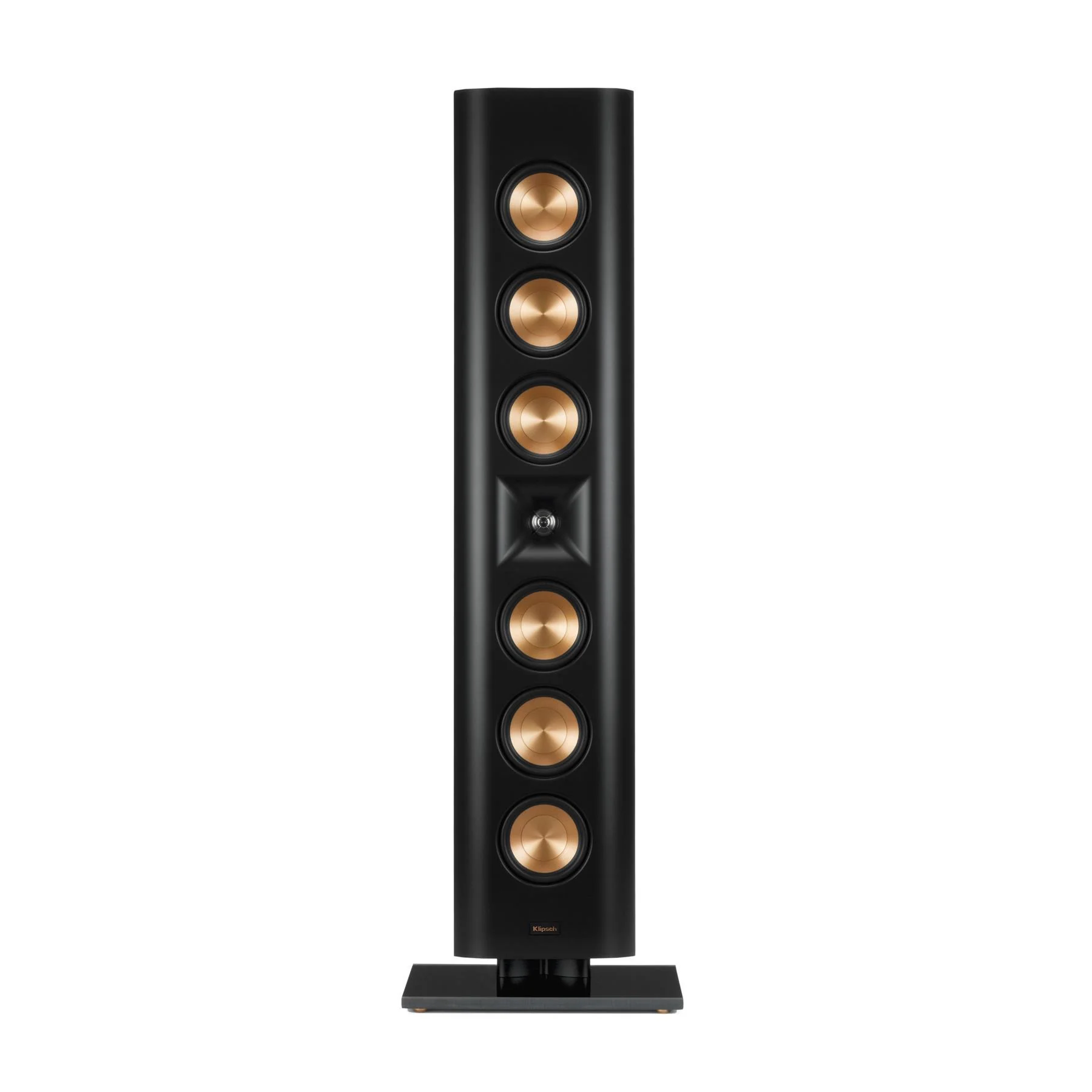

- Table/Stand Placement: Included glass base for tabletop/bookshelf mounting
- Finish: Matte black paint
- Height: 28.5" (72.39 cm)
- Width: 6" (15.24 cm)
- Depth: 2.4" (6.10 cm)
- Weight: 8 lbs (1.7 kg)
- Recommended Speaker Wire: 16-gauge or larger (installation guidance)
- Installation Notes: Do not ceiling-mount (installation guidance)
- Built From: 2017 (spec sheet listing)
RP-640D Q&A:
- Can the RP-640D be used as a center channel speaker?
- Yes. It can be mounted horizontally and works well as a center channel for clear dialogue and anchored on-screen sound.
- Can I mount the RP-640D vertically or horizontally?
- Yes. The RP-640D supports both vertical and horizontal mounting, making it flexible for left/right, center, or surround positions.
- What makes this different from a typical on-wall speaker?
- It uses Reference Premiere horn-loaded technology plus a titanium LTS tweeter and Cerametallic drivers, designed to deliver a more dynamic, detailed, high-output sound than many slim on-wall speakers.
- Does it include anything for tabletop placement?
- Yes. It includes a glass base for a premium tabletop, stand, or bookshelf installation.
- Is the grille removable?
- Yes. The RP-640D uses a wrap-around magnetic grille for a clean look and easy removal.
- What amplifier/receiver impedance is it compatible with?
- It’s 8-ohm compatible, making it a straightforward match for most AV receivers and amplifiers.
- How much power can it handle?
- It’s rated at 75W continuous / 300W peak, providing strong output headroom for movies and music.
- Is there any recommended clearance when mounting near a TV?
- Yes. Installation guidance recommends leaving at least 1 inch of space between the speaker cabinet and the TV.
Klipsch RP-640D Downloads
Klipsch RP-640D Spec Sheet
Klipsch RP-640D Manual
Klipsch RP-640D Product Dimensions
