Klipsch RP-240D On-Wall Speaker - Reference Premiere Designer On-Wall

RP-240D On-Wall Speaker

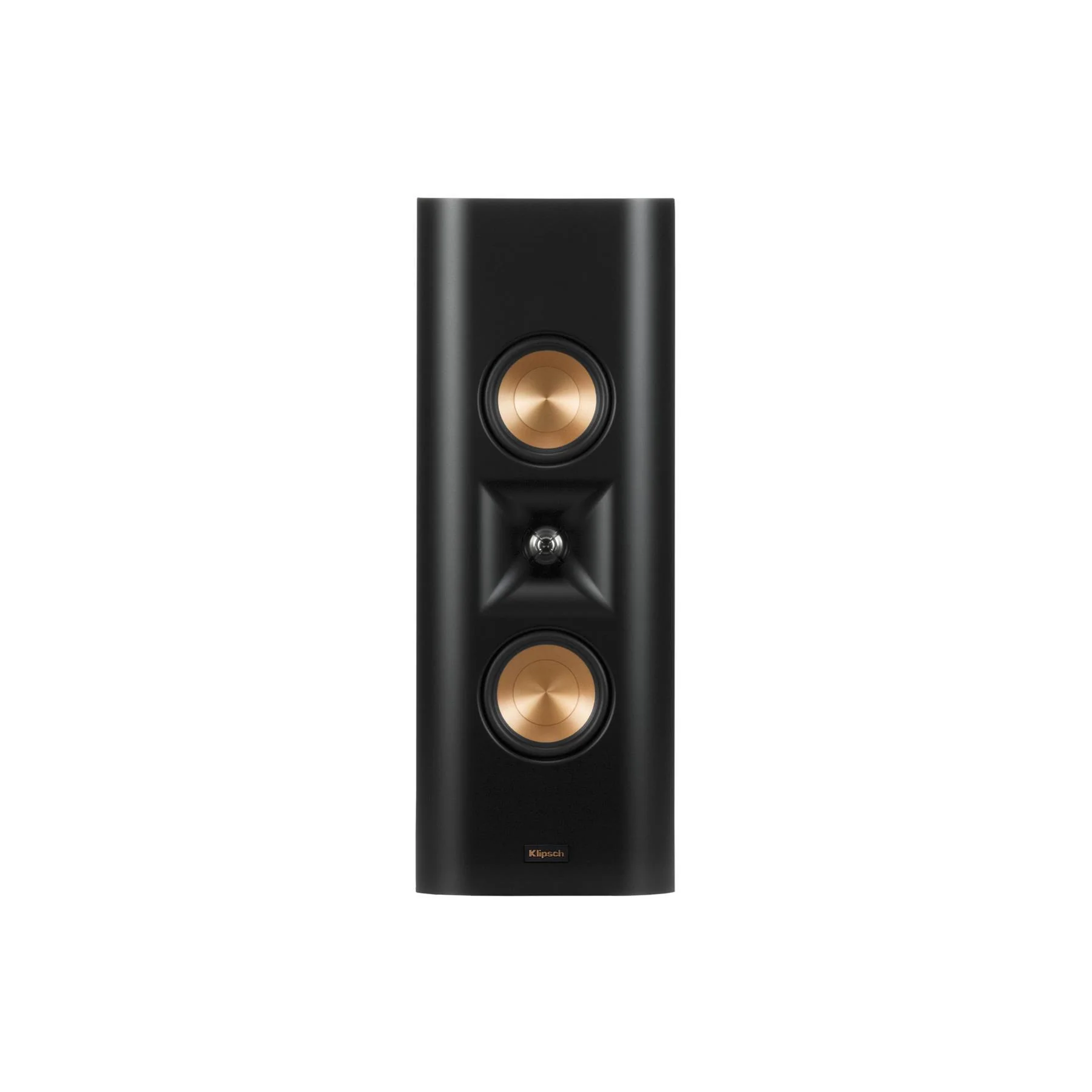

The Klipsch RP-240D is a slim, space-saving on-wall speaker built to deliver the dynamic, detailed Reference Premiere sound you expect—without taking up valuable floor space. Designed to complement today’s ultra-flat TVs, it pairs a modern matte-black finish with Klipsch horn-loaded acoustic technology for bold output, crisp dialogue, and lively dynamics in a low-profile cabinet. The Klipsch RP-240D is part of the Reference Premiere Designer On-Wall Series.

A 1” Titanium Dome Linear Travel Suspension (LTS) tweeter mates to a 90° x 90° Tractrix® horn to focus high frequencies toward the listening area for clearer imaging and more precise detail. Dual 3.5” spun copper Cerametallic™ woofers provide fast, low-distortion midrange and upper-bass impact, while the bass-reflex ABS enclosure keeps the design sleek and efficient.

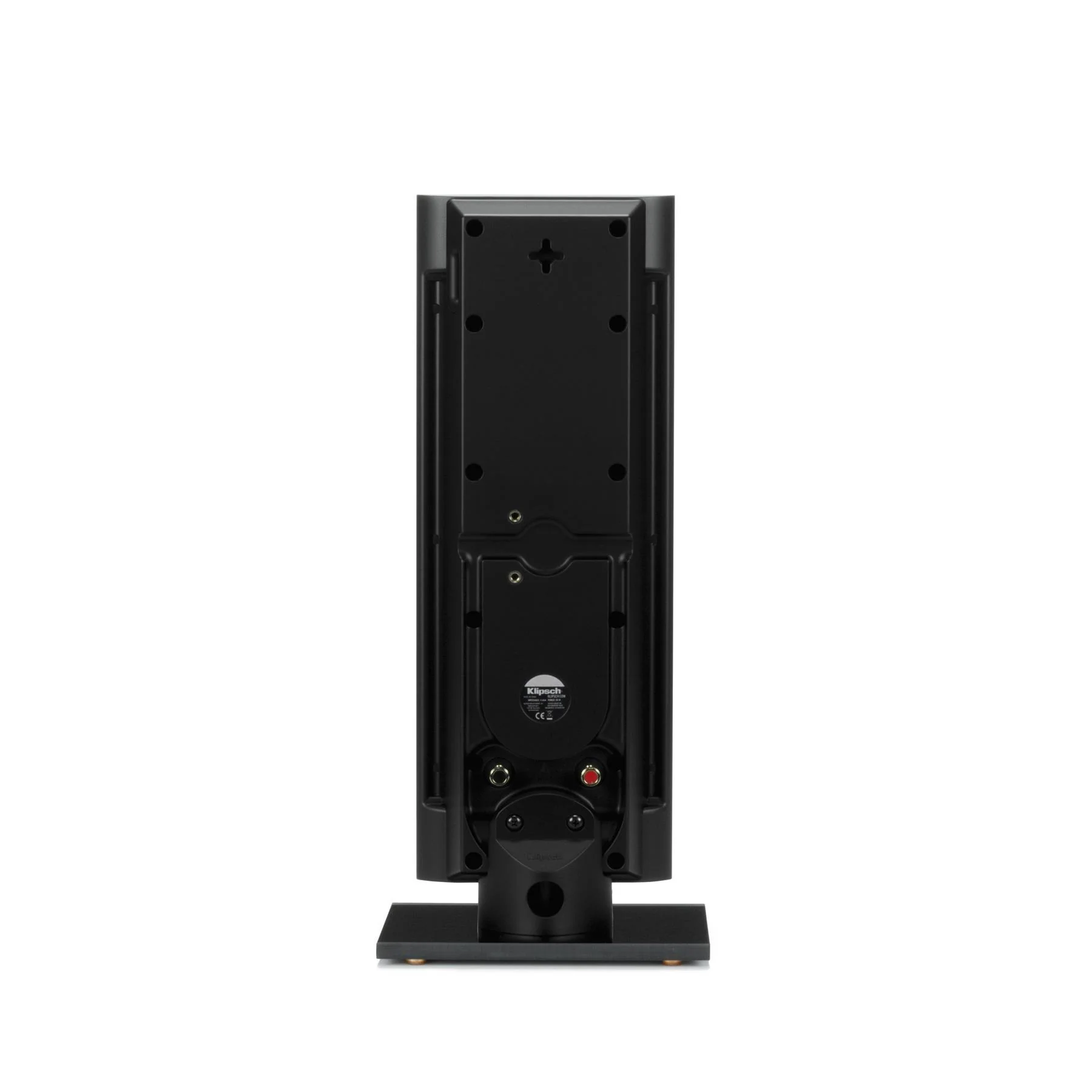

Install it vertically or horizontally using the dual 4-way keyholes for a tight-to-the-wall look, or use the included tempered glass base for tabletop or bookshelf placement. A wrap-around magnetic grille completes the clean aesthetic, letting you shift from showpiece to discreet performance in seconds.

What It's Good At:

• Delivering lively, detailed Klipsch horn-loaded sound in a slim, modern on-wall form factor
• Clearer dialogue and focused imaging thanks to the 90° x 90° Tractrix® horn
• High output with less amplifier strain, backed by 94 dB sensitivity

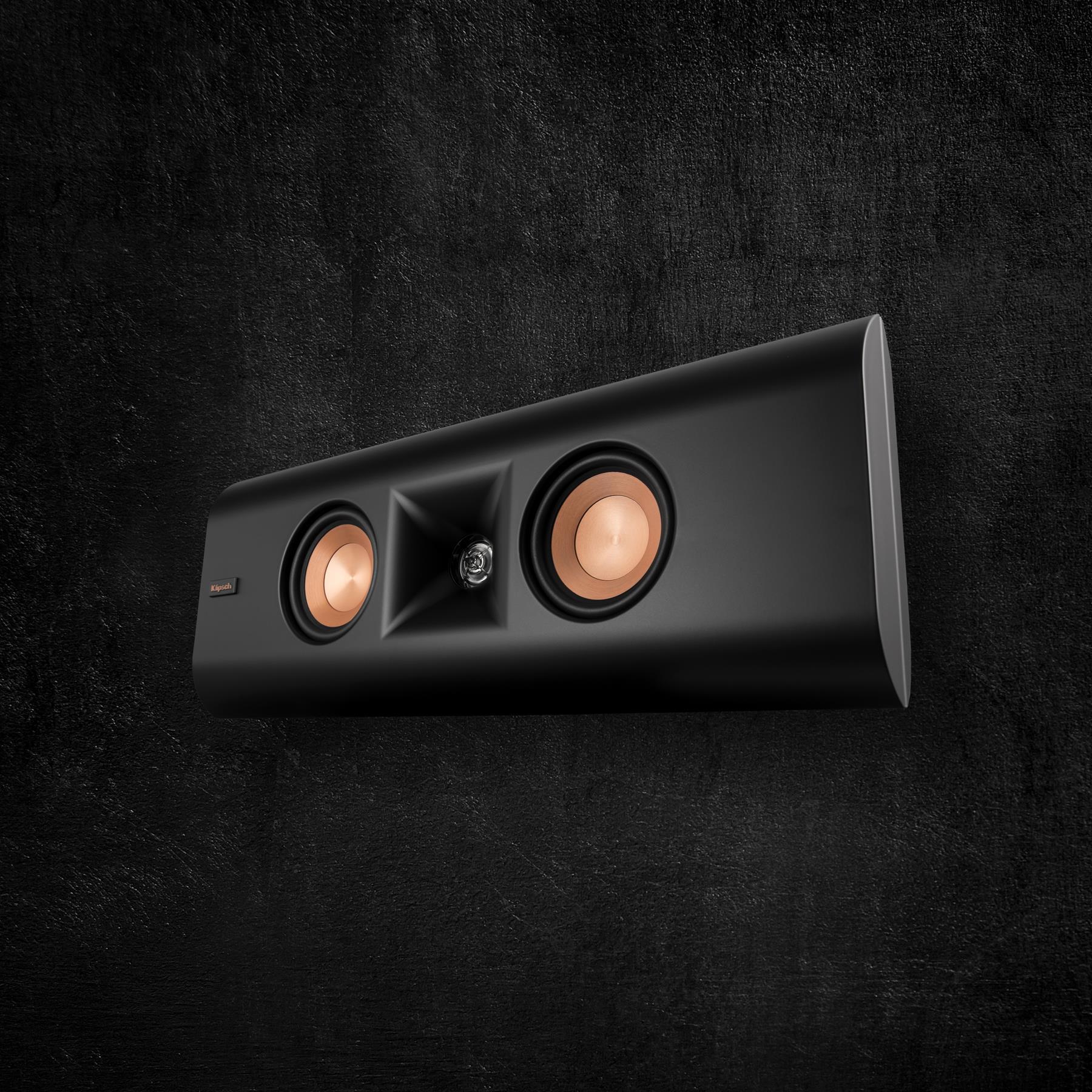

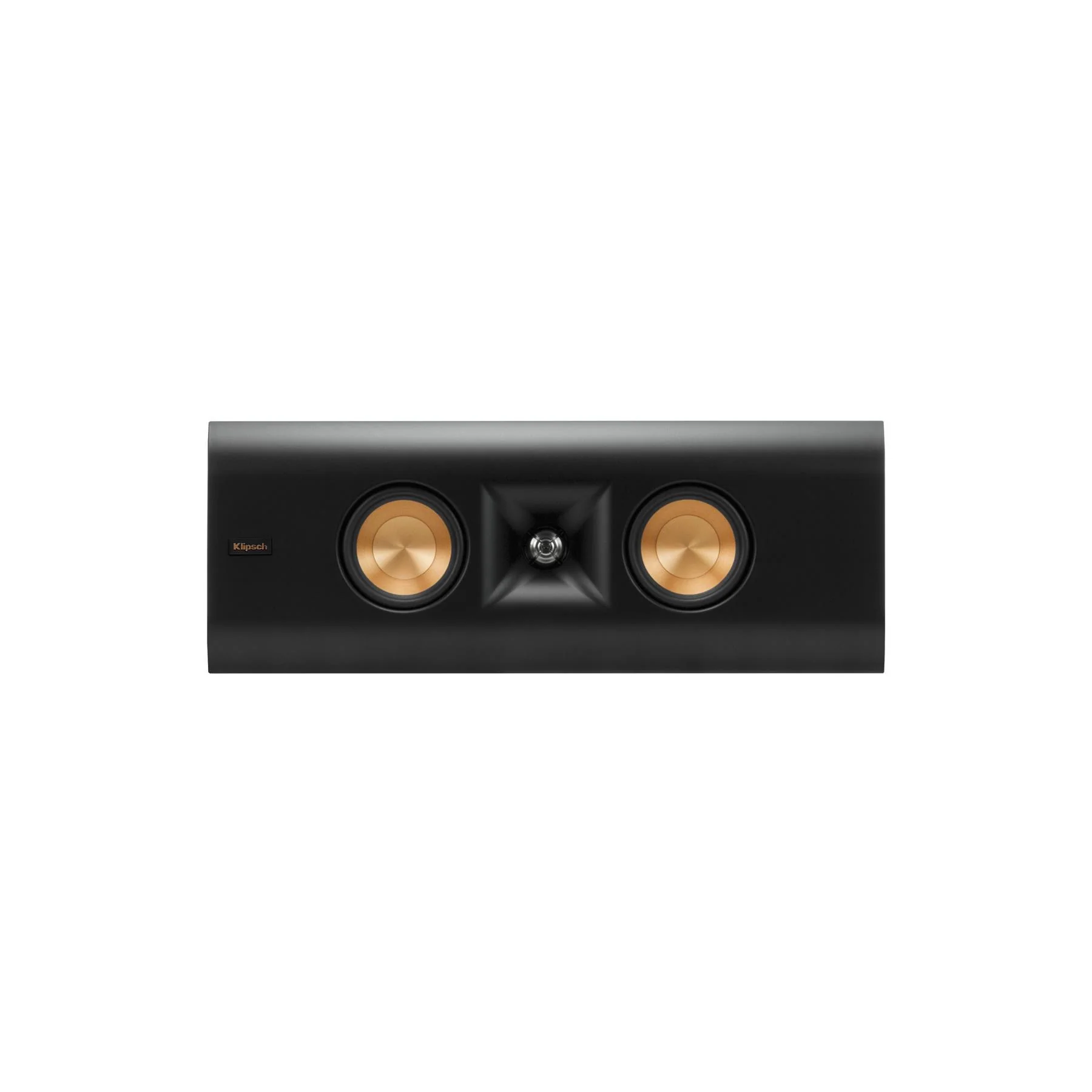

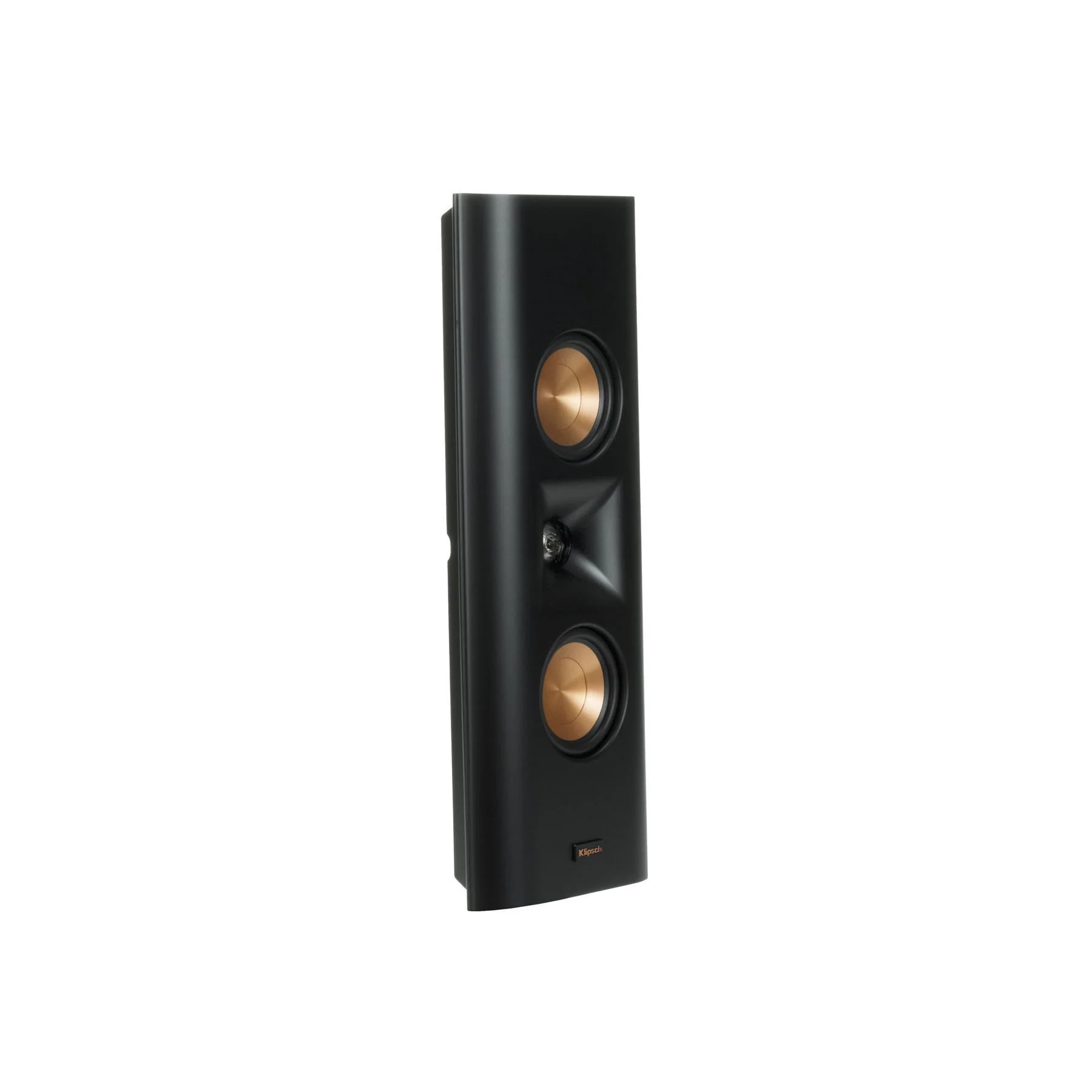

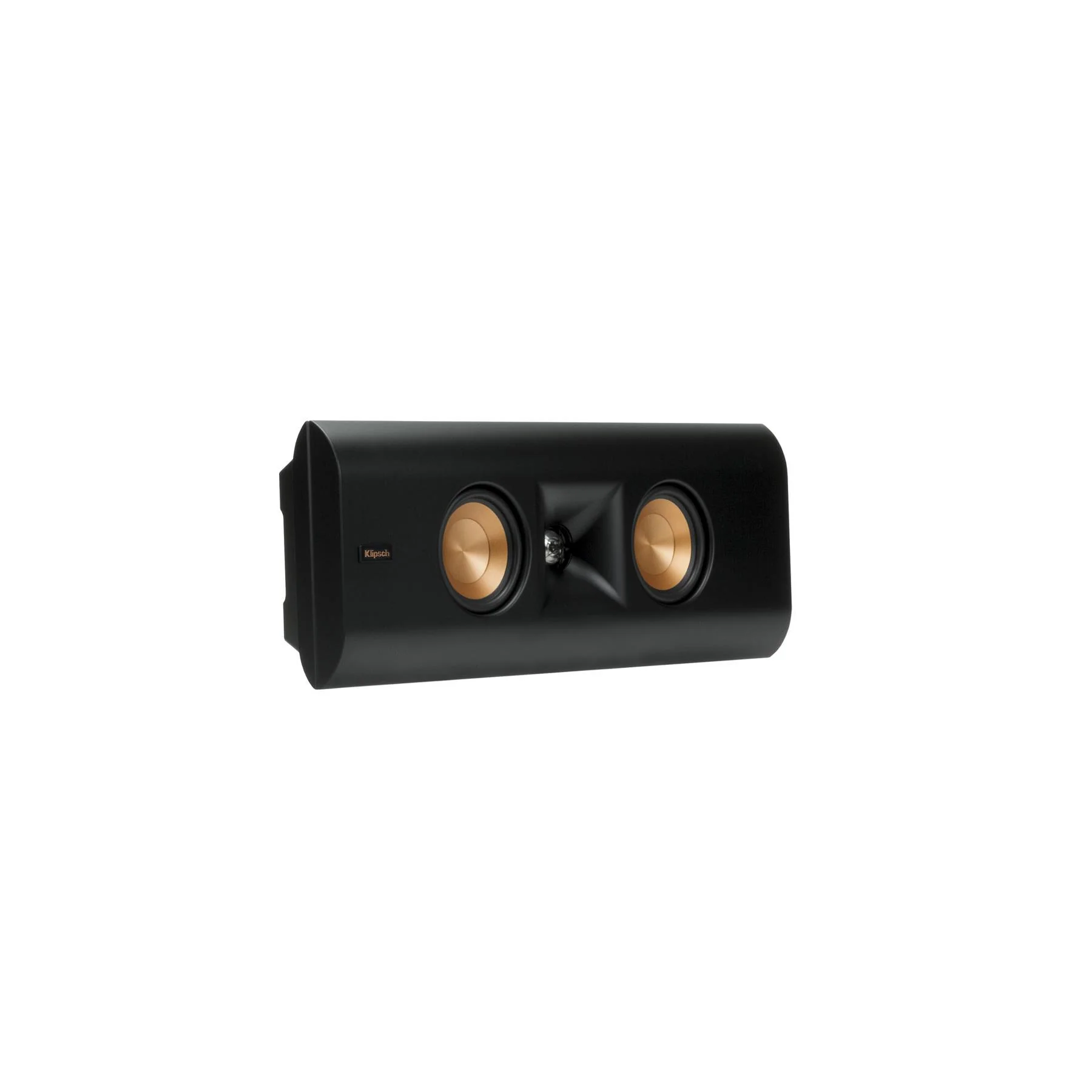

• Versatile placement: vertical or horizontal wall-mounting, plus included tempered glass base
• Fast, low-distortion midbass performance from dual Cerametallic™ woofers
• Clean aesthetics with a wrap-around magnetic grille and matte black finish

RP-240D Full Specifications:

• Series: Reference Premiere Designer On-Wall
• Model: Klipsch RP-240D (Reference Premiere Designer On-Wall)
• Speaker Type: 2-way on-wall / tabletop-capable loudspeaker
• Frequency Response: 67 Hz – 25 kHz ± 3 dB
• Sensitivity: 94 dB @ 2.83V / 1m
• Power Handling (Continuous/Peak): 75 W / 300 W
• Nominal Impedance: 8 ohms compatible
• Crossover Frequency: 2200 Hz
• High-Frequency Driver: 1” (2.54 cm) Titanium Dome LTS tweeter with 90° x 90° Tractrix horn
• Low-Frequency Driver: Dual 3.5” (8.89 cm) Cerametallic cone woofers
• Enclosure Material: ABS
• Enclosure Type: Bass reflex
• Inputs: Single binding posts
• Dimensions (H x W x D): 16" x 6" x 2.4" (40.64 cm x 15.24 cm x 6.10 cm)
• Weight: 5.25 lbs (2.38 kg)
• Finish: Matte black paint
• Mounting & Placement: Horizontal or vertical orientation supported; dual 4-way keyholes for secure on-wall mounting; included tempered glass base for tabletop/bookshelf placement
• Grille: Wrap-around magnetic grille
• On-wall installation notes: Mark two pilot hole points 13.25" apart (RP-240D); leave a minimum of 1" between the speaker cabinet and TV; speaker “locks” 5/16" lower than the pilot-hole location; do not ceiling-mount; if no stud is available, use wall anchors rated to at least 6 lbs
• Wiring note: Use 16-gauge or larger speaker wire for connection
• Built From: 2017

RP-240D Q&A:

Can the Klipsch RP-240D be mounted vertically or horizontally?

Yes. The RP-240D is designed for both vertical and horizontal placement, making it easy to use as a left/right speaker, center channel, or surround depending on your layout.

Does the RP-240D include hardware for tabletop placement?

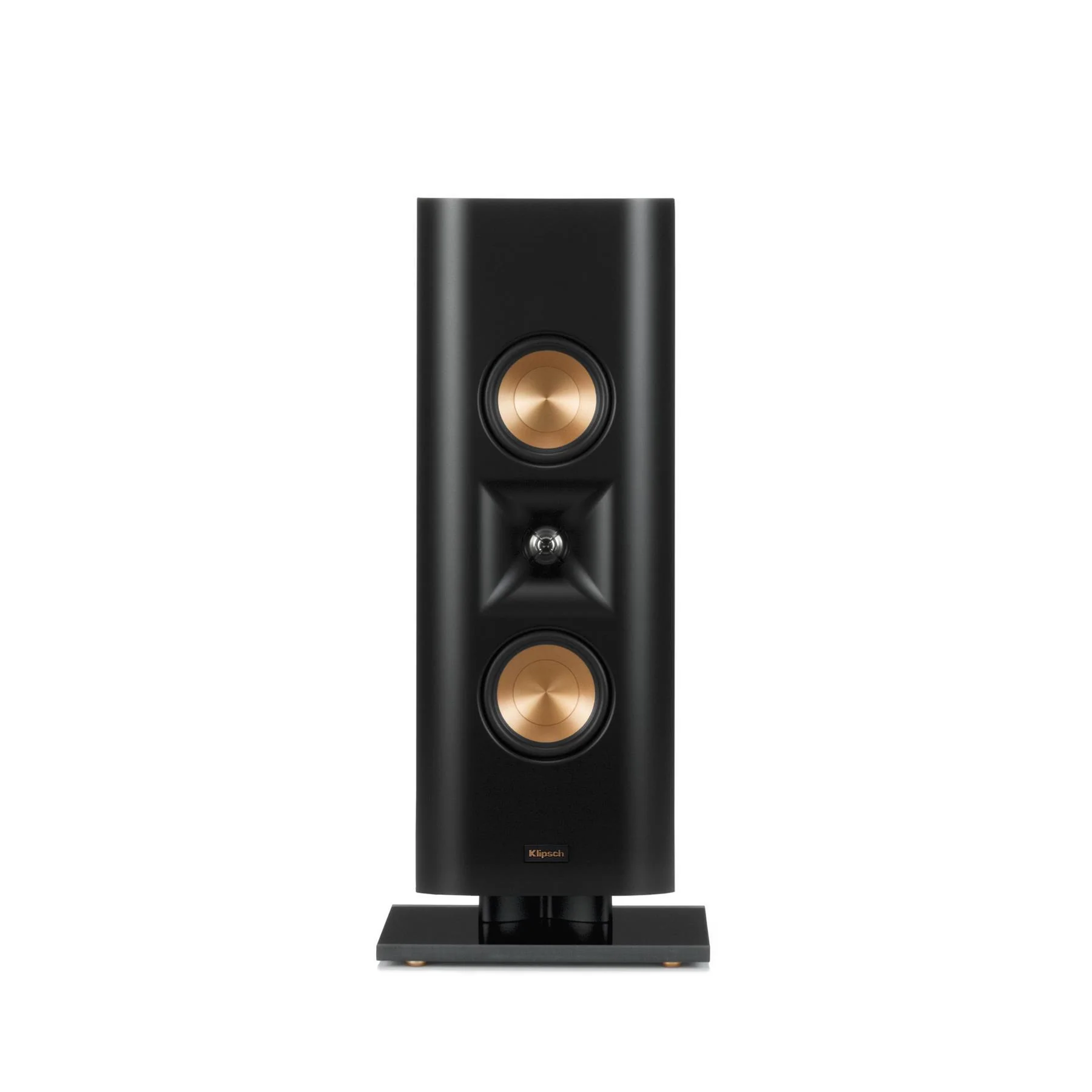

Yes. It includes a tempered glass base for a premium tabletop or bookshelf setup when wall-mounting isn’t ideal.

What makes the RP-240D sound “bigger” than typical on-wall speakers?

Klipsch’s 90° x 90° Tractrix® horn and 1” titanium LTS tweeter improve efficiency and focus detail, while dual Cerametallic™ woofers add punch and clarity with low distortion.

Is the RP-240D a good match for home theater dialogue?

Absolutely. Its horn-loaded design improves articulation and presence, helping dialogue sound clearer and more anchored to the screen.

What amplifier power should be used with the RP-240D?

It handles 75W continuous and 300W peak, and its high 94 dB sensitivity helps it play loud and clean with a wide range of quality AV receivers and amps.

How close can the RP-240D be mounted to a TV?

For best fit and airflow, keep a minimum of 1" between the speaker cabinet and the TV, and plan placement so the speaker locks slightly lower than the pilot holes during mounting.

Does it come with a grille, and is it removable?

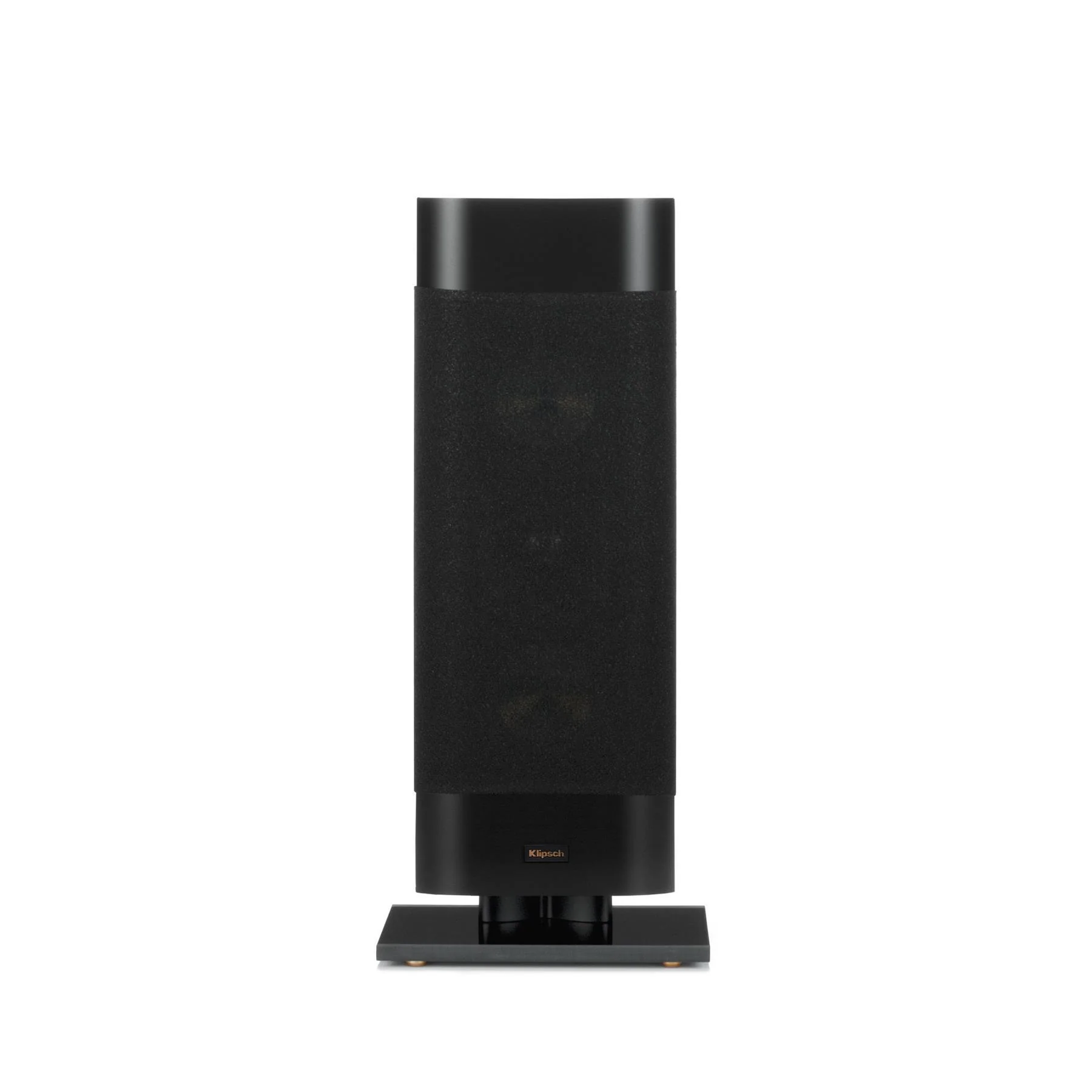

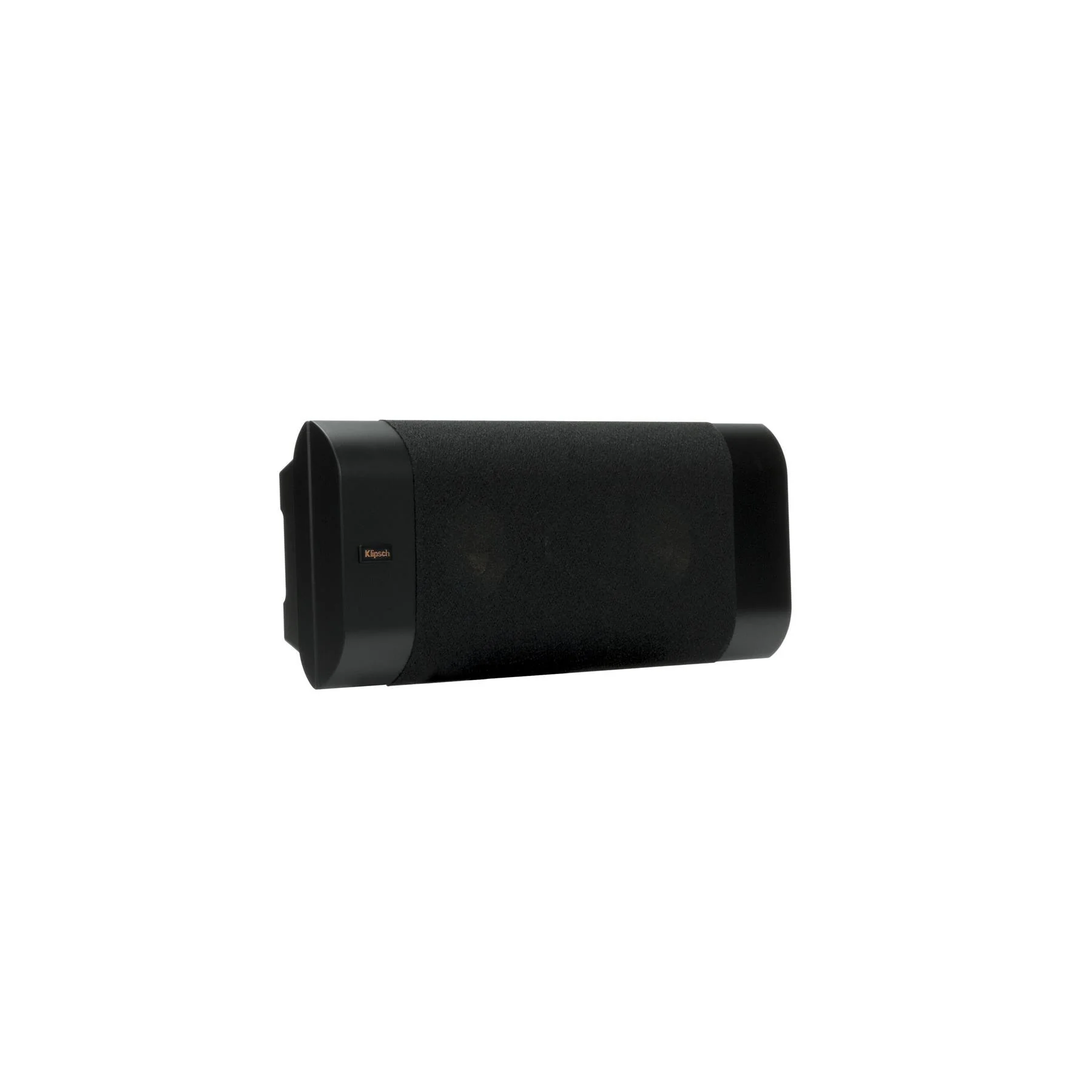

Yes. It includes a wrap-around magnetic grille that attaches cleanly and can be removed quickly for a more “studio” look.

How low does the RP-240D play on its own?

Its rated frequency response reaches down to 67 Hz (±3 dB). For full cinematic impact, pairing with a subwoofer is still recommended.

Klipsch RP-240D Downloads

Klipsch RP-240D Spec Sheet
Klipsch RP-240D Manual
Klipsch RP-240D DIMS
