Klipsch RP-140D On-Wall Speaker - Reference Premiere Designer On-Wall
RP-140D On-Wall Speaker

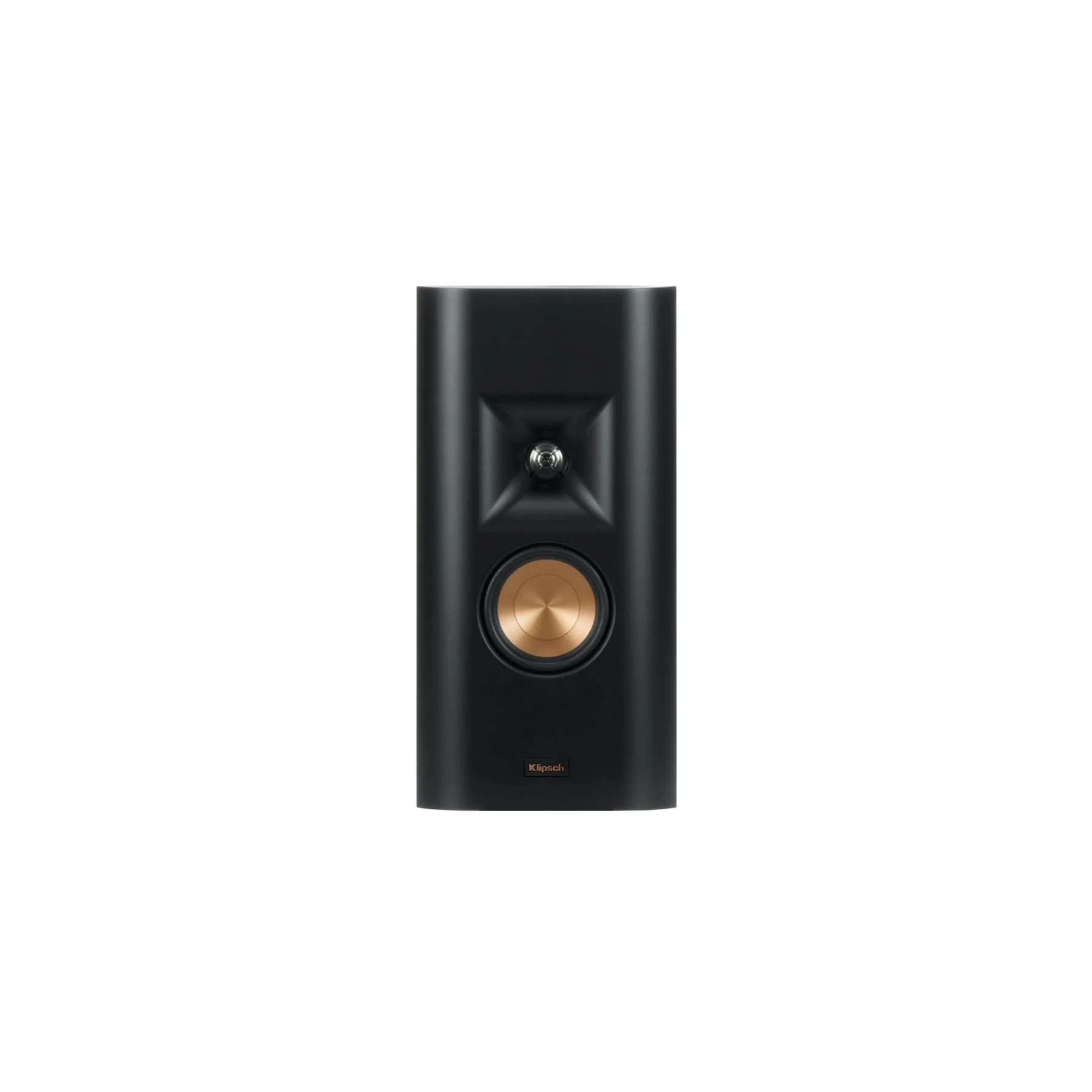

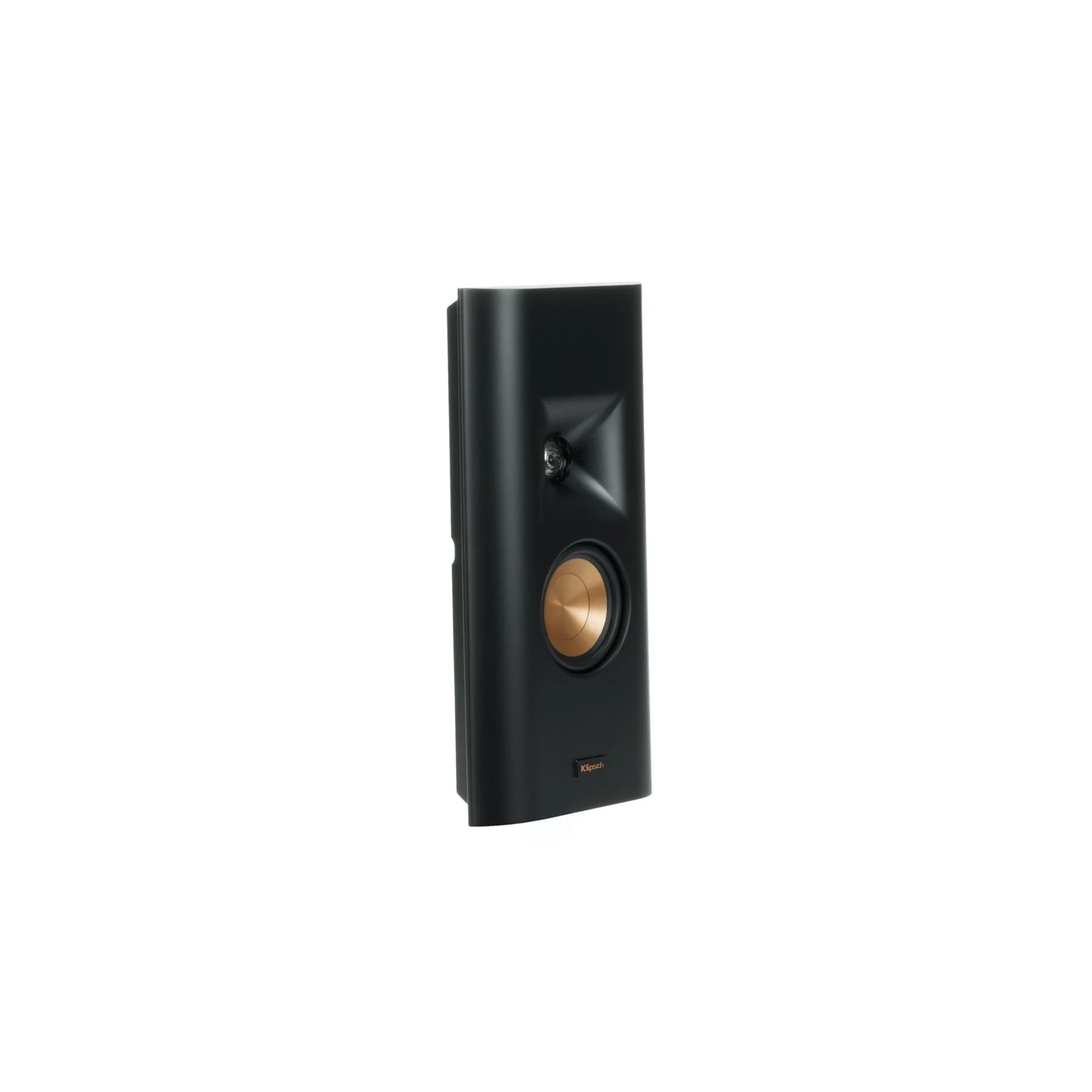

Klipsch’s RP-140D Reference Premiere Designer On-Wall Speaker delivers dynamic, detailed, high-output sound in a sleek, space-saving cabinet that mounts tight to the wall. The Klipsch’s RP-140D is part of the Reference Premiere Designer On-Wall Series. Built for modern home theater and media-room installs, it pairs a 90° x 90° Tractrix® horn-loaded 1" Titanium LTS tweeter with a 3.5" spun-copper Cerametallic™ woofer for crisp dialogue, lively detail, and impressive efficiency from a compact footprint. Designed for flexible placement, the RP-140D can be used as a front Left/Center/Right (LCR) speaker or as side/rear surrounds, and it can mount vertically or horizontally to match your layout. A magnetic wrap-around grille keeps the look clean, while the included glass base adds a premium tabletop/bookshelf option when wall mounting isn’t ideal.
What It's Good At:
- Clean, clear dialogue and detail thanks to the horn-loaded Titanium LTS tweeter
- Big, dynamic home-theater sound from a slim on-wall form factor made for today’s ultra-flat TVs
- Flexible LCR or surround duty (front stage, side surrounds, or rear surrounds)

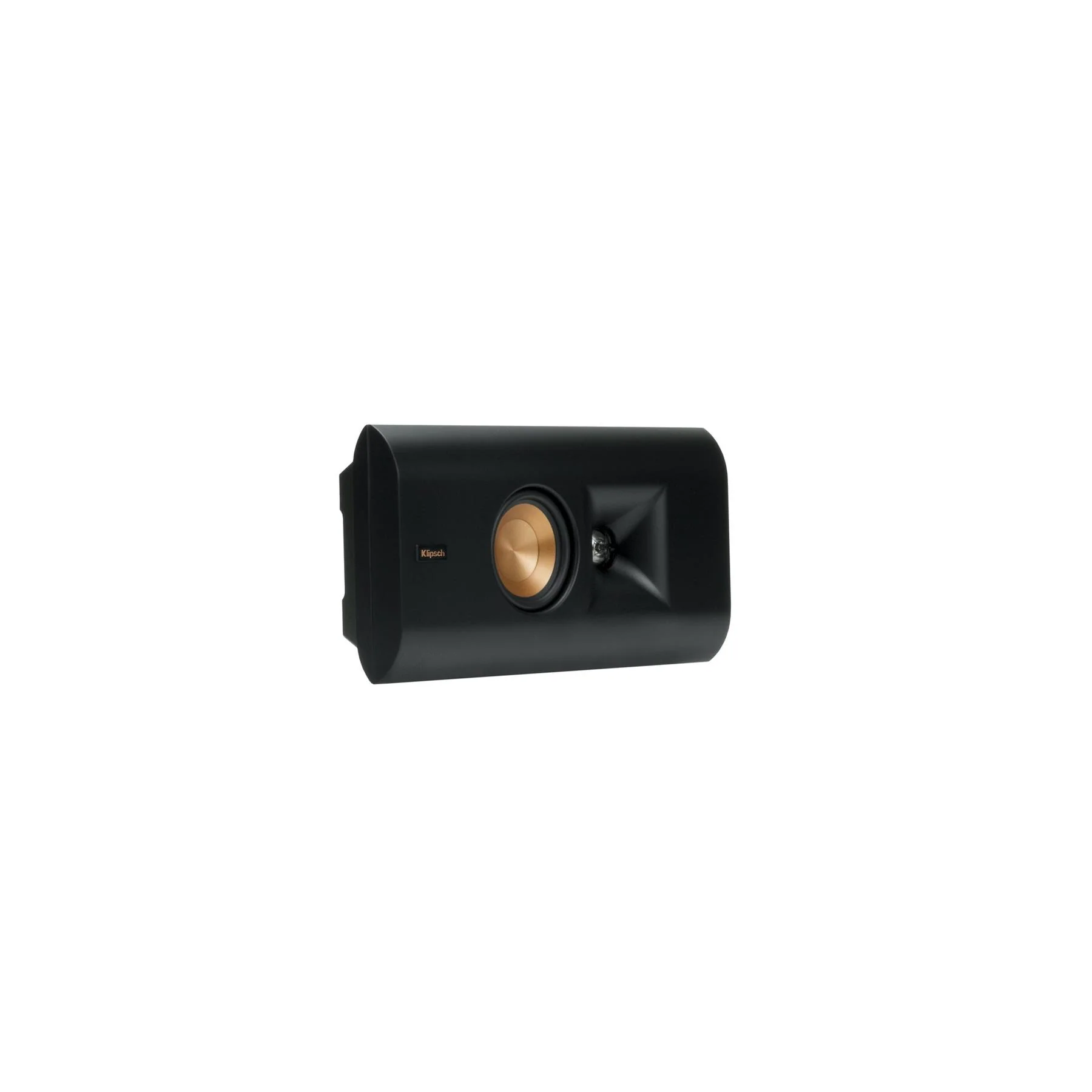

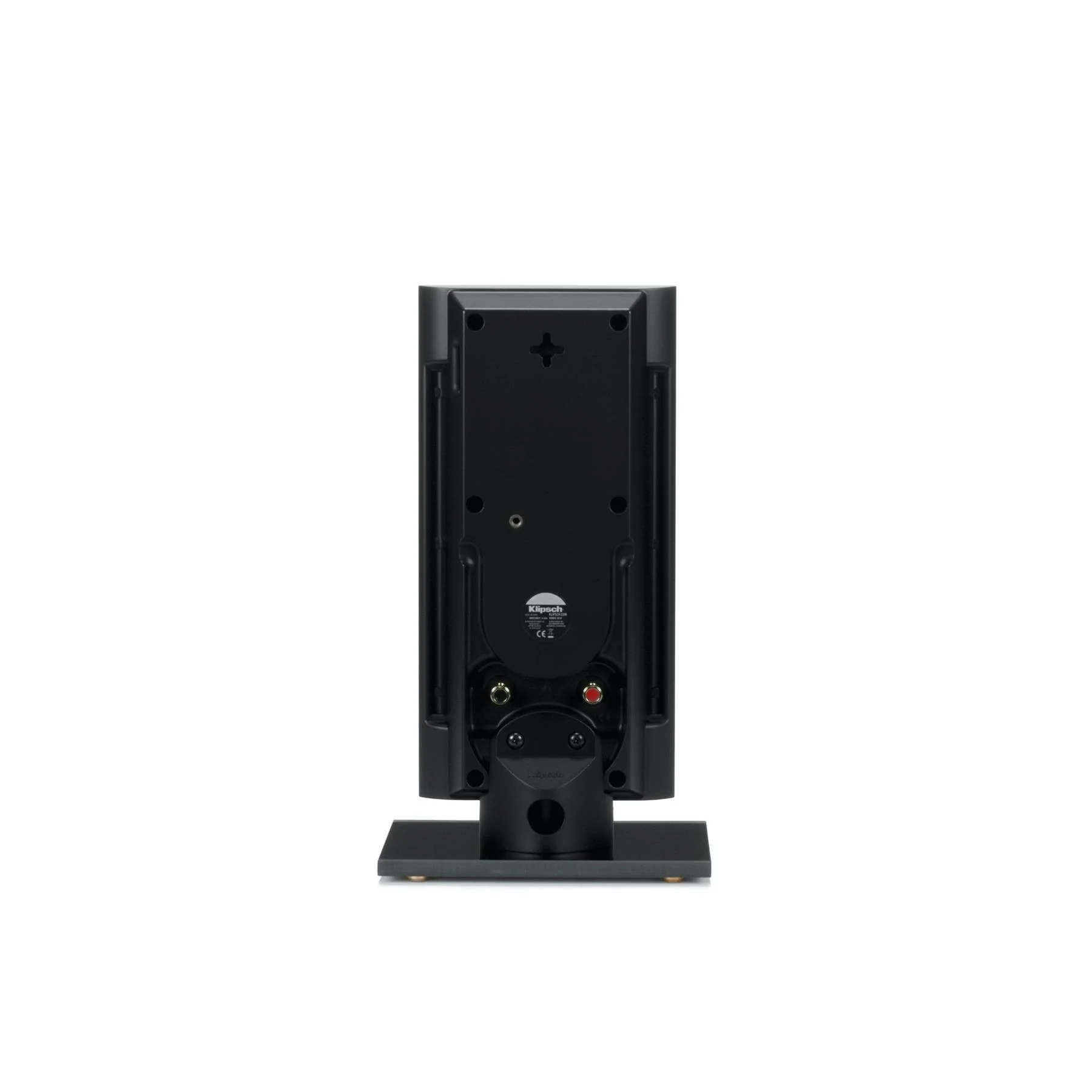

- Easy, secure installs with dual 4-way keyholes for vertical or horizontal mounting

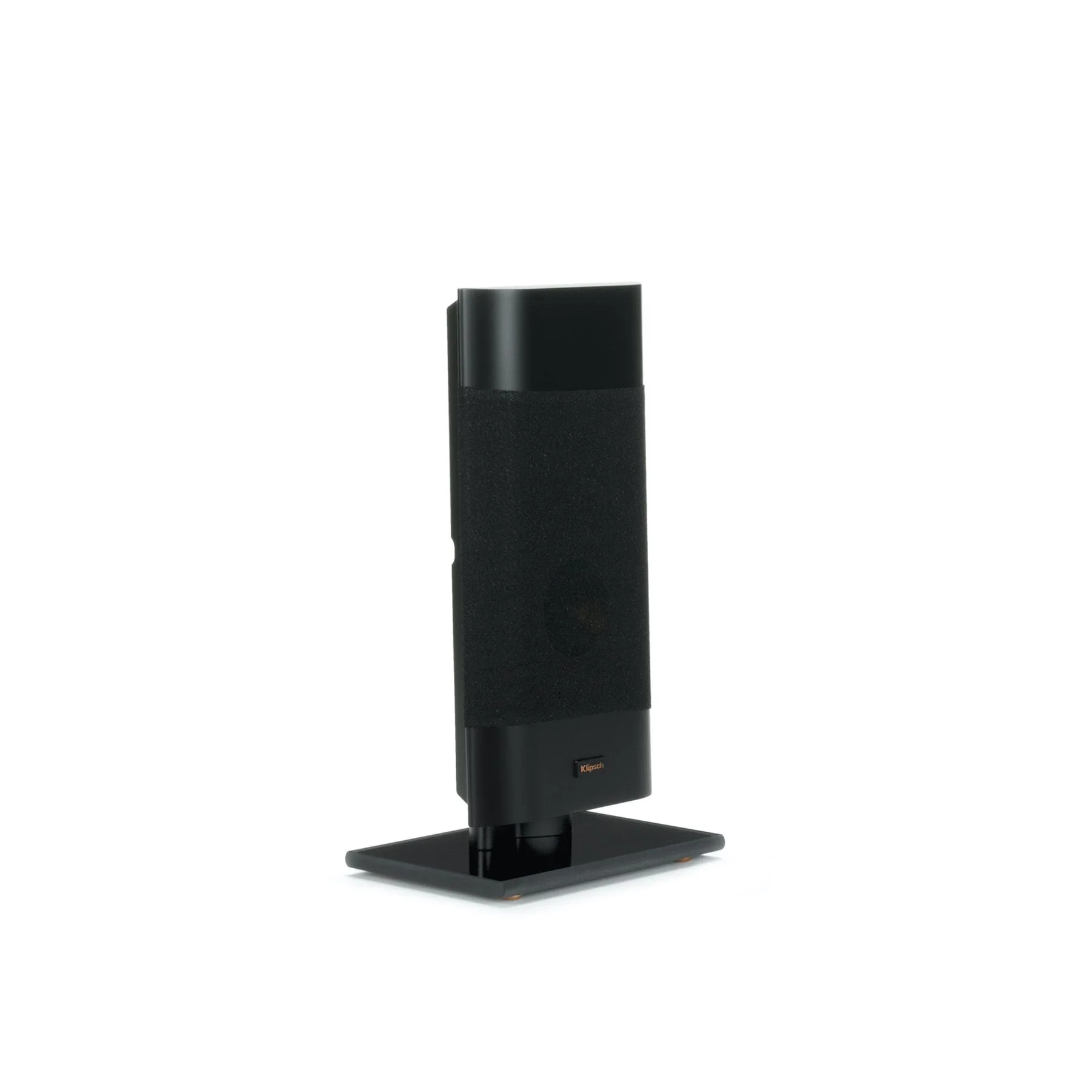

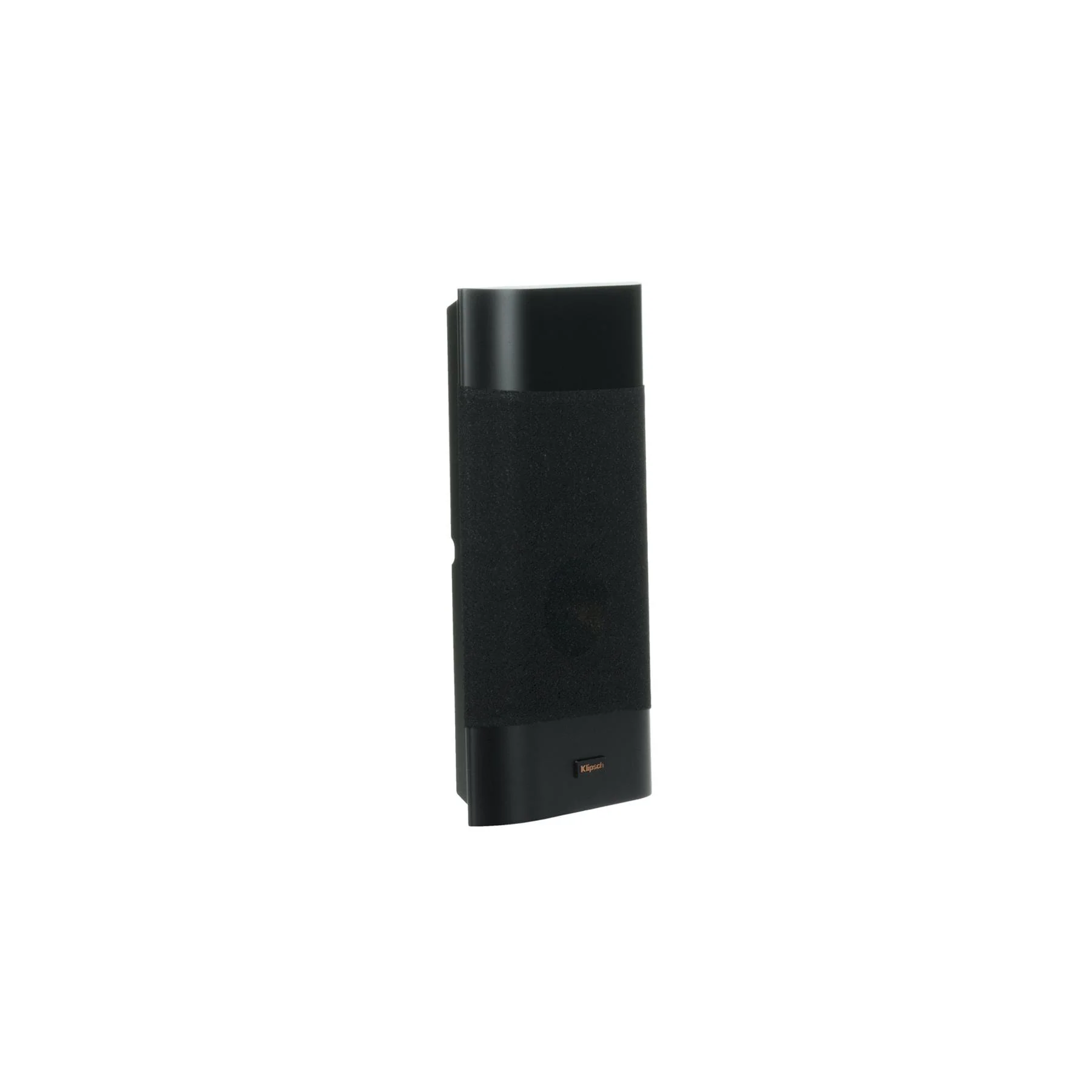

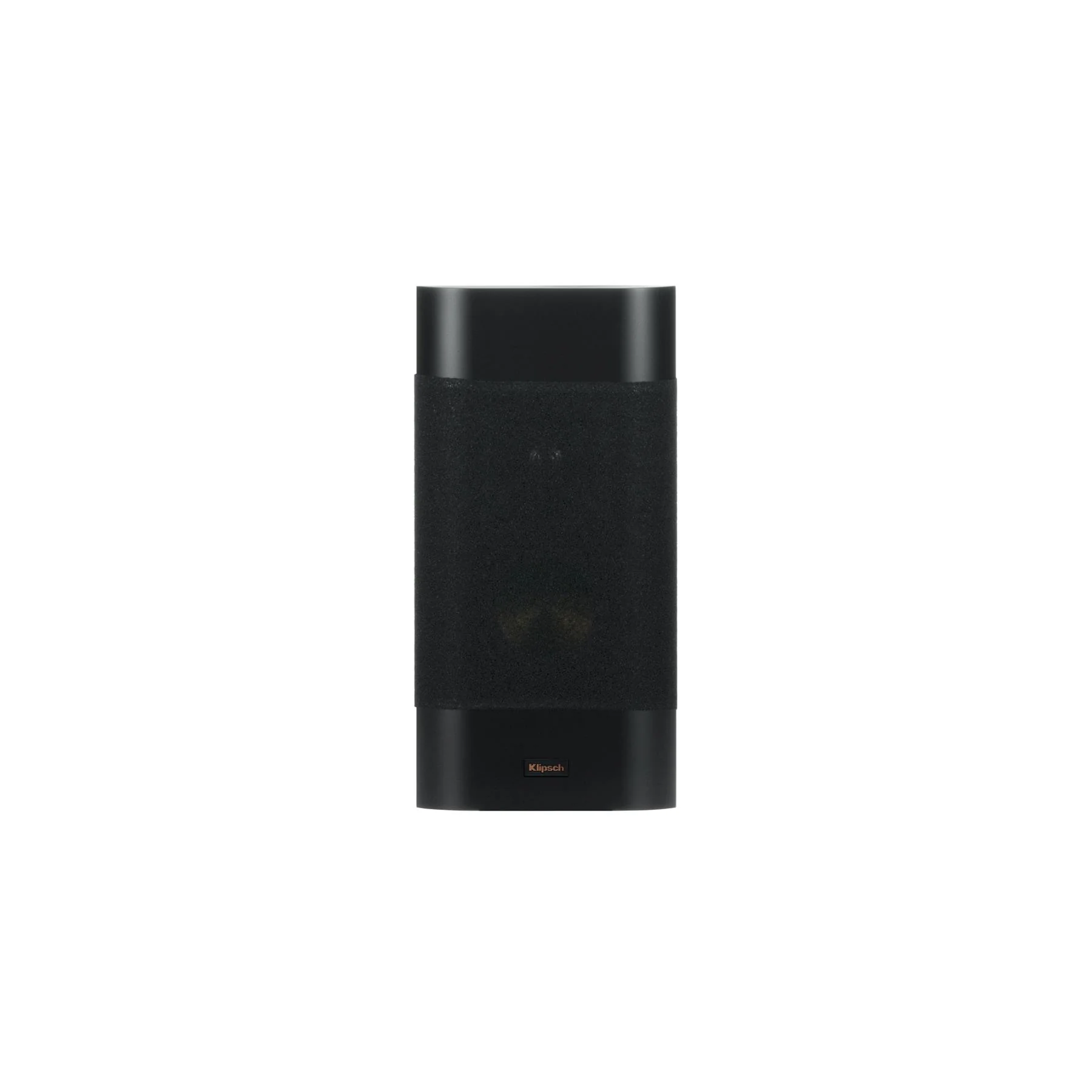

- Discrete, design-friendly appearance with a magnetic wrap-around grille and matte-black finish

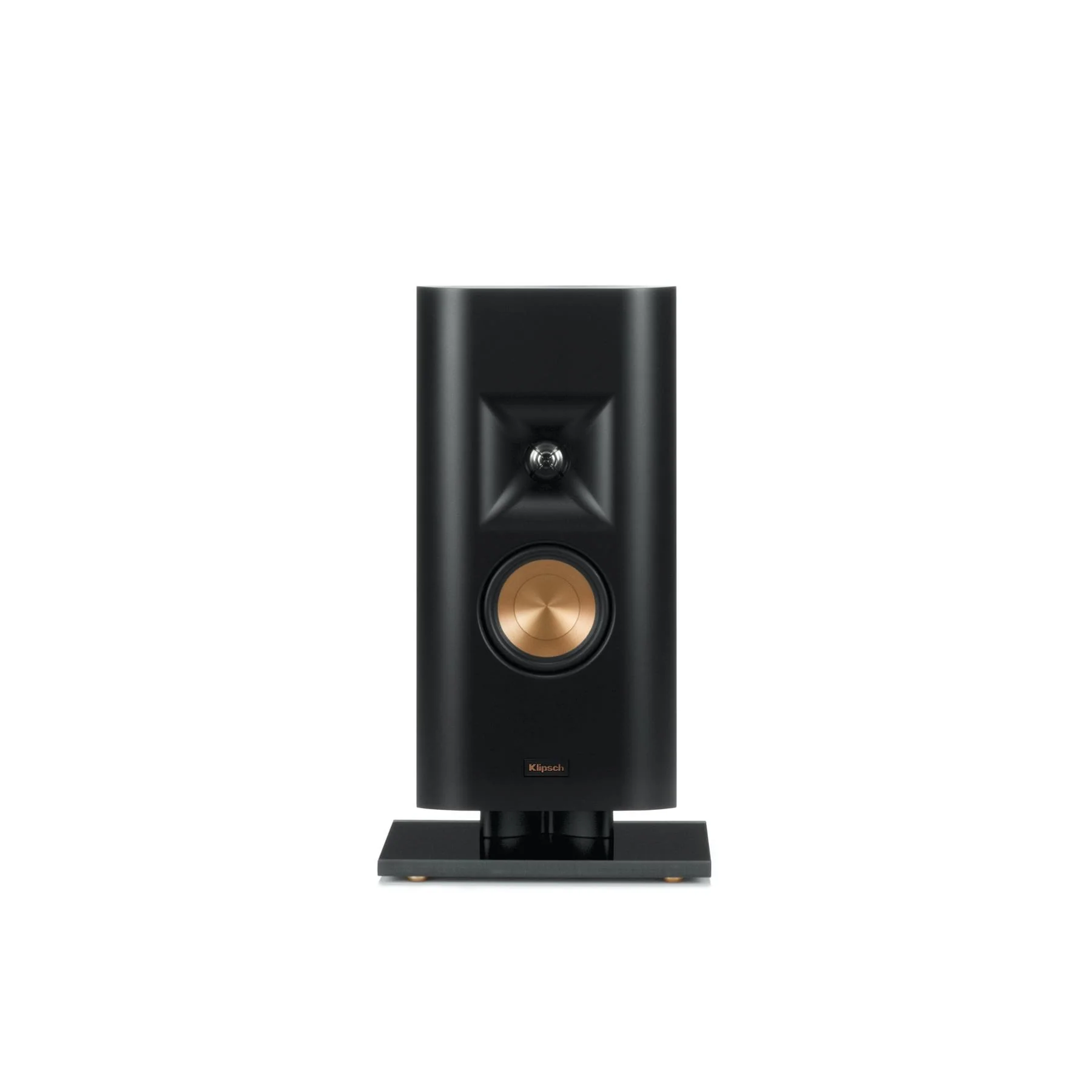

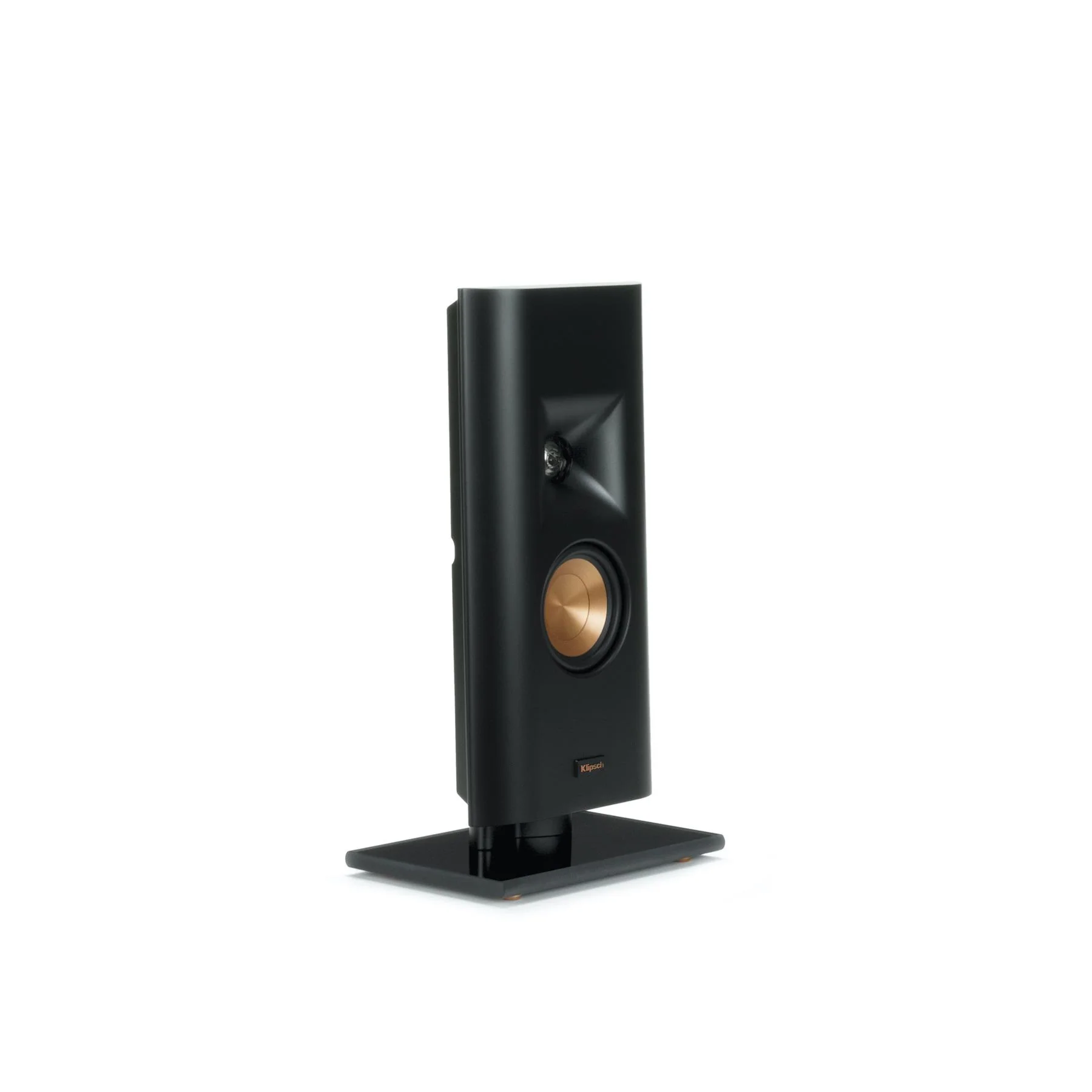

- Premium placement options included with a tempered-glass base for tabletop/bookshelf use
RP-140D Full Specifications:
- Speaker Type: On-Wall Speaker
- Series/Platform: Reference Premiere Designer On-Wall
- Frequency Response: 69Hz – 25kHz ± 3dB
- Sensitivity: 91dB @ 2.83V / 1m
- Power Handling (Continuous/Peak): 50W / 200W
- Nominal Impedance: 8 ohms compatible
- Crossover Frequency: 2200Hz
- High-Frequency Driver: 1" (2.54 cm) Titanium Dome Linear Travel Suspension (LTS) tweeter with 90° x 90° Tractrix horn
- Low-Frequency Driver: 3.5" (8.89 cm) Cerametallic cone woofer
- Enclosure Material: ABS
- Enclosure Type: Bass reflex
- Inputs: Single binding posts
- Mounting/Placement: Vertical or horizontal orientation; dual 4-way keyholes for on-wall mounting; glass base included for tabletop/bookshelf placement
- Pilot Hole Spacing (Wall Mount): 9.26" (23.52 cm) apart
- Grille: Magnetic wrap-around grille
- Finish: Matte black paint
- Dimensions (H x W x D): 12" (30.48 cm) x 6" (15.24 cm) x 2.4" (6.10 cm)
- Weight: 3.75 lb (1.7 kg)
- Built From: 2017
RP-140D Q&A:
- Can the RP-140D be used as a left, center, or right (LCR) speaker?
- Yes. The RP-140D is designed for flexible placement and works well as a front left/right speaker, a center channel (when mounted horizontally), or as surround speakers.
- Does it mount vertically and horizontally?
- Yes. It supports both vertical and horizontal orientation, making it easy to match your room layout and speaker role (LCR or surrounds).
- What makes this speaker “Reference Premiere” sounding even though it’s slim?
- It uses Klipsch horn-loaded acoustic technology with a 90° x 90° Tractrix horn and a Titanium LTS tweeter, plus a Cerametallic woofer for dynamic, low-distortion performance in a compact enclosure.
- Is mounting hardware included?
- The speaker includes dual 4-way keyholes for secure on-wall mounting and also includes a premium glass base for tabletop/bookshelf placement.
- What amplifier or receiver works best with the RP-140D?
- Any quality AV receiver or amplifier that supports 8-ohm compatible speakers will work well. Aim to stay within the 50W continuous / 200W peak power handling for clean performance.
- How far apart should I place two RP-140D speakers for the front stage?
- A common guideline is about 6–15 feet apart with the main listening position roughly 1–1.5x that distance, then fine-tune based on your room and screen size.
- Will it look clean next to an ultra-flat TV?
- Yes. The cabinet is intentionally slim with a matte-black finish and a magnetic wrap-around grille to blend into modern setups.
- What should I know about wall-mount spacing?
- For wall mounting, the pilot hole points are 9.26 inches apart, and the design supports secure, tight-to-the-wall placement.
Klipsch RP-140D Downloads
Klipsch RP-140D Spec Sheet
Klipsch RP-140D Manual
Klipsch RP-140D DIMS
Original: $249.99
-65%$249.99
$87.50More Images
