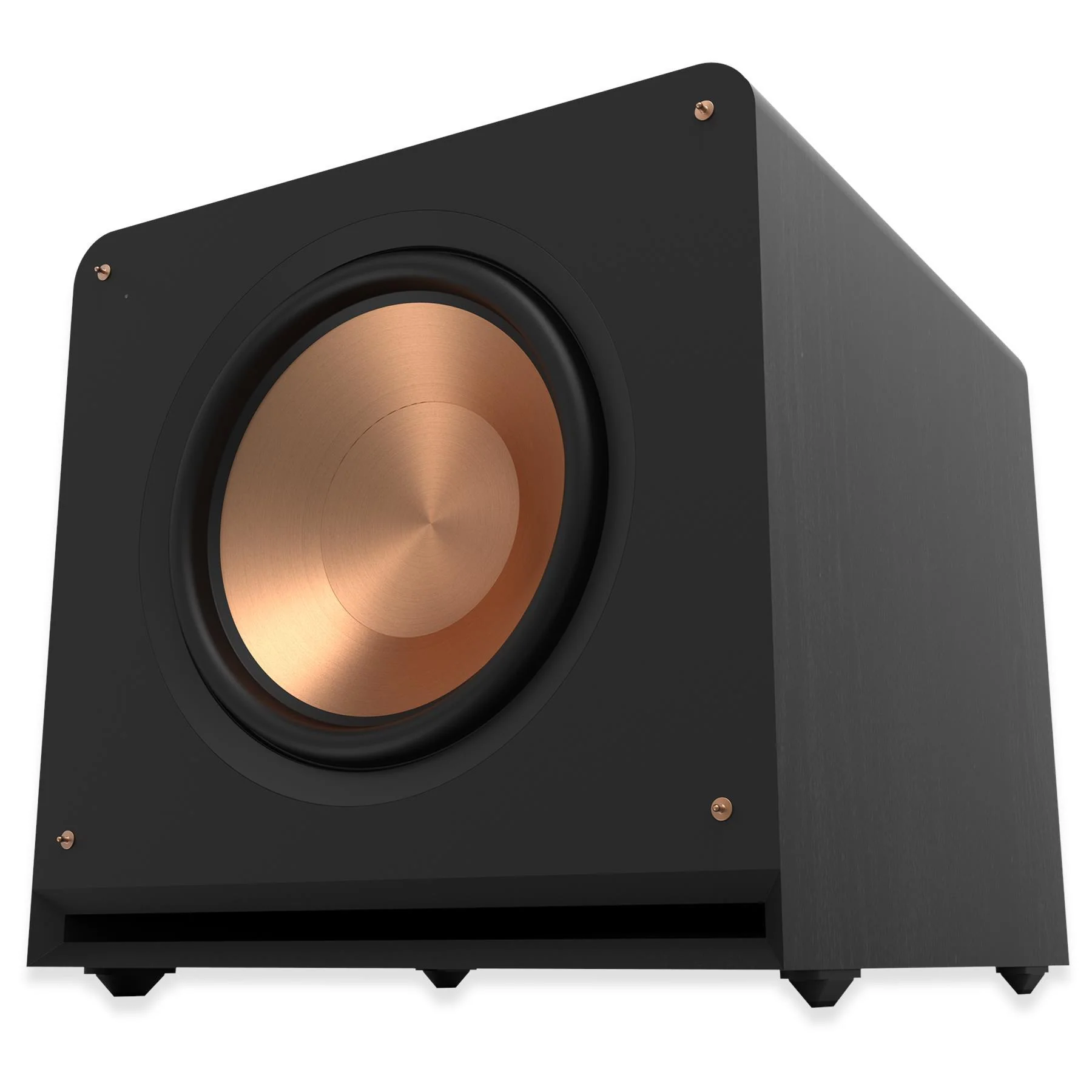

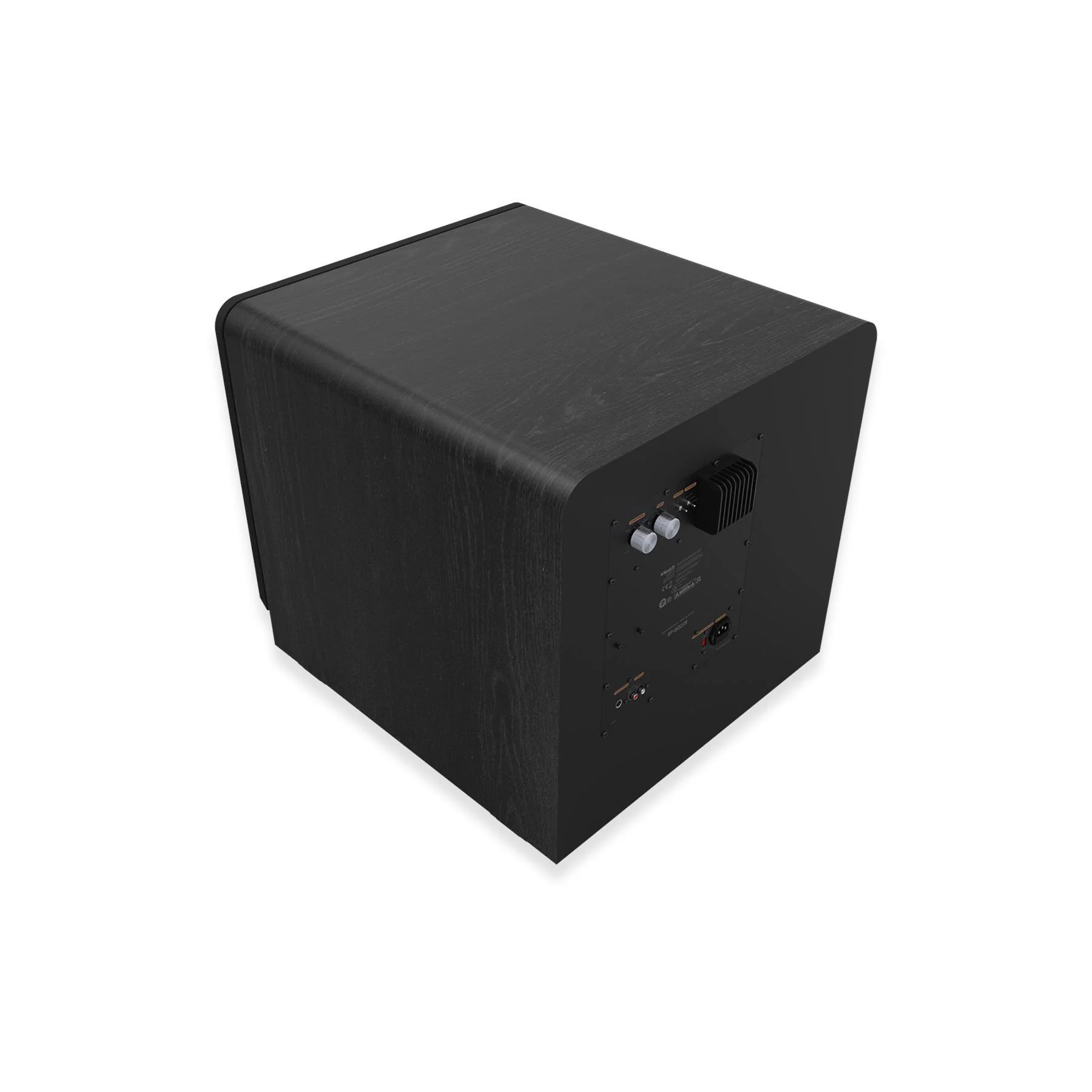

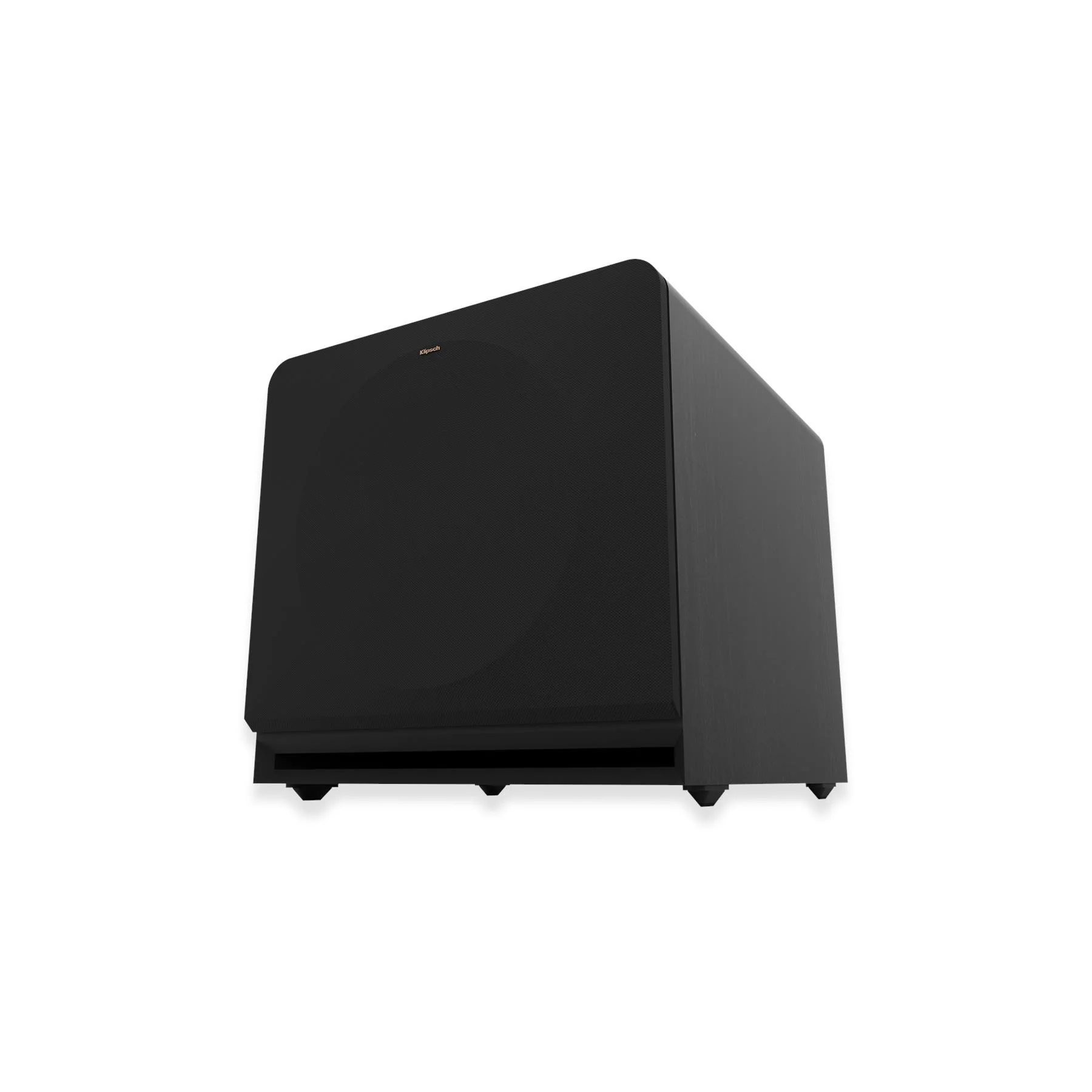

Klipsch RP-1600SW Subwoofer - 16" 1600 Watts Subwoofer
Klipsch RP-1600SW Subwoofer - 16" 1600 Watts Subwoofer
The Klipsch Reference Premiere RP-1600SW is a high-excursion 16-inch powered subwoofer built for true theater-grade impact—delivering deep, fast, controlled bass with exceptional low-frequency extension and low distortion. The RP-1600SW is part of the Reference Premiere II Series. Its balanced design pairs an ultra long-throw Cerametallic driver with a high-efficiency Class D amplifier and a precision-tuned cabinet to produce powerful, accurate output. A front-firing Aerofoil slot port with internal flare technology helps keep bass clean while expanding placement flexibility. Finished in durable ebony vinyl with premium details, the RP-1600SW is engineered to anchor serious home theater and high-output music systems with authority.
What It's Good At:
- Delivering ultra-deep extension with tight, accurate bass response for movies and music
- Producing high output and slam with low distortion at reference-level listening
- Offering cleaner amplification and strong control thanks to a high-efficiency Class D amp
- Enabling flexible placement with a front-firing slot port designed to help reduce port noise
- Simplifying system matching with low-pass crossover and variable phase adjustments
- Supporting easy layout changes with wireless kit capability and a dedicated WA-2 wireless port
Klipsch RP-1600SW Full Specifications:
- Series: Reference Premiere II
- Frequency Response: 14.5Hz – 175Hz (±3dB)
- Maximum Acoustic Output: 125.5dB
- Amplifier Type: Class D with analog preamp stage
- Amplifier Power: 800W RMS / 1600W Peak
- Driver: 16" ultra long-throw Cerametallic (front-firing)
- Enclosure Material: MDF
- Enclosure Type: Bass reflex via front-firing Aerofoil slot port (with internal flare technology)
- Inputs: Dual RCA/LFE line in; WA-2 wireless port
- Controls: Low-pass crossover; variable phase
- Input Flexibility: RCA and wireless inputs can be used simultaneously
- Standby Mode: 1/2-watt standby mode
- Finish: Ebony vinyl (scratch-resistant)
- Cabinet/Build Details: Rounded corners; shock-absorbing rubber feet; steel grille posts
- Dimensions (H x W x D): 23.39" x 23.50" x 27.35" (59.4 x 59.7 x 69.5 cm)
- Weight: 110.9 lbs (50.3 kg)
- Warranty: 5-year warranty
Klipsch RP-1600SW Q&A:
- Is the Klipsch RP-1600SW a powered subwoofer or does it need an external amp?
- It’s a powered subwoofer with a built-in Class D amplifier rated at 800W RMS / 1600W peak, so no external amplifier is required.
- How deep does the RP-1600SW play for true home-theater bass?
- It’s designed for extremely deep extension, with a rated frequency response down to 14.5Hz (±3dB), helping deliver the lowest effects with authority.
- What connections does the RP-1600SW support?
- It includes dual RCA/LFE line inputs plus a dedicated WA-2 wireless port for compatible wireless connectivity options.
- Can I place this subwoofer near the front wall or inside a media cabinet layout?
- The front-firing Aerofoil slot port is designed for clean output with flexible placement, making it friendlier to front-wall positioning than many rear-ported designs.
- Does it include controls to help blend with my speakers and room?
- Yes—use the low-pass crossover and variable phase controls to dial in a smooth handoff with your main speakers and reduce bass peaks or cancellations.
- Can I run both wired and wireless connections at the same time?
- Yes, the design supports using RCA and wireless inputs simultaneously for convenient integration with multiple setups.
- How loud can the RP-1600SW get?
- It’s built for very high output, with a specified maximum acoustic output of 125.5dB, supporting impactful bass in larger rooms.
- What should I know about size and handling before I buy?
- This is a large, heavy subwoofer (23.39" x 23.50" x 27.35" and 110.9 lbs), so plan placement and moving assistance accordingly.
Klipsch RP-1600SW Subwoofer Downloads
Klipsch RP-1600SW Specification Sheet
Klipsch RP-1600SW Subwoofer Manual
