Klipsch PRO-1000SW 10-inch In-Wall Subwoofer

Klipsch PRO-1000SW In-Wall Subwoofer

The Klipsch PRO-1000SW is a high-performance in-wall subwoofer designed for premium custom-install home theater and whole-home audio systems where deep bass is essential—but visible gear isn’t. Built around a 10” long-throw Cerametallic™ woofer inside a rigid sealed MDF enclosure, it delivers tight, controlled low frequencies with impressive impact for movies, music, and multi-room listening. Its bezel-free, flat magnetic grille blends cleanly into the wall and can be painted to match your décor, making it ideal for luxury spaces and dedicated theaters alike. Installation is streamlined for new construction or retrofit, fitting into a standard 16” on-center stud bay for a secure, integrated finish. The Klipsch PRO-1000SW is part of ListenUp's Klipsch In-Wall Speakers Collection.

What It’s Good At:

• Delivering room-filling, distortion-resistant bass while staying completely out of sight
• Producing tight, accurate low end thanks to a sealed in-wall design and rigid MDF enclosure

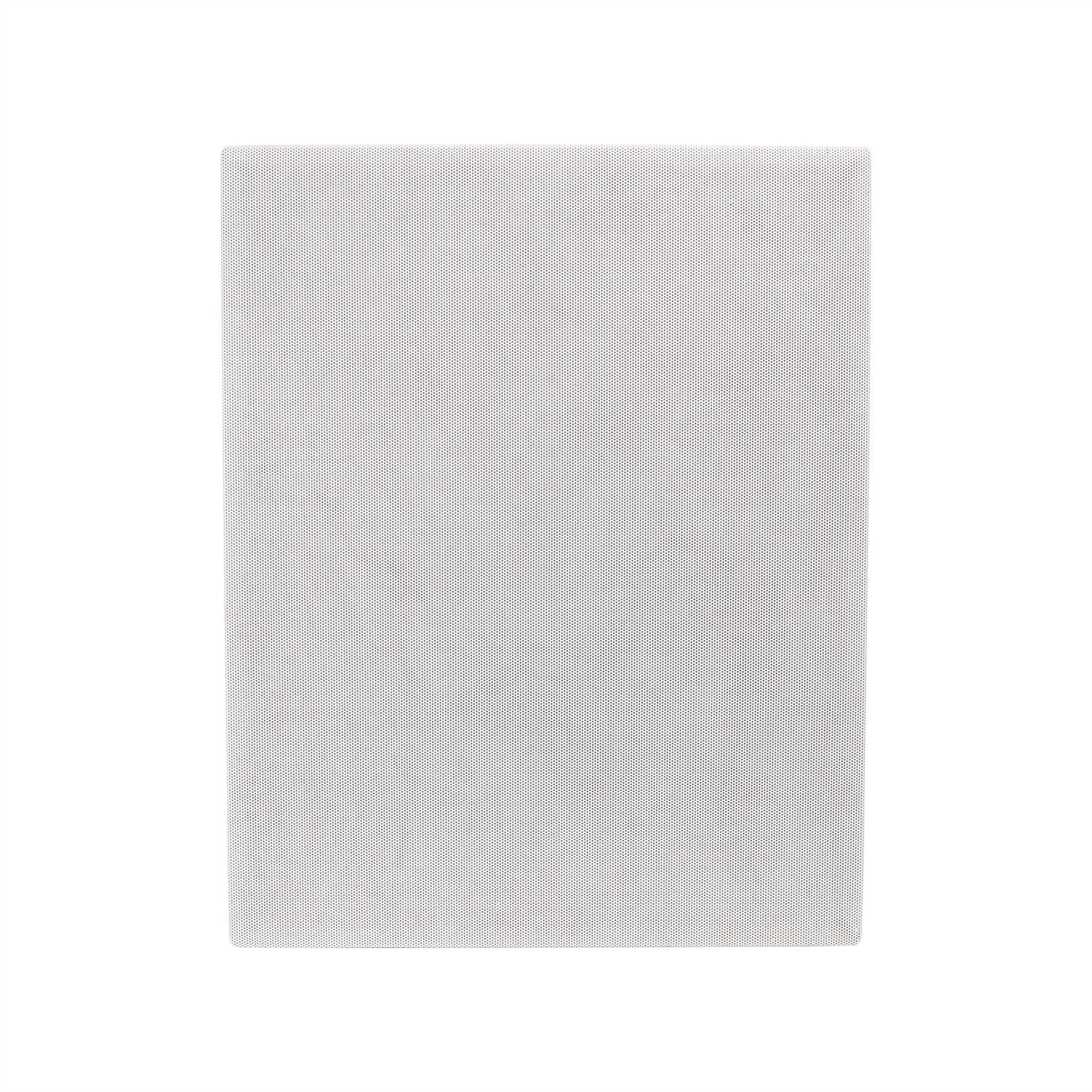

• Blending into high-end interiors with a bezel-free, paintable, magnetic grille
• Handling dynamic movie effects and musical slam with high output capability
• Simplifying custom installs with stud-bay-friendly in-wall mounting
• Pairing beautifully with Klipsch KDA Series DSP amplifiers (with presets) for optimized performance

Klipsch PRO-1000SW Full Specifications:

• Frequency Range: 24Hz – 100Hz (±3dB)
• System Type: Sealed Box
• Woofer: 10" (25.4cm) Long-Throw Cerametallic™
• Maximum Output: 109dB @ 70Hz
• Power Handling: 200W RMS / 500W Peak
• Impedance: 8 Ohm
• Enclosure Material: MDF
• Finish: Black Polymer Veneer with White, Paintable Grille
• Product Dimensions: 22.0" H x 17.63" W x 4.0" D (559mm x 448mm x 102mm)
• Mounting Depth: 3.94" (100mm)
• Cutout Dimensions: 20.24" x 14.41" (514mm x 366mm)
• Product Weight: 20.3 lbs (9.2 kg)
• Installation Compatibility: New construction / retrofit; standard 16" on-center stud bay
• Included Hardware (per manual reference): #10 1.5" drywall screws

Klipsch PRO-1000SW Q&A:

What is the Klipsch PRO-1000SW designed for?

It’s built for custom-install home theaters and architectural audio systems that need powerful bass without floor space or visible cabinets.

Does this subwoofer require an external amplifier?

Yes. The PRO-1000SW is a passive in-wall subwoofer and must be powered by an external amplifier.

What size driver does the PRO-1000SW use?

It uses a 10-inch long-throw Cerametallic™ woofer designed for strong output and low distortion.

Will it fit between standard wall studs?

Yes. It is designed for direct installation into a standard 16” on-center stud bay, supporting both retrofit and new construction installs.

Can the grille be painted to match my wall?

Yes. The included grille is paintable, so it can blend seamlessly into your room’s finish.

What kind of bass character should I expect—boomy or tight?

The sealed enclosure design emphasizes tight, controlled, accurate bass—great for both music detail and cinematic impact.

What are the cutout dimensions I need for installation?

The wall cutout is 20.24" x 14.41" (514mm x 366mm).

How can I get the best performance from this in-wall subwoofer?

For maximum output and tuning, pair it with a compatible amplifier and consider Klipsch KDA Series DSP amplifiers that offer optimized presets.

Klipsch PRO-1000SW Downloads:

Klipsch PRO-1000SW Specification Sheet
Klipsch PRO-1000SW Manual
