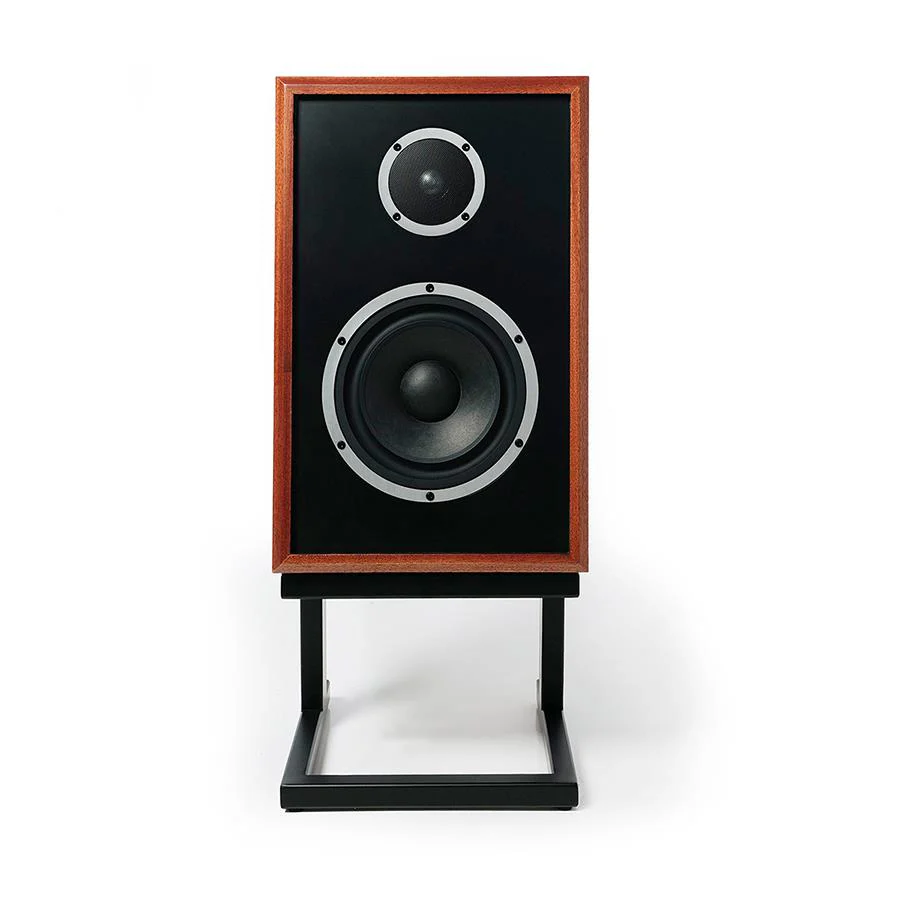

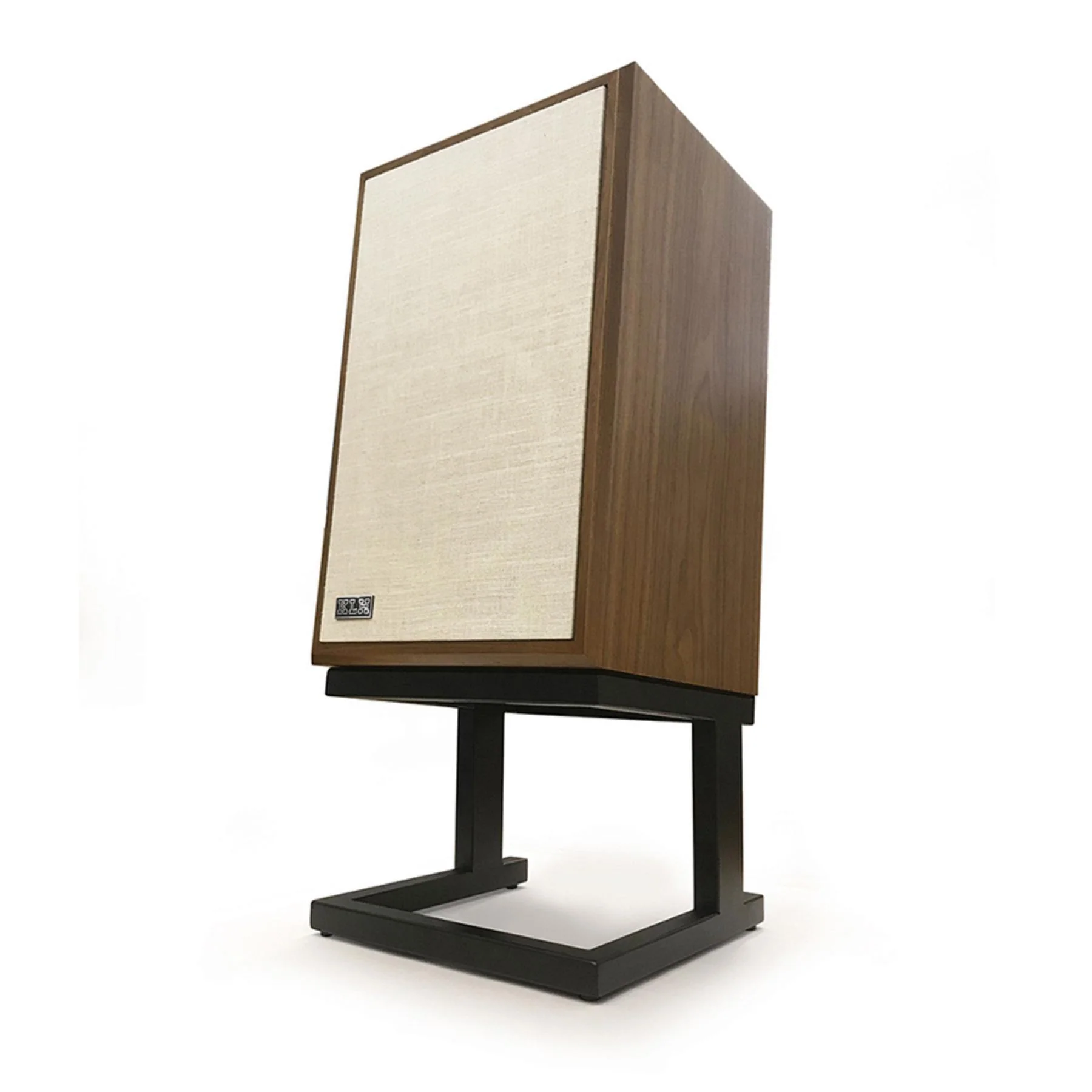

KLH Model Three Bookshelf Speakers

KLH Model Three Bookshelf Speaker – Audiophile Performance in Iconic Design

• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today
• Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
• Non-Resonant Die-Cast Aluminum Woofer Frame
• Machined Aluminum 1” tweeter faceplate
• KLH cabinetry featuring a structurally reinforced 3⁄4” MDF Enclosure
• Thirteen Component network using high quality iron-core inductors & Mylar capacitors
• Each speaker includes its own 8 ̊ slant riser base made of powder coated 14-gauge steel
• Low-Profile Magnet Attached Grille
• 10-Year Warranty

Experience legendary acoustic precision with the KLH Model Three Bookshelf Speaker, a masterpiece in high-fidelity audio that blends mid-century modern aesthetics with state-of-the-art engineering. As the second addition to the acclaimed KLH Model Collection, the Model Three continues the brand’s legacy of acoustic suspension design, delivering audiophile-grade performance in a compact, versatile form. Handcrafted with genuine wood veneers, die-cast aluminum components, and eco-friendly materials, this speaker is a visual and sonic statement for any space - ideal for smaller listening rooms or bookshelf setups. Featuring a two-way design, a three-position acoustic balance control, and a robust 8-inch woofer, it offers deep bass, rich mids, and crisp highs that rival larger floorstanding speakers.

The Model Three’s unique 8° slant riser base, included with every speaker, ensures optimal sound projection. Choose from timeless finishes like English Walnut with Stone Wash Linen grille, West African Mahogany with Old-World Linen, or Nordic Noir with Medici Grey Linen—or customize your style with additional grille options available separately. Whether you're a casual listener or an audio purist, the KLH Model Three is engineered to elevate your sound experience.

KLH Model Three Specifications:

• Frequency Response: 46Hz – 20,000Hz ± 3dB
• Low Frequency Extension: -10dB @ 35Hz
• In-Room Sensitivity: 88dB @ 2.83V / 1M
• Free-Field Sensitivity: 85dB @ 2.83V / 1M
• Power Handling: 150 Watts / 600 Watts Peak
• Recommended Amplification: 30–150 Watts
• In-Room Maximum SPL: 108dB
• Maximum Output @ 45Hz: 101dB
• Impedance: 6 Ohms (Minimum 3.7 Ohms @ 320Hz)
• Horizontal Dispersion: 140°
• Crossover Frequency: 1,600Hz
• High Frequency Driver: 1" Aluminum Dome with Soft Rubber Suspension
• Low Frequency Driver: 8" Pulp-Paper Cone with Reverse Roll Rubber Suspension, 1.5" Flat-Wire Voice Coil
• Acoustic Balance Control: Three-Position Selector
• Inputs: Five-Way Gold-Plated Binding Posts
• Enclosure Material: Structurally Reinforced ¾" Medium Density Fiberboard (MDF)
• Included Accessories: 8° Slant Riser Base (Powder-Coated 14-Gauge Steel)
• Dimensions (with Riser Base): 28.25" H x 12.25" W x 11.5" D
• Dimensions (without Riser Base): 19.0" H x 12.25" W x 10.5" D
• Weight: 29 lbs (Speaker Only), 36 lbs (With Riser Base)
• Warranty: 10-Year Manufacturer Warranty

KLH Model Three Downloads

KLH Model Three User Manual
KLH Model Three Specificaiton Sheet

Watch our KLH Model Three Review Video

KLH Model Three Q&A

Q: Can I place these speakers near a wall or on a bookshelf?

A: Yes! The KLH Model Three is designed for optimal performance in small spaces and performs well near walls or on shelves.

Q: How does the Three-Position Acoustic Balance Control work?

A: It lets you fine-tune your speaker’s output to your room’s acoustics, ensuring the best sound whether your space is bright or dampened.

Q: Are the speaker grilles removable?

A: Yes, grilles are magnet-attached and easily swappable. Additional styles are available for customization.

Q: What size amplifier should I use?

A: A high-quality amp rated between 30–150 watts will deliver the best performance for these speakers.

Q: Do these speakers come with the riser base?

A: Absolutely. Every purchase includes the 8° slant riser base to enhance audio direction and stability.

Q: What finishes are available?

A: Choose from English Walnut, West African Mahogany, or Nordic Noir finishes.

Q: What kind of warranty is included?

A: KLH provides a 10-year warranty for peace of mind and long-term performance assurance.

Q: What makes the acoustic suspension design special?

A: It minimizes distortion and enhances accuracy by offering a tightly controlled, linear bass response—ideal for critical listening environments.
