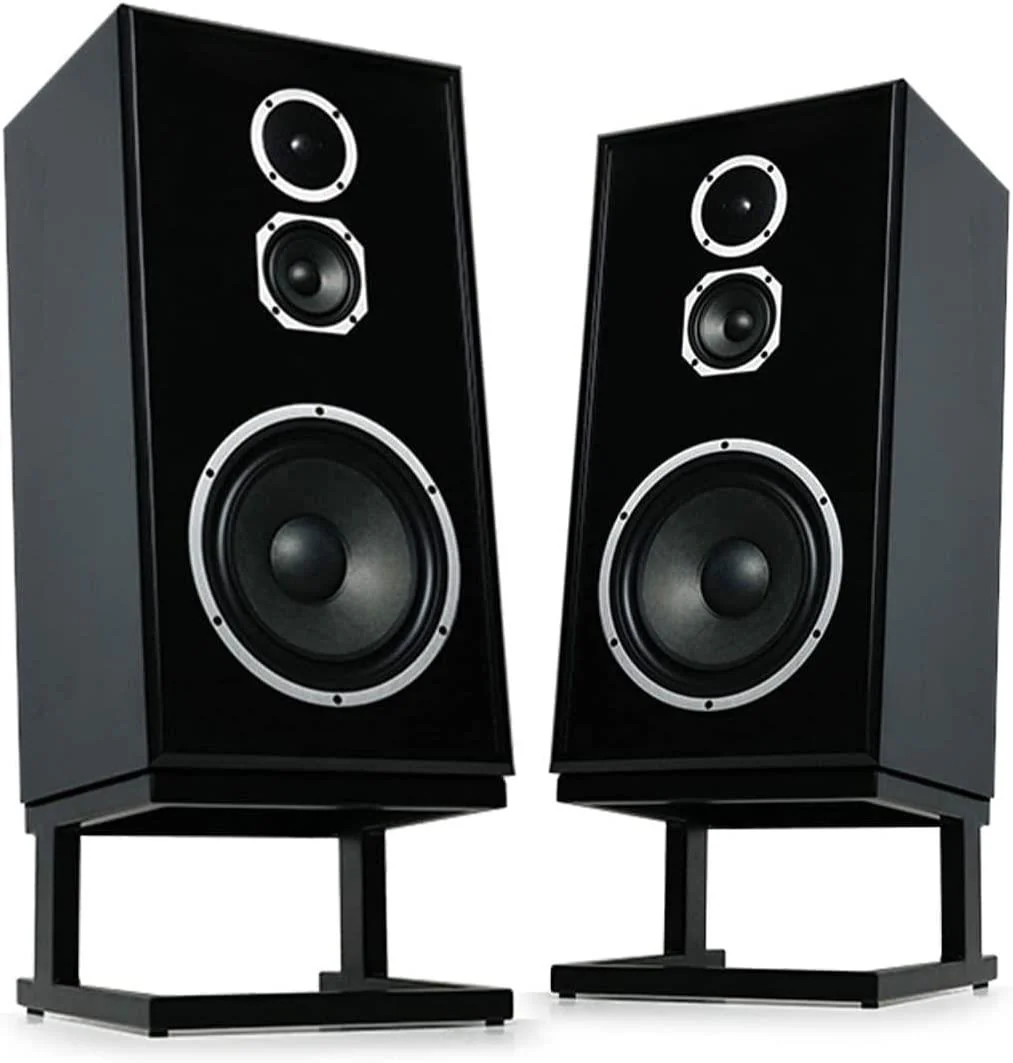

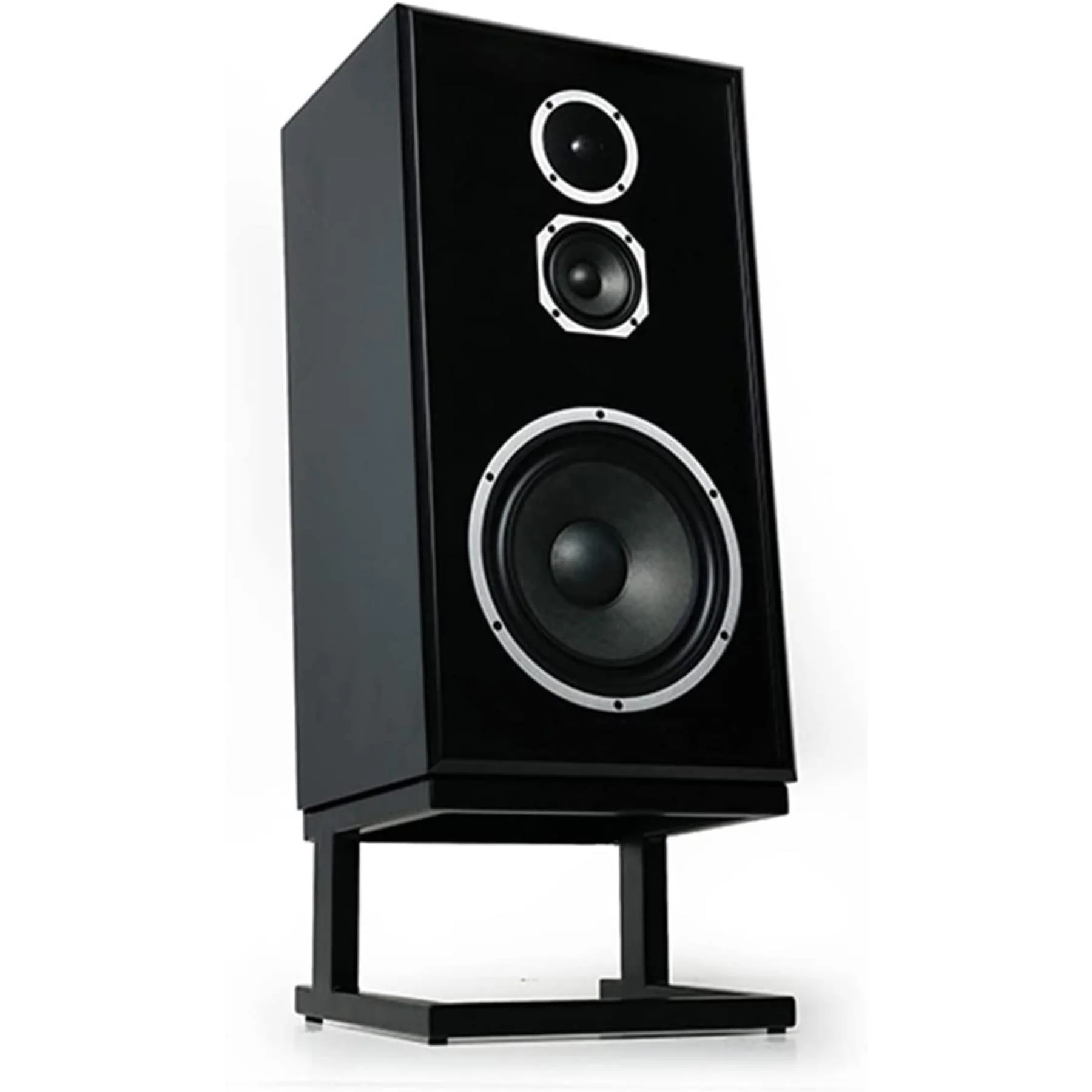

KLH Model Five 3-Way 10-inch Acoustic Suspension Floorstanding Speaker

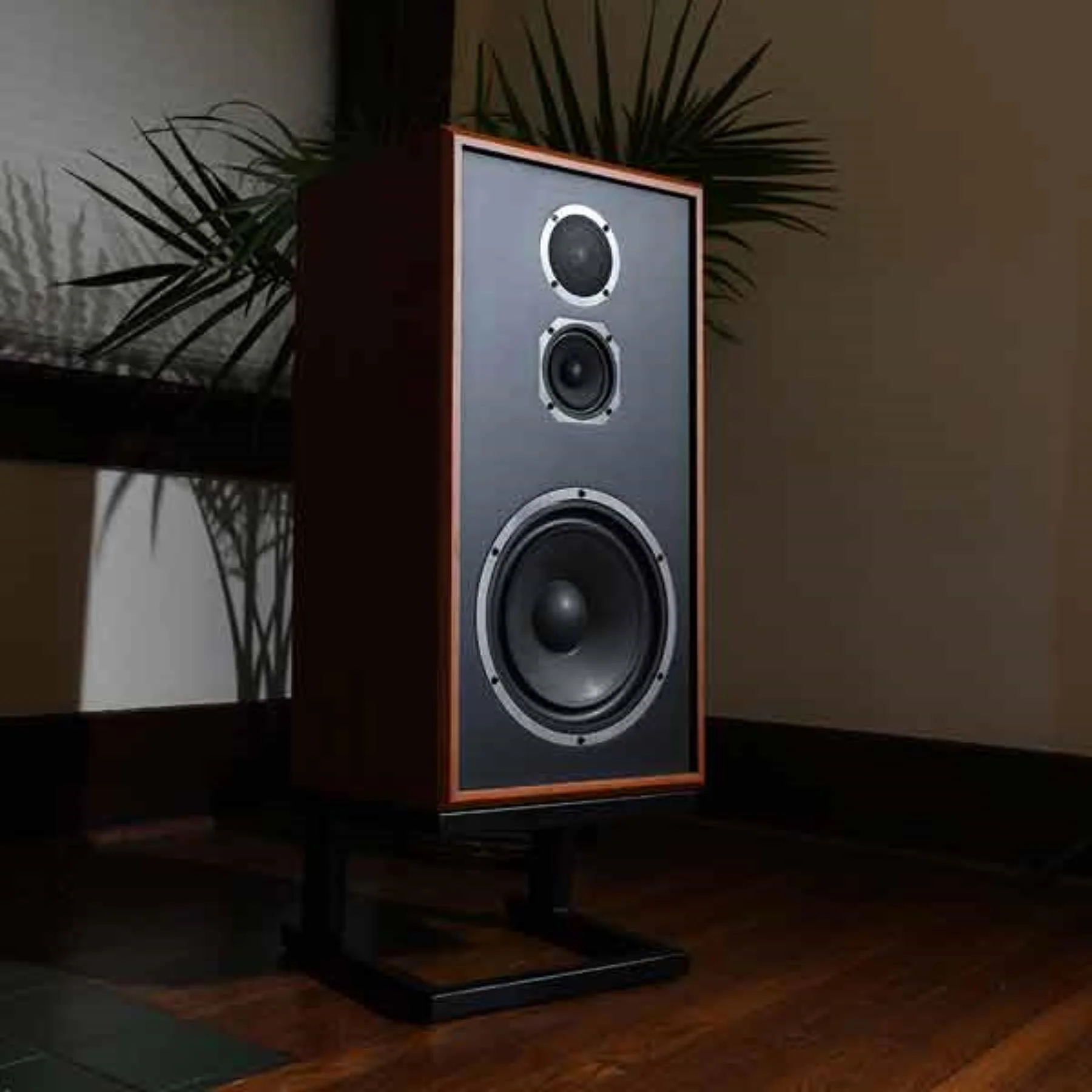

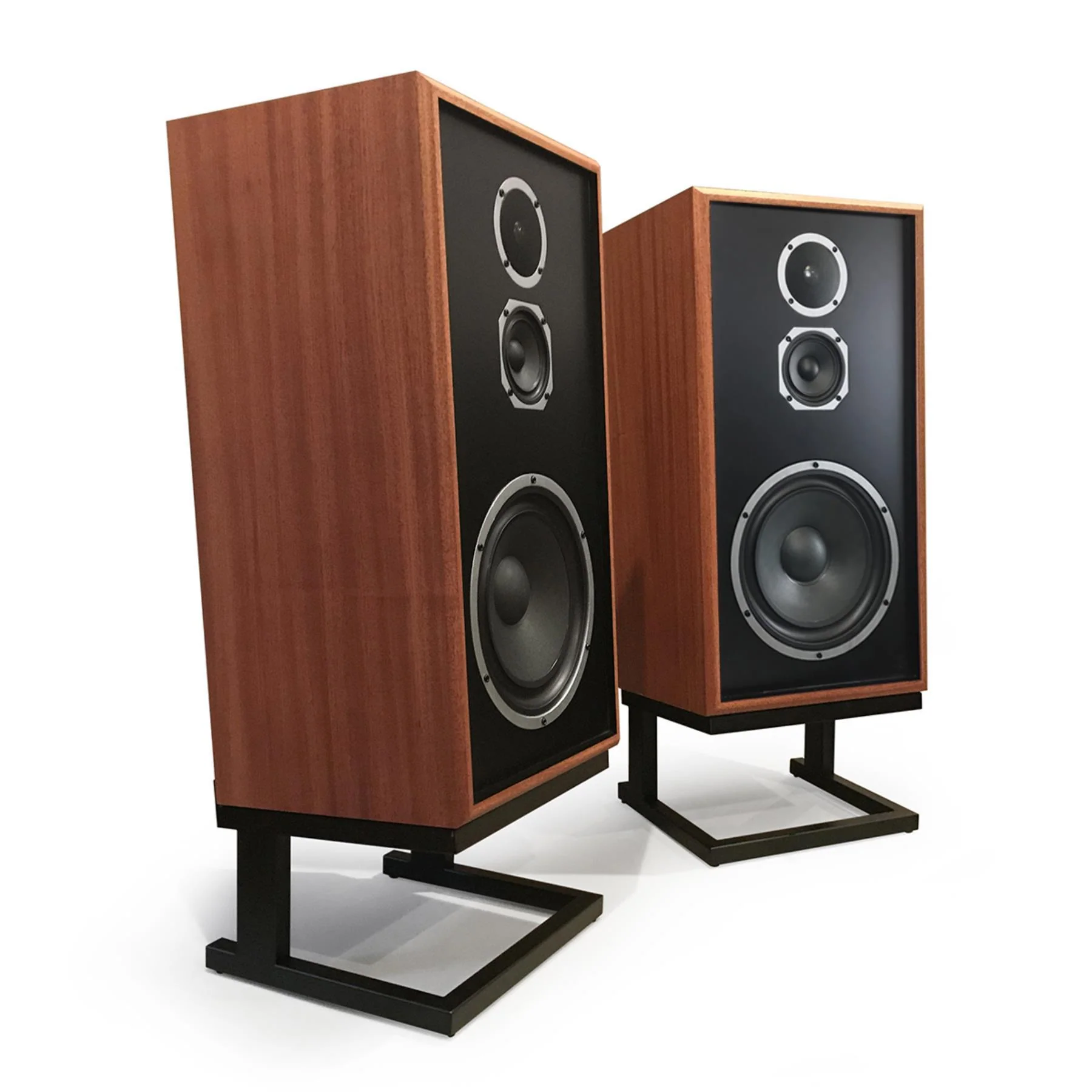

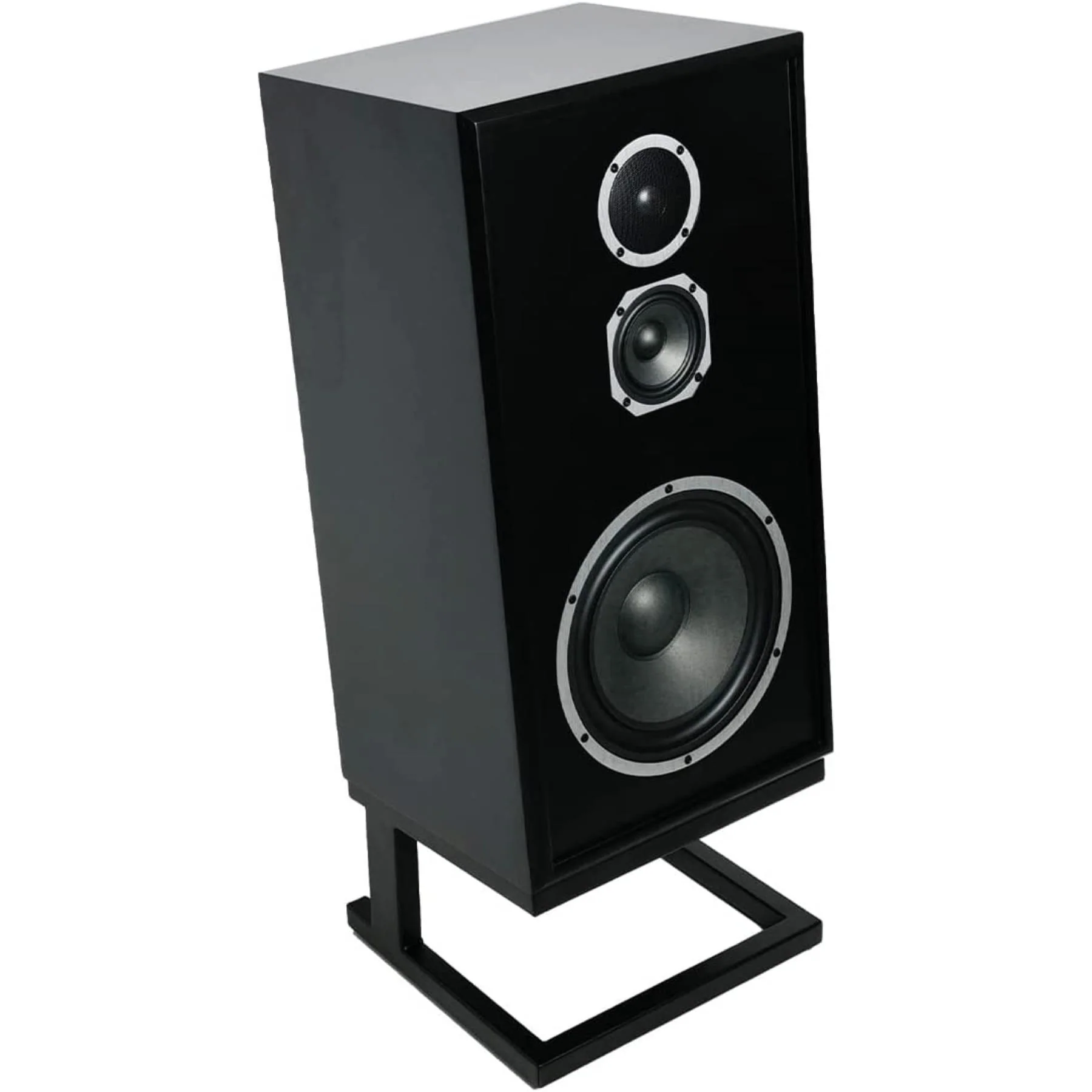

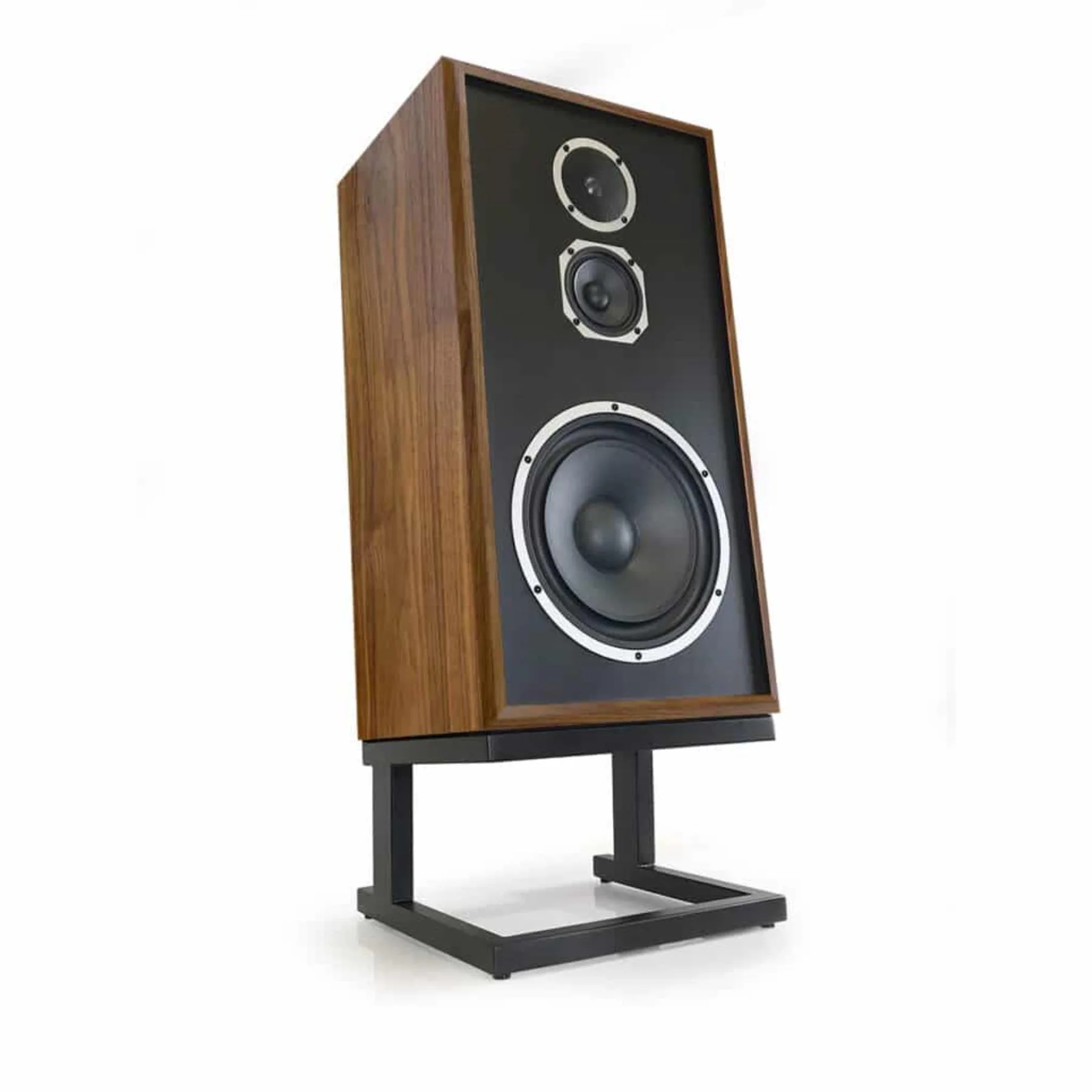

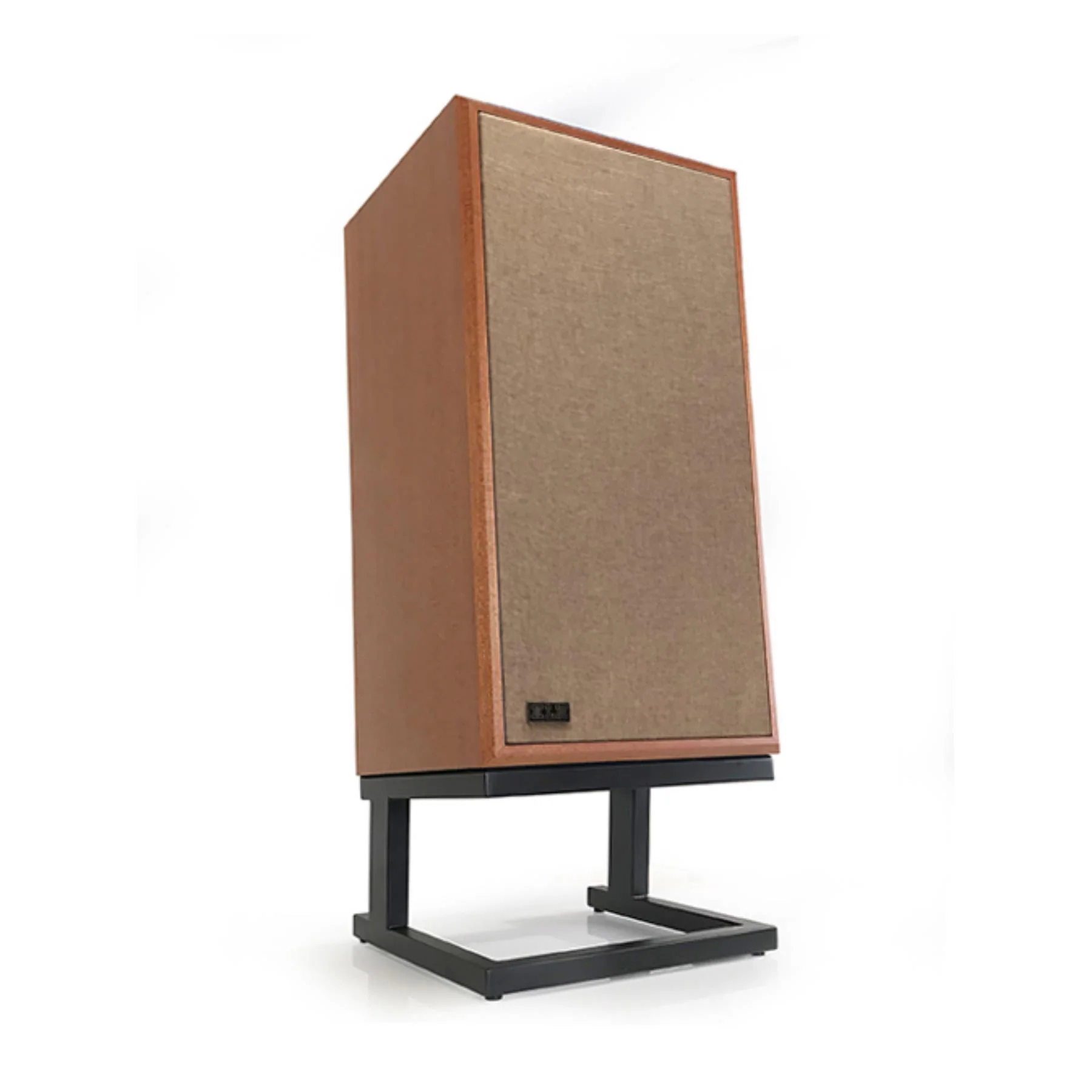

KLH Model Five 3-Way Speaker with Riser

Rediscover legendary sound with the KLH Model Five 3-Way Acoustic Suspension Speakers, a modern revival of a classic audiophile favorite. With its iconic Mid-Century Modern design and cutting-edge acoustic suspension technology pioneered by Henry Kloss, the Model Five delivers unmatched sound accuracy and tonal balance. Crafted with premium materials like real wood veneers, die-cast aluminum frames, and a structurally reinforced MDF enclosure, these speakers promise both aesthetic elegance and high-fidelity performance. Whether you're an audiophile purist or a modern music enthusiast, the Model Five transforms any space into a world-class listening environment.

KLH Model Five Key Features:

• Iconic Mid-Century Modern design
• Acoustic Suspension Design for precise, linear sound
• Three-Position Acoustic Balance Control for room customization
• Dedicated midrange driver for superior vocal clarity
• High-quality die-cast aluminum frames and MDF cabinetry
• 10-Year Manufacturer’s Warranty

KLH Model Five Specifications:

• Frequency Response: 42Hz – 20,000Hz ± 3dB
• Low Frequency Extension: -10dB @ 32Hz
• In-Room Sensitivity: 90.5dB @ 2.83V / 1M
• Free-Field Sensitivity: 87.5dB @ 2.83V / 1M
• Power Handling: 200 Watts / 800 Watts Peak
• Recommended Amplification: 20 Watts to 200 Watts
• In-Room Maximum SPL: 112.3dB
• Maximum Output @ 45Hz: 106dB
• Impedance: 6 Ohms (3.5 Ohm minimum @ 140Hz)
• Horizontal Dispersion: 140°

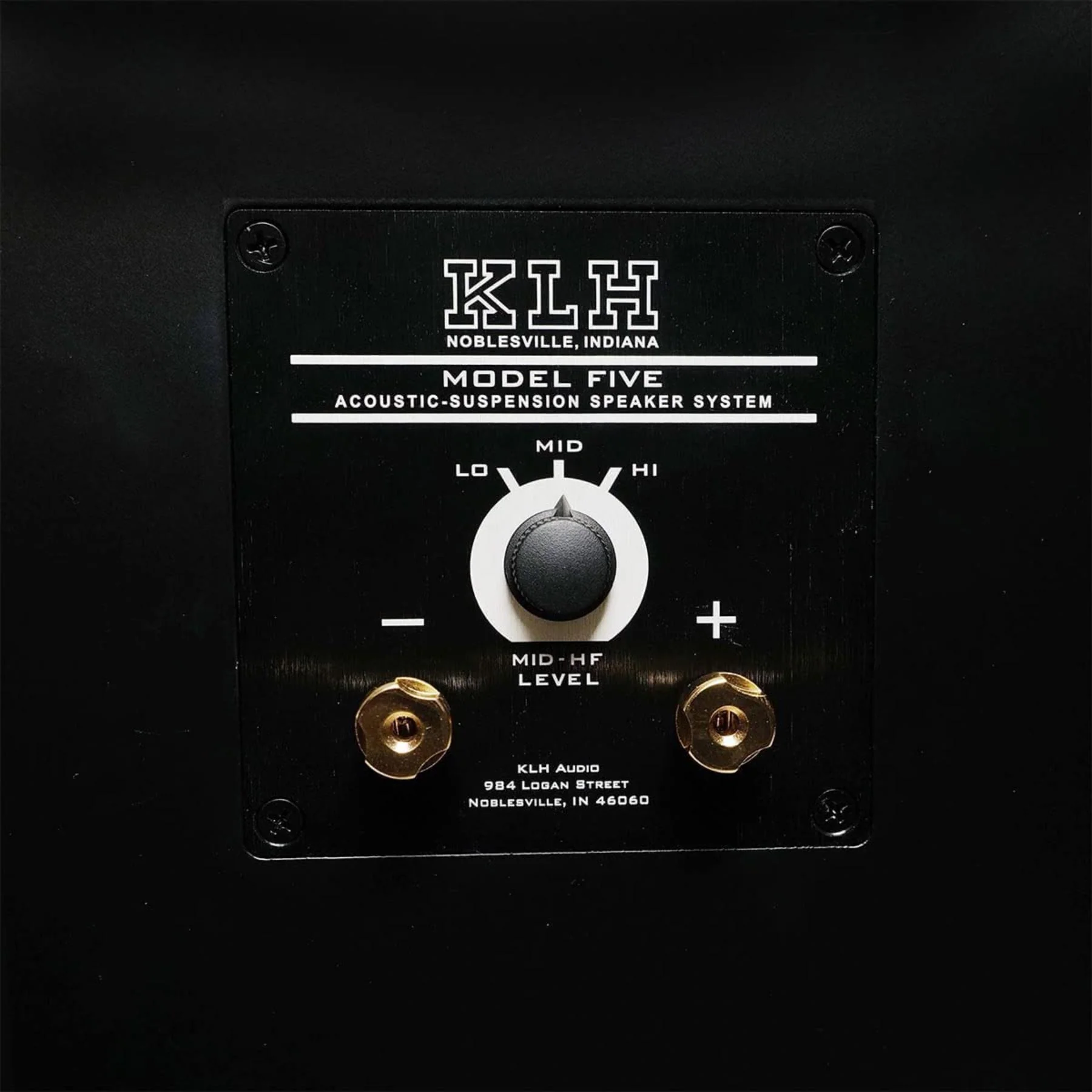

• Three-Position Acoustic Balance Control
• Crossover Frequencies:
  • Mid Frequency: 380Hz (2nd Order Electro-Acoustic)
  • High Frequency: 2,850Hz (2nd Order Electro-Acoustic)
• High Frequency Driver: 1" Aluminum Dome with Soft Rubber Suspension
• Mid Frequency Driver: 4" Pulp-Paper Cone with Reverse Roll Rubber Suspension
• Low Frequency Driver: 10" Pulp-Paper Cone with Reverse Roll Rubber Suspension, 2" Diameter Flat-Wire Voice Coil
• Enclosure Material: Structurally Reinforced ¾" MDF
• Inputs: Five-Way Gold-Plated Binding Posts
• Dimensions (H x W x D):
  • 34.25" x 13.75" x 13.0" (with Riser Base)
  • 26.0" x 13.75" x 11.5" (without Riser Base)
• Weight:
  • 52 lbs (23.6 kg) with Riser Base
  • 44 lbs (20.0 kg) without Riser Base
• Included Accessories: 5° Slant Matte Black Riser Base, Owner’s Manual

KLH Model Five Downloads:

KLH Model Five User Manual
KLH Model Five Specification Sheet

KLH Model Five Q&A:

Q: What makes the KLH Model Five speakers different from other bookshelf speakers?

A: The Model Five uses an acoustic suspension design, offering precise, linear audio performance, along with a dedicated midrange driver and advanced crossover components for detailed sound reproduction.

Q: Can I adjust the sound based on my room acoustics?

A: Yes! The Model Five features a Three-Position Acoustic Balance Control, allowing you to optimize the output for different room environments.

Q: Are these speakers compatible with most amplifiers or receivers?

A: Absolutely. They support a recommended amplification range of 20 to 200 watts, making them compatible with a wide variety of audio systems.

Q: Do the speakers come with stands?

A: Yes, each speaker includes a stylish and functional 5° slant matte black riser base made of powder-coated 14-gauge steel.

Q: What materials are used in the drivers and enclosures?

A: The drivers feature pulp-paper cones and die-cast aluminum frames, while the enclosure is built from structurally reinforced ¾" MDF for optimal sound isolation.

Q: What is the warranty period?

A: KLH offers a generous 10-year warranty on the Model Five speakers, reflecting their confidence in the product’s durability and performance.

Q: Are the grilles removable?

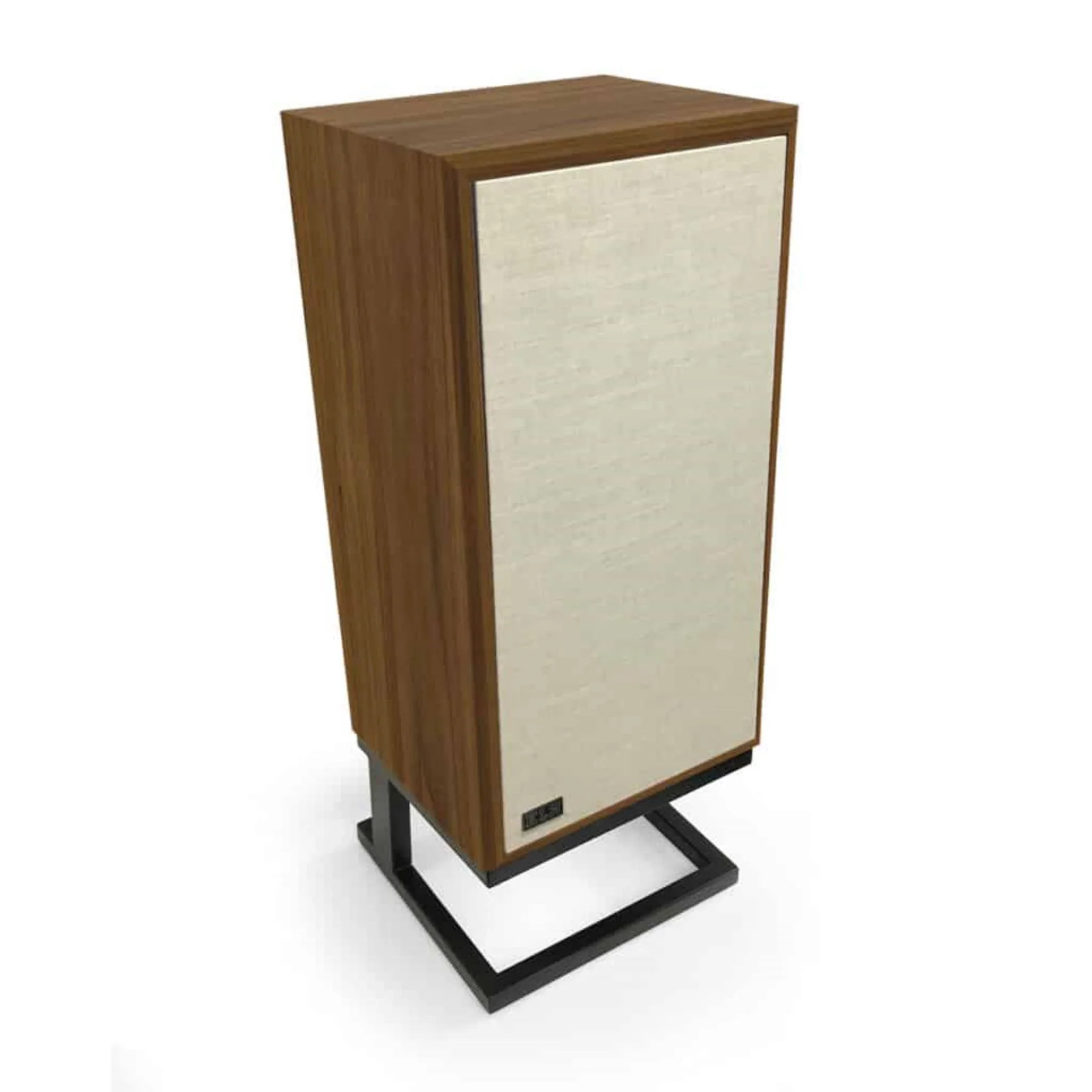

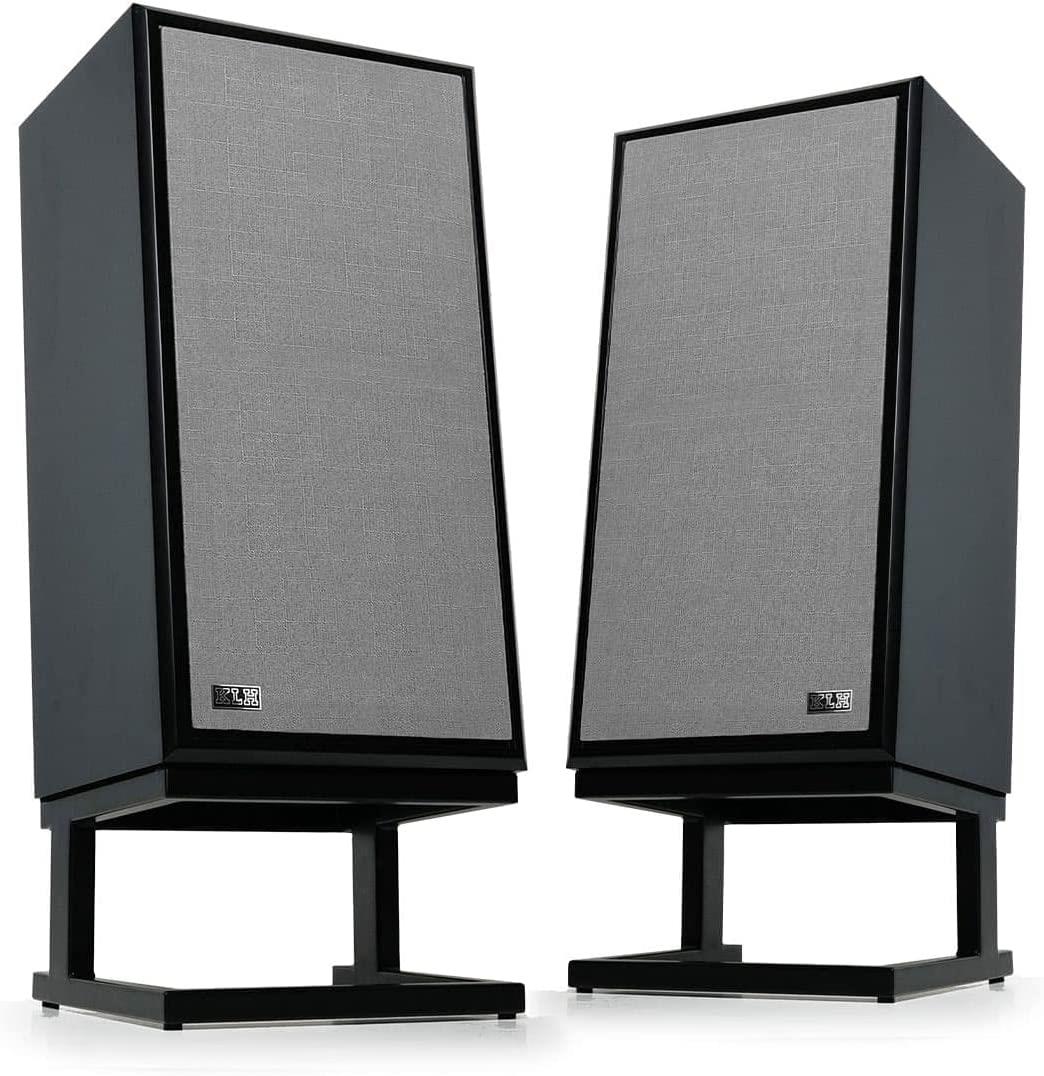

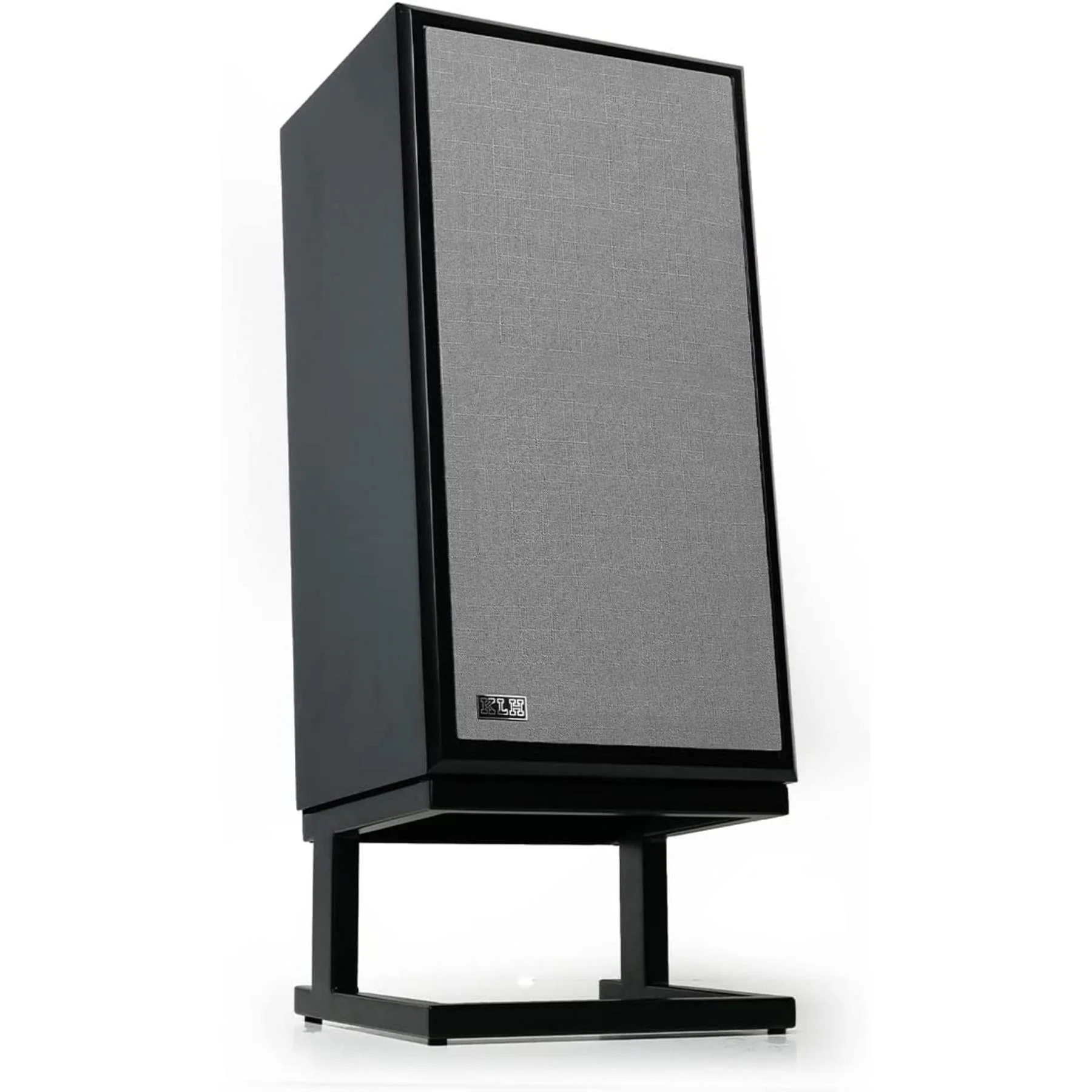

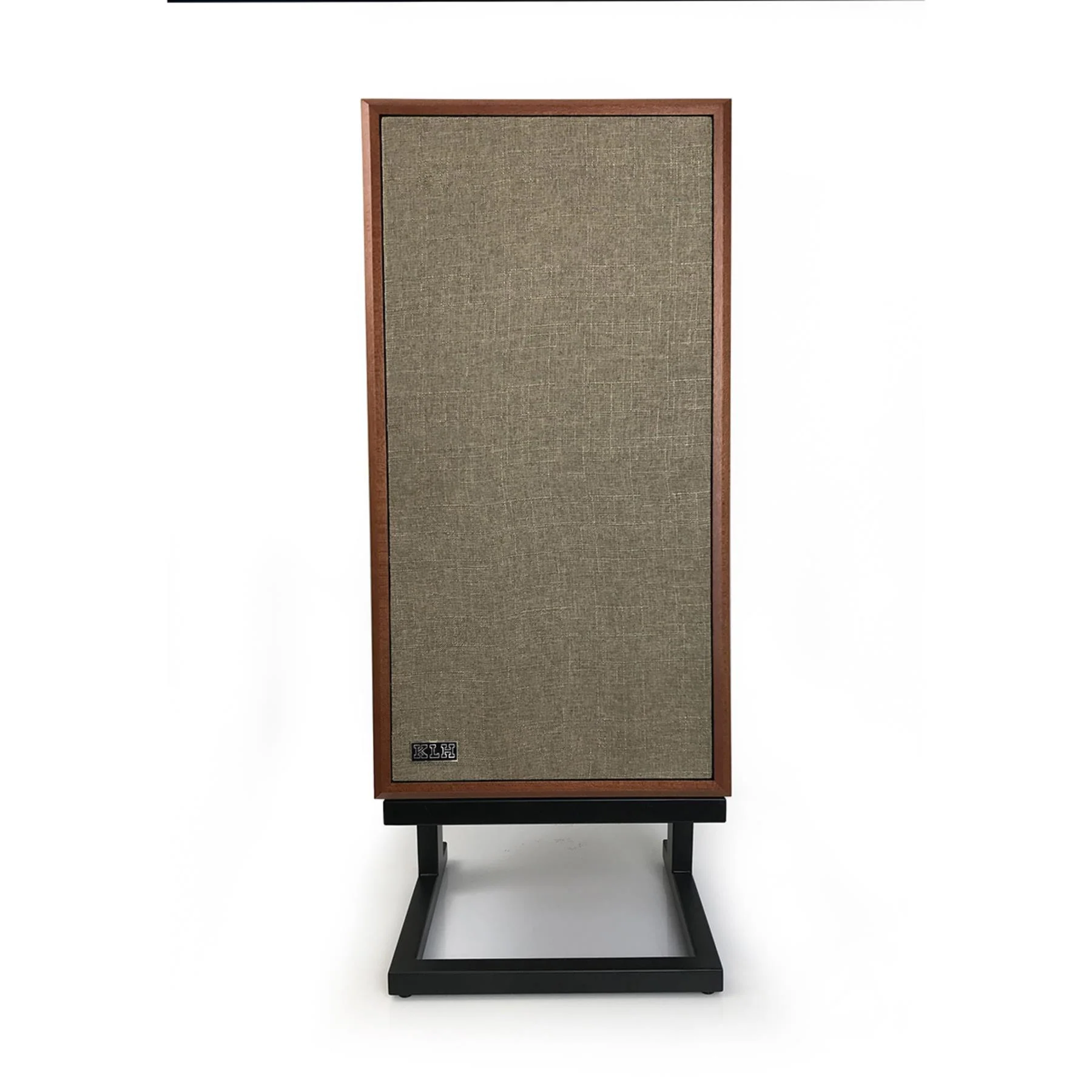

A: Yes, the speakers include low-profile, magnetically attached grilles that are easy to remove or attach for your preferred look.

Q: What’s included in the box?

A: Each package contains the Model Five loudspeaker, matte black slant riser base, and an owner’s manual for setup and operation.
