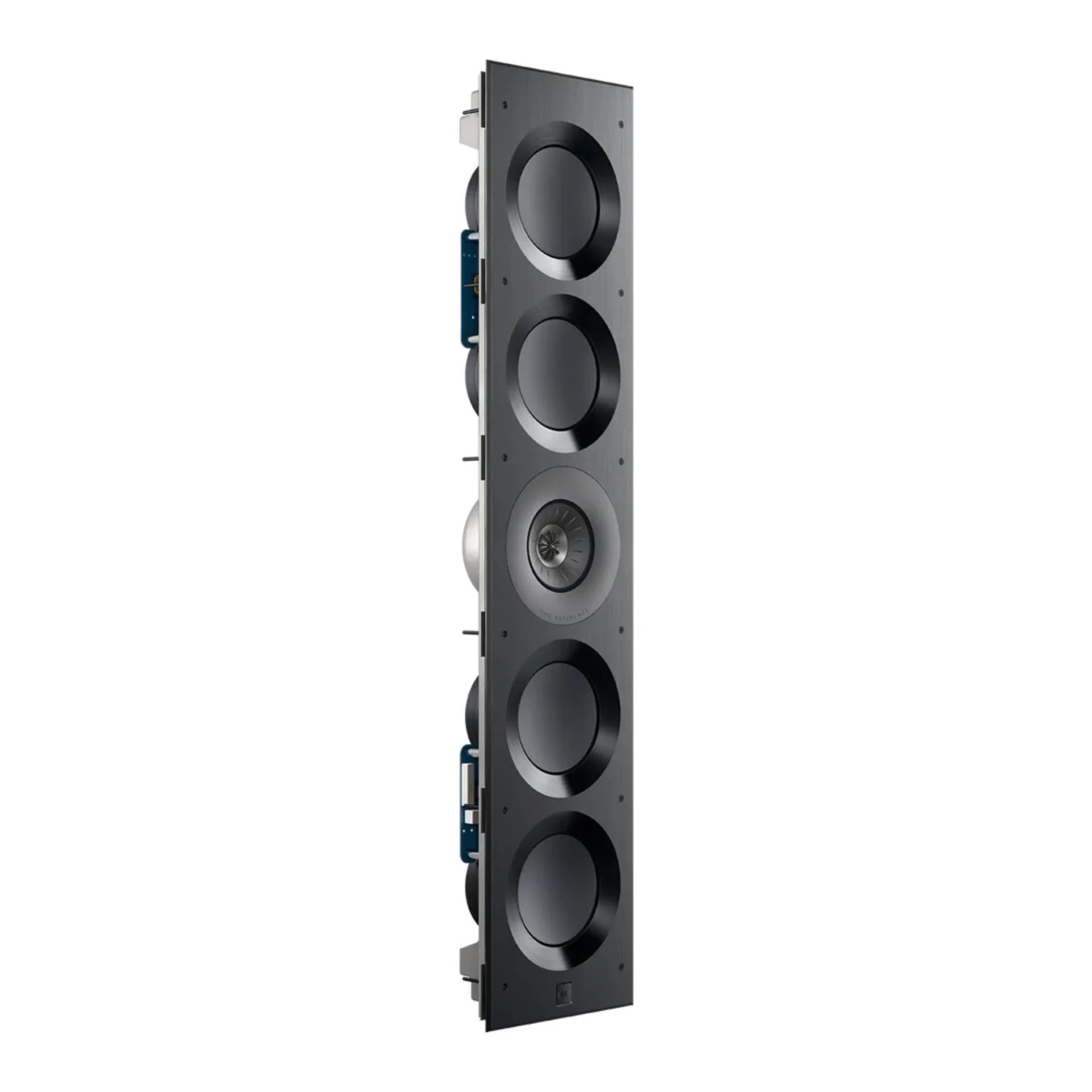

KEF Ci5160REFM-THX In-Wall Ci-Reference Series Speaker
KEF Ci5160REFM-THX In-Wall THX Dominus Speaker - High-Fidelity Immersive Sound for Home Theatres
The KEF Ci5160REFM-THX, the first in-wall speaker from KEF to achieve THX® Certified Dominus status, setting a new standard for immersive sound quality. Engineered with advanced technology and precision craftsmanship, this speaker delivers realistic, high-fidelity audio performance that surpasses expectations.
KEF Ci5160REFM-THX Key Features:
- THX® Certified Dominus: Enjoy cinema-like sound quality at home with the highest THX® performance class certification.
- Metamaterial Absorption Technology (MAT™): Absorbs 99% of unwanted sound, ensuring pure audio reproduction.
- Uni-Q® Driver Array: Provides a wide sweet spot and even sound dispersion for a truly immersive listening experience.
- Realistic Bass Response: Four 160mm (6.5in.) bass drivers deliver clean, rich bass down to 32Hz.
- Handcrafted in the UK: Designed, engineered, and hand-built in Maidstone, UK, ensuring superior quality and attention to detail.
- Discreet Design: Paintable magnetic metal grille and optional black cloth grille allow the speaker to seamlessly blend into any environment.
KEF Ci5160REFM-THX Specifications:
- Nominal Impedance: 4Ω
- Sensitivity (2.83V/1m): 92dB
- Frequency Response (±6 dB): 40 - 28kHz
- Frequency Range (-10 dB): 32 - 45kHz
- Nominal Coverage (degrees): 150°
- Crossover Frequency: 600Hz, 3000Hz
- Drive Units: LF: 4 x 160mm (6.5in.), MF: 125mm (5.25in.) Uni-Q, HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
- Recommended Amplifier Power: 50 - 500 W
- Recommended High-pass Filter (Hz): 35Hz - 80Hz
- Product External Dimensions (H X W X D): 1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
- Cut-out Dimensions (H X W): 1052 x 209mm (41.42 x 8.23in.)
- Net Weight: 21.7kg (47.8lbs.)
- Mounting Depth From Surface: 99mm (3.9in.)
- Optional Rough In Frame: RIF5160L
- Ideal Rear Volume (L): 90
- Minimum Rear Volume (L): 40
- Max SPL (dB): 116dB
- Certification: THX Certified Dominus
- Wall Thickness (Maximum): 40mm (1.58in.)
- Wall Thickness (Minimum): 6mm (0.24in.)
Experience the ultimate in-wall speaker technology with the KEF Ci5160REFM-THX. Upgrade your home theatre setup and immerse yourself in stunning, lifelike sound.
KEF Ci5160REFM-THX Downloads
KEF Ci5160REFM-THX Manual
KEF Ci5160REFM-THX Cutout Template
KEF Ci5160REFM-THX Product Drawing
KEF Ci5160REFM-THX Product Information Sheet
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
