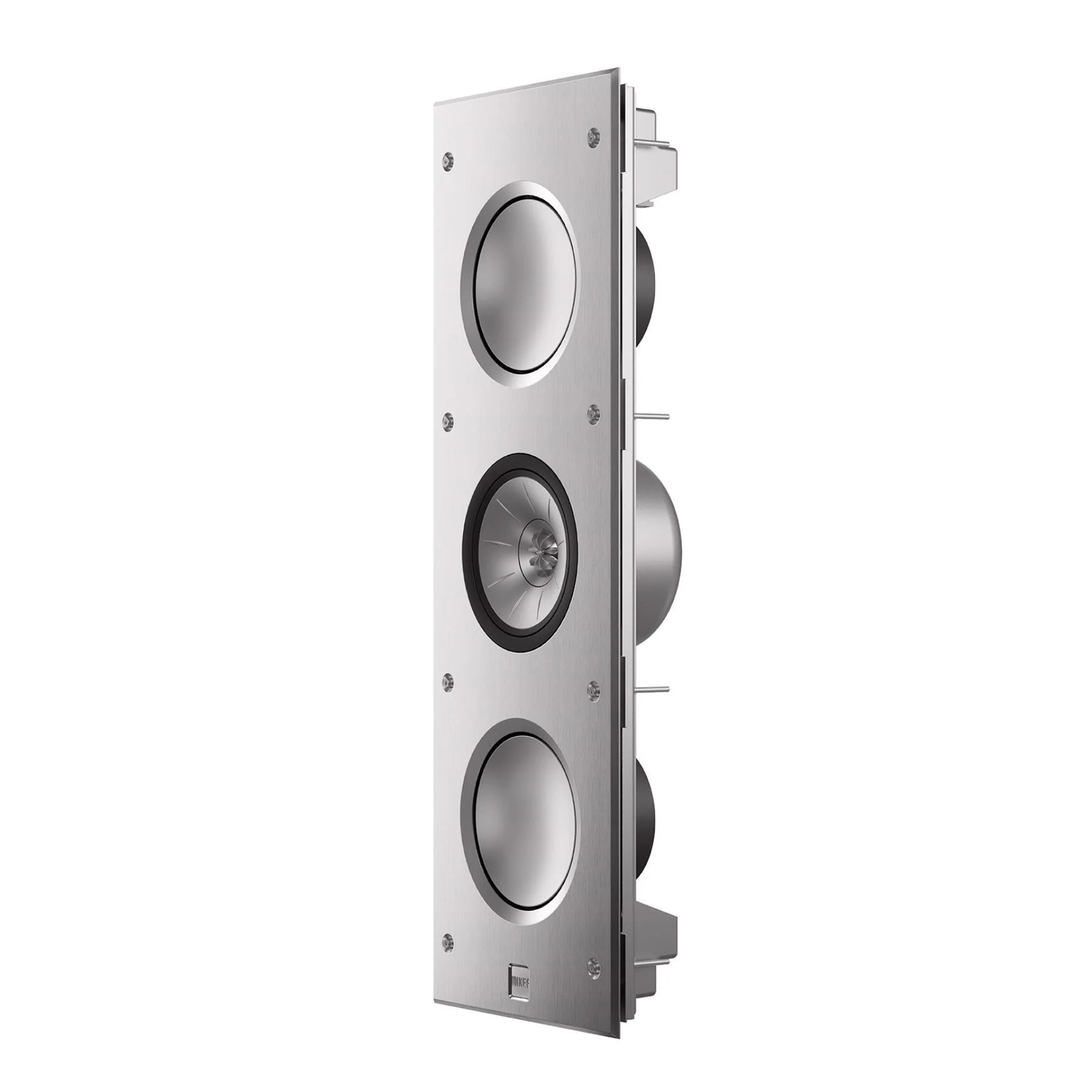

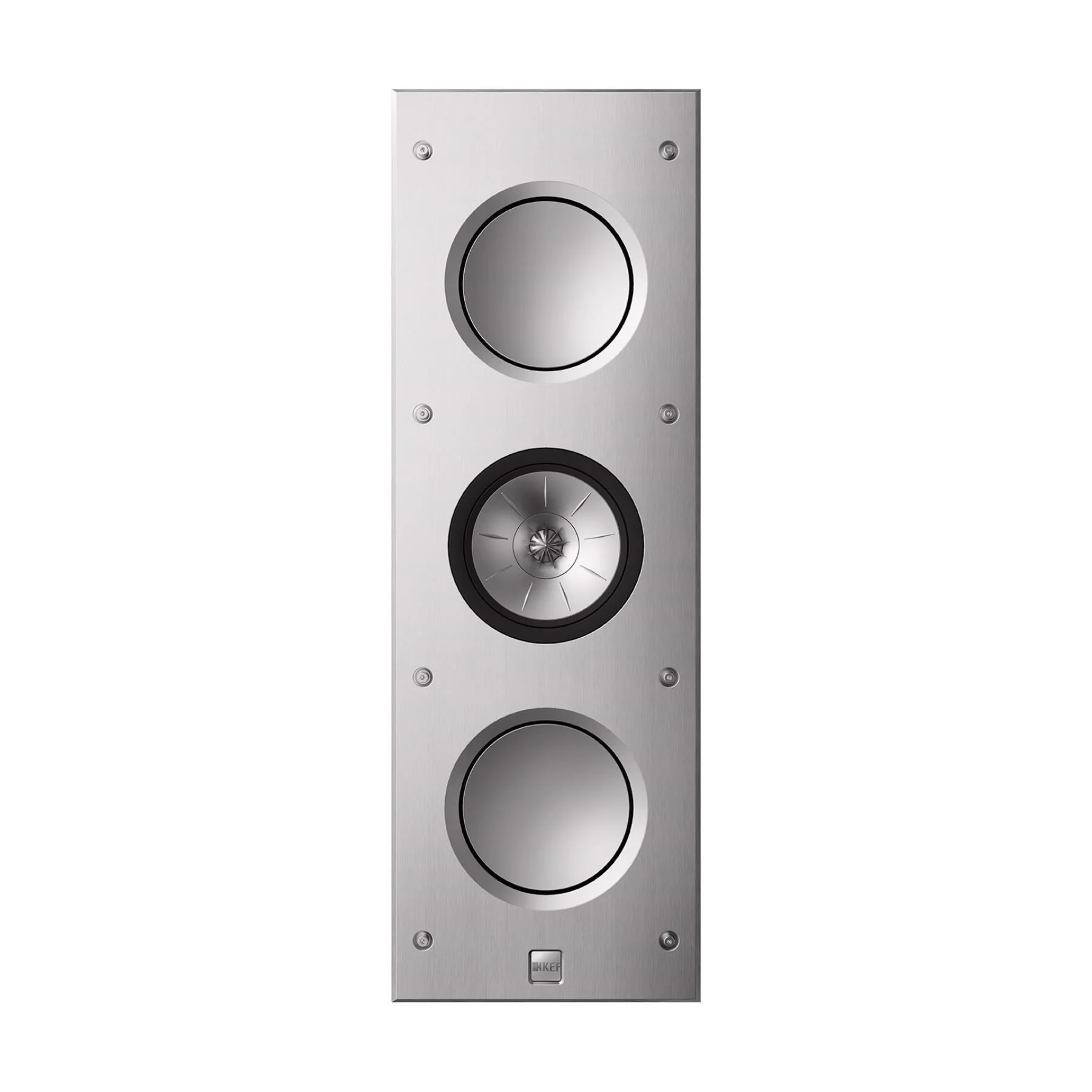

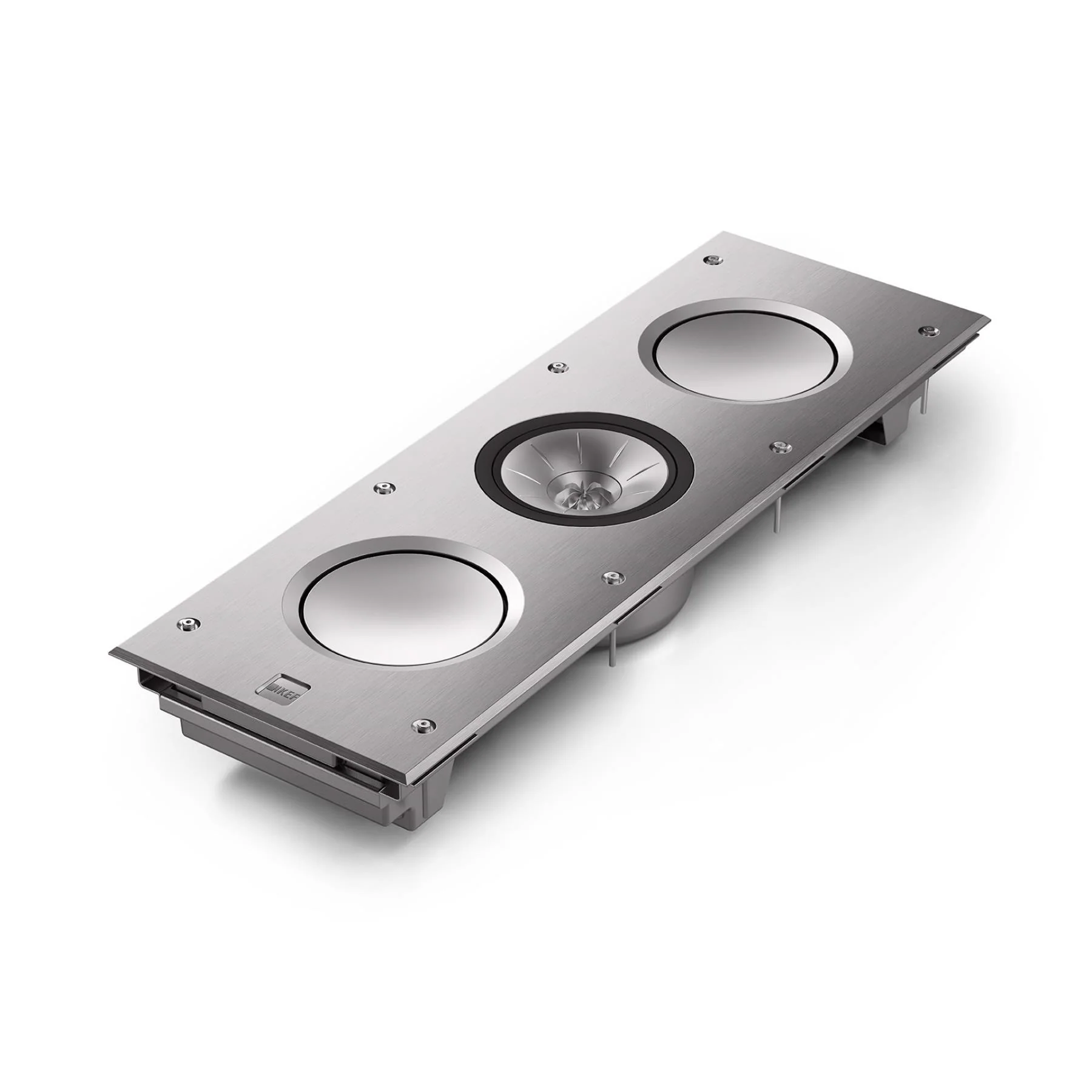

KEF Ci3160RLM-THX Ci-R Series THX-Certified In-Wall Speaker

KEF Ci3160RLM-THX THX Ultra In-Wall Speaker

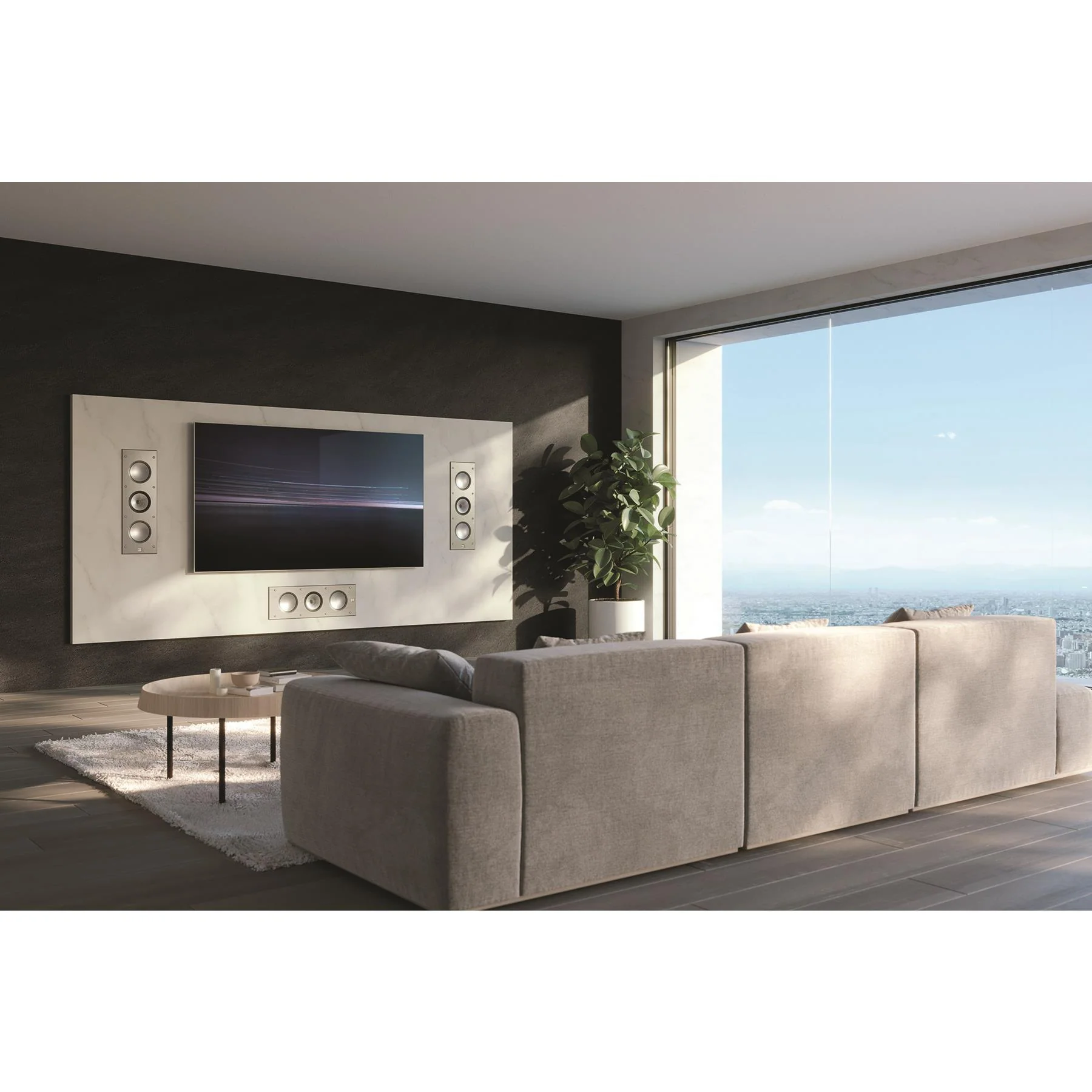

Experience cinema-quality sound in the comfort of your own home with the KEF Ci3160RLM-THX In-Wall Speaker. THX® Certified Ultra and featuring Metamaterial Absorption Technology, this speaker delivers unparalleled audio performance for large theaters and living rooms. With its sleek design and versatile installation options, it seamlessly integrates into any environment while providing an immersive listening experience. Upgrade your home theater setup today.

KEF Ci3160RLM-THX Key Features:

• THX® Certified Ultra Speaker with MAT™ for unparalleled audio quality
• Metamaterial Absorption Technology (MAT™) absorbs 99% of unwanted sound
• Uni-Q® driver array provides a wider 'sweet spot' and even sound dispersion
• Two 6.5” hybrid aluminum bass drivers deliver tight, controlled bass
• Precision-machined 5.5mm thick aluminum baffle eliminates vibration
• Paintable magnetic metal grille seamlessly blends into any environment
• Available in Aluminum Silver with tone-matched Uni-Q and bass drivers

KEF Ci3160RLM-THX Specifications:

• Series: R Series
• Nominal Impedance: 4Ω
• Sensitivity (2.83V/1m): 89dB
• Frequency Response (±6 dB) open-backed: 43Hz - 28kHz
• Frequency Range (-10 dB): 33Hz - 45kHz
• Nominal Coverage (degrees): 150°
• Crossover Frequency: 640Hz, 2.6kHz
• Drive Units:
  • LF: 2 x 160mm (6.5in.)
  • MF: 160mm (6.5in.) Uni-Q
  • HF: 25mm (1in.) vented aluminum dome with Metamaterial Absorption Technology
• Recommended Amplifier Power: 50 - 350 W
• Recommended High-pass Filter (Hz): 35Hz - 80Hz
• Product External Dimensions (H X W X D): 680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
• Cut-out Dimensions (H X W): 660 x 209mm (25.98 x 8.23in.)
• Net Weight: 12 kg (26.4 lbs.)
• Mounting Depth From Surface: 99mm (3.9in.)
• Optional Rough In Frame: RIF3160L
• Ideal Rear Volume (L): 60
• Minimum Rear Volume (L): 30
• Max SPL (dB): 110dB
• Certification: THX® Certified Ultra
• Wall Thickness (Maximum): 40mm (1.58in.)
• Wall Thickness (Minimum): 6mm (0.24in.)

What's Included:

• Ci3160RLM-THX In-Wall Speaker x 1
• Metal Grille x 1
• Cutout Template x 1
• Gasket x 4
• Hex Drill Tool x 1
• Wall Protection Tape x 3
• Warranty Booklet
• Manual

KEF Ci3160RLM-THX Downloads:
KEF Ci3160RLM-THX Manual
KEF Ci3160RLM-THX Cutout Template
KEF Ci3160RLM-THX Product Information Sheet
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
