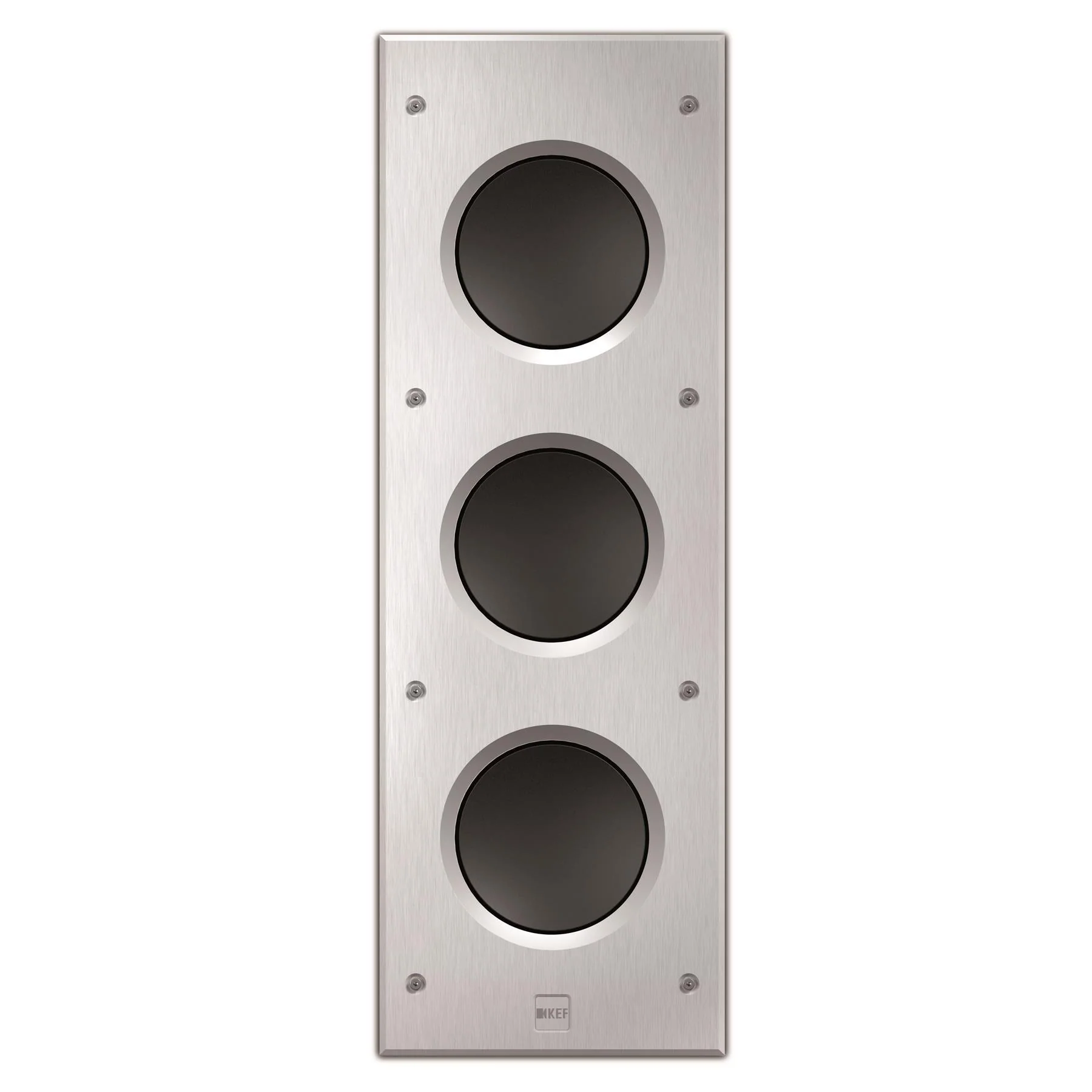

KEF Ci3160RLb-THX Ci-R Series THX-Certified In-Wall Subwoofer

KEF Ci3160RLb-THX In-Wall Subwoofer - THX Certified Ultra for Extreme Home Theatre

The KEF Ci3160RLb-THX In-Wall Subwoofer. THX Certified to Ultra standards, this powerhouse delivers deep bass and theater-quality sound, ensuring every moment is filled with drama and emotional intensity.

KEF Ci3160RLb-THX Key Features:

• THX Certified Ultra: Experience cinema-quality sound in the comfort of your home, with precise tonal balance and impactful action sequences.

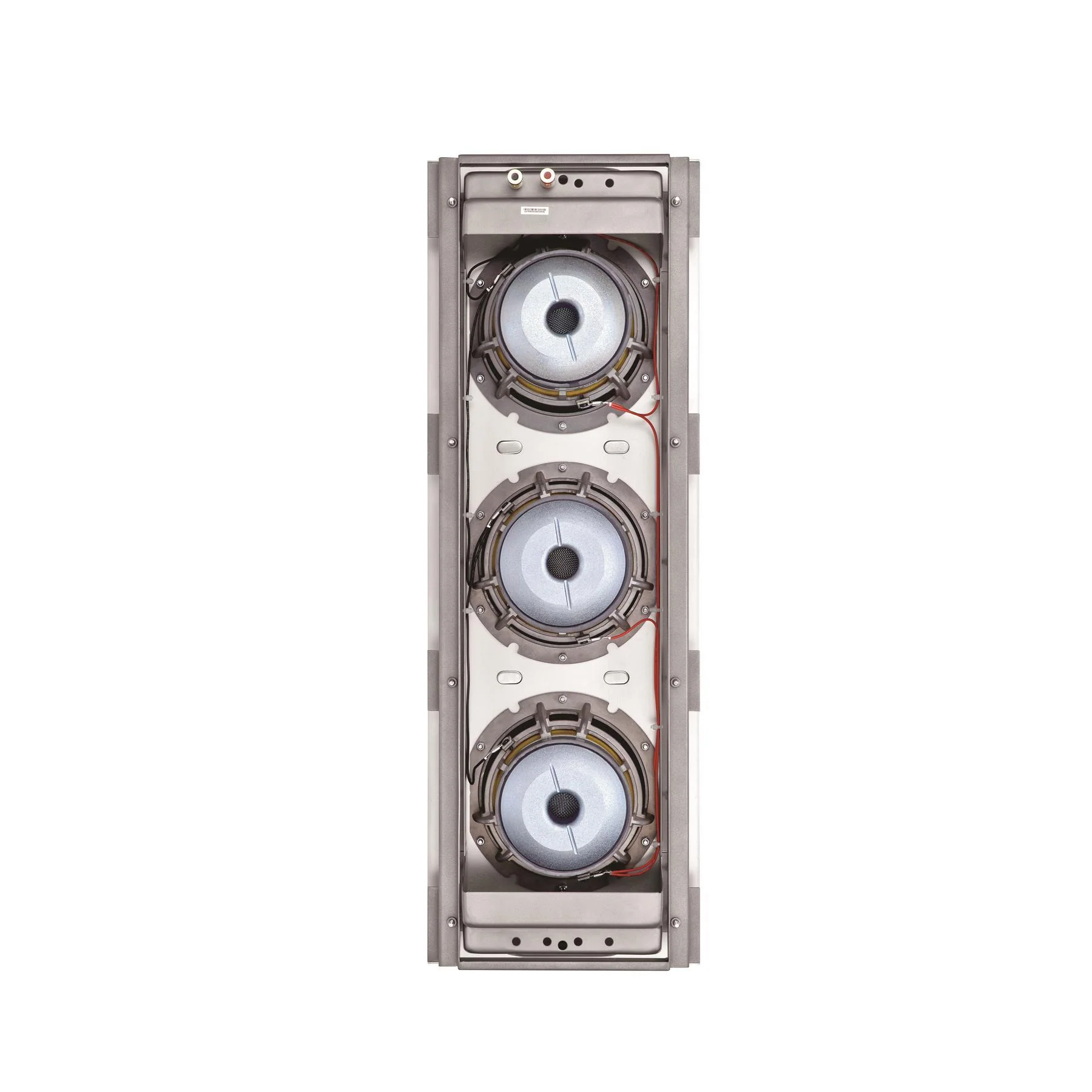

• High-Output Performance: Equipped with three 160mm sub-bass drivers mounted on a sturdy aluminum baffle for immersive sound reproduction.
• Seamless Integration: Pair with KEF's KASA500 system amplifier for optimal performance, powering up to two subwoofers for demanding installations.
• Sleek Design: In-wall installation preserves space while maintaining high-end audio quality, blending harmoniously with any interior.

KEF Ci3160RLb-THX Specifications:

• Nominal Impedance: 4 Ohms
• Sensitivity: 92dB (2.83V/ 1m)
• Frequency Response: 20Hz - 140Hz (±6dB) open-backed
• Drive Units: LF: 3 x 160mm (6.5 in.)
• Amplifier Requirements: KASA500
• Product Dimensions (H X W X D): 680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
• Cut-out Dimensions (H X W): 660 x 209mm (25.98 x 8.23 in.)
• Wall Thickness (Maximum): 40mm (1.58 in.)
• Wall Thickness (Minimum): 6mm (0.24 in.)

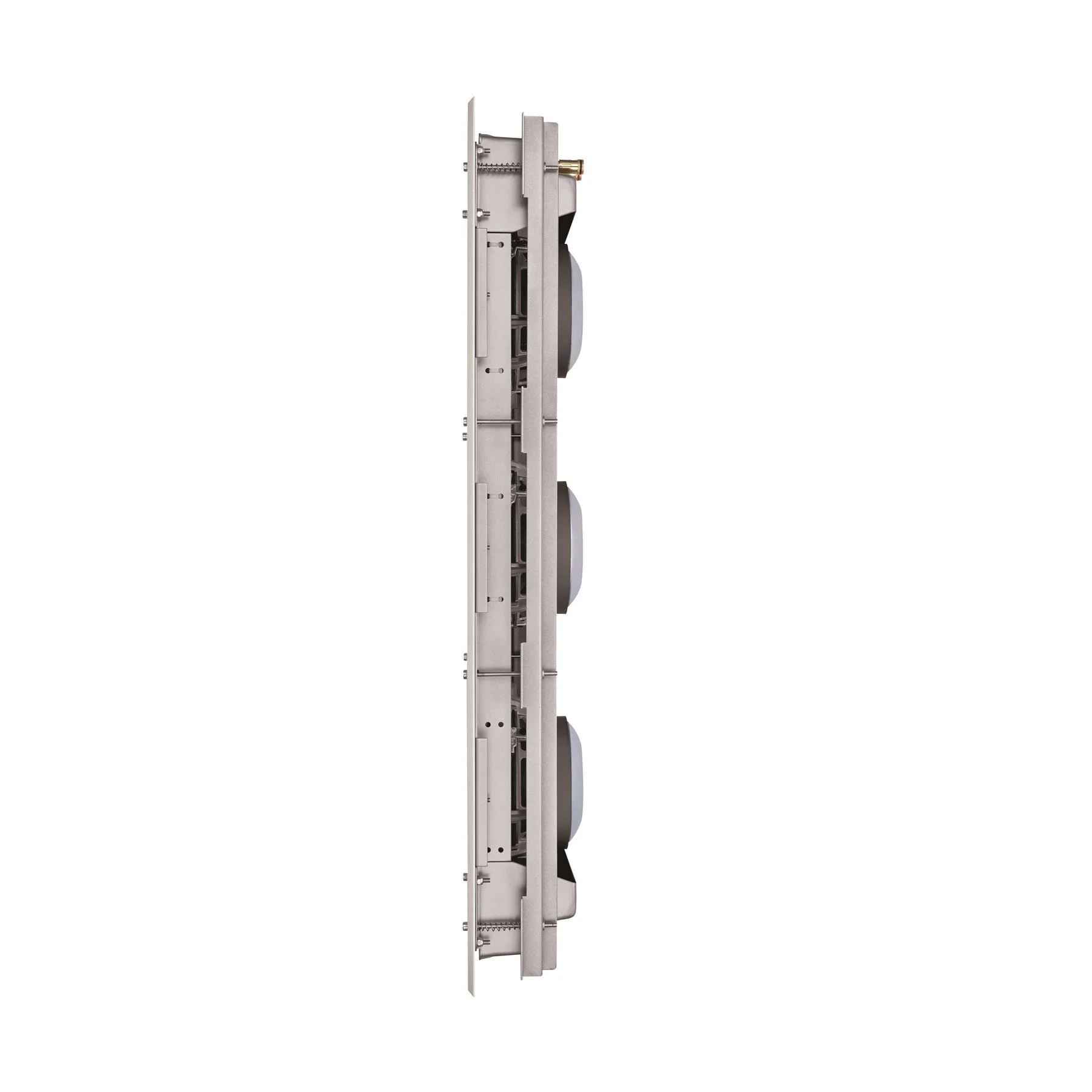

• Mounting Depth From Surface: 88.5mm (3.84 in.)
• Net Weight: 10.9 kg (24.1 lbs)

Elevate your home audio setup with the KEF Ci3160RLb-THX In-Wall Subwoofer - your gateway to cinematic sound quality.

KEF Ci3160RLb-THX Downloads
KEF Ci3160RLb-THX Manual
KEF Ci3160RLb-THX Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
