KEF Ci200QL Ci-Q Series In-Wall Speaker

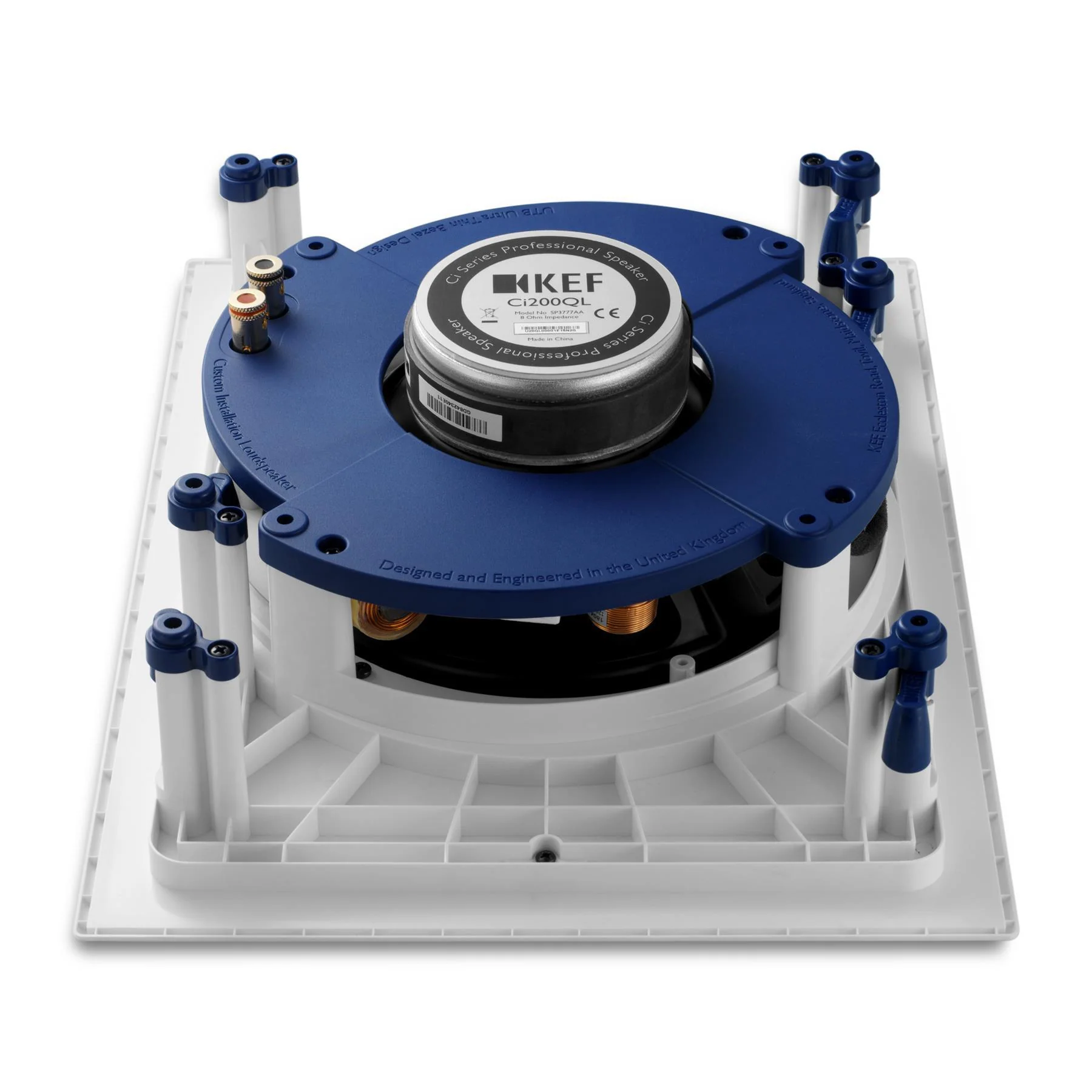

KEF Ci200QL In-Wall Speaker

KEF Ci200QL In-Wall Speaker, featuring innovative technology and sleek design for premium sound in any space. Designed for seamless integration into your wall or ceiling, this speaker boasts KEF's patented Uni-Q driver array, ensuring exceptional sound dispersion and coverage with fewer speakers needed.

Key Features:

• Uni-Q® Technology: KEF's signature Uni-Q driver array positions the tweeter in the acoustic center of the woofer, delivering wide dispersion and consistent sound characteristics throughout the room, virtually eliminating acoustic lobing issues common in other speaker designs.
• Tangerine Waveguide: Enhances dispersion for 115 degrees of coverage, ensuring a rich and immersive listening experience.
• Weather Resistant: Built to withstand harsh environments with UV-protected components and a durable construction.
• Ultra-Thin Bezel (UTB): Designed for a premium aesthetic, the thin bezel maintains structural rigidity while blending seamlessly with any décor.
• Magnetic Grille: Offers easy installation and security with a powerful magnetic attachment, paintable to match any room's style.
• IP64 Certification: Officially tested to withstand splashing water, ensuring reliability in various environments.

KEF Ci200QL Specifications:

• Nominal Impedance: 8 Ohm
• Sensitivity: 90dB (2.83V/1m)
• Crossover Frequencies: 2.5kHz
• Frequency Response: 35Hz - 34kHz (±6dB), open-backed
• Drive Units:
  • LF: 200mm (8in.)
  • HF: 25mm (1in.) Uni-Q
• Recommended Amplifier Power: 10-150W
• Product External Dimension (H X W X D): 369 x 273 x 106 mm (14.53 x 10.75 x 4.27 in.)
• Cut-Out Dimensions (H X W): 334 x 238 mm (13.15 x 9.37 in.)
• Mounting Thickness:
  • Ceiling Thickness (Maximum): 37mm (1.46 in.)
  • Ceiling Thickness (Minimum): 6mm (0.24 in.)
• Mounting Depth From Surface: 99.8mm (3.93in.)
• Optional Accessories:
  • Rough In Frame: RIF200L
  • Rear Enclosure: RNC200L
• Net Weight: 2.6kg (5.77lbs.)

Upgrade your audio setup with the KEF Ci200QL In-Wall Speaker, delivering unparalleled performance and style for both residential and commercial applications. Experience true audio excellence with KEF's renowned craftsmanship and engineering expertise.

KEF Ci200QL Downloads

KEF Ci200QL Manual
KEF Ci200QL Specification Sheet
KEF Ci200QL Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
