KEF Ci160TS Ci-T Series Ultra-Slim In-Wall Speaker
KEF Ci160TS Ci-T Series Ultra-Slim In-Wall Speaker
KEF Ci160TS from the Ci-T Series. Featuring the latest iteration of KEF's renowned 4.5in. mid/bass T Series driver and a powerful 1in. tweeter, these ultra-slim speakers redefine sound quality in spaces where installation space is limited. With a mounting depth of less than 36mm, the Ci160TS seamlessly fits into narrow ceiling or wall spaces, making it an ideal choice for luxury high-rise apartments or any music system where space is at a premium.

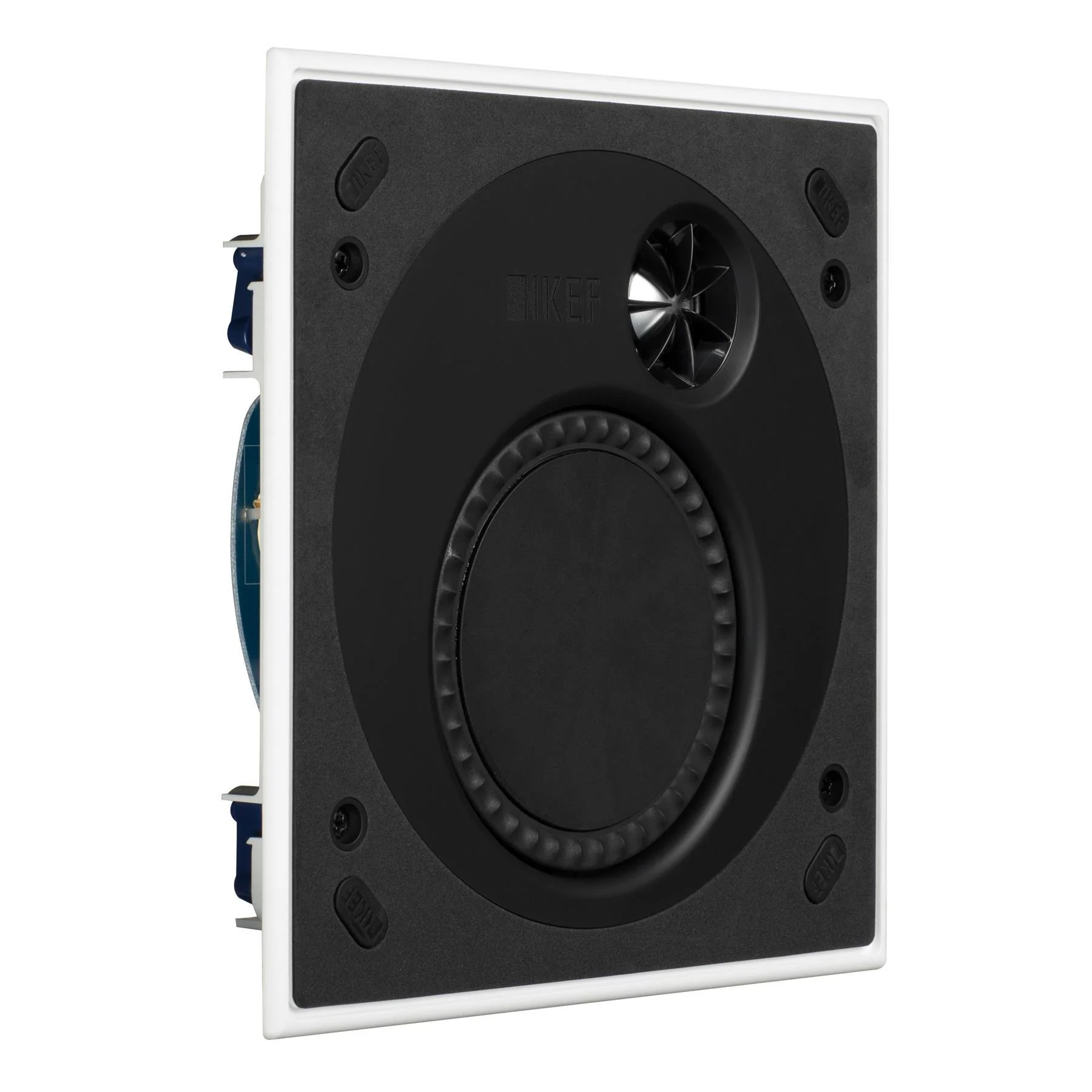

Product Overview: The KEF Ci160TS is an ultra-slim, high-performance in-ceiling speaker designed for flush mount installations where mounting depth is a concern. With a total height of just 40mm and a mounting depth of only 36mm, this speaker delivers exceptional sound quality without sacrificing space. Its compact design is achieved through the integration of KEF’s patented low-profile 115mm mid-bass driver and a 25mm vented aluminum tweeter, featuring KEF’s Tangerine Waveguide™ for improved dispersion and acoustic response. Additionally, the Ci160TS boasts KEF’s Ultra-Thin Bezel (UTB) and is moisture resistant, making it suitable for indoor or outdoor use in areas where conventional speakers cannot be installed due to shallow mounting depths.
KEF Ci160TS Key Features:
- Patented Low Profile Driver: Flat 115mm mid-bass driver delivers excellent bass extension within a slim design.
- Tangerine Waveguide™: Enhances dispersion for a wide coverage area of up to 160 degrees.
- Weather Resistant: UV protected and moisture resistant construction for use in various indoor and outdoor environments.
- Ultra-Thin Bezel (UTB): Thin ABS bezel maintains structural rigidity while preserving aesthetics.
- Magnetic Grille Assembly: Easy installation and security with a paintable grille that attaches magnetically.
- Versatile Installation: Can be mounted in tight spaces using traditional dog leg tabs or direct screw installation.
- IP64 Certification: Ensures resistance to splashing water for added durability.
KEF Ci160TS Specifications:
- Nominal Impedance: 8 Ohm
- Sensitivity: 87dB (2.83V/1m)
- Crossover Frequencies: 1.7kHz
- Frequency Response: 110Hz - 24kHz (+/-6dB)
- Drive Units: LF: 115mm (4.5in. Dual layer), HF: 25mm (1in.)
- Recommended Amplifier Power: 10-100W
- Product External Dimension (H x W x D): Diameter: 222.8x222.8 mm (8.77 x 8.77 in.), Depth: 41mm (1.61in.)
- Cut-Out Dimensions (H x W): 194 x 194 mm (7.64 x 7.64 in.)
- Mounting Thickness: Ceiling Thickness (Maximum): 26mm (1.03 in.), Ceiling Thickness (Minimum): 9mm (0.36 in.)
- Mounting Depth From Surface: <36mm (1 7/16in.)
- Optional Rough In Frame: RIF160S
- Optional Rear Enclosure: RNC160S
- Net Weight: 1.05kg (2.31lbs)
Upgrade your audio system with the KEF Ci160TS Ci-T Series Ultra-Slim In-Wall Speaker and experience immersive sound in any space.
KEF Ci160TS Downloads
KEF Ci160TS Manual
KEF Ci160TS Specification Sheet
KEF Ci160TS Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
