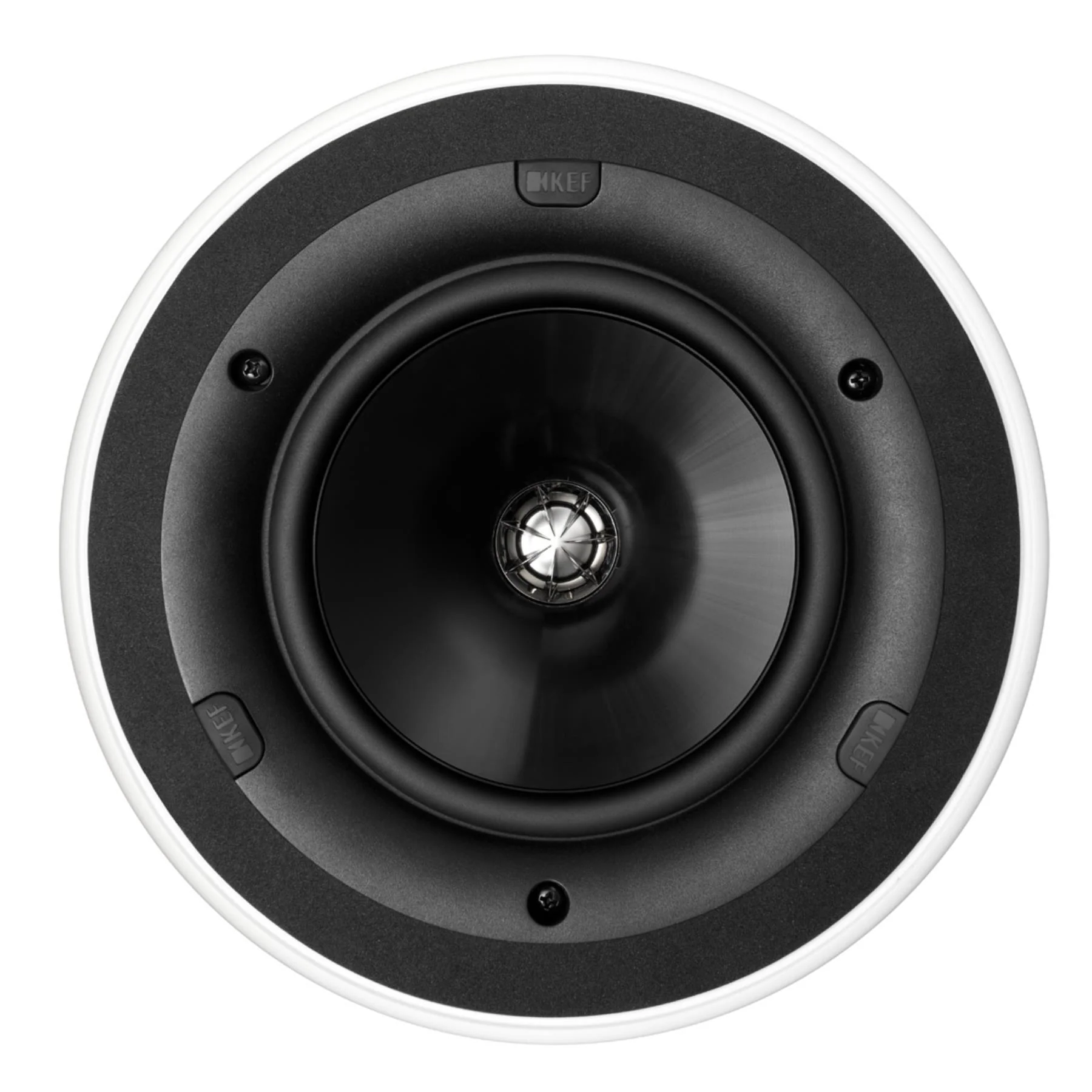

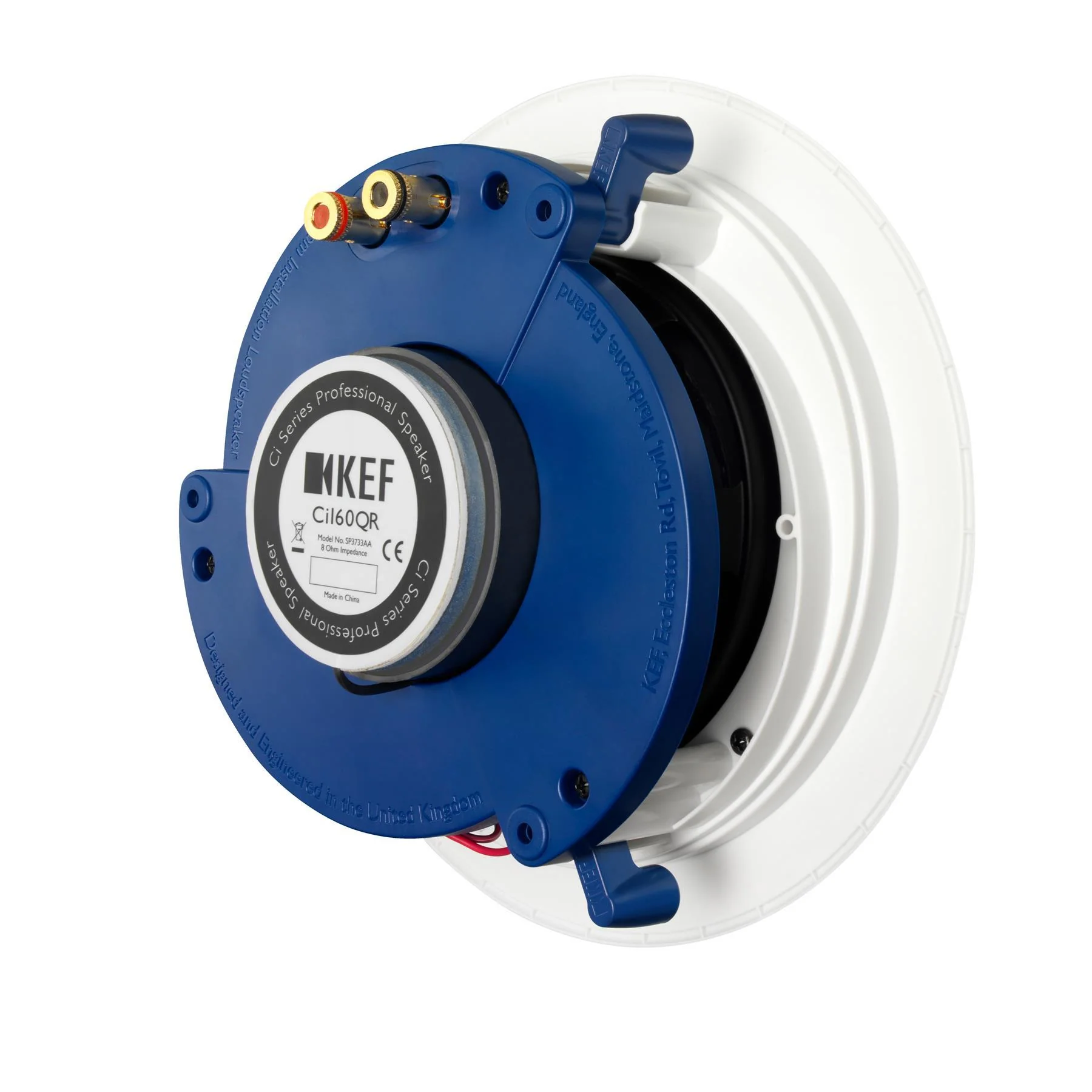

KEF Ci160QR Ci-Q Series In-Ceiling Speaker

KEF Ci160QR Ci-Q Series In-Ceiling Speaker

The KEF Ci160QR In-Ceiling Speaker from the renowned Ci-Q Series. Designed for seamless integration and premium sound performance, this speaker boasts KEF’s patented Uni-Q driver array technology, delivering exceptional audio dispersion and clarity. Transform any space into a sophisticated listening environment with this stylish and versatile speaker.

KEF Ci160QR Key Features:

• Uni-Q Driver Array: Featuring KEF’s patented Uni-Q driver array, this speaker places the tweeter in the acoustic center of the bass/midrange cone, ensuring wide dispersion and consistent sound characteristics throughout the room.
• Tangerine Waveguide: Enhanced dispersion is achieved with KEF’s Tangerine Waveguide, providing 125 degrees of coverage for a more immersive listening experience.
• Weather Resistant: Constructed with weather-resistant components and a UV protective finish, this speaker is ideal for both indoor and outdoor use, making it perfect for premium commercial venues.
• Ultra-Thin Bezel (UTB): The sleek Ultra-Thin Bezel design offers a minimalist aesthetic while maintaining structural rigidity for easy installation and a premium look.
• Magnetic Grille: For added convenience and security, the grille attaches via a powerful magnetic circuit and can be painted to match any décor.
• IP64 Certification: Officially tested to withstand splashing water, ensuring durability and reliability even in harsh environments.

KEF Ci160QR Specifications:

• Nominal Impedance: 8 Ohm
• Sensitivity: 89dB (2.83V/1m)
• Crossover Frequencies: 3.0kHz
• Frequency Response: 38Hz - 34kHz (±6dB)
• Drive Units: LF: 160mm (6.5in.), HF: 19mm (0.75in.)
• Recommended Amplifier Power: 10 - 125W
• Product Dimensions (H x W x D): Diameter: 234.6mm (9.24in.), Depth: 98mm (3.86in.)
• Cut-Out Dimensions (H x W): Diameter: 196mm (7.71in.)
• Mounting Thickness: Ceiling Thickness (Maximum): 36mm (1.42in.), Ceiling Thickness (Minimum): 6mm (0.24in.)
• Mounting Depth From Surface: Product Only: 91mm (3.58in.)
• Optional Rough-In Frame: RIF160R
• Net Weight: 2.05kg (4.51lbs.)

Transform your space with the premium sound quality and elegant design of the KEF Ci160QR In-Ceiling Speaker. Experience audio excellence like never before.

KEF Ci160QR Downloads

KEF Ci160QR Manual
KEF Ci160QR Specification Sheet
KEF Ci160QR Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
